The TP-LINK Omada EAP660 HD Dual-band WiFi 6 access point is a powerful and easily scalable MU-MIMO access point designed for business use, providing a fast and far-reaching wireless network with just one unit. Its sleek design allows for ceiling or wall installation using the included mounting accessories. Management and setup are quick and easy with the cloud-managed Omada controller software or the Omada mobile app. There’s no need for separate licenses or usage fees, making it accessible for everyone. Expanding your network is a breeze with the software, allowing you to add more Omada access points effortlessly. You can manage all access points simultaneously through this software-based management, enabling virtually unlimited scalability for your network. Learn more about the software here.

Features:

• Cloud-based management
• Band Steering technology intelligently directs devices that support 5.0 GHz frequency to use it, enhancing overall network performance, especially in high-density environments.
• Supports MU-MIMO and OFDMA
• Handles over 250 simultaneous WiFi users, depending on conditions

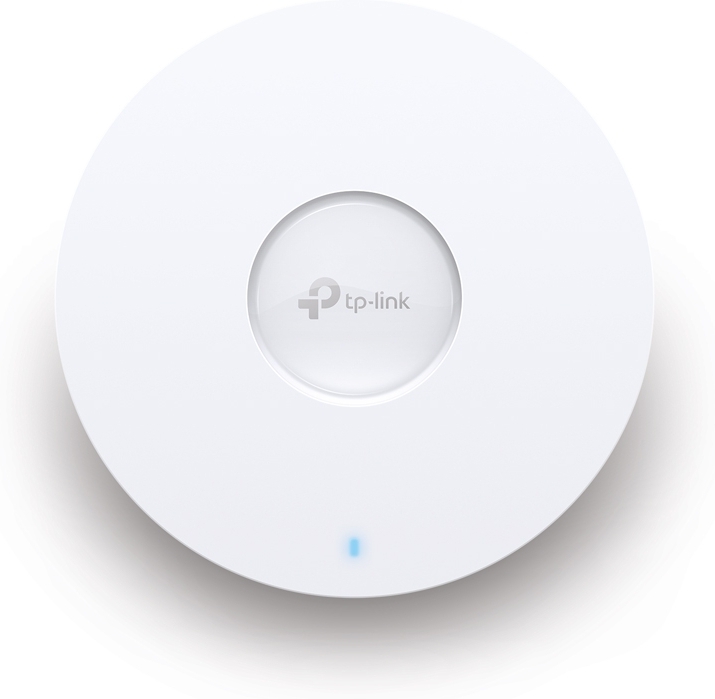

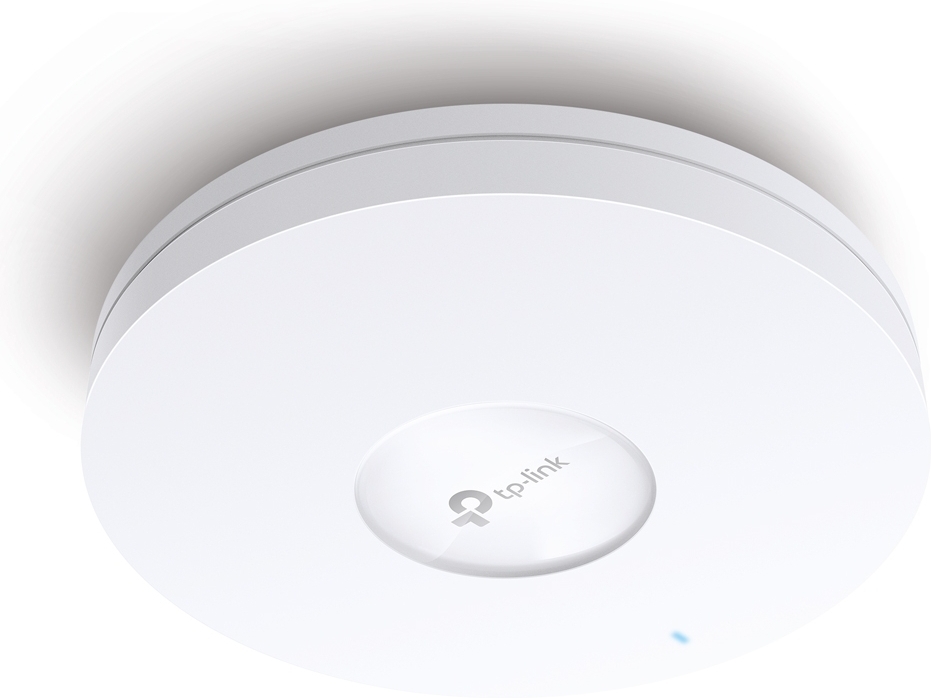

• Can be mounted on the ceiling like a smoke detector
• Customizable client speed control for each network, preventing any single device from hogging all the bandwidth.
• Access Control feature restricts client access to internal networks, such as company resources.
• Can be scheduled to reboot automatically, for example, once a week.
• Load balancing ensures stable connections for all clients in large environments.
• Rogue AP Detection feature identifies unwanted access points and prevents them from accessing the network.
• Omada Mesh support*
• Seamless roaming*
• Cloud Access*
• Captive Portal service allows you to easily create access rights for guests. Users will need to accept terms of service and enter a visitor password*
• (Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access setup require an OMADA SDN controller, such as Product 527264 or Product 690655)

Technical Specifications:

• WiFi 6 speeds of up to 1148 Mbps on the 2.4 GHz band and up to 2402 Mbps on the 5.0 GHz band
• Fully compatible with 802.11a/b/g/n/ac/ax standards
• Secure and stable, supports 64/128/152-bit WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise security
• Multiple SSID (up to 16 separate networks)

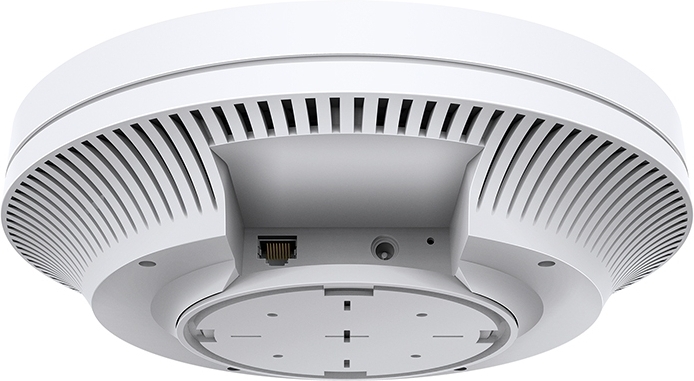

• Connections: 1 x RJ45 PoE+ 2.5 Gigabit, power connector
• Power over Ethernet IEEE802.3at PoE+
• MIMO antennas, with a total of 6 internal antennas (4 x 4 dBi 2.4 GHz and 4 x 5 dBi 5 GHz)
• Dustproof
• Dimensions: 243 × 243 × 64 mm

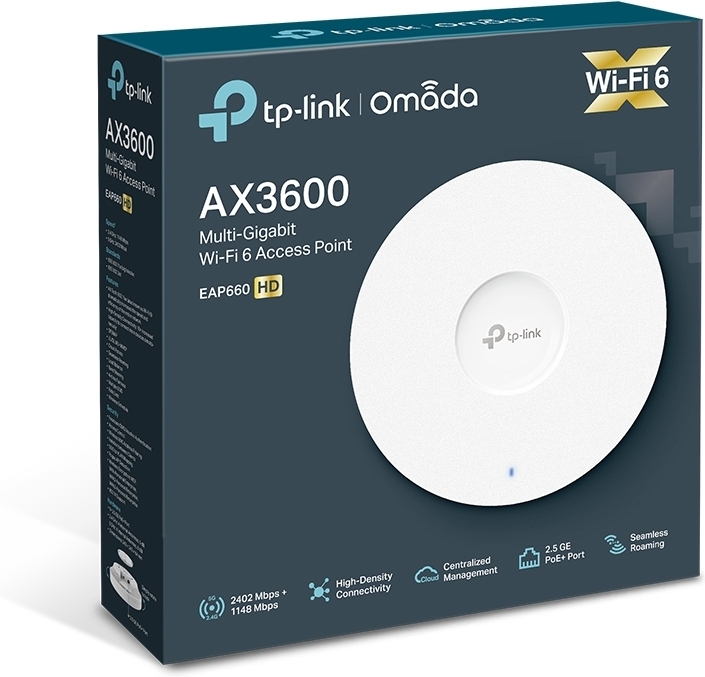

• Package contents: Omada EAP660 HD WiFi 6 access point, 12 V power supply, wall/ceiling mount, installation guide
• Alternatively, power can be supplied via an 802.3at PoE switch or PoE injector, such as Product 842521 or Product 872725
