| Color | White |
|---|---|
| Country of Origin | China |
| PID | 1020314 |
| Product depth (mm) | 33 |
| Product height (mm) | 215 |
| Product weight (g) | 800 |
| Product width (mm) | 215 |
| WiFi | Yes |
| Wireless network standard | Wi-Fi 7 (802.11be) |
| Ethernet speed | 100/1000/10000 |
| Ethernet (RJ-45) ports quantity | 1 |
| MIMO | Yes |
| Suitable for outdoor use | No |
| Electronic address of single contact point | |
| Manufacturer address | 37F., No. 7, Sec. 5, Xinyi Rd, Xinyi Dist., 11049 Taipei City, Taiwan |
| Manufacturer's email address | |
| Manufacturer name | Ubiquiti (Taiwan) Sales Limited |
| EU Responsible Person | Ubiquiti International Holding B.V. |

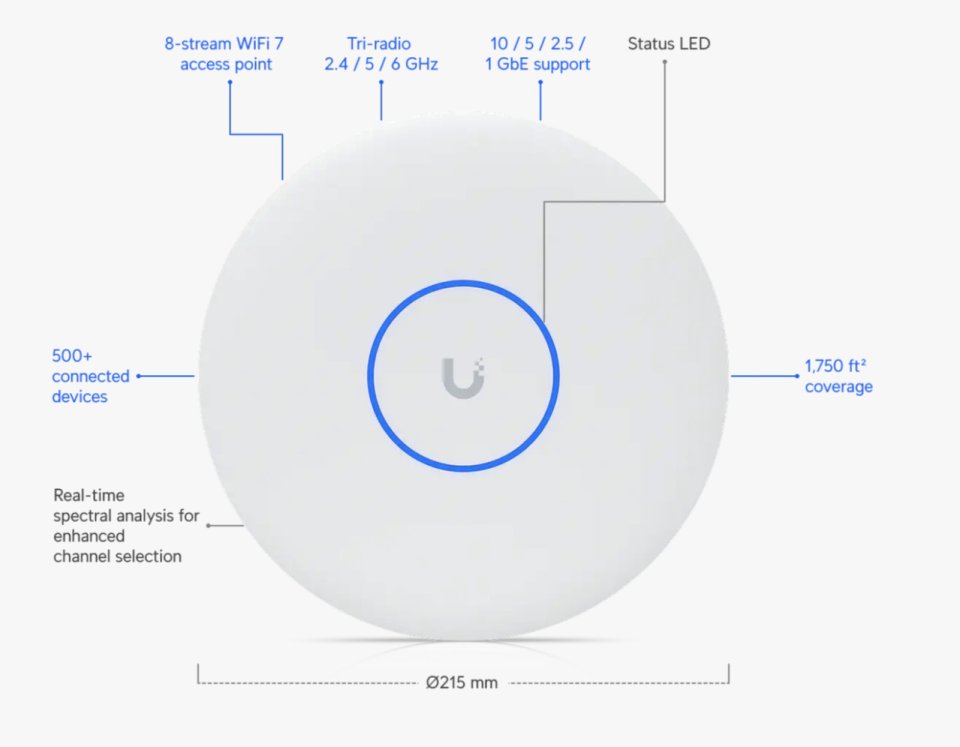

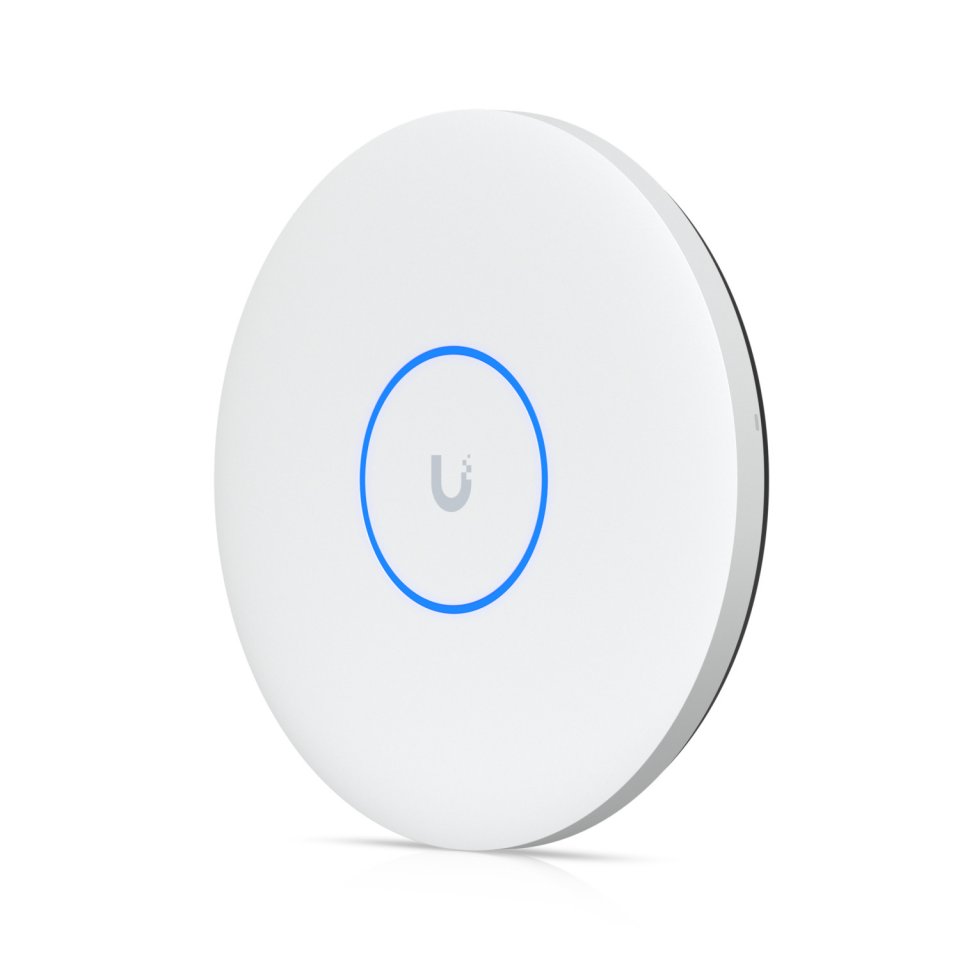

The Ubiquiti U7-Pro-XGS is a ceiling-mounted WiFi 7 access point designed to deliver fast and reliable wireless connectivity for up to 500 users. It operates across three frequency bands (2.4 GHz, 5 GHz, and 6 GHz) and covers an area of up to 160 m², making it suitable for offices, public spaces, and other demanding environments. The device combines strong performance, versatile management features, and flexible installation options.
The U7-Pro-XGS supports the WiFi 7 standard, enabling high-speed data transfer on three frequency bands. It offers speeds up to 5.8 Gbps on the 6 GHz band, 8.6 Gbps on 5 GHz, and 688 Mbps on 2.4 GHz. With 8 spatial streams, the device enhances wireless capacity and connection stability. Multi User MIMO technology allows multiple devices to connect simultaneously without slowing down the network.
Internal antennas provide 6 dBi gain on the 6 GHz and 5 GHz bands, and 4 dBi on 2.4 GHz. Transmission power is 24 dBm (6 GHz), 29 dBm (5 GHz), and 23 dBm (2.4 GHz), ensuring good signal range and quality.
This access point includes features like wireless mesh networking, band steering, fast roaming (802.11r), radio resource management (802.11k), and BSS transition management (802.11v). These tools help maintain a stable network and smooth user experience, even with many users or when moving around the area.
Security features include Private Pre-Shared Key (PPSK), guest network isolation, RADIUS support with TLS encryption, and dynamic VLAN assignment. Additionally, WiFi scheduling, bandwidth limits, and device isolation options provide flexible and secure network control.

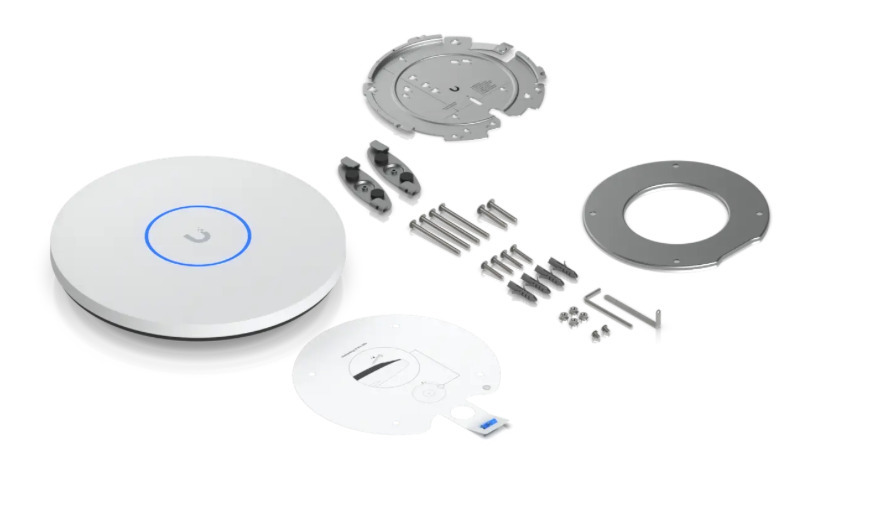

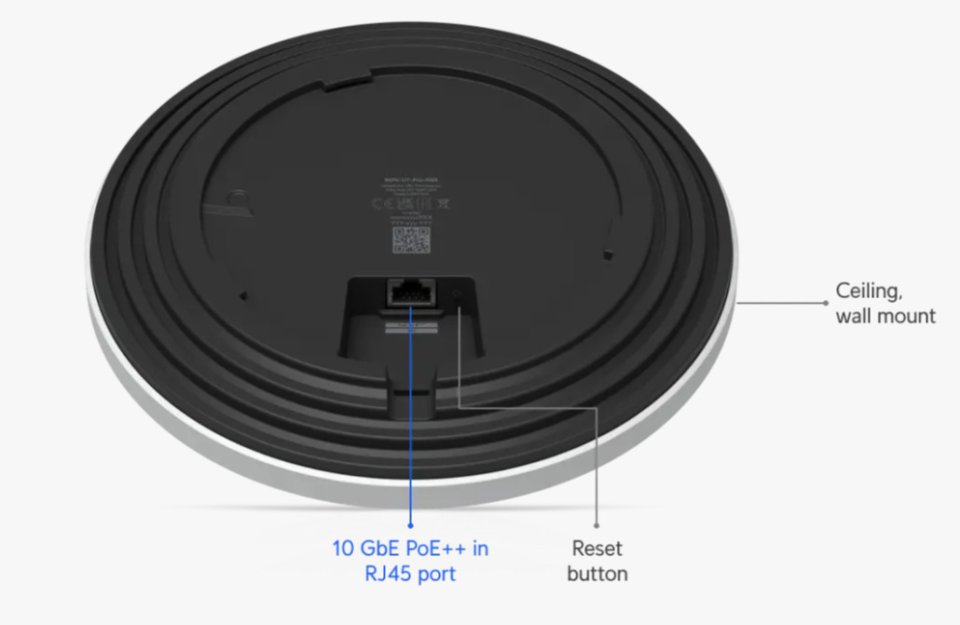

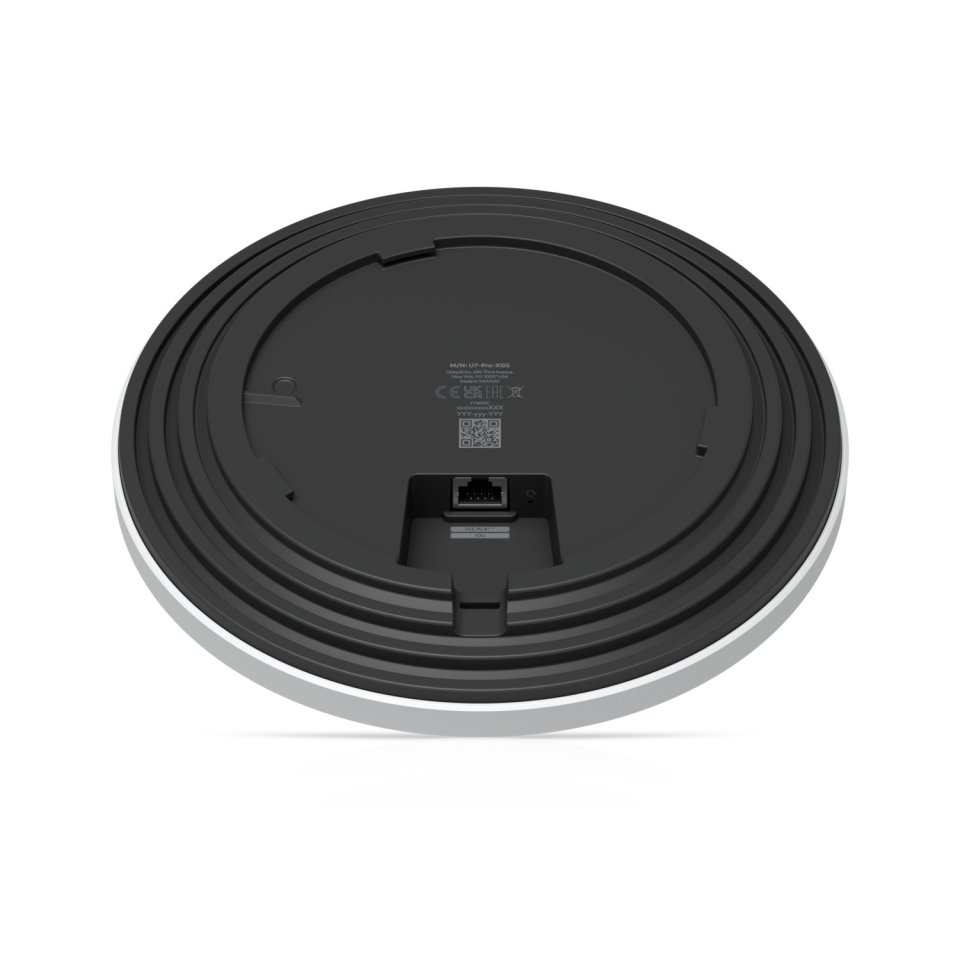

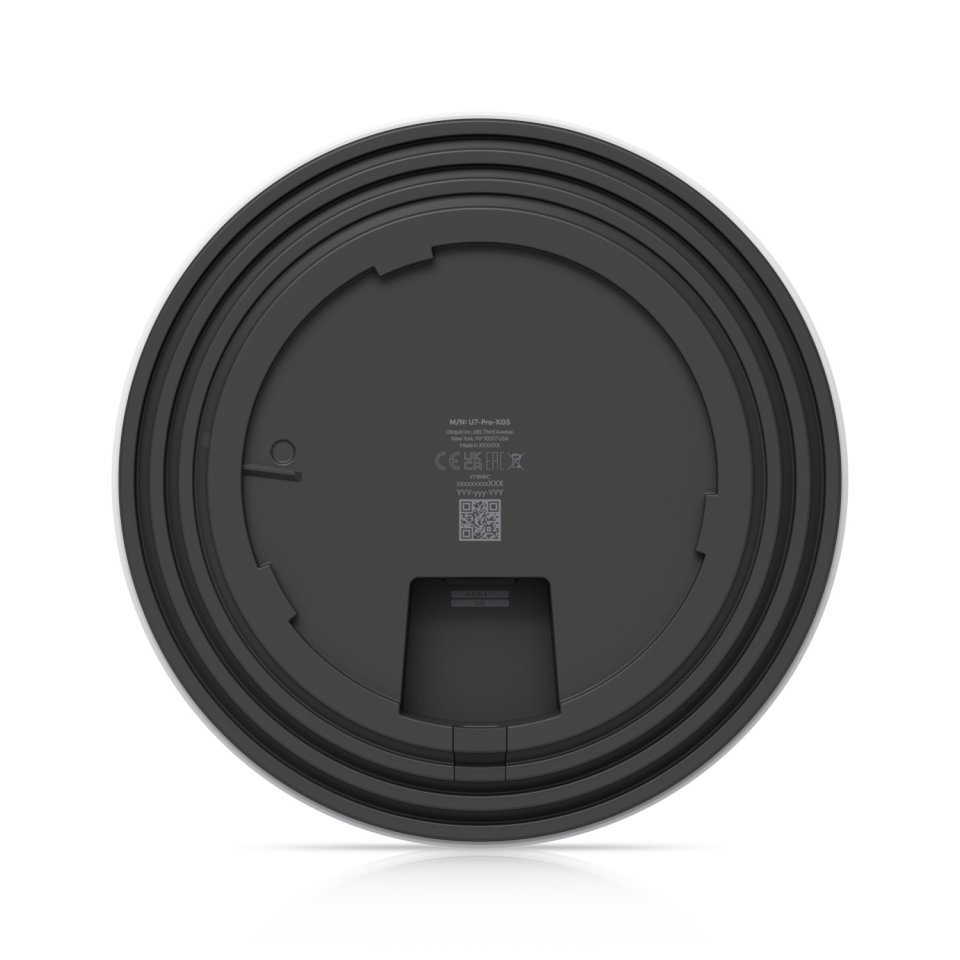

The U7-Pro-XGS has a single 10 GbE RJ45 port that supports PoE++ (4PPoE) power delivery, allowing easy installation without a separate power supply. It can be mounted on ceilings or walls using the included installation kit.

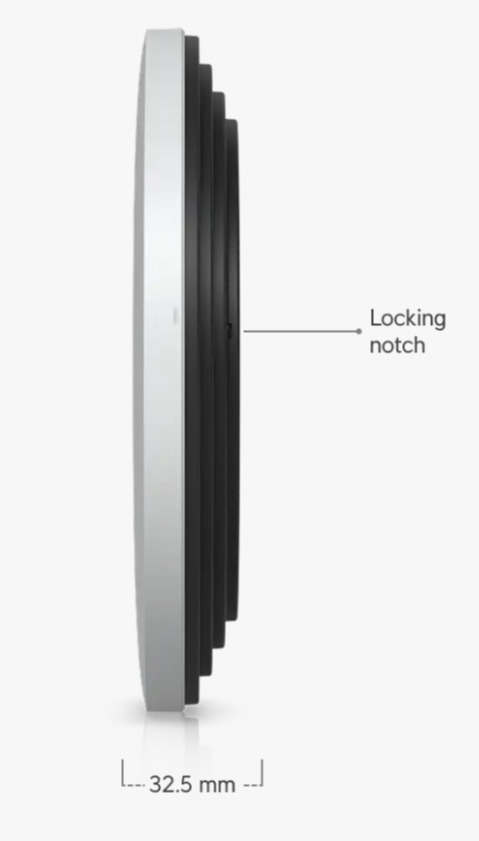

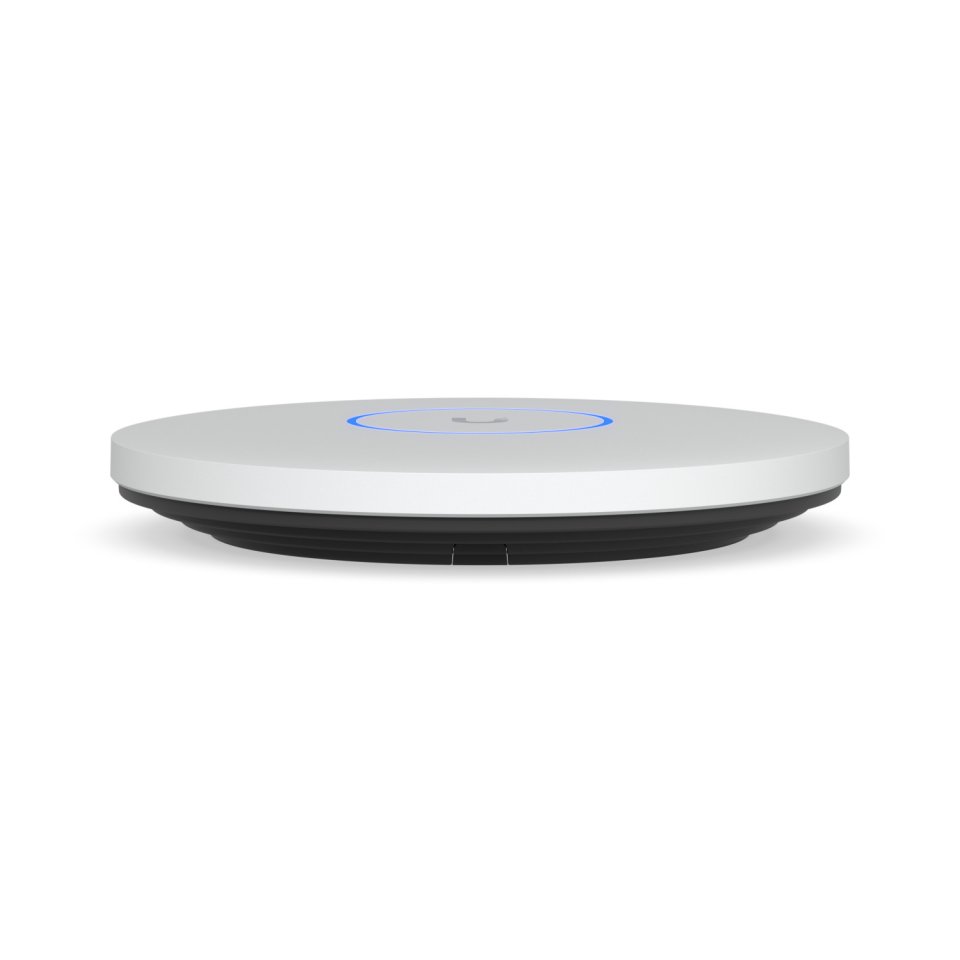

The enclosure combines metal and polycarbonate for durability. The unit measures 215 mm x 215 mm x 32.5 mm and weighs 800 g. It operates within a temperature range of -30 to 40 °C and handles relative humidity from 5 to 95 %.

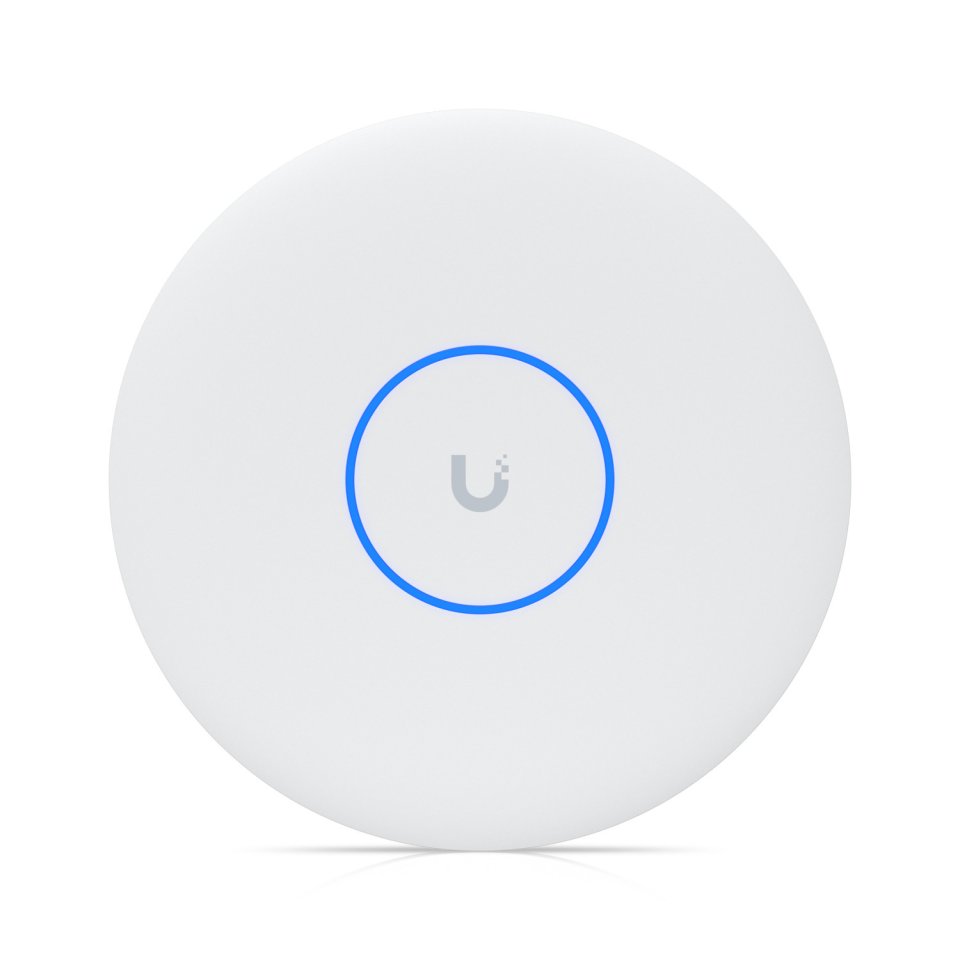

The device offers real-time spectrum analysis and zero-latency DFS functionality to detect and manage interference. Hotspot 2.0 (Passpoint) support enables seamless login in public networks. It also features a white/blue LED status indicator and a reset button.
The U7-Pro-XGS complies with CE, FCC, and IC certifications and meets NDAA requirements, ensuring compatibility and security across various markets.
6 in stock
