A scalable WiFi 6 MU-MIMO access point designed for business use creates a fast and long-range wireless network with just one access point. The stylishly designed device can be mounted on the wall with the included screws. Management and deployment are quick and easy with the included cloud-managed Omada controller software or the Omada mobile app. Using the devices does not require any separately purchased license or usage fee. The software also makes it easy to extend the network range by adding new Omada access points. All access points can be managed simultaneously with the software. This software-based management essentially allows unlimited network scalability. Read more about the software here.

Features:

• Cloud-based management
• Band Steering technology detects devices that support the 5.0 GHz frequency and directs them to use it. This improves overall network performance, especially in high client density environments.
• MU-MIMO and OFDMA support
• HE160 support
• Supports over 250 simultaneous WiFi users depending on conditions
• The access point can be installed on the ceiling like a smoke detector.
• Each network can have client-specific speed control, preventing any client device from reserving all capacity for itself.
• Access Control function can restrict client access, for example, to the company’s internal network.
• The access point can be scheduled to restart itself, for example, once a week.
• Load balancing ensures a stable connection for all clients in large environments.
• Rogue AP Detection function searches for unwanted access points in the network and blocks their access.
• Omada Mesh support*
• Seamless roaming*
• Cloud Access*
• Captive Portal service conveniently creates access rights for company guests. With this service, users must, for example, accept terms of use and enter a guest password*

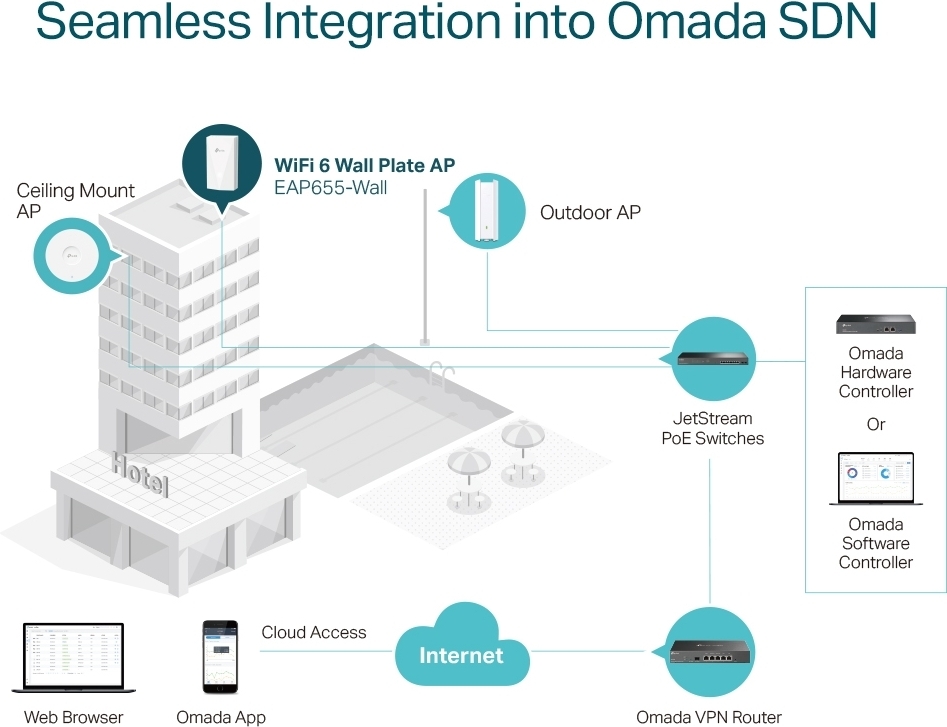

• (Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require OMADA SDN controller, e.g., Product 527264 or Product 690655)

Technical specifications:

• WiFi 6 speed up to 574 Mbps at 2.4 GHz frequency and up to 2402 Mbps at 5.0 GHz frequency
• Dual-band – two simultaneously active transmission bands on two different frequencies (2.4 GHz and 5 GHz), with a combined wireless speed of up to 3 Gbps
• Supports over 100 simultaneous users
• Fully compatible with 802.11b/g/n/ac/ax standards
• Secure and stable, supports WEP / WPA-Personal/Enterprise / WPA2-Personal/Enterprise / WPA3-Personal/Enterprise encryption
• Multiple SSID (max. 16 separate networks)

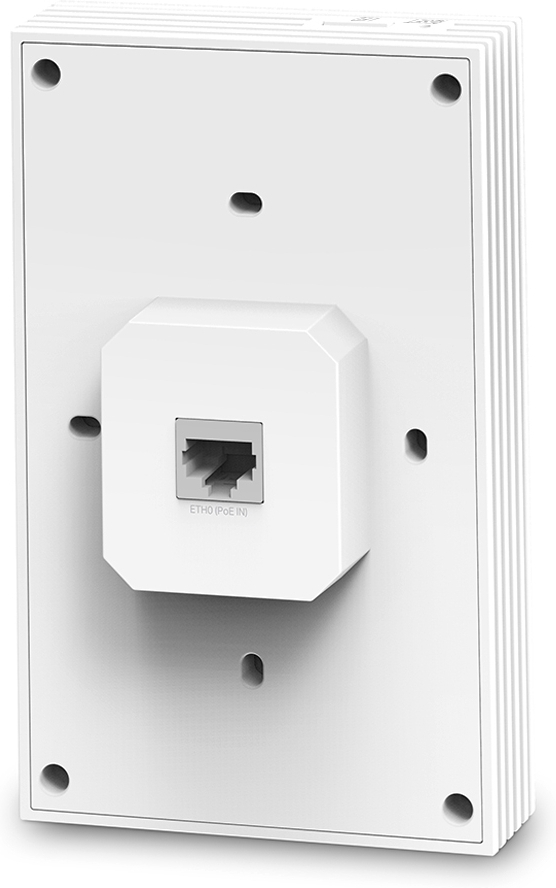

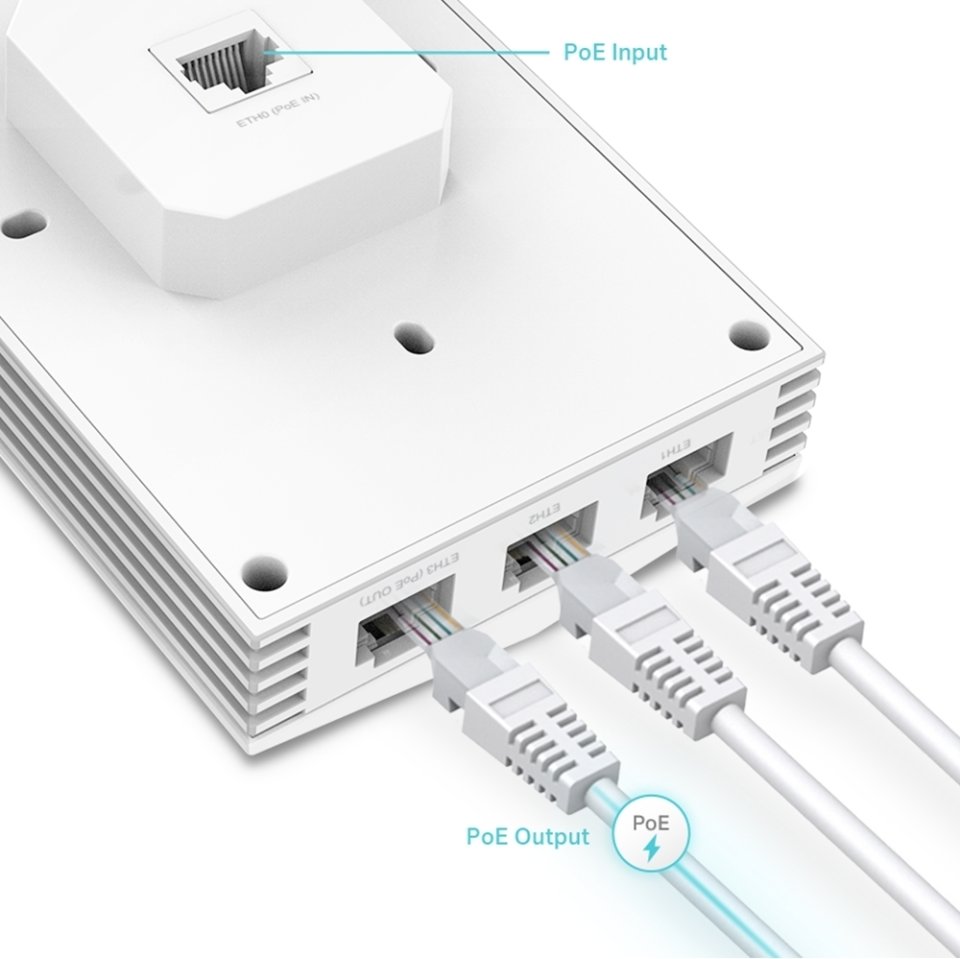

• Connections: 1 x Gigabit RJ45 WAN (PoE in), 3 x Gigabit RJ45 LAN (One port supports PoE out. PoE out support requires 802.3at PoE+ power supply)
• Power over Ethernet (IEEE802.3af/at PoE) support
• Antennas: 2.4 GHz: 2× 3 dBi and 5 GHz: 2× 5 dBi
• Power consumption: 12 W (802.3at PoE, PoE Out off)
• Dimensions: 143 × 86 × 42.6 mm
• Package contents: Omada EAP655-Wall WiFi 6 access point, installation kit, installation guide
