| Color | White |
|---|---|
| Country of Origin | China |
| PID | 1020308 |
| Product depth (mm) | 56 |
| Product height (mm) | 152 |
| Product weight (g) | 409 |
| Product width (mm) | 152 |
| WiFi | Yes |
| Wireless network standard | Wi-Fi 6 (802.11ax) |
| Ethernet speed | 10/100/1000 |
| Ethernet (RJ-45) ports quantity | 1 |
| Product Family | UISP |
| Suitable for outdoor use | Yes |
| Electronic address of single contact point | |
| Manufacturer address | 37F., No. 7, Sec. 5, Xinyi Rd, Xinyi Dist., 11049 Taipei City, Taiwan |
| Manufacturer's email address | |
| Manufacturer name | Ubiquiti (Taiwan) Sales Limited |
| EU Responsible Person | Ubiquiti International Holding B.V. |

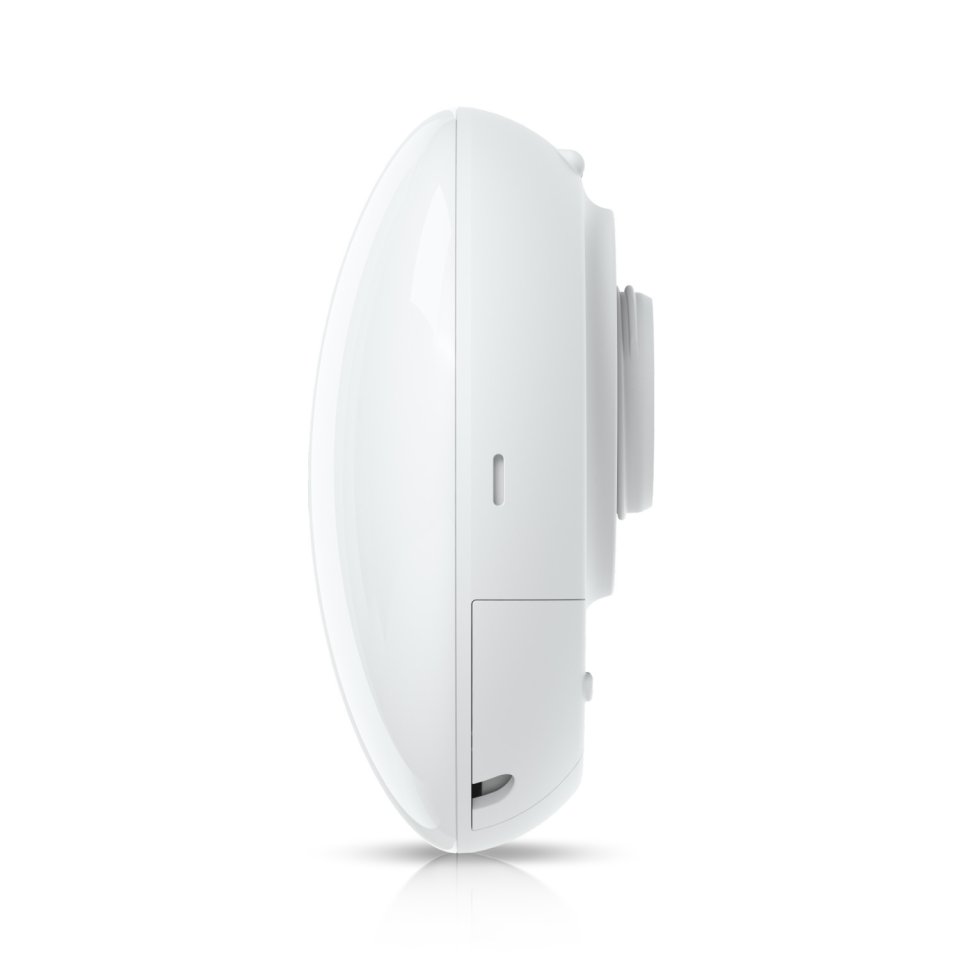

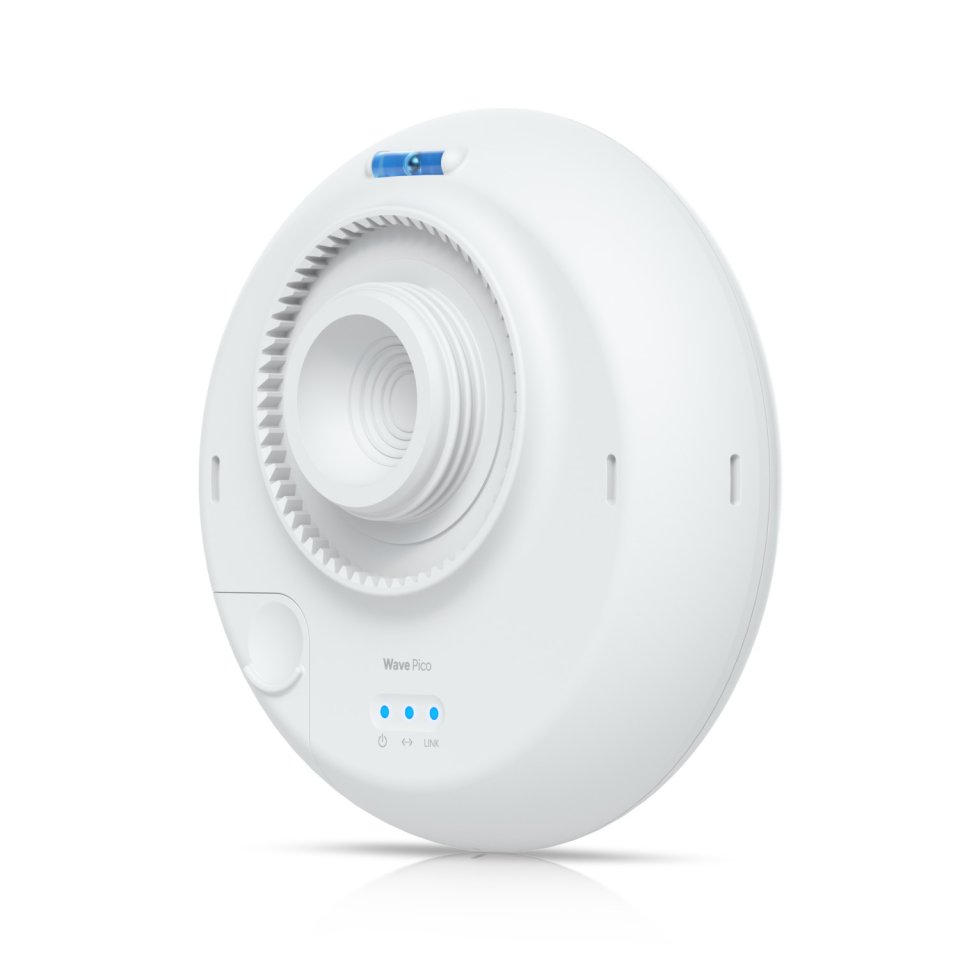

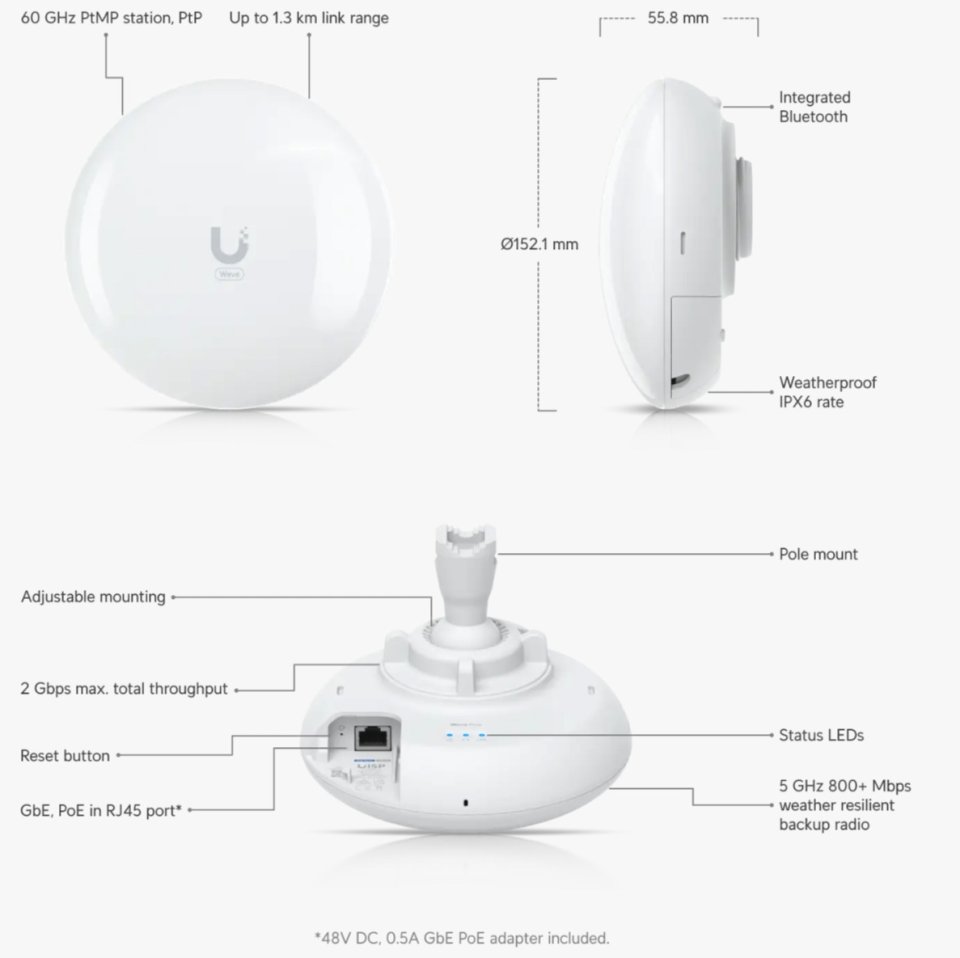

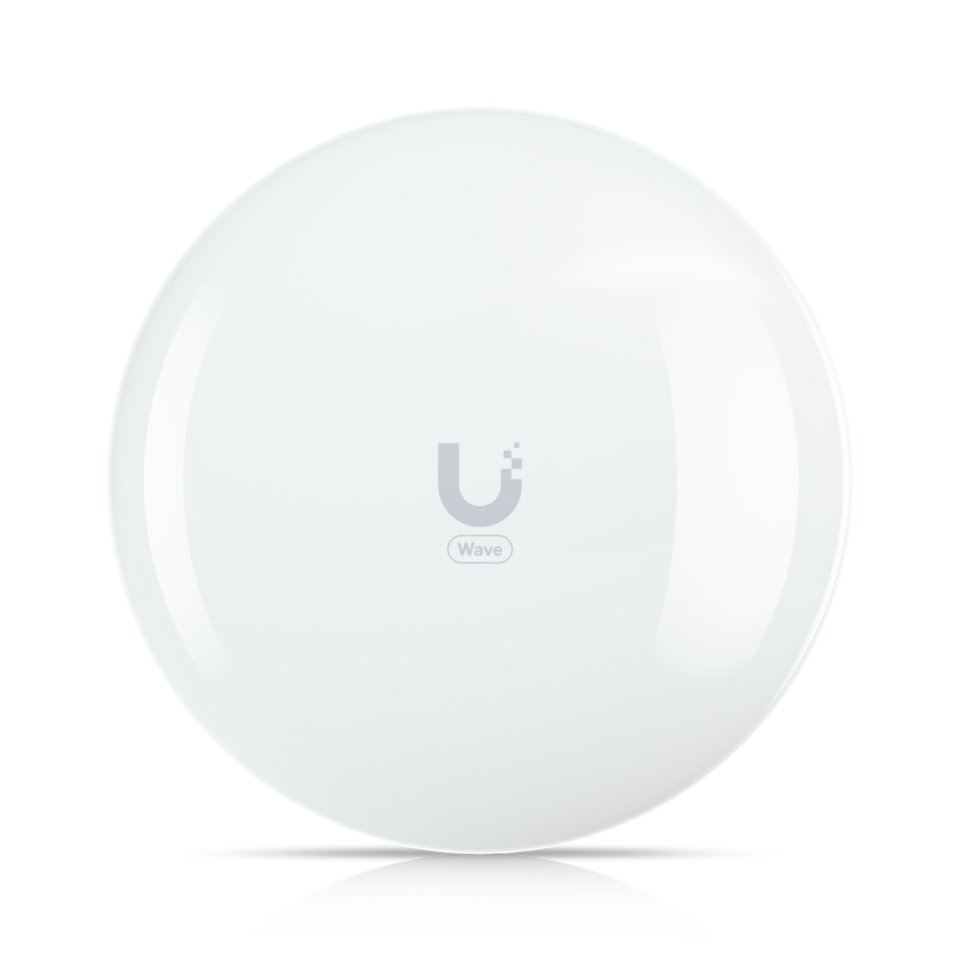

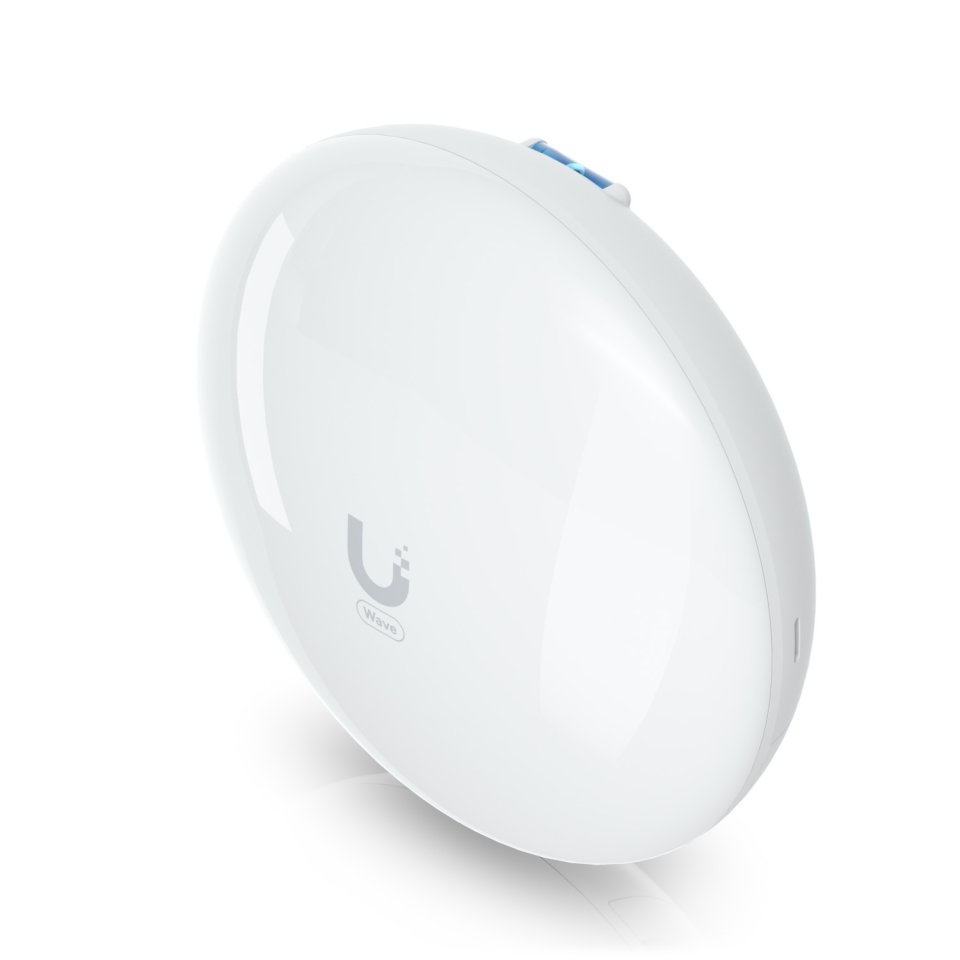

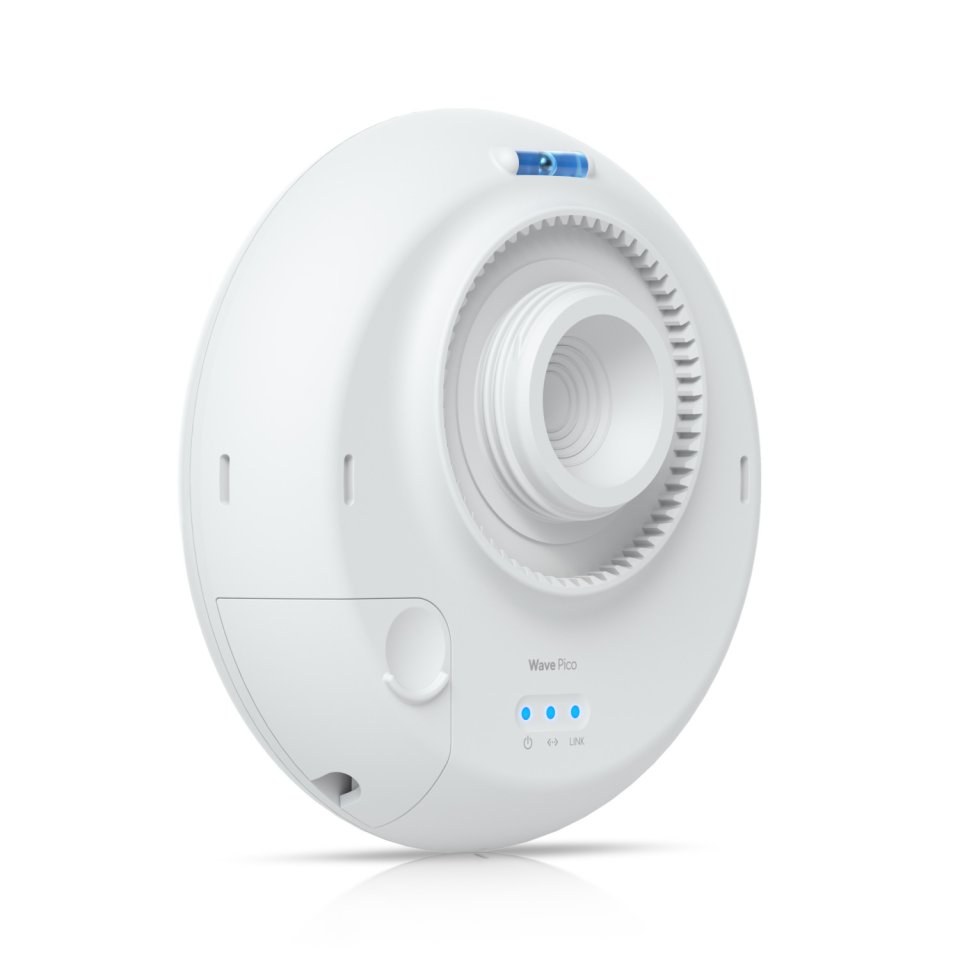

The Ubiquiti Wave-Pico is a lightweight and compact 60 GHz PtMP station that uses Wave technology to deliver high-speed wireless connectivity up to 1.3 kilometers. Designed for outdoor use, it includes a built-in 5 GHz backup connection to maintain reliable performance even in challenging weather conditions. Wave-Pico is ideal for users who need a dependable, fast, and easy-to-install wireless bridge for outdoor environments.

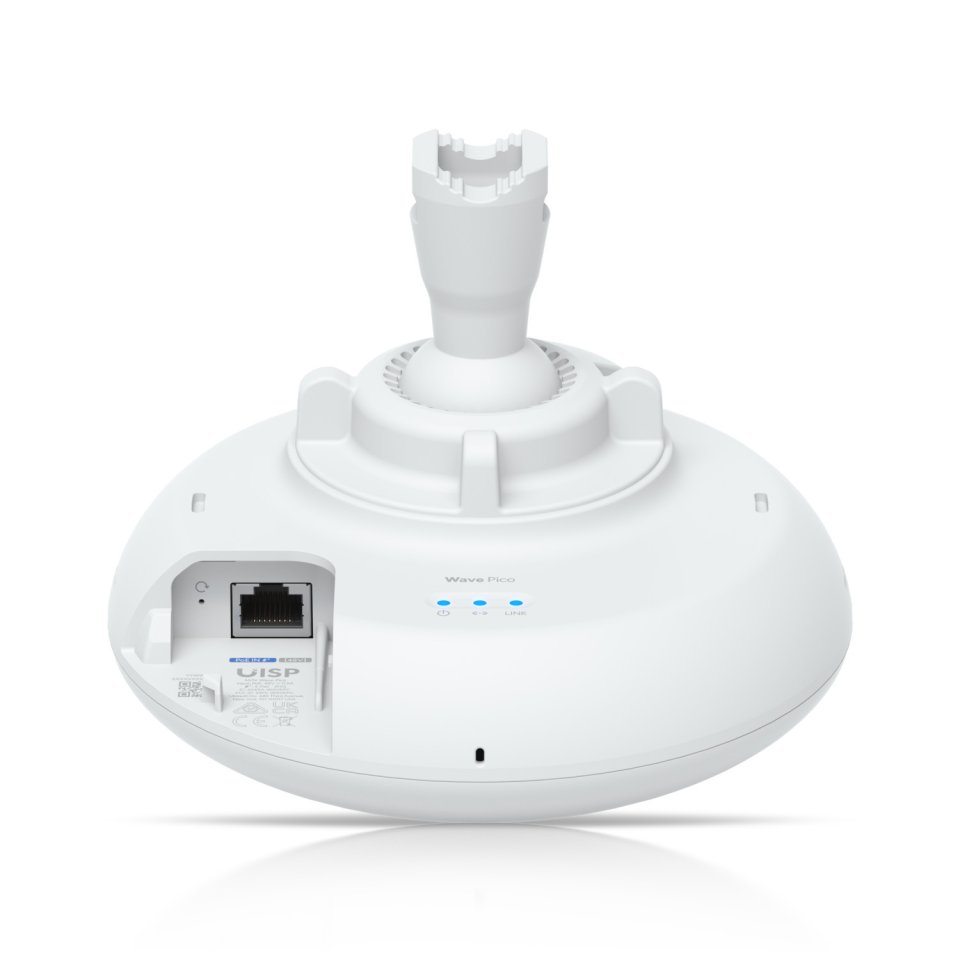

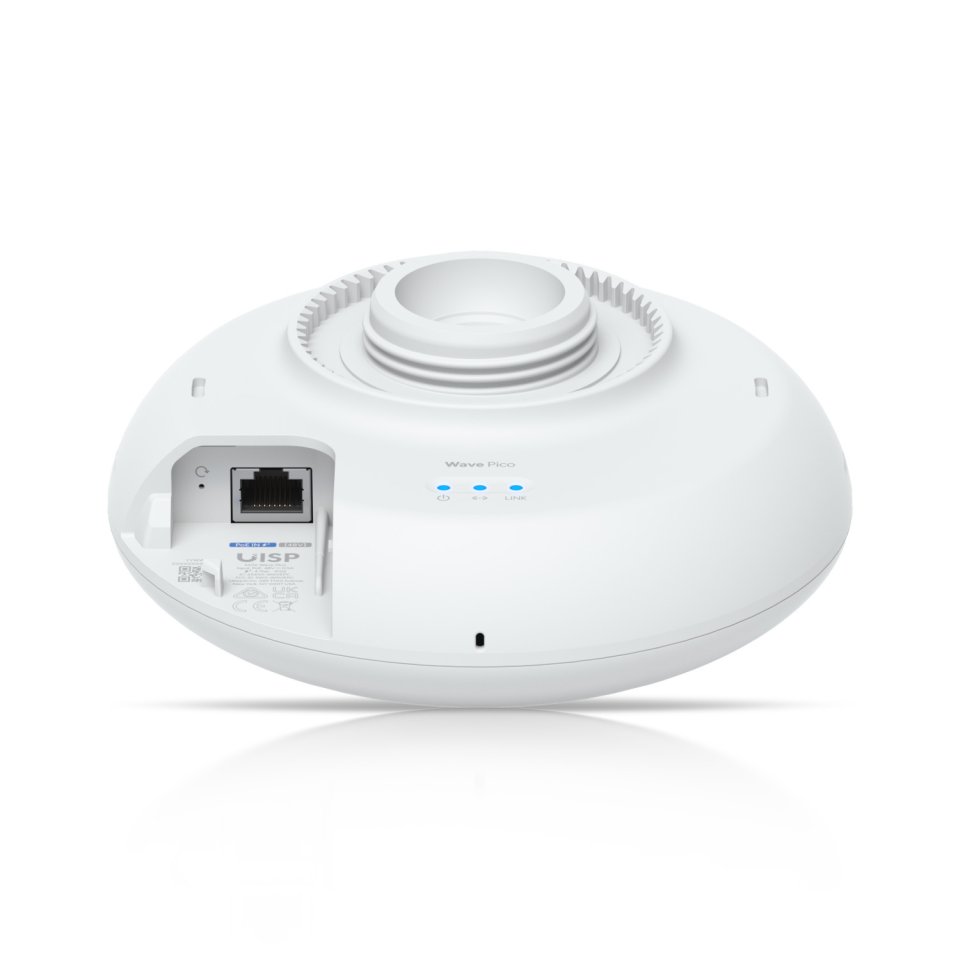

Wave-Pico supports up to 2 Gbit/s total throughput, enabling fast data transfer over wireless networks. It features one GbE RJ45 port that supports Multi-Gigabit Ethernet speeds up to 2 Gbit/s. The main wireless link operates at 60 GHz, while the backup connection uses 5 GHz Wi-Fi 6 (802.11ax) with speeds up to 800 Mbit/s. This dual-channel setup ensures stable and flexible connectivity in various situations.

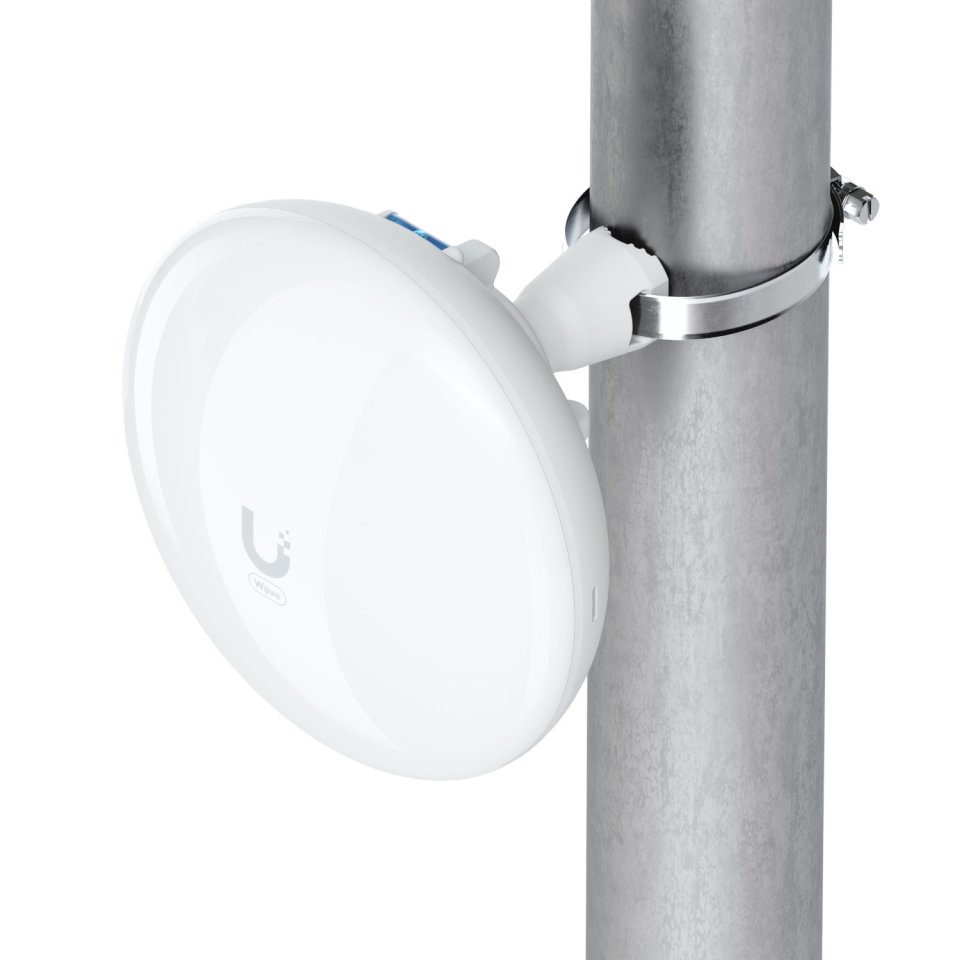

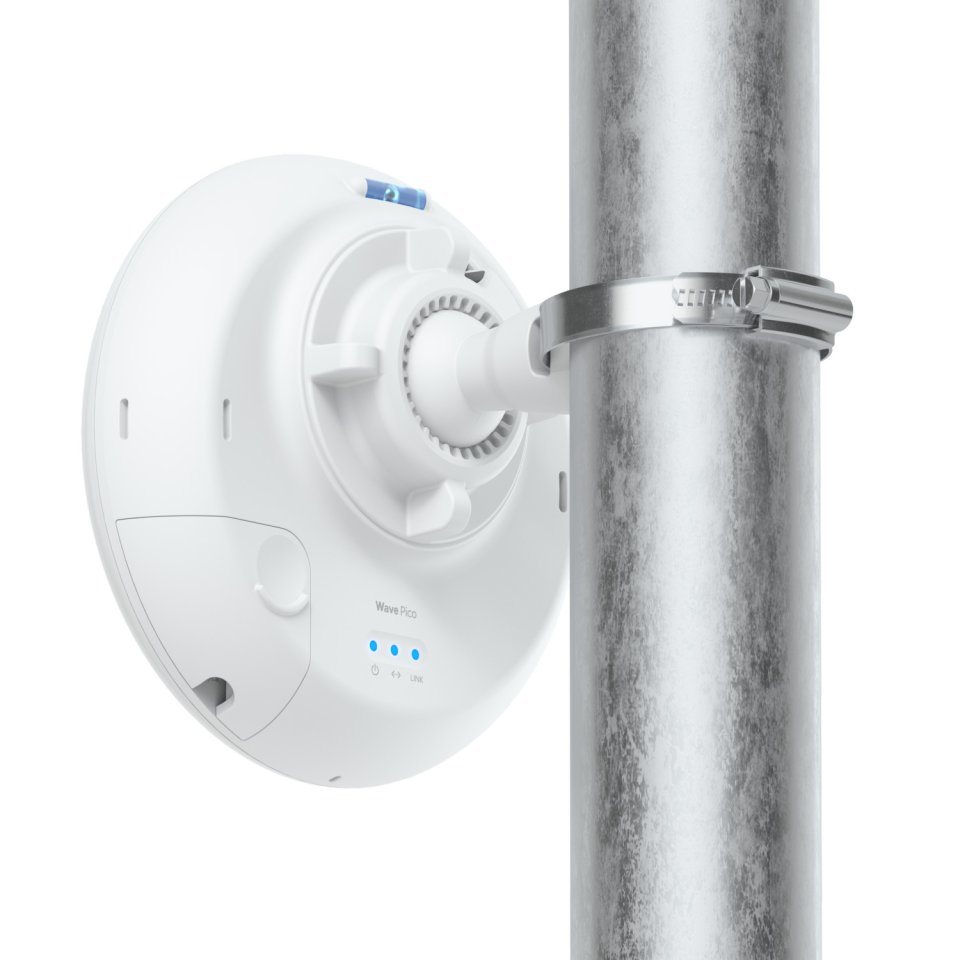

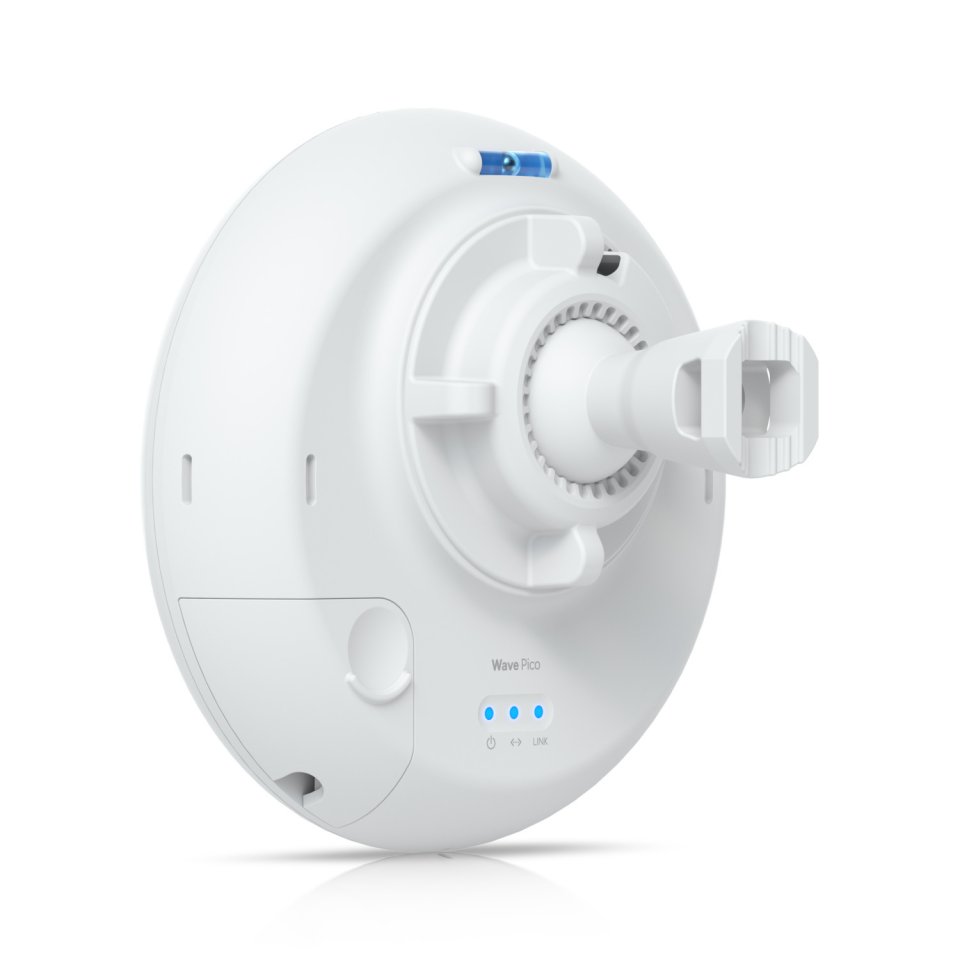

The device is made from UV-protected polycarbonate, providing resistance to outdoor wear. With an IPX6 rating, Wave-Pico withstands heavy water jets and is built to perform in tough weather. It mounts with a pole-type bracket compatible with pipes 20–53,1 mm in diameter. Weighing just 347 grams without the bracket, it is easy to handle and install.

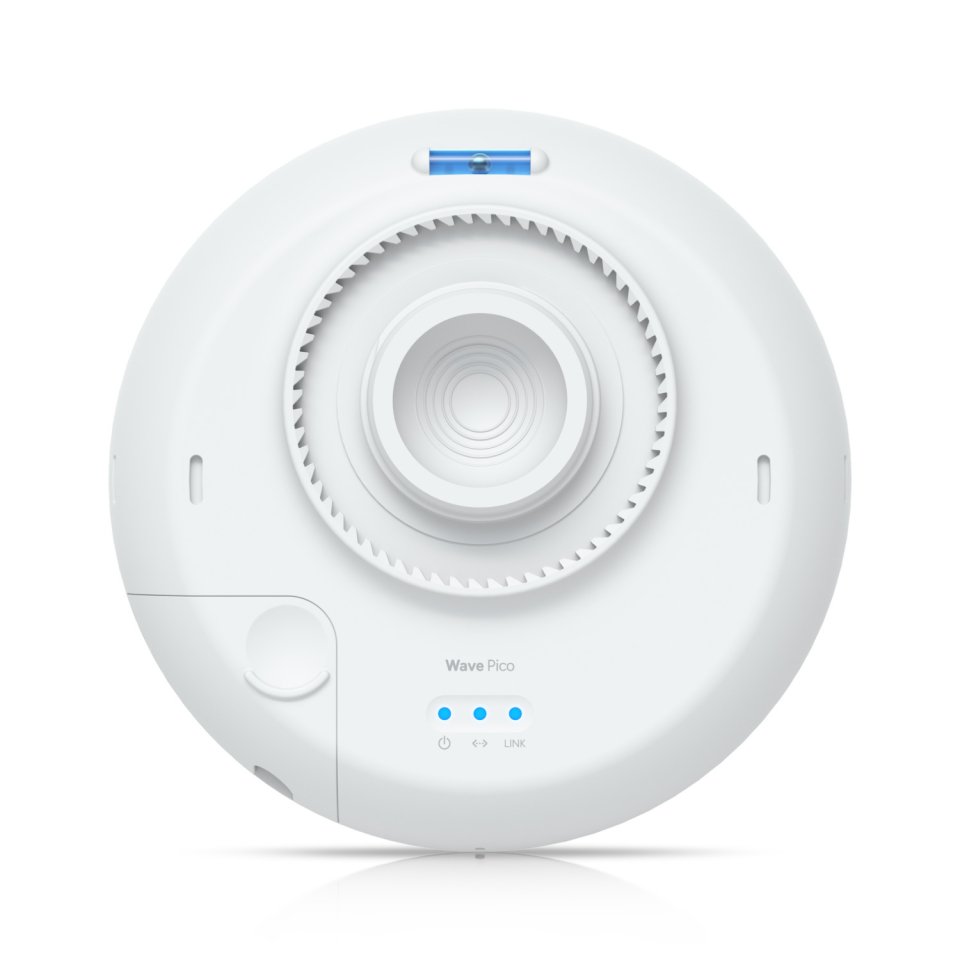

Wave-Pico is powered by a dual-core ARM Cortex-A53 processor running at 1 GHz and includes 512 Mt DDR3L memory. It receives power via passive PoE at 44–54 V, with a maximum power consumption of 10 W. The operating temperature range spans from -40 to 60 °C, making it suitable for various environments. Device management is handled through UISP software, which supports features like ping watchdog, SNMP, and NTP client. Multiple LED indicators show power, Ethernet connection, and device status.
The device operates in the 57–71 GHz frequency range and supports multiple channel widths (2160, 1080, 540 MHz). It uses modulation schemes including 16QAM and QPSK, with an internal antenna gain of 27,7 dBi. Wireless security relies on WPA2-PSK (AES) encryption. The 5 GHz backup Wi-Fi uses the Wi-Fi 6 standard and supports advanced modulation methods like 1024-QAM to improve efficiency and capacity.
