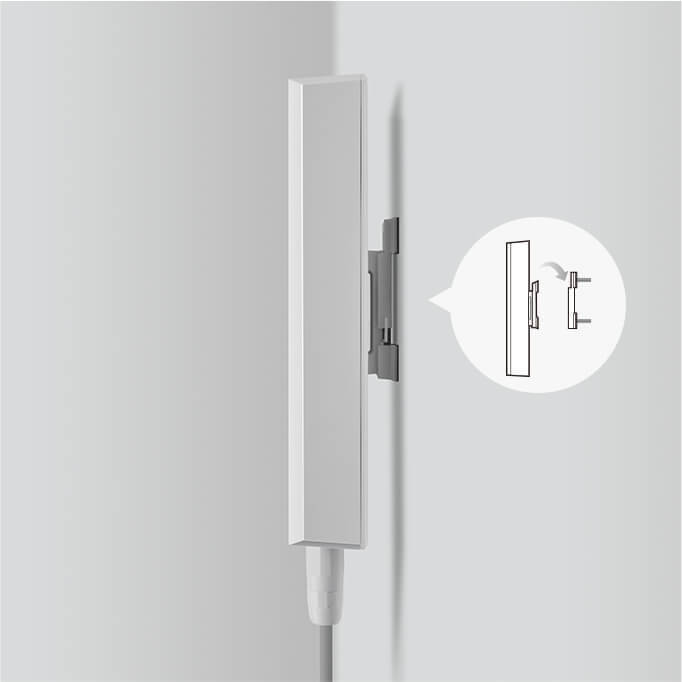

The TP-LINK Omada EAP610 Indoor/Outdoor Dual-band WiFi6 access point is a powerful, easily scalable MU-MIMO access point designed for business use that creates a fast and long-range wireless network with just one access point. The stylishly designed device can be mounted on the ceiling or wall using the included mounting accessories. Management and deployment are quick and easy with the included cloud-managed Omada controller software or the Omada mobile app. No separately purchased license or usage fee is required for device operation. The software also makes it easy to extend the network range by adding new Omada access points. All access points can be managed simultaneously with the software. This software-based management essentially enables unlimited network scalability. Read more about the software here.

Features:

• Band Steering technology detects devices that support the 5.0 GHz frequency and directs them to use it. This improves overall network performance, especially in high client density environments.
• Supports MU-MIMO and OFDMA
• The access point can be installed on the ceiling like a smoke detector.
• Each network can have client-specific speed control to prevent a client device from reserving all capacity for itself.
• Access Control function can restrict clients’ access, for example, to the company’s internal network.
• The access point can be scheduled to restart itself, for example, once a week.
• Load balancing ensures a stable connection for all clients in large environments.
• Rogue AP Detection scans the network for unwanted access points and blocks their access.

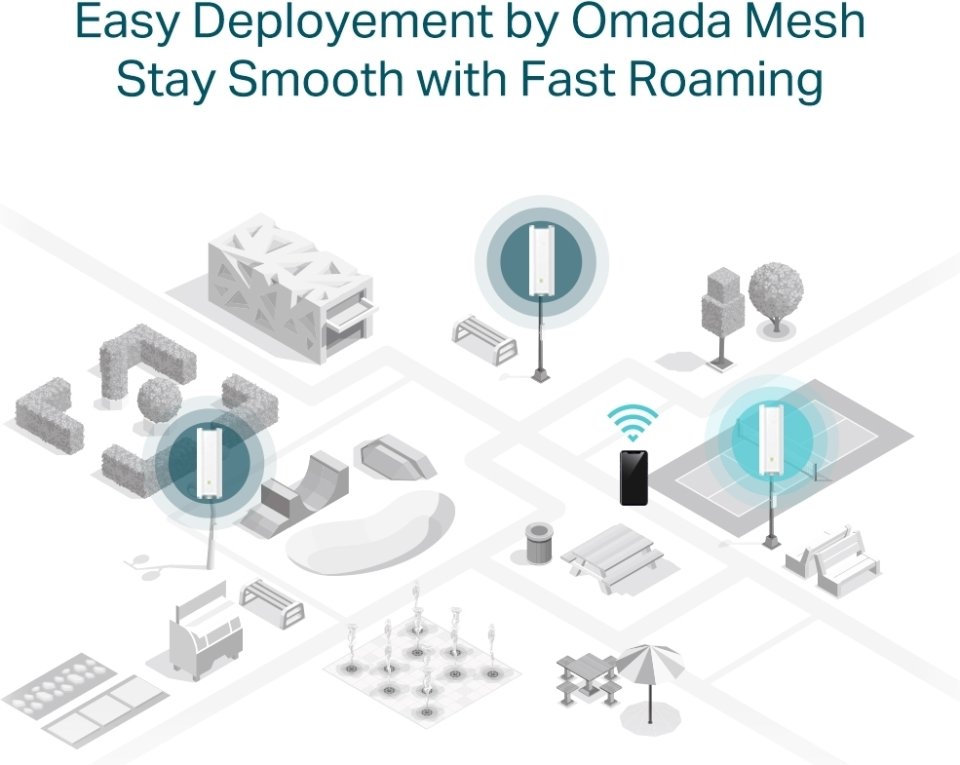

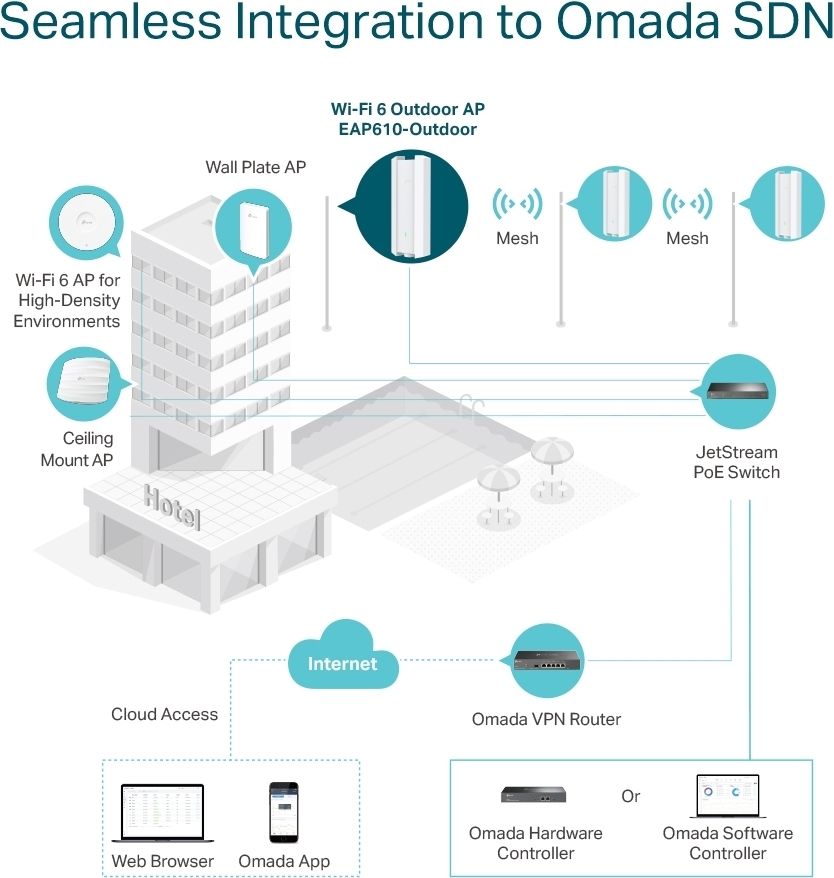

• Omada Mesh support*
• Seamless roaming*
• Captive Portal service easily creates access rights for company guests. The service requires the user to, for example, accept terms of use and enter a guest password*
• (Omada Mesh, Seamless Roaming, and Captive Portal require OMADA SDN controller, e.g., Product 527264 or Product 690655)

Technical specifications:

• WiFi 6 speed up to 574 Mbps on the 2.4 GHz frequency and up to 1201 Mbps on the 5.0 GHz frequency
• Fully compatible with 802.11a/b/g/n/ac/ax standards
• Secure and stable, supports 64/128/152-bit WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise encryption
• Multiple SSID (max. 16 separate networks)

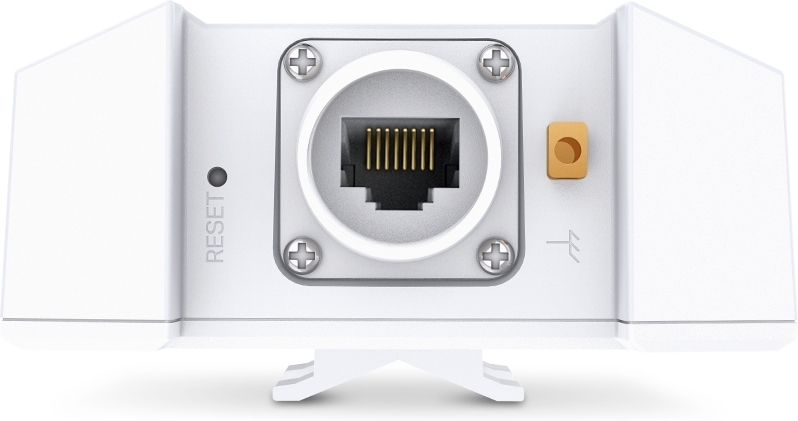

• Connections: 1 x RJ45 PoE+ Gigabit, power socket
• Power over Ethernet IEEE802.3at PoE+
• MIMO antennas, a total of 4 internal antennas (2 x 4 dBi 2.4 GHz and 2 x 5 dBi 5 GHz).
• Power consumption: 12.5 W (802.3at PoE or Passive PoE)
• Dimensions: 280.4 × 106.5 × 56.8 mm
• IP67 (water, dust, and lightning protection)
• Operating temperature: -40 – 70

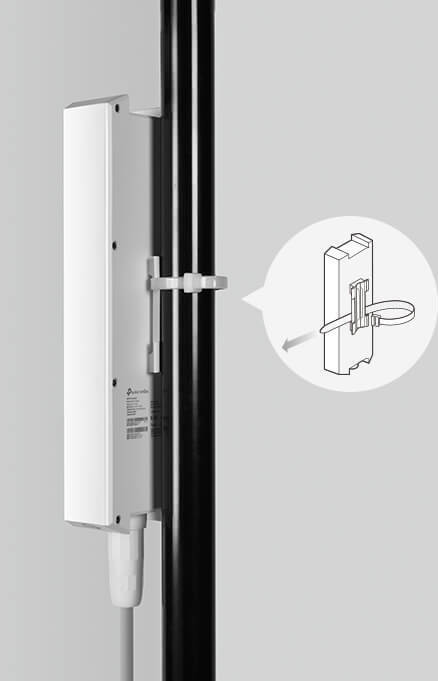

• Package contents: Omada EAP610-Outdoor WiFi6 access point, Passive PoE adapter, power cord, wall/pole mount, installation guide
