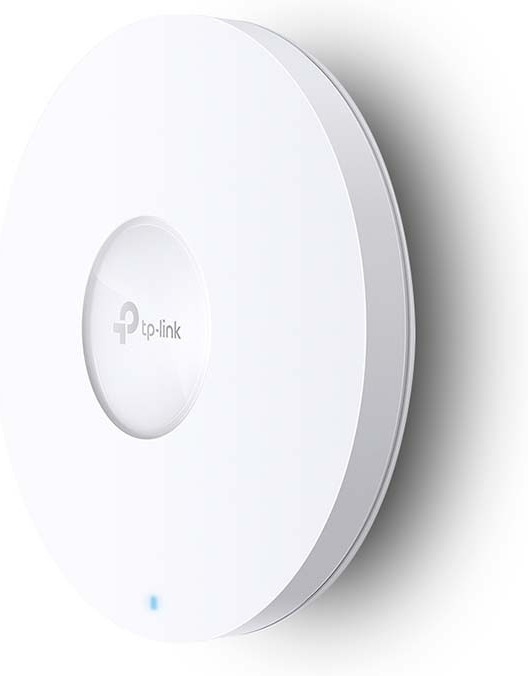

TP-LINK Omada EAP613 Dual-band -WiFi6 access point is a powerful, easily scalable MU-MIMO access point designed for business use, creating a fast and far-reaching wireless network with just one access point. The stylishly designed device can be mounted on the ceiling or wall using the included mounting accessories. Management and deployment are quick and easy with the Omada controller or the Omada mobile app. In standalone mode, using the devices does not require any separately purchased license or usage fee. The software also makes it easy to extend the network coverage by adding new Omada access points. All access points can be easily managed simultaneously with the software. This software-based management allows for virtually unlimited scalability of the network. Read more about the software here.

Features:

• Cloud-based management
• Band Steering technology identifies devices that support the 5.0 GHz frequency and directs them to use it. This improves overall network performance, especially in high client density environments.
• MU-MIMO and OFDMA support
• Supports over 250 simultaneous WiFi users depending on conditions

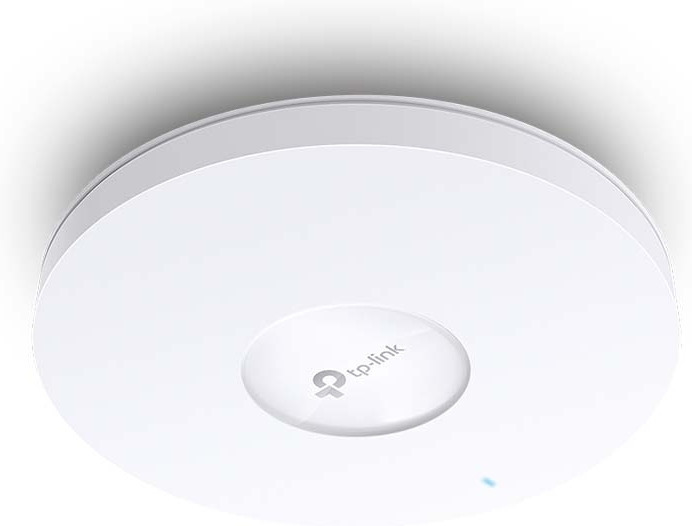

• The access point can be mounted on the ceiling like a smoke detector.
• Customer-specific speed control can be set for each network, preventing client devices from reserving all the capacity for themselves.
• Access Control feature can restrict customers’ access to, for example, the company’s internal network.
• The access point can be scheduled to restart itself, for example, once a week.
• Load balancing ensures a stable connection for all clients in large environments.
• Rogue AP Detection feature searches for unwanted access points on the network and prevents their access to the network.
• Omada Mesh support*
• Seamless roaming*
• Cloud Access*
• With the Captive Portal service, you can conveniently create access rights for company guests. The service requires users to, for example, accept terms of use and enter a visitor password*
• (Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access setup require an OMADA SDN controller, e.g., Product 527264 or Product 690655

Technical specifications:

• WiFi 6 speed up to 574 Mbps on the 2.4 GHz frequency and up to 1201 Mbps on the 5.0 GHz frequency
• Fully compatible with 802.11a/b/g/n/ac/ax standards
• Secure and stable, supports 64/128/152-bit WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise protection
• Multiple SSID (max. 16 separate networks)
• Up to 250 simultaneous users

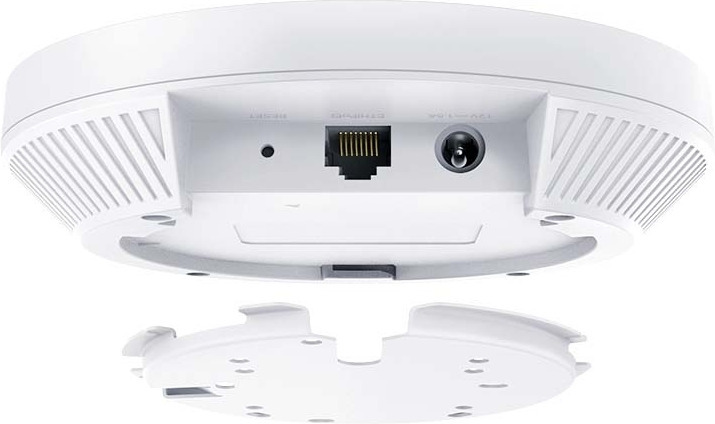

• Connections: 1 x RJ45 PoE+ Gigabit, power socket
• Power over Ethernet IEEE802.3at PoE+
• MIMO antennas, a total of 4 internal antennas (2 x 4 dBi 2.4 GHz and 2 x 5 dBi 5 GHz).
• Dimensions of a single access point: 160mm x 160 mm x 33.6 mm

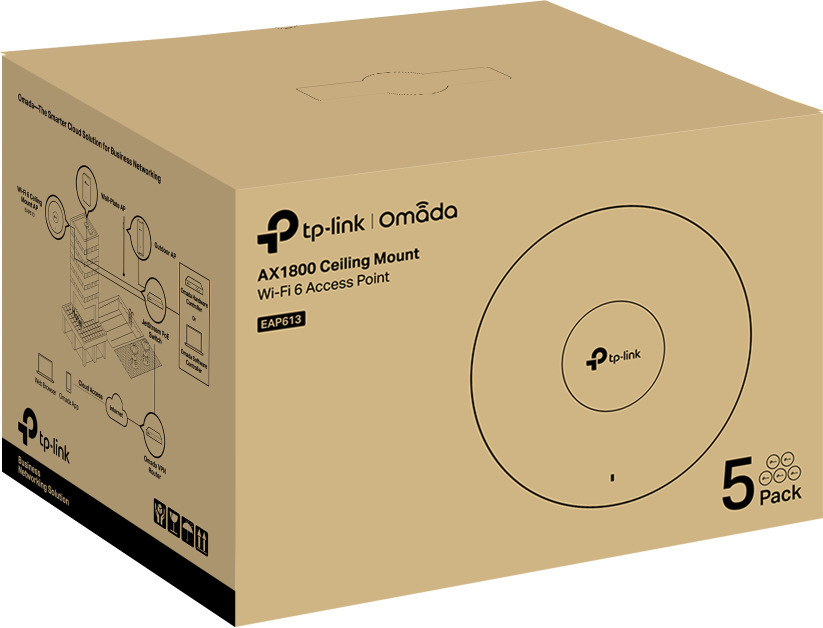

• Package contents: 5 x Omada EAP613 -WiFi6 access point, 5 x wall/ceiling mount, installation instructions
• Note: Does not include a power supply. Power supply via 802.3at PoE switch or PoE Injector. E.g., Product 842521 or Product 872725
