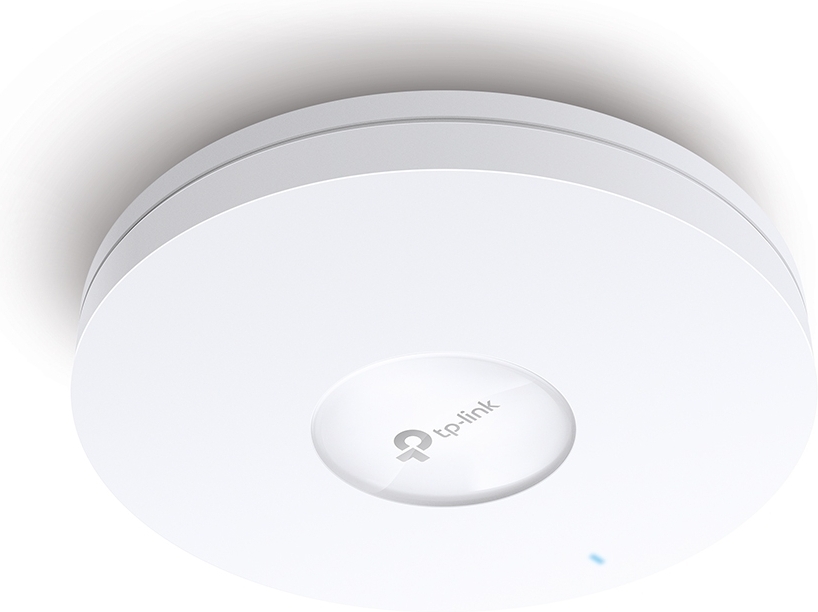

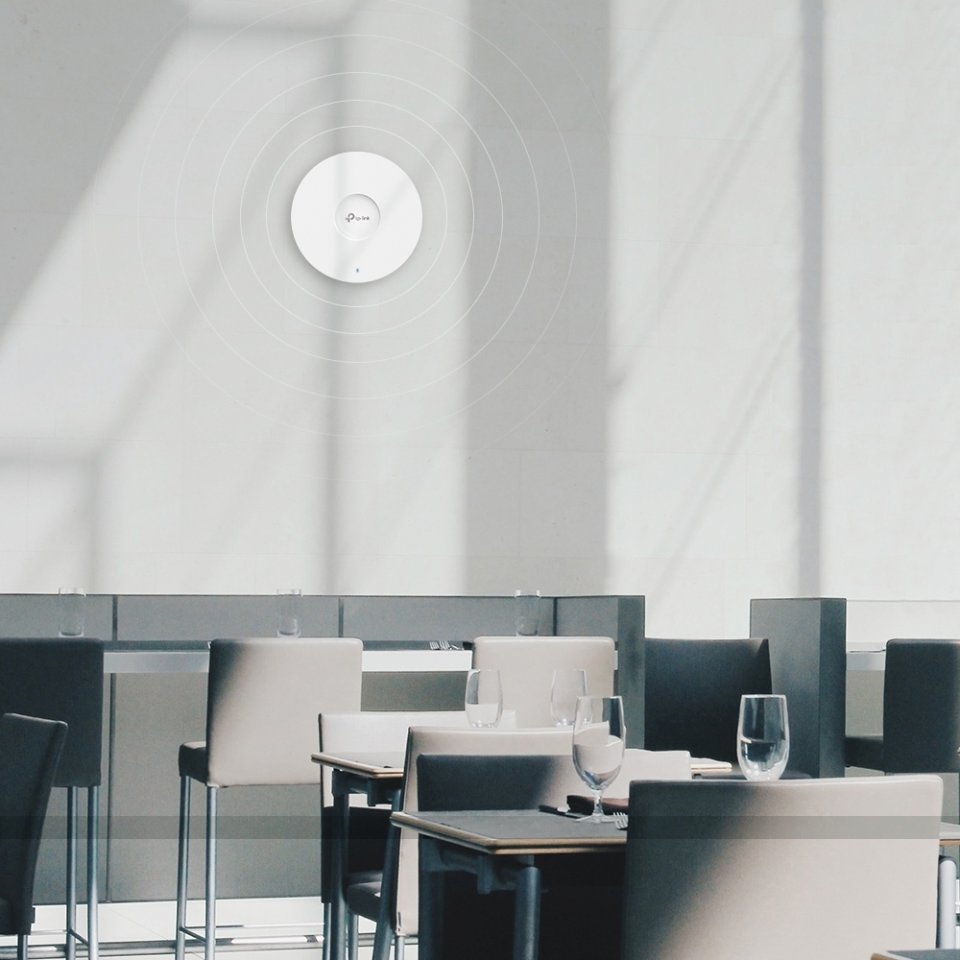

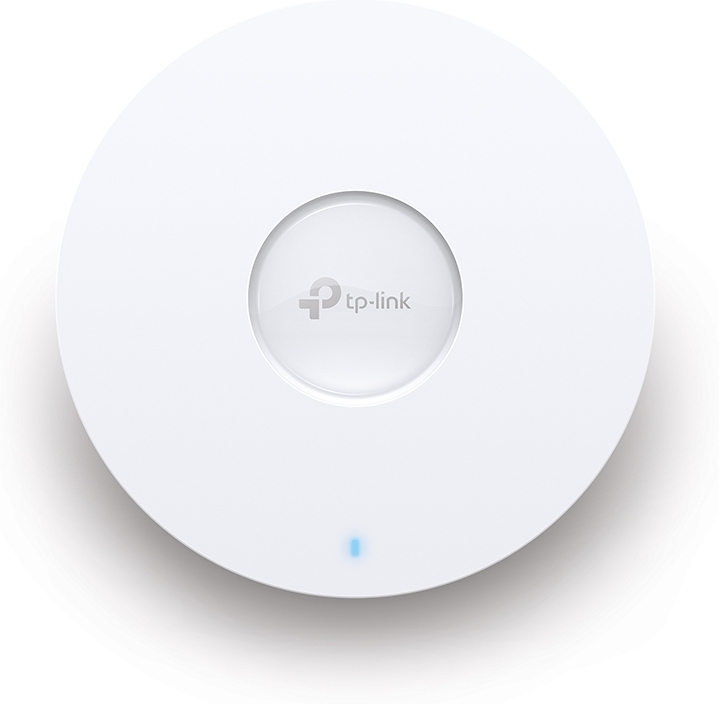

The TP-LINK Omada EAP610 Dual-band WiFi 6 access point is a powerful and easily scalable MU-MIMO solution designed for business use, creating a fast and far-reaching wireless network with just one unit. With its sleek design, this device can be mounted on the ceiling or wall using the included mounting accessories. Setting up and managing the access point is quick and straightforward with the cloud-managed Omada controller software or the Omada mobile app. There’s no need for any separate licenses or usage fees. Additionally, you can easily expand your network coverage by adding new Omada access points. The software allows you to manage all access points simultaneously, enabling virtually unlimited scalability for your network. Learn more about the software here.

Features:

• Band Steering technology identifies devices that support the 5.0 GHz frequency and directs them to use it, enhancing overall network performance, especially in high-density environments.
• Supports MU-MIMO and OFDMA

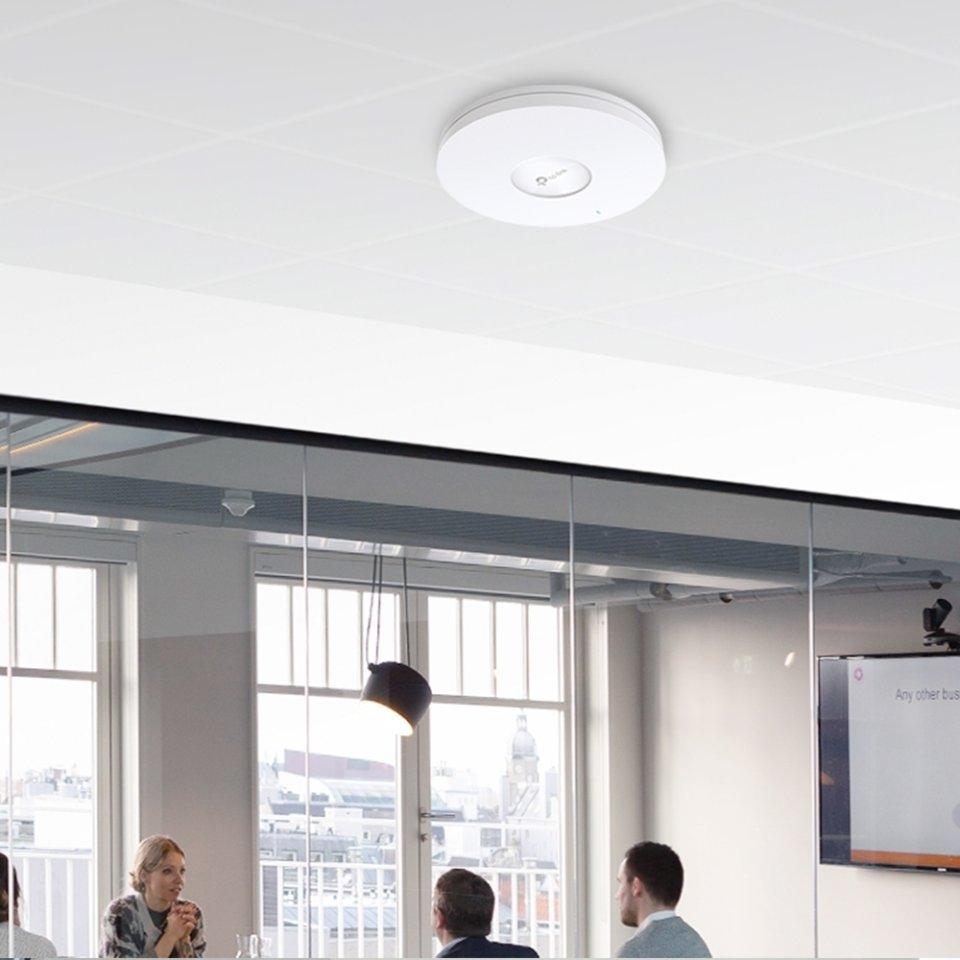

• The access point can be installed on the ceiling like a smoke detector.
• Each network can have client-specific speed management to prevent individual devices from monopolizing bandwidth.
• Access Control feature allows you to restrict clients’ access to the company’s internal network.
• The access point can be scheduled to reboot itself, for example, once a week.
• Load balancing ensures a stable connection for all clients in large environments.
• The Rogue AP Detection feature scans for unwanted access points and prevents them from accessing the network.
• Supports Omada Mesh*

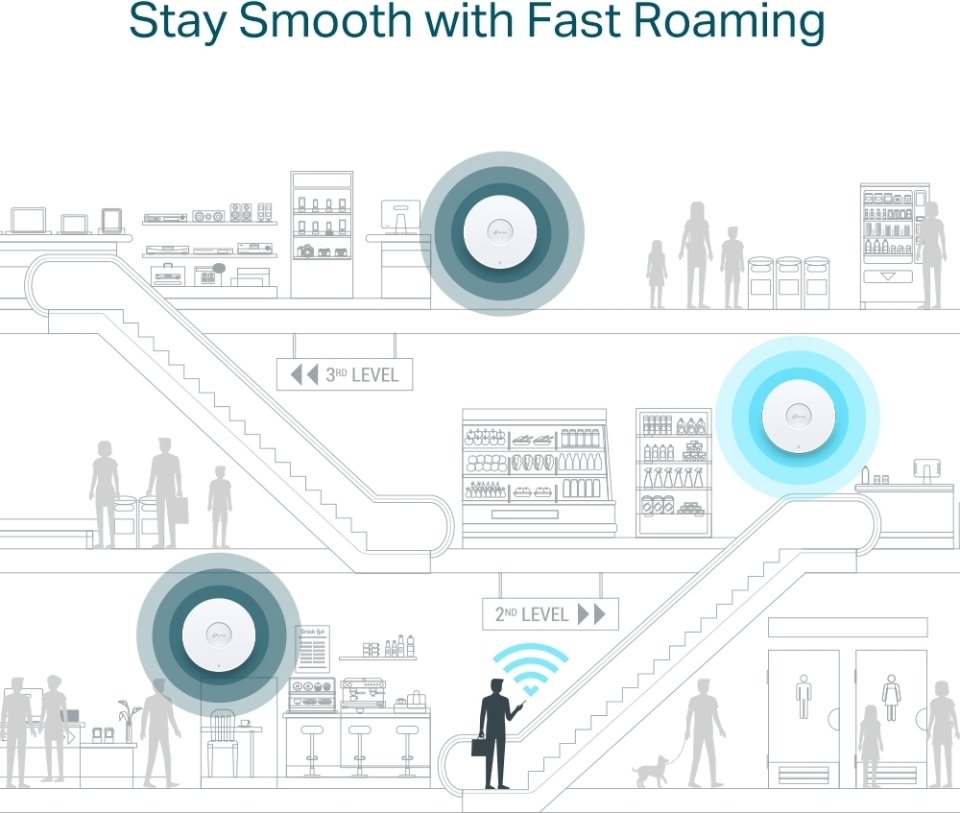

• Seamless roaming*
• With the Captive Portal service, you can easily create access rights for company guests. This service requires users to accept terms of use and enter a guest password.*

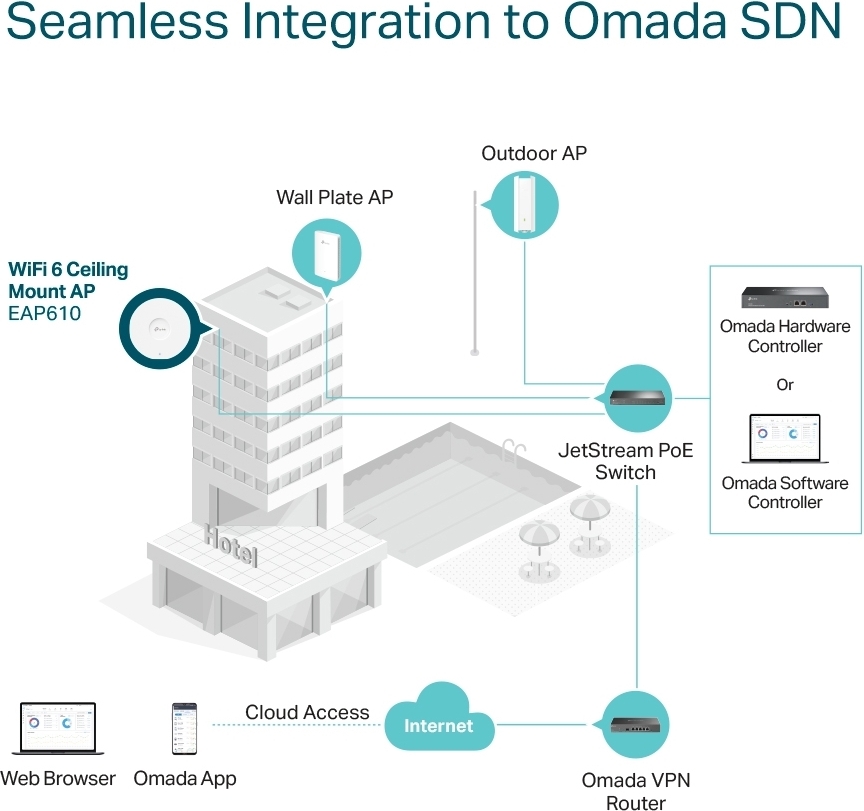

• (Omada Mesh, Seamless Roaming, and Captive Portal setup requires the OMADA SDN controller, such as Product 527264 or Product 690655

Technical Specifications:

• WiFi 6 speeds of up to 574 Mbps on the 2.4 GHz frequency and up to 1201 Mbps on the 5.0 GHz frequency
• Fully compatible with 802.11a/b/g/n/ac/ax standards
• Secure and stable, supporting 64/128/152-bit WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise security
• Multiple SSID (up to 16 separate networks)

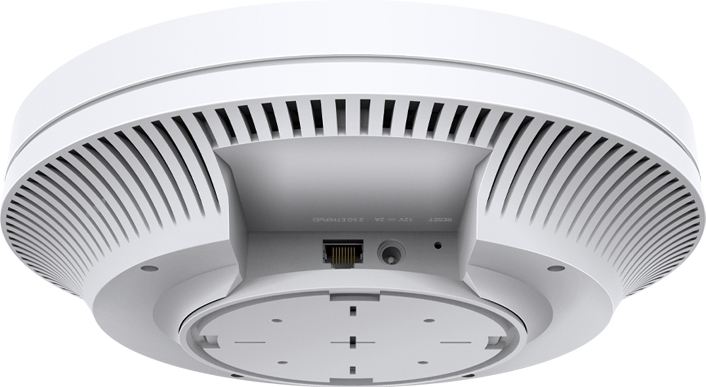

• Connections: 1 x RJ45 PoE+ Gigabit, power socket
• Power over Ethernet IEEE802.3at PoE+
• MIMO antennas, with a total of 4 internal antennas (2 x 4 dBi 2.4 GHz and 2 x 5 dBi 5 GHz).
• Dimensions: 243 × 243 × 64 mm
• Package includes: Omada EAP610 WiFi 6 access point, power supply, wall/ceiling mount, installation instructions
