The PLANET VC-231G is a high-performance VDSL2 media converter/modem that can be used at both ends of a phone line, offering speeds of up to 190/100 Mbps at a distance of 200 meters or 22/10 Mbps at distances of up to 1.4 kilometers. This versatile device also functions as a VDSL2/ADSL modem and supports the latest vectoring technology, ensuring you get the most out of your connection. Setting it up is a breeze with just four DIP switches. Please note that this device serves as a bridge and does not include any security features, so we recommend investing in a separate firewall and/or router for added protection.

Technical Specifications:

• 1 x LAN 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port
• 1 x VDSL2 RJ11 port

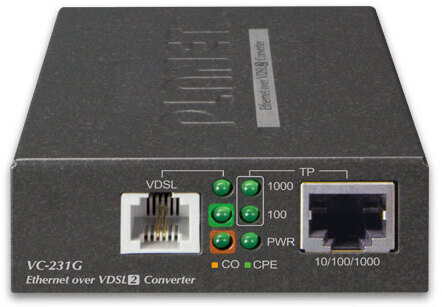

• LED indicators: power, 1000BASE-T LNK/ACT, 100BASE-TX LNK/ACT, VDSL, CO (central office), CPE (customer premises)

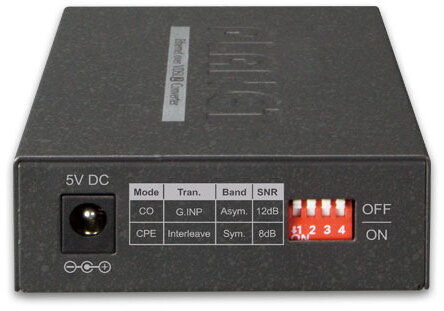

• DIP switches: CO/CPE (central office/customer premises), G.INP/interleaved, bandwidth allocation: symmetric/asymmetric, Noise level: 12dB/8dB
• VDSL support: ITU-T G.993.1 VDSL, ITU-T G.997.1, ITU-T G.993.2 VDSL2 (17a/30a support), ITU-T G.993.5 G.vectoring, ITU-T G.998, G.INP
• ADSL support: ITU G.992.3 G.dmt.bis, ITU G.992.5 G.dmt.bisplus, Data Rate: Up to 24 Mbps
• Metal casing
• Dimensions: 97 x 70 x 26 mm
• Weight: 184 g
• Sales package includes: PLANET VC-231G media converter, 5V/2A power adapter, ADSL/VDSL splitter, RJ11 phone cable (3-pin phone plug not included)

Maximum Speeds at Various Distances Down/Up (depending on line quality):

• 200 m -> 197 Mbps / 101 Mbps
• 400 m -> 168 Mbps / 65 Mbps
• 600 m -> 109 Mbps / 34 Mbps
• 800 m -> 65 Mbps / 20 Mbps
• 1000 m -> 53 Mbps / 7 Mbps
• 1200 m -> 44 Mbps / 4 Mbps
• 1400 m -> 28 Mbps / 4 Mbps
