| Color | Silver |
|---|---|
| Country of Origin | China |
| PID | 1020344 |
| Product depth (mm) | 480 |
| Product height (mm) | 44 |
| Product weight (g) | 7 900 |
| Product width (mm) | 442 |
| Ethernet speed | 100/1000/10000 |
| PoE PD power (W) | 720 |
| Ethernet (RJ-45) ports quantity | 24 |
| Managed | Yes |
| PoE support | PoE+++ |
| Product Family | UniFi |
| Electronic address of single contact point | |
| Manufacturer address | 37F., No. 7, Sec. 5, Xinyi Rd, Xinyi Dist., 11049 Taipei City, Taiwan |
| Manufacturer's email address | |
| Manufacturer name | Ubiquiti (Taiwan) Sales Limited |
| EU Responsible Person | Ubiquiti International Holding B.V. |

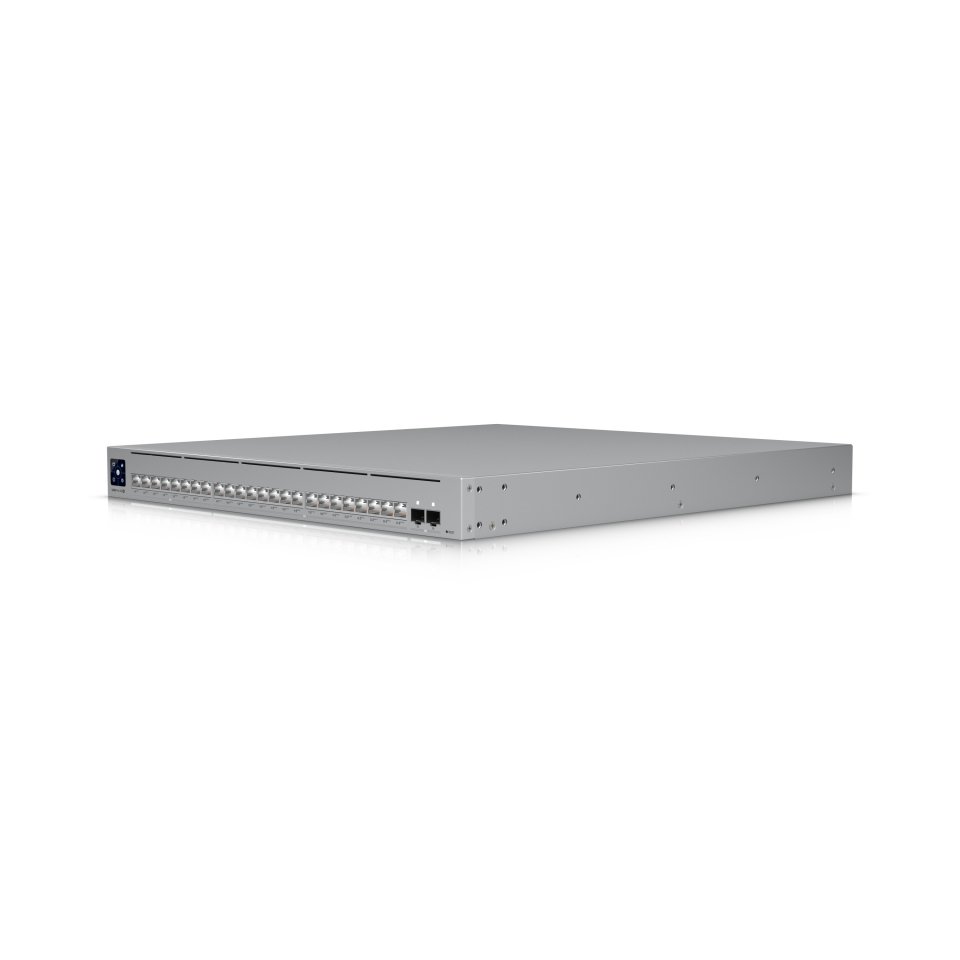

The Ubiquiti UniFi Pro XG 24 PoE is a professional-grade managed Layer 3 switch designed for demanding network environments. It offers 24 ports with high-speed 10 GbE and 2.5 GbE connections, along with 25G SFP28 optical ports. The switch supports Power over Ethernet (PoE+++) with up to 720 W total power, making it suitable for powering VoIP devices, cameras, and other PoE equipment. Its robust performance, flexible management features, and reliable power delivery make it a solid choice for business networks.

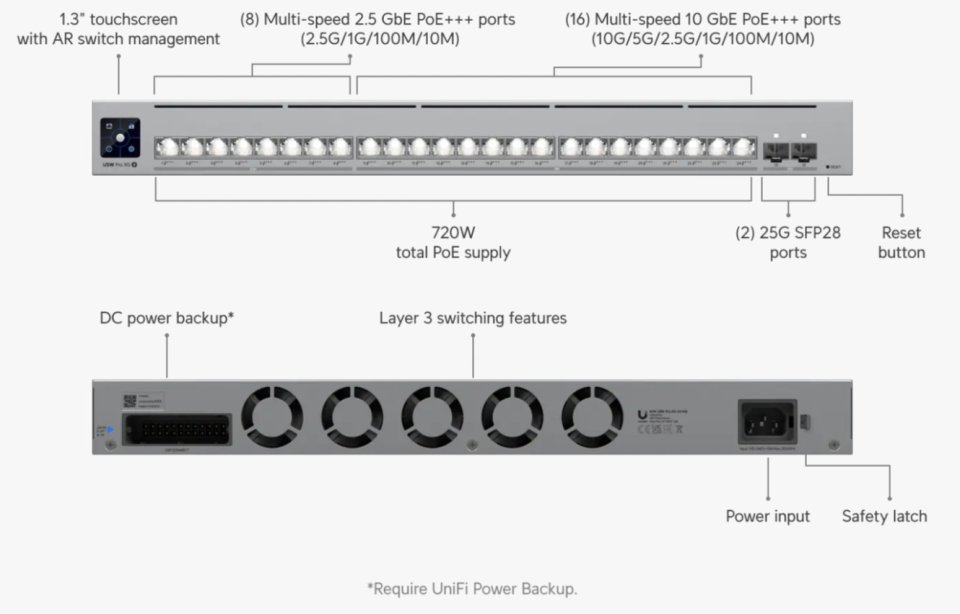

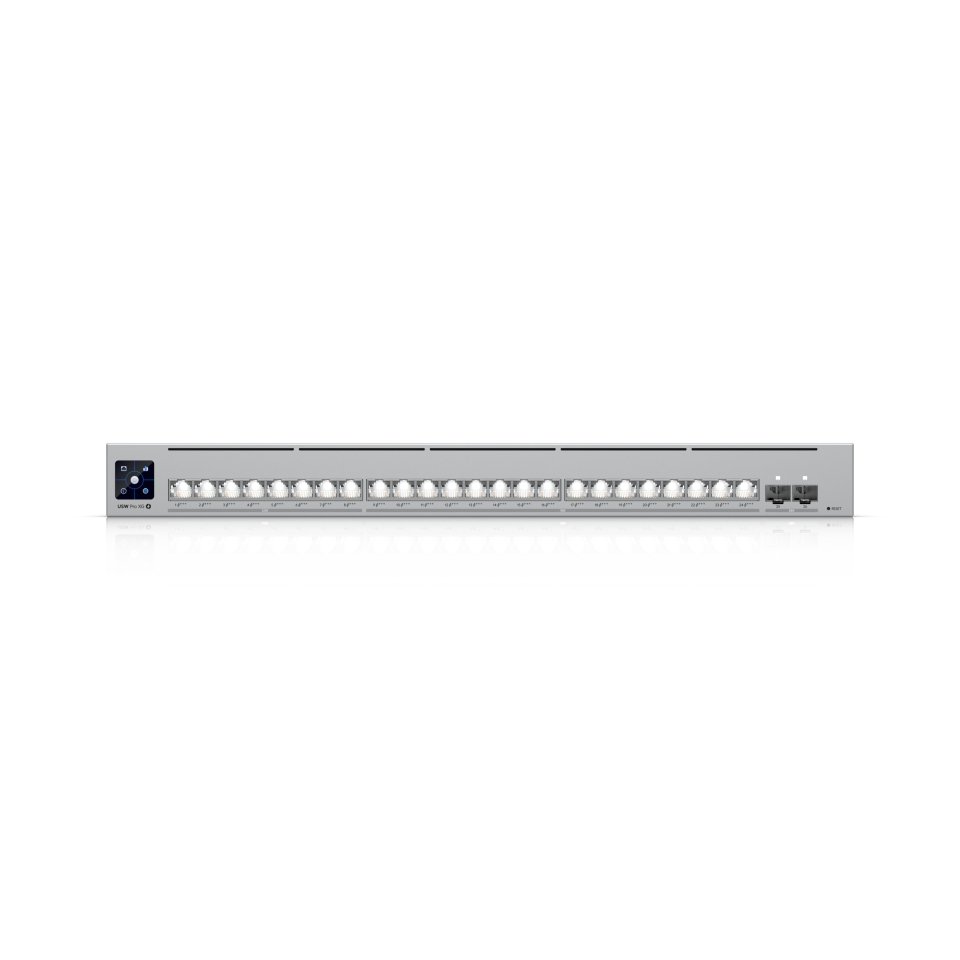

This switch includes 24 RJ-45 Ethernet ports: 16 support 10 GbE speeds and 8 support 2.5 GbE. All Ethernet ports provide PoE+++ power with up to 90 W per port. Additionally, there are 2 SFP28 ports that handle speeds up to 25 Gbps. The total PoE power budget of 720 W allows multiple devices to be powered simultaneously. The Etherlighting™ feature illuminates ports to help identify them and monitor speed and network status easily.
With a switching capacity of 460 Gbps and throughput of 230 Gbps, this switch can handle large data volumes without bottlenecks. It processes up to 342 million packets per second and includes 8 Mt of buffer memory. The device supports a MAC address table of 128,000 entries and 256,000 IPv4 routing entries. Layer 3 features include DHCP server and relay, static routing, and Inter-VLAN routing to simplify network segmentation and management.
The UniFi Pro XG 24 PoE offers multiple security features such as IPv4 access control lists (ACLs), DHCP snooping and guarding, and MAC-based ACL restrictions. It also supports IGMP snooping, loop protection, and multicast, which enhance network stability and performance. Additional functions include port mirroring, speed limiting, and broadcast storm control. The switch is managed through the UniFi Network software, providing a modern and user-friendly interface.

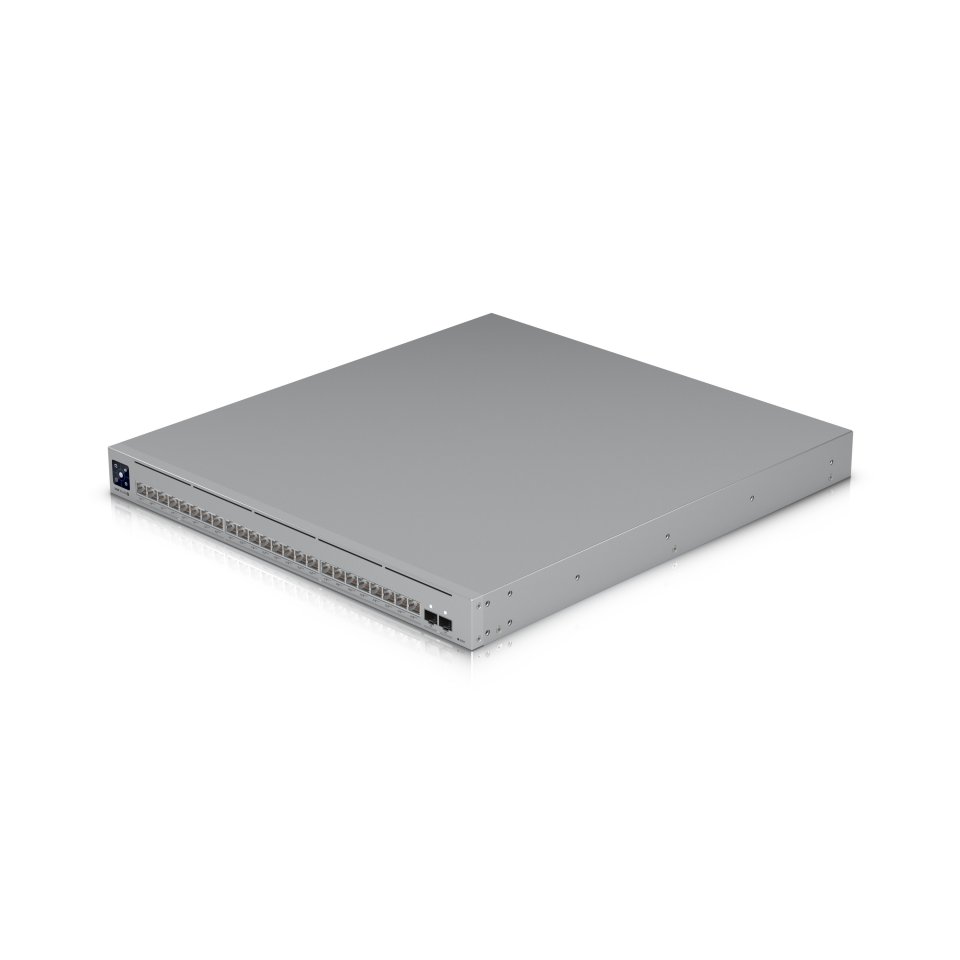

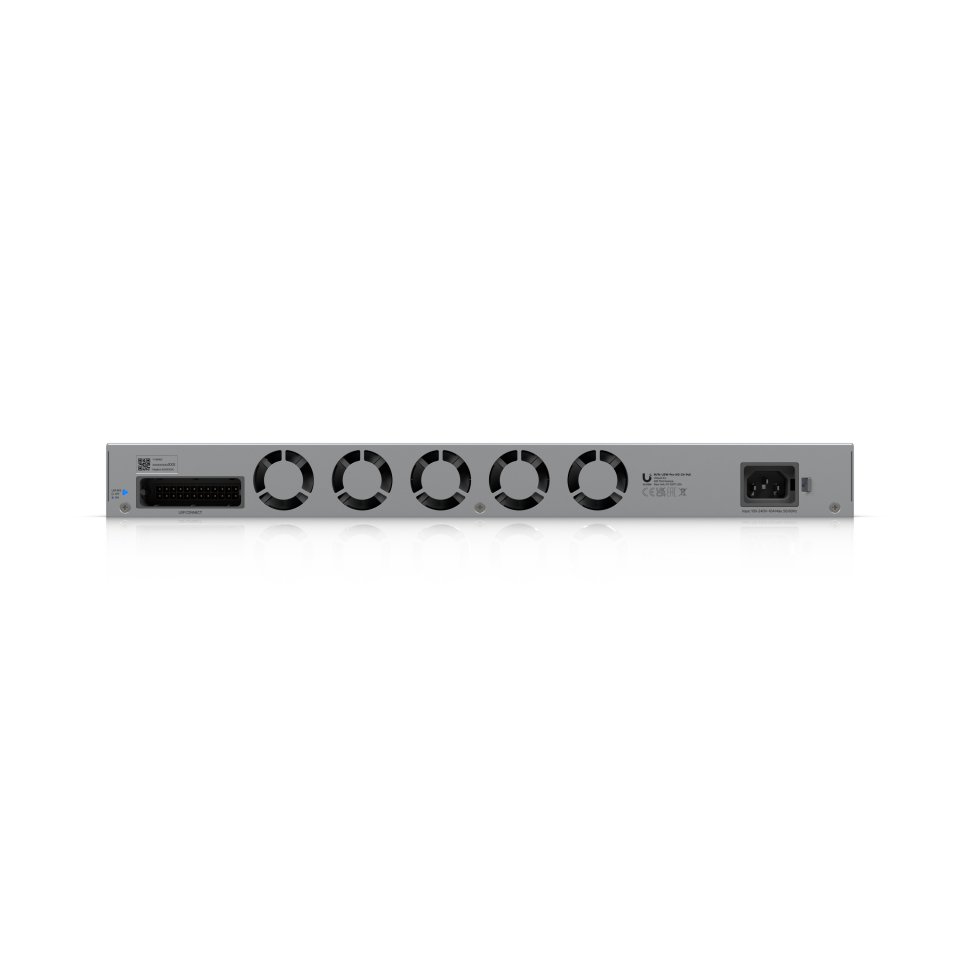

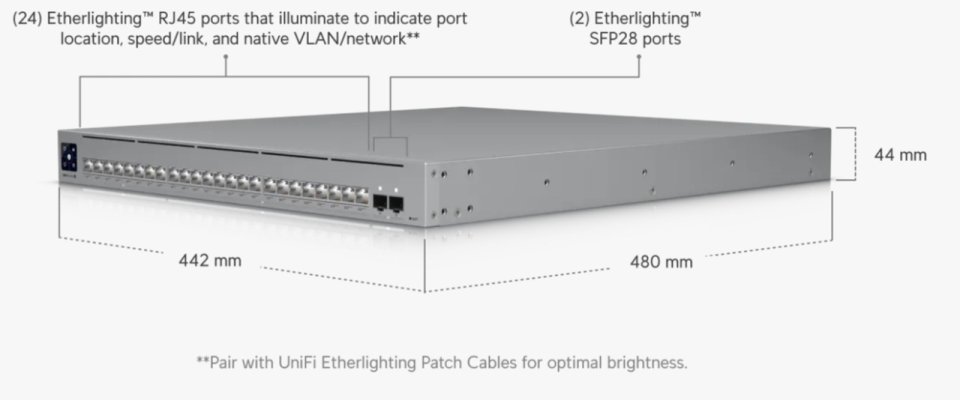

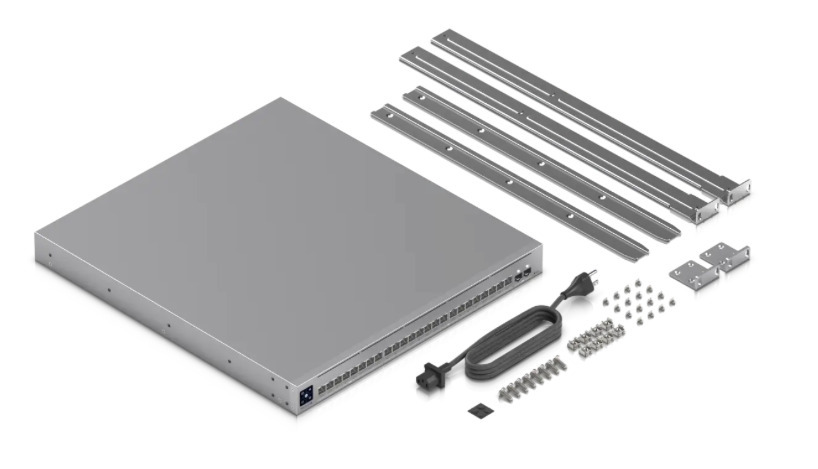

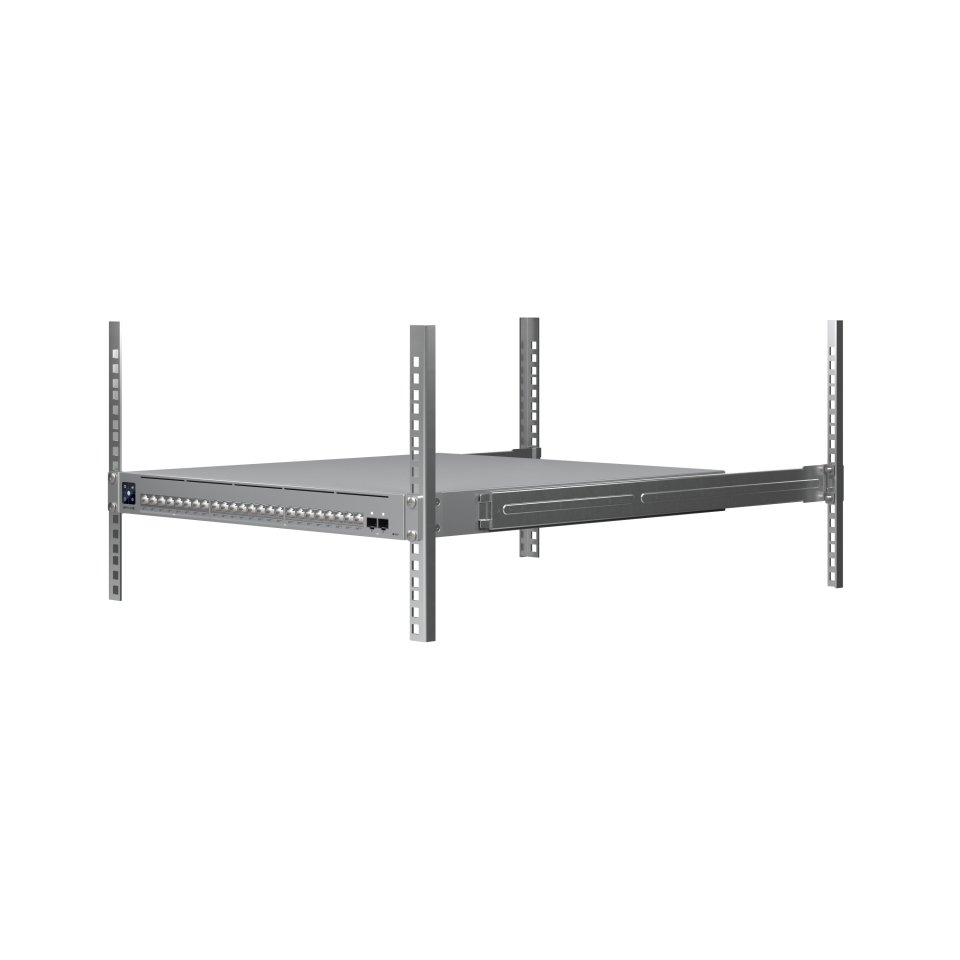

The switch is built in a 1U rack-mountable steel chassis measuring 442 x 480 x 44 mm and weighing 7,9 kg without the mounting kit. It features a built-in AC/DC power supply supporting 100–240 V AC input at 50/60 Hz. Redundant power supply (RPS) support is included for increased reliability. The operating temperature ranges from -5 to 40 °C with relative humidity between 10 and 90 %.
