| Color | Silver |
|---|---|
| Country of Origin | China |
| PID | 1020347 |
| Product depth (mm) | 480 |
| Product height (mm) | 44 |
| Product weight (g) | 7 300 |
| Product width (mm) | 442 |
| Ethernet speed | 100/1000/10000 |
| Ethernet (RJ-45) ports quantity | 24 |
| Managed | Yes |
| PoE support | No |
| Product Family | UniFi |
| Electronic address of single contact point | |
| Manufacturer address | 37F., No. 7, Sec. 5, Xinyi Rd, Xinyi Dist., 11049 Taipei City, Taiwan |
| Manufacturer's email address | |
| Manufacturer name | Ubiquiti (Taiwan) Sales Limited |
| EU Responsible Person | Ubiquiti International Holding B.V. |

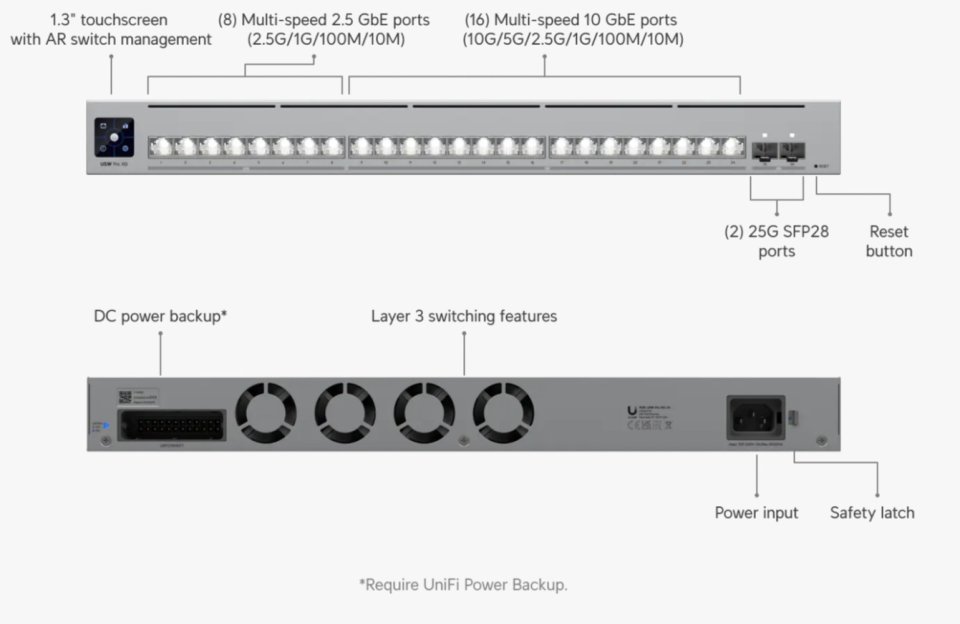

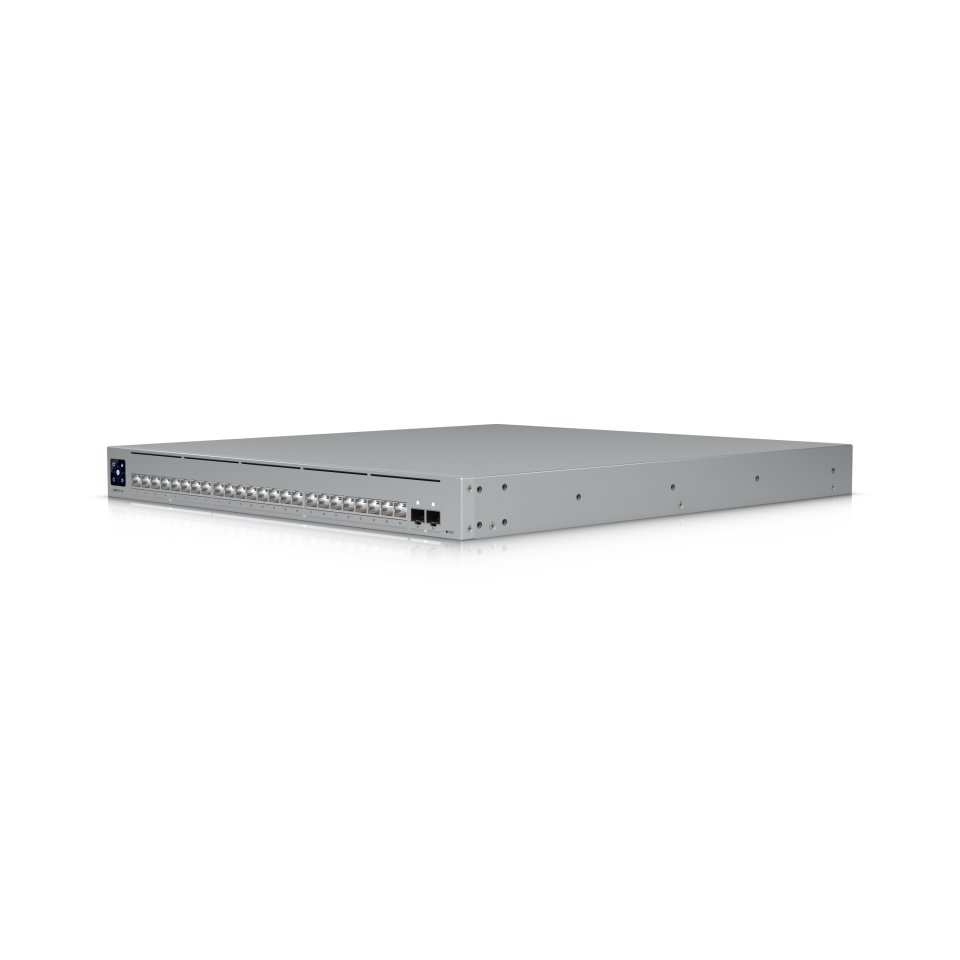

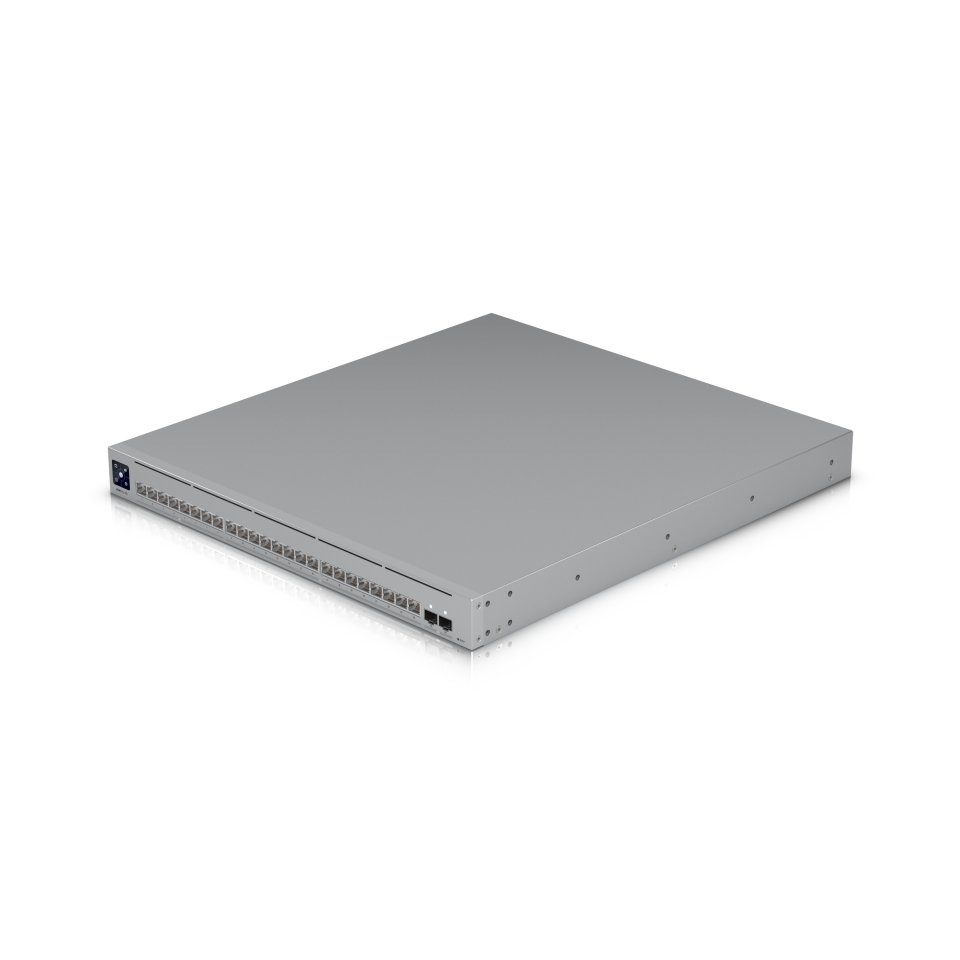

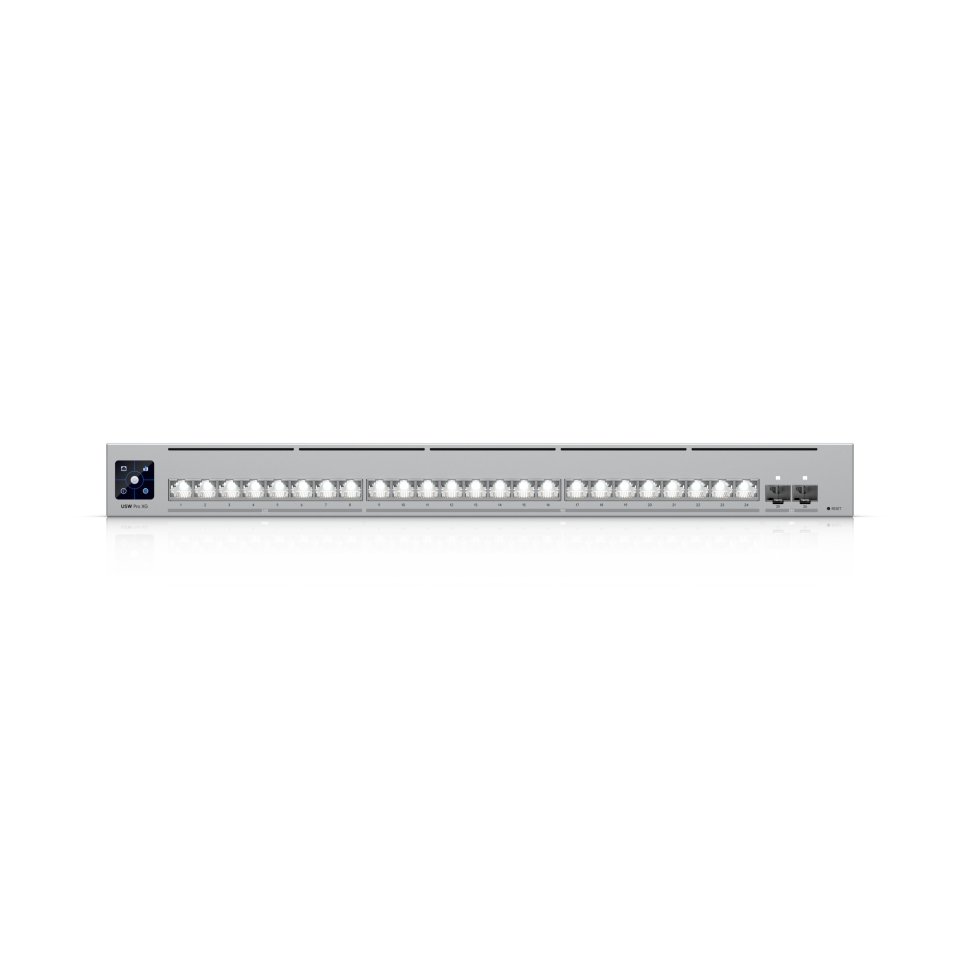

The Ubiquiti UniFi Pro XG 24 is a professional-grade managed switch that offers a powerful and versatile solution for business network needs. It combines 24 ports, including 16 10 GbE RJ45 ports, 8 2.5 GbE RJ45 ports, and 2 SFP28 ports for 25 Gb speeds, enabling fast and stable connections to various devices. The switch is designed to support both Layer 2 and Layer 3 functions, providing users with extensive management and routing capabilities. The user-friendly Etherlighting™ system illuminates the ports’ location, speed, and VLAN status, making network management and troubleshooting easier.
The switch has a total of 24 RJ45 Ethernet ports, with 16 supporting 10 GbE speeds and 8 supporting 2.5 GbE speeds, as well as 2 SFP28 ports offering up to 25 Gb speeds. This enables fast data transfers and flexible connectivity options for various network devices. The switching capacity is 460 Gbps, and the performance is 230 Gbps, ensuring high data transfer rates and minimal bottlenecks. Additionally, a forwarding rate of 342 million packets per second (Mpps) ensures efficient traffic handling.
The switch supports both Layer 2 and Layer 3 networks, including VLAN support for up to 1000 VLANs, inter-VLAN routing, and static routes. DHCP server, DHCP relay, and DHCP snooping enhance management and security capabilities. Furthermore, the switch includes multiple security features such as access control lists (ACL) for IPv4 and MAC addresses, loop protection, multicast and broadcast traffic management, as well as port mirroring and isolation. These features help keep the network secure and efficient.

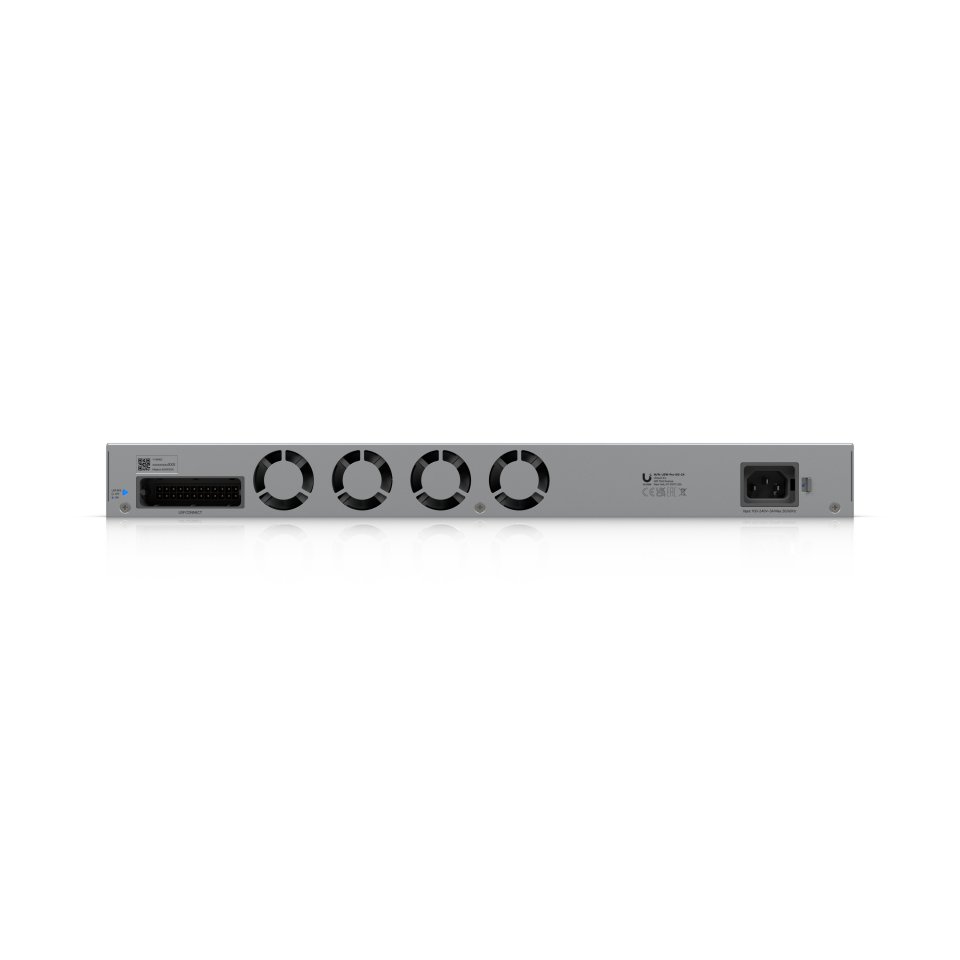

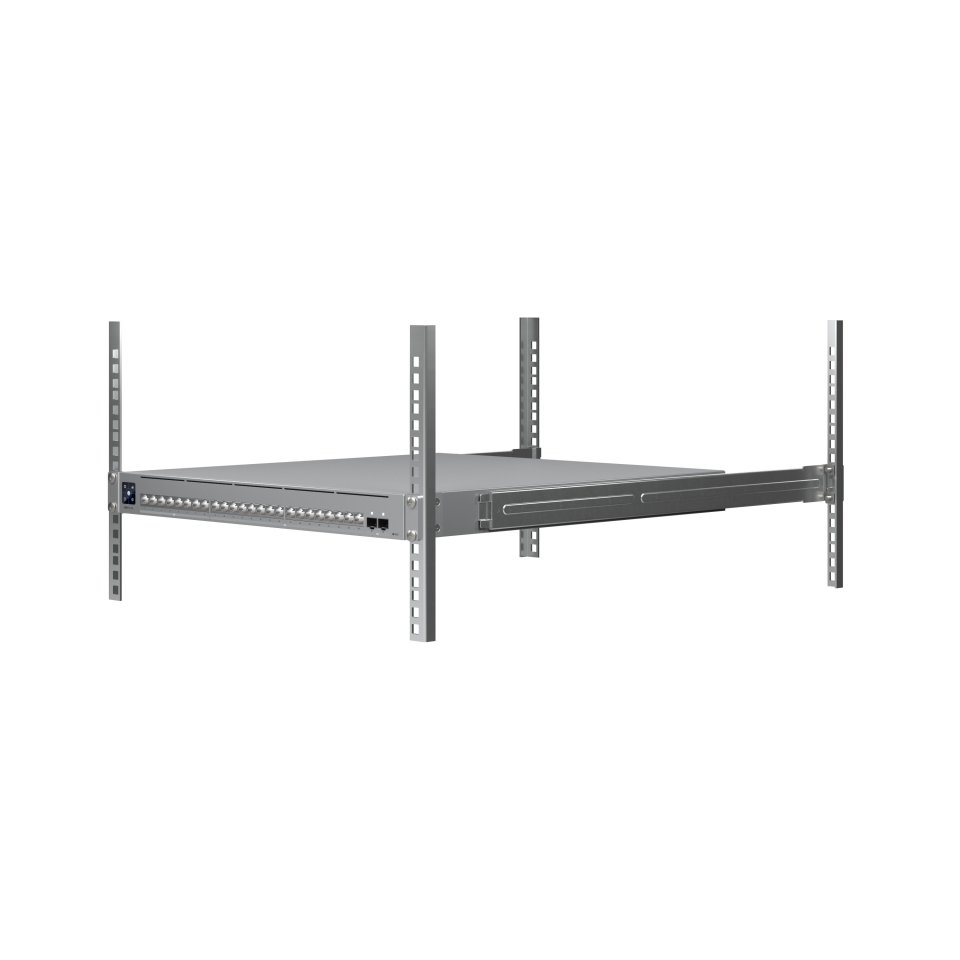

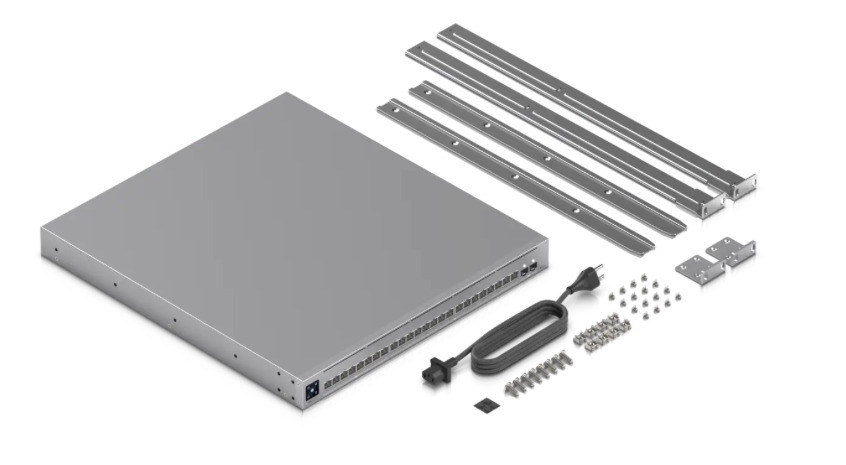

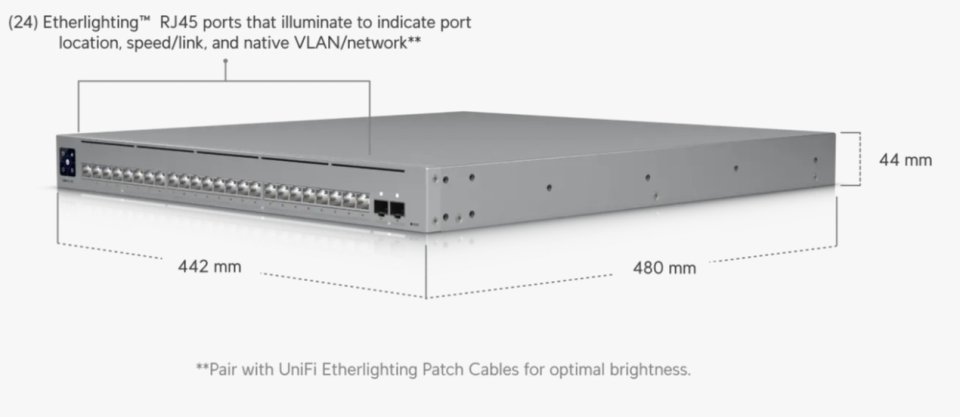

The switch is 1U in size and designed for rack mounting, delivered with an included rack mounting kit. The chassis is made of durable SGCC steel, measuring 442 x 480 x 44 mm. It weighs 7.2 kg. The device features a 1.3-inch backlit touchscreen (LCM), which facilitates viewing and managing settings. Power is supplied via an AC/DC power connector, with an internal 200 W power supply and support for a redundant power supply (RPS). The maximum power consumption is 150 W.
The switch supports Etherlighting™ technology, which lights up ports based on speed, link, and VLAN status. It is designed to operate over a wide voltage range (100–240 V AC) and functions in temperatures from -5 to 40 °C. The device also includes ESD protection and meets various compliance standards, such as CE, FCC, IC, and NDAA. The switch is compatible with UniFi Network software version 9.0.114 and later, enabling extensive management and updates.
