| Color | Black |
|---|---|
| Country of Origin | China |
| PID | 1013633 |
| Product weight (g) | 456 |
| Manufacturer address | Gladsaxevej 378 2.th, 2860 Søborg |
| Manufacturer's email address | |
| Manufacturer name | Zyxel Networks |

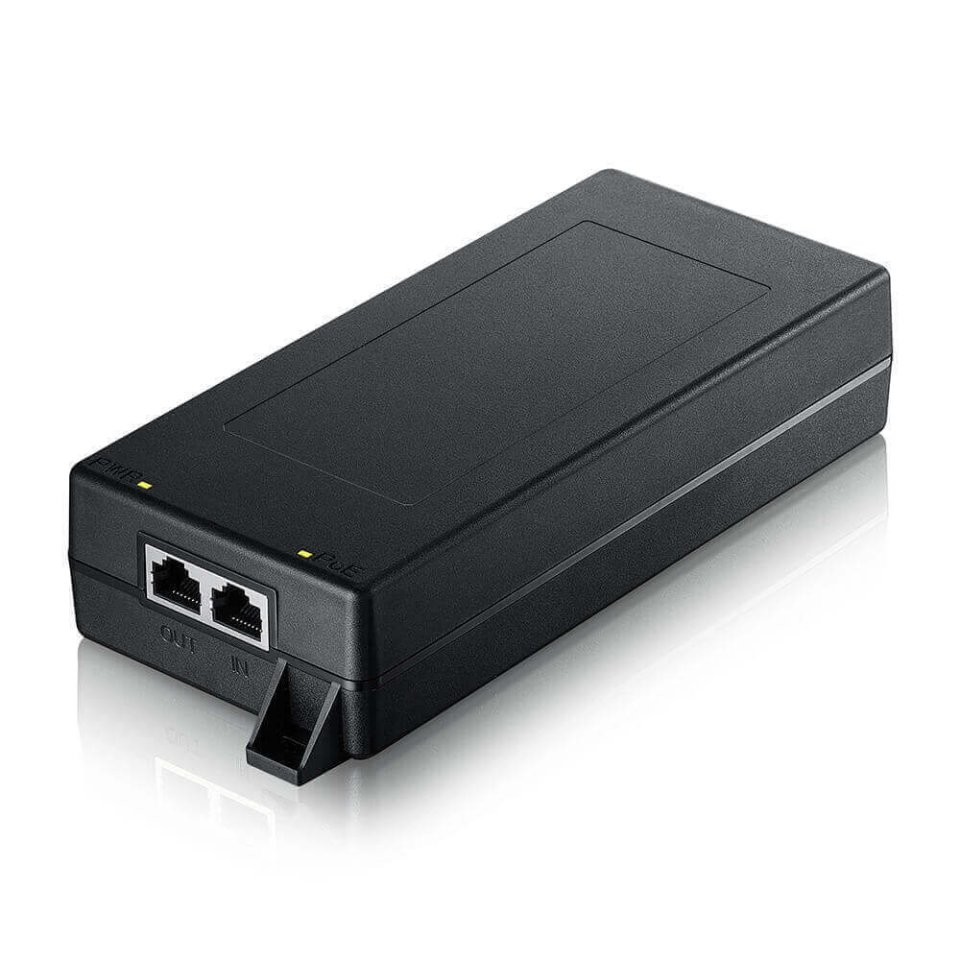

The ZyXEL PoE12-90W PoE injector provides a powerful and reliable way to supply power and data over a single cable to network devices such as WiFi 6 and WiFi 7 access points, surveillance cameras, and POS terminals. It delivers up to 90 watts of power and 10 Gbps data transfer speed, enhancing network performance without complex installations or configurations.

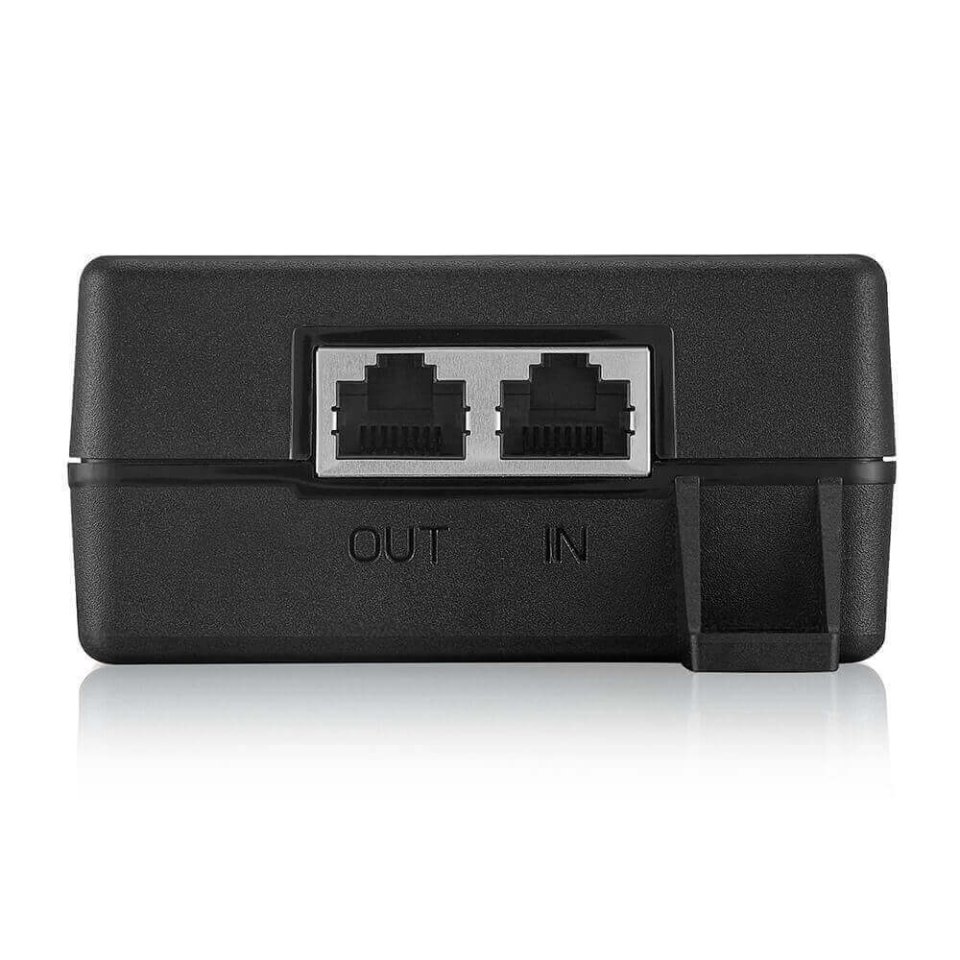

The PoE12-90W supports multiple Ethernet standards, including 100BASE-TX, 1000BASE-T, 2.5G/5GBASE-T, and 10GBASE-T. This ensures compatibility with a wide range of devices and enables speeds up to 10 Gbps, meeting the demands of modern networks and devices. One port is designed for both data and power delivery, while the other is for data transfer only.

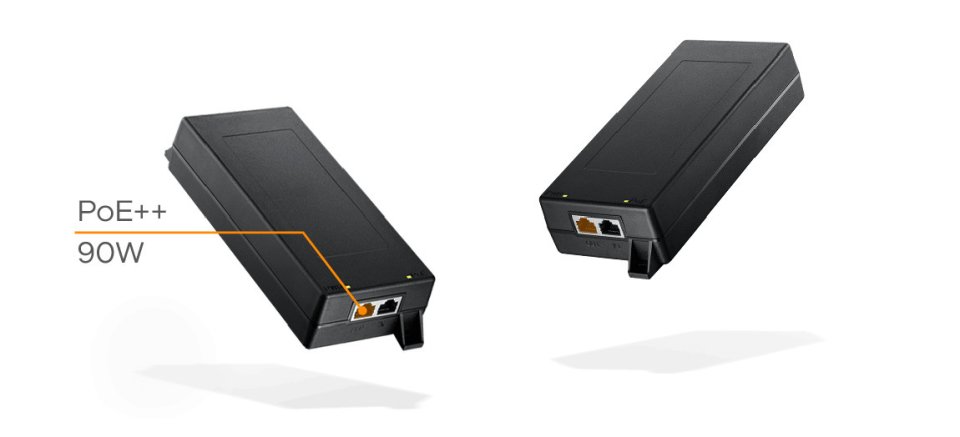

The device complies with the IEEE 802.3bt PoE++ standard, meaning it can supply up to 90 watts of power to a single device. This higher power output allows the use of more demanding devices such as PTZ cameras and high-performance access points without separate power supplies. Overload and short-circuit protection safeguard both the injector and connected devices by automatically cutting off power in case of issues.
The PoE injector is designed for ease of use without the need for configuration. Its design supports both wall and desktop mounting, making installation flexible in different environments. The device dimensions are 196.25 x 80 x 39.8 mm and it weighs 456 grams, making it compact and lightweight for placement in various locations.
The device is protected against ESD discharges (8 kV air and 4 kV contact) and has surge protection (+/- 2 kV), enhancing its durability and reliability in various operating conditions. The operating temperature range is -10 °C to 40 °C and humidity 5–90% non-condensing, making it suitable for diverse environments. Additionally, its power consumption is modest, using only 0.138 watts in standby mode.
