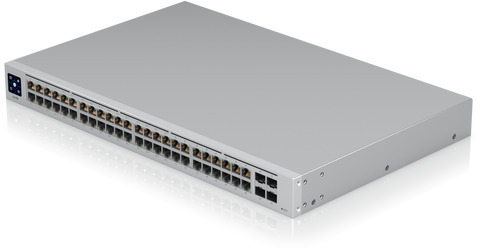

Meet the Ubiquiti UniFi USW-48-POE, a reliable and efficient network switch designed to handle the demands of business environments. With 48 Gigabit Ethernet ports and Power over Ethernet (PoE) support on 32 of them, this managed switch offers both speed and power delivery in one compact package. Its seamless integration with the UniFi platform makes network management straightforward and adaptable to your needs.

Powerful and Flexible Connectivity

The USW-48-POE comes equipped with 48 Gigabit Ethernet ports featuring auto-sensing and MDI/MDI-X capabilities, simplifying cable setup. Four SFP module slots allow for fiber connections, extending your network’s reach and capacity. It supports link aggregation, VLANs, and the Spanning Tree Protocol (STP), all of which contribute to enhanced network control and security.

PoE Support and Energy Efficiency

With Power over Ethernet Plus (PoE+) available on 32 ports, each delivering up to 32 W, this switch powers a variety of devices like IP cameras, phones, and wireless access points effortlessly. The total PoE budget is 195 W, ensuring you have enough power for your network devices. Its fanless design reduces noise and boosts reliability, while the included AC/DC power supply handles a maximum power consumption of 45 W.

Practical Design and Certifications

Built to fit a standard 1U rack space, the switch sports a sturdy stainless steel chassis that’s both durable and easy to install. Measuring 442.4 x 285 x 43.7 mm and weighing 4.52 kg, it’s solid yet manageable. Clear LED indicators show port activity, link status, and speed at a glance. Plus, the USW-48-POE meets international quality and safety standards with CE, FCC, and IC certifications.

Key Features

• Managed Layer 2 network switch
• 48 Gigabit Ethernet (10/100/1000) RJ-45 ports
• 4 SFP module slots for fiber connections
• Power over Ethernet Plus (PoE+) on 32 ports
• Up to 32 W power per PoE port, total PoE power budget of 195 W
• Switching capacity of 104 Gbps, forwarding rate of 77.38 Mpps
• Supports VLANs and Spanning Tree Protocol (STP)
• Port mirroring and link aggregation capabilities
• Auto MDI/MDI-X for simplified cabling
• Jumbo Frames support
• RADIUS authentication support
• Fanless design for quiet and reliable operation
• Durable 1U stainless steel chassis
• LED indicators for activity, link, and speed
• Includes AC power supply (100–240 V, 50–60 Hz)
• Operating temperature range: -5 to 40 °C, humidity: 10–90%
• Certified by CE, FCC, and IC standards

Technical Specifications

• Network Standard: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3af, 802.3at
• Ports: 48 x RJ-45 Gigabit Ethernet, 4 x SFP slots
• PoE Power Supply: 195 W total, 32 W per port
• Switching Capacity: 104 Gbps
• Forwarding Rate: 77.38 million packets per second (Mpps)
• VLAN: Supports 802.1Q VLAN tagging
• Spanning Tree Protocol: IEEE 802.1D
• Dimensions: 442.4 x 285 x 43.7 mm
• Weight: 4.52 kg
• Power Input: AC 100–240 V, 50–60 Hz
• Operating Temperature: -5 to 40 °C
• Humidity: 10–90% non-condensing
• Certifications: CE, FCC, IC
