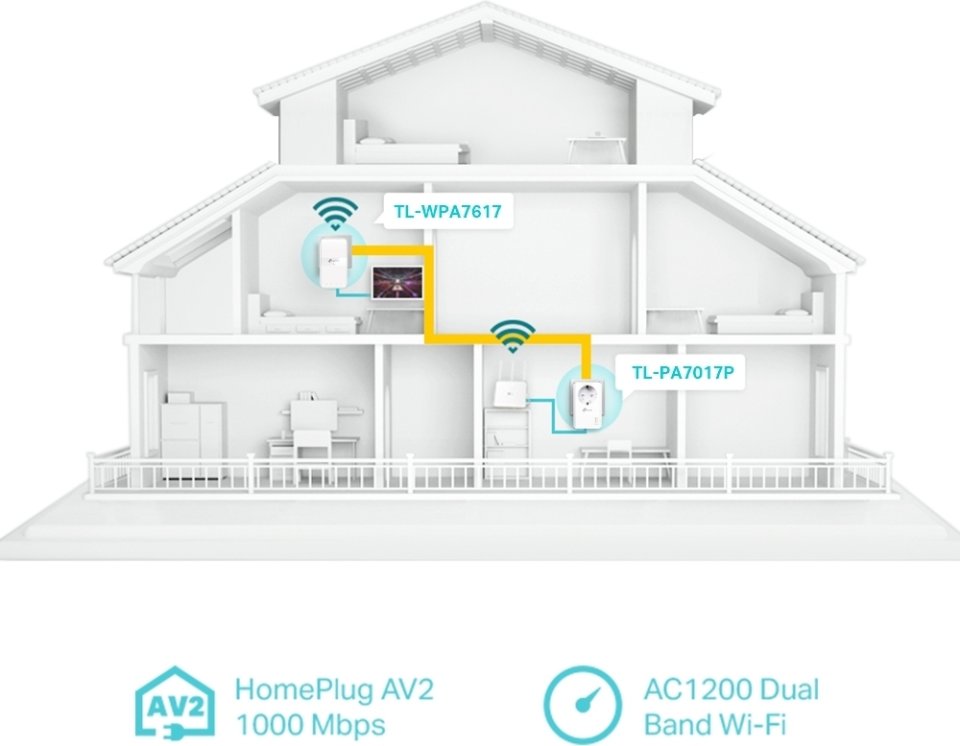

The package includes a wireless 802.11ac standard access point (TL-WPA7617 WiFi Powerline Extender) and a 1000 Mbps powerline Ethernet adapter (TL-PA7017P). HomePlug AV2 compatible adapters provide 1000 Mbps transfer speed over the powerline and up to 1200 Mbps wireless transfer speed. 128-bit AES encryption secures network traffic from outsiders with the push of a button.

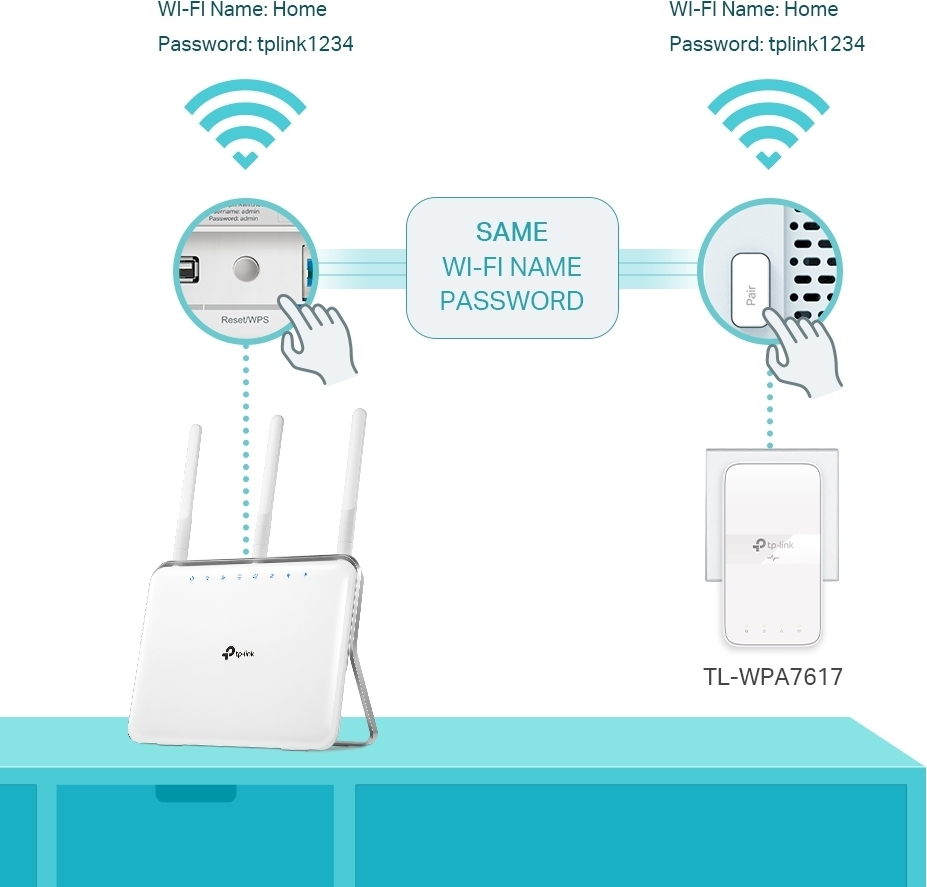

The TL-WPA7617 device features a WiFi Clone button that simplifies installation. This means it automatically copies the SSID and your router’s password. When you press the button, you can place the powerline adapter wherever you want wired or wireless network access. The Wifi Auto-Sync function allows the wireless network created by the adapters to follow the access point’s network, enabling it to, for example, turn off and on according to the access point’s schedule. The LED lights can also follow this scheduling.

Technical specifications:

• Converts a power outlet into a network connection.
• Range over powerline up to 300 m.
• Data transfer speed over the existing powerline up to 1000 Mbps. No extra wiring needed.
• Compatible with HomePlug AV/AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/ac 5 GHz technology adapters.
• Dual Band WiFi speed up to 300 Mbps at 2.4 GHz and up to 867 Mbps at 5.0 GHz.
• Auto-Sync function: You can add new Powerline Wi-Fi adapters to your network and easily synchronize all device settings (Wi-Fi scheduling, Wi-Fi password, network name, LED indicator scheduling) with the push of a button.
• WPA2, WPA-PSK, and WPA2-PSK WPA encryption keep your wireless network traffic secure.

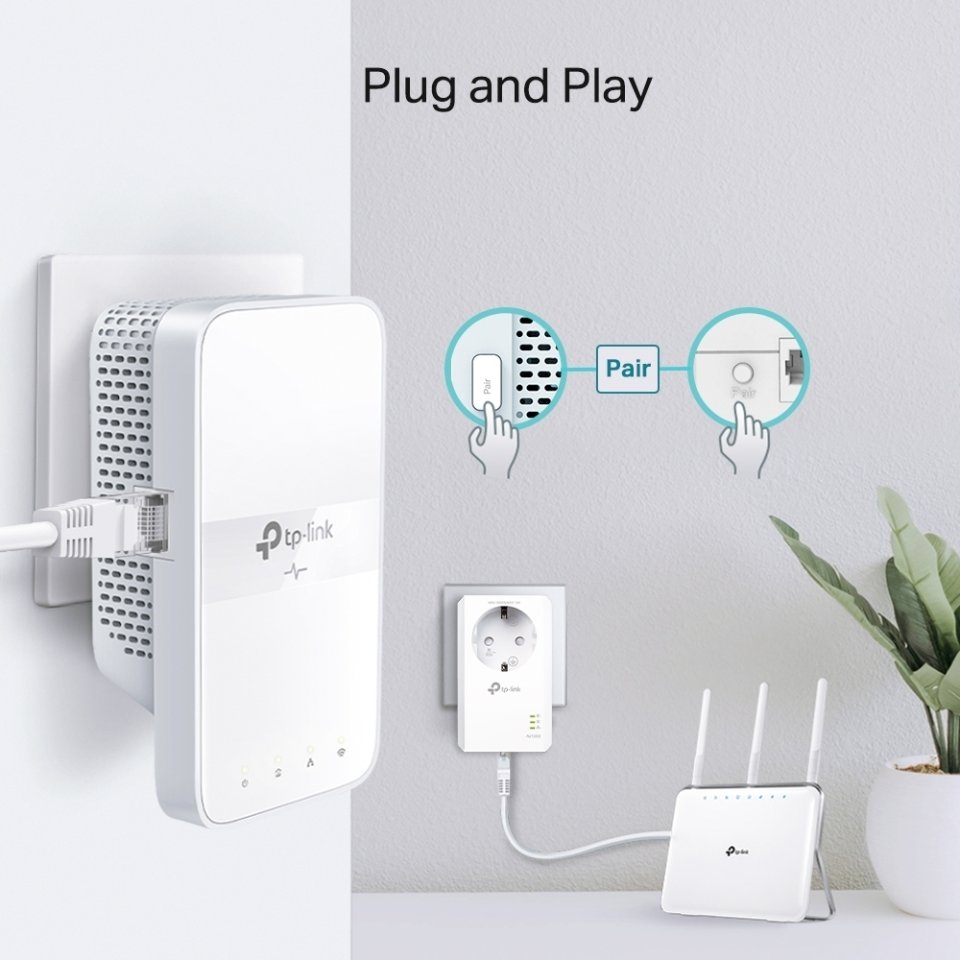

• Secure powerline connection – 128-bit AES encryption with the push of a button.

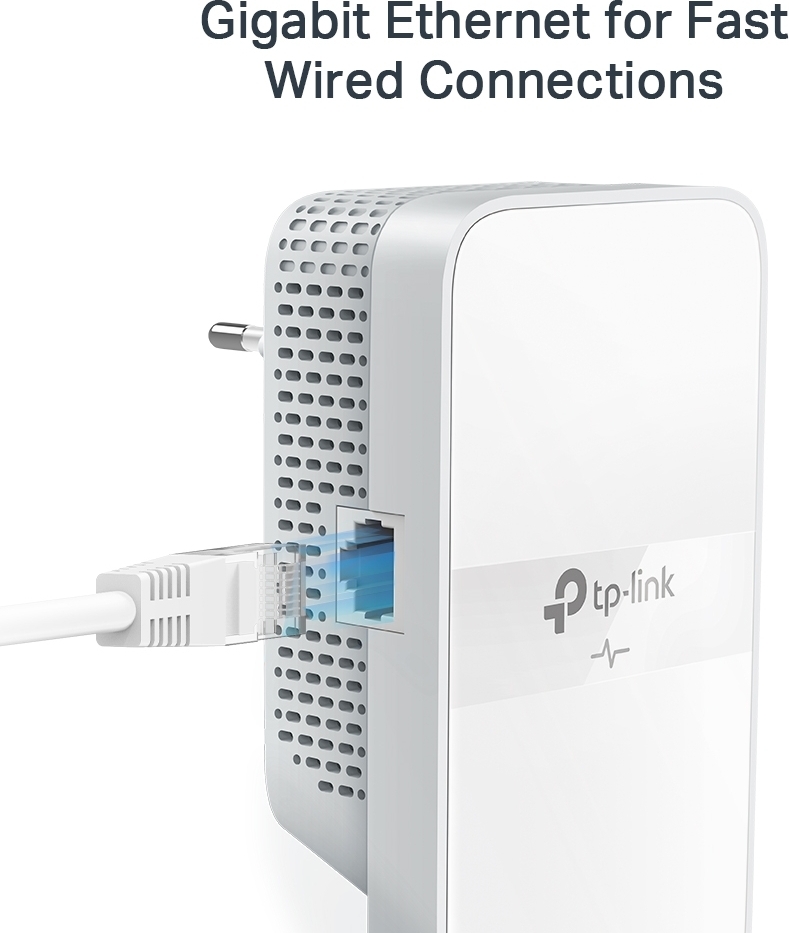

• Connections TL-WPA7617: LAN x 1 RJ-45 10/100/1000.
• Connections TL-PA7017P: LAN x 1 RJ-45 10/100/1000.
• TL-WPA7617 adapter size: 69.5 × 35 × 124.1 mm.
• TL-PA7017P adapter size: 58 × 42 × 95 mm.
• Package contents: TL-WPA7617, TL-PA7017P, 2 x Ethernet cable (2 m), quick guide.
