The Intellinet injector delivers up to 30W of power to PoE+ (802.3at) devices located up to 100 meters away. This greatly enhances electrical safety, as there’s no need to run high-voltage electricity to surveillance cameras and other devices; they can receive the power they need directly through the Ethernet cable. When connected to a grounded outlet, the injector provides protection against surges, short circuits, and overcurrent.

Features:

• The maximum distance between the injector and the PoE device is 100 meters.
• Compatible with all IEEE 802.3at and IEEE 802.3af PoE devices.
• Also compatible with IEEE 802.3x (flow control, full duplex mode)

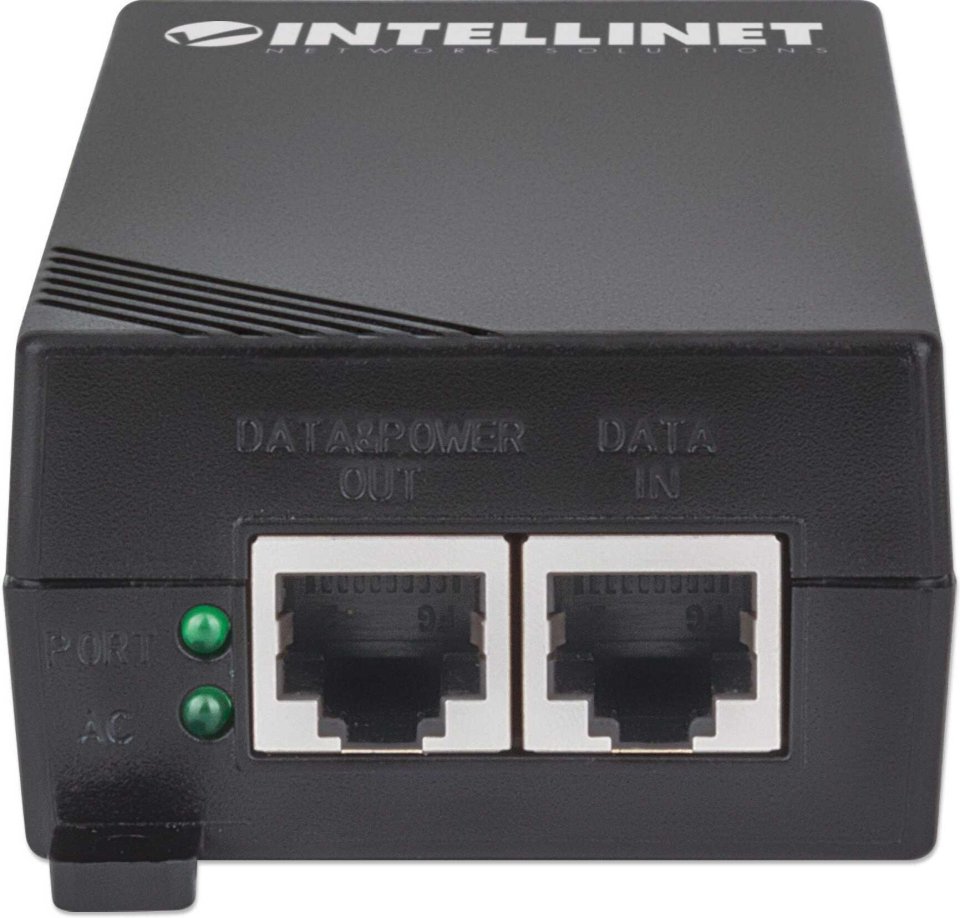

• Connections: 1 x RJ45 10/100/1000 Mbps port for input, 1 x RJ45 10/100/1000 Mbps port for data and power output, 1 x power connector
• Supported standards: IEEE 802.3af (Power over Ethernet), IEEE 802.3at (High-Power PoE+ Power over Ethernet), IEEE 802.3 (10Base-T Ethernet), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3u (100Base-TX Fast Ethernet), IEEE 802.3x (flow control for full duplex mode)
• Quiet operation, no fan.
• Dimensions: 136x67x34 mm
• Weight: 190 g
• Operating temperature: 0-50°C
• Humidity limits during use: 5-90% RH, non-condensing
• Certified: CE, FCC Class A, UL
• Package contents: Intellinet Gigabit 30W PoE+ injector, power cable, quick guide
