Additional information

Country of Origin

Japan

PID

907231

Product depth (mm)

280

Product height (mm)

178

Product weight (g)

3

Product width (mm)

204

Manufacturer address

Äyritie 12 B, 01510 Vantaa, Finland

Manufacturer's email address

https://www.brother.fi/

Manufacturer name

Brother Nordic A/S, Suomen sivuliike

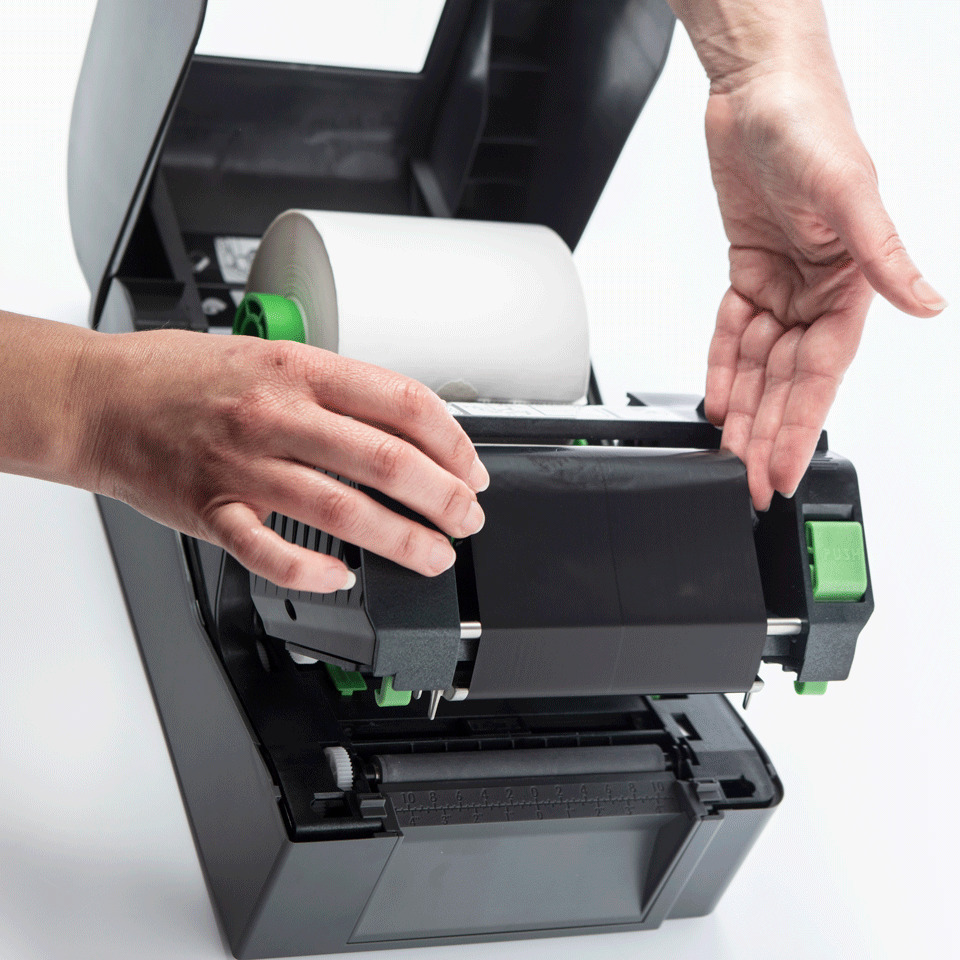

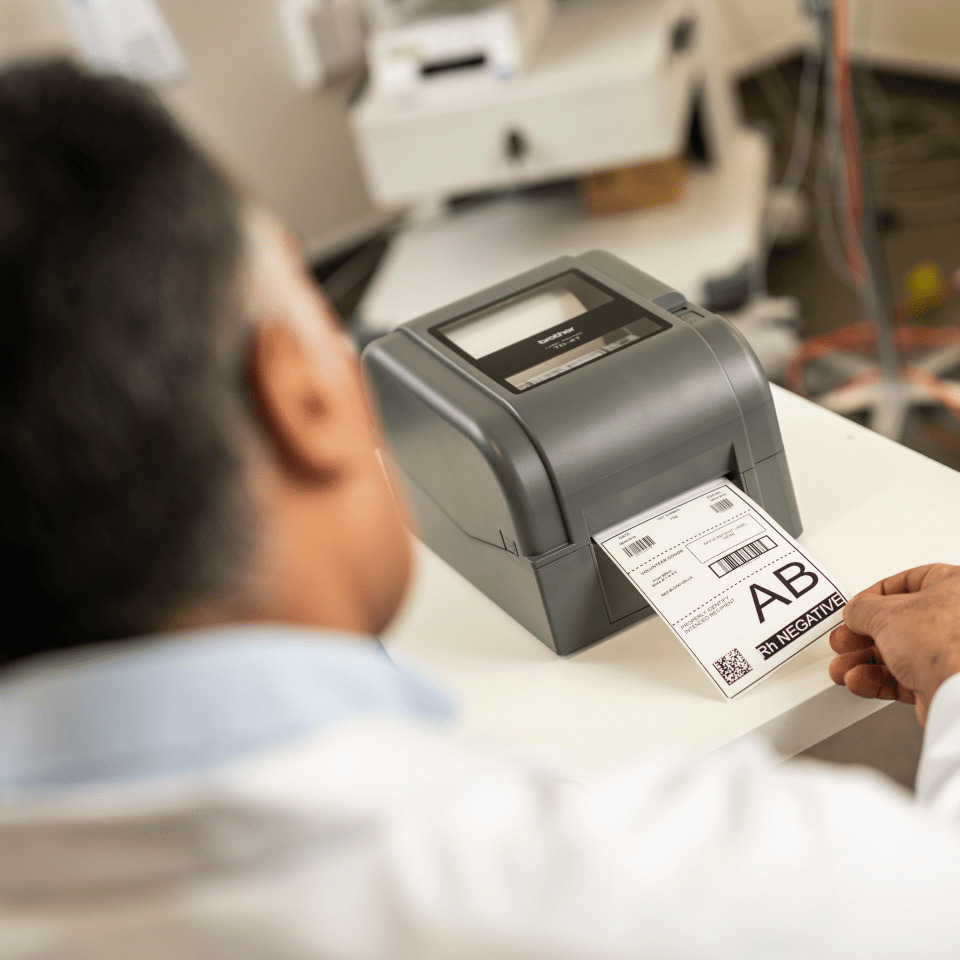

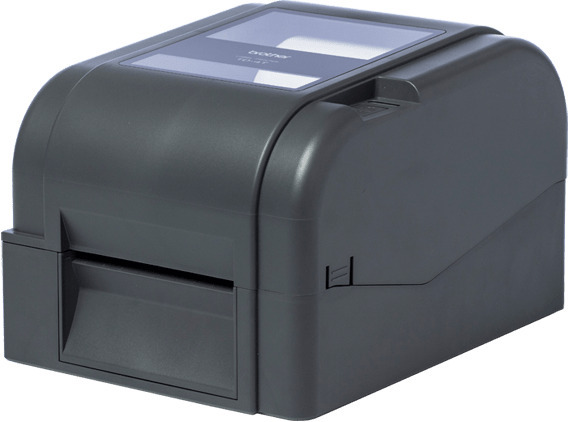

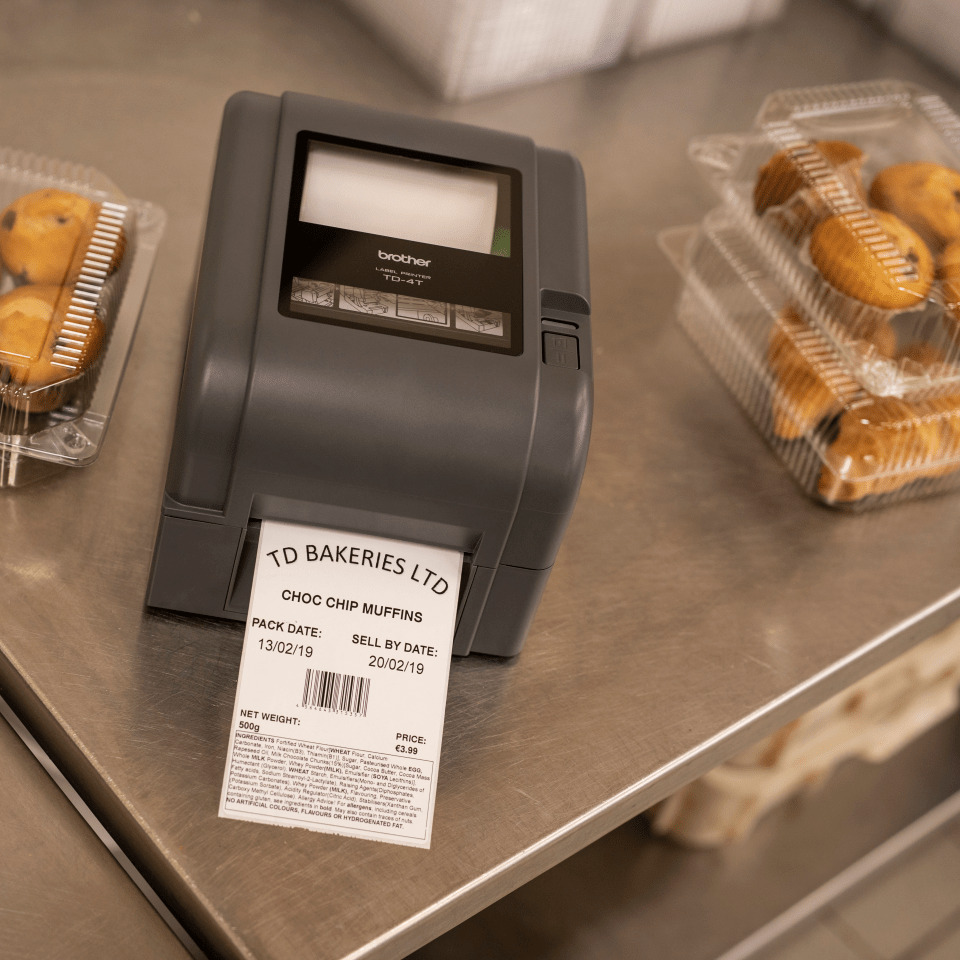

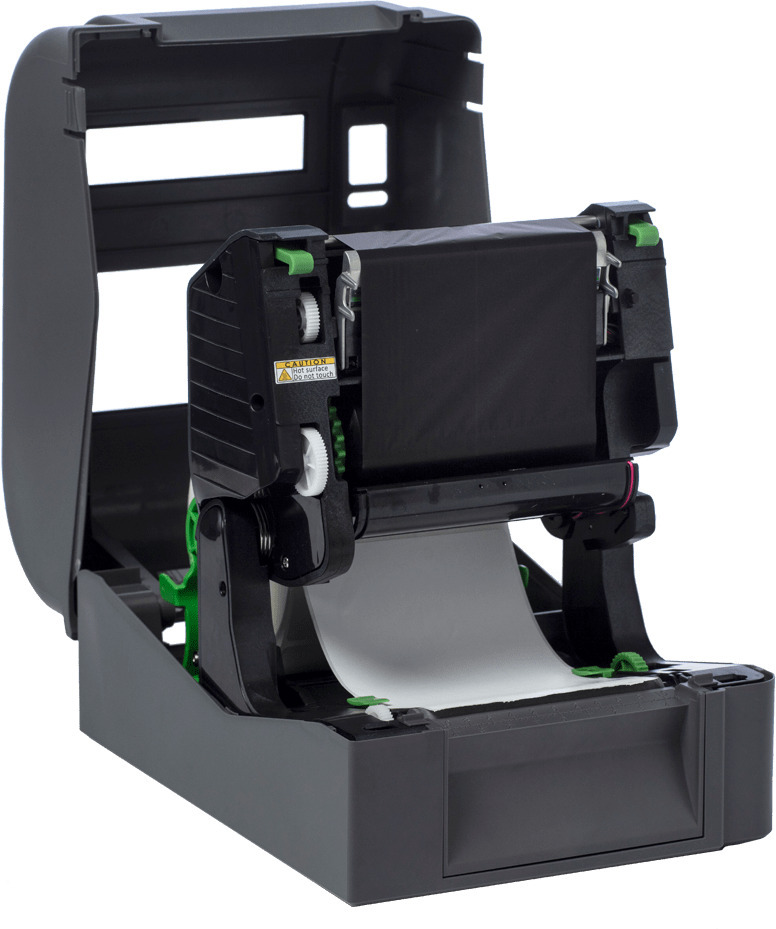

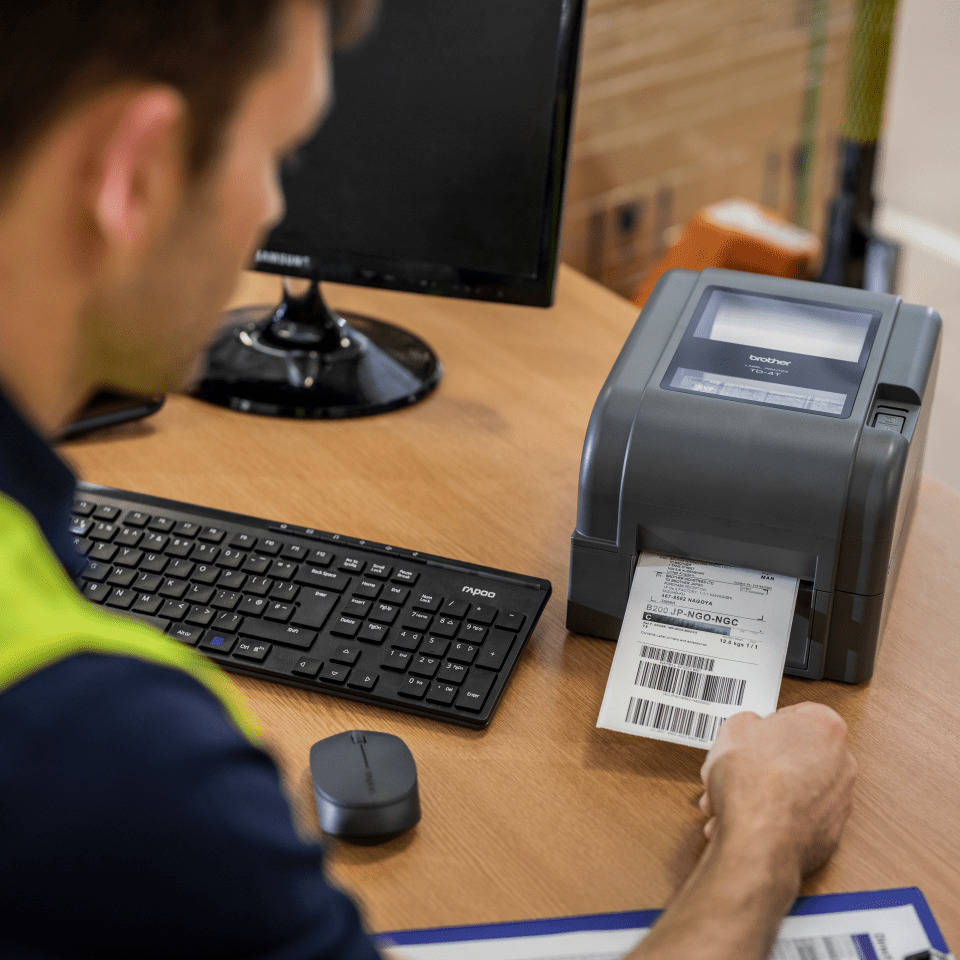

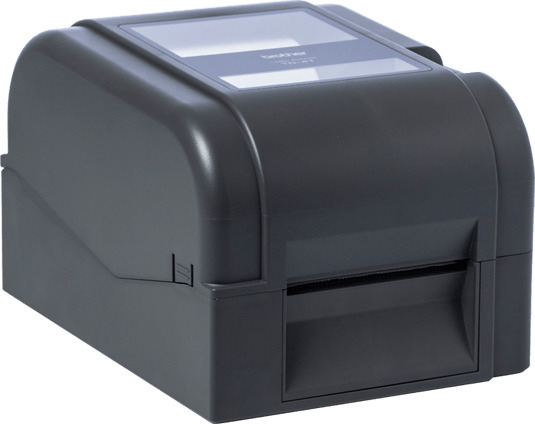

Meet the versatile and precise TD-4520TN label printer, designed to elevate your labeling experience! Utilizing thermal transfer technology, this printer employs a ribbon for vibrant prints, while also offering direct thermal printing without the need for a ribbon. Perfect for creating durable barcode labels that stand the test of time, this desktop printer is easy to integrate with your existing systems thanks to its built-in printing commands. It can print labels up to 112 mm wide at a sharp 300 dpi resolution. With its high-capacity ribbons, you won’t have to worry about frequent replacements, maximizing your printer’s uptime. Equipped with USB, a wired network connection, and serial interface, data transfer is reliable and efficient. Plus, enjoy impressive print speeds of up to 127 mm per second, along with support for popular printer languages right out of the box!

Technical Specifications:

  • Flash RAM: 128 MB
  • LED Indicators: Power, Status, Error
  • RAM: 64 MB
  • Technology: Thermal Transfer / Direct Thermal
  • Serial Interface: RS-232C (DB9 female)
  • USB Interface: Type B: Version 2.0 High Speed | Type A: USB Host (mass storage)
  • Wired Network Interface: 10/100 BASE-TX (ARP, MAC, BOOTP, DHCP, DNS, WINS, FTP server, HTTP server, SNTP client, SMTP client, SNMP V1, Telnet, LPR/LPD, RAW 9100, IPV4, ICMP, IGMP, TCP, UDP)
  • Dimensions (WxDxH): 204 x 280 x 177.5 mm
  • Weight: 2.5 kg
  • Compatible Operating Systems: Linux, Mac OS X 10.10.x or later, Windows 7, 8, 8.1, 10, Server 2008, 2008R2, 2012, 2012R2, 2016 (For a full list of compatible operating systems, visit support.brother.com)
  • 2D Barcode Symbologies: CODABLOCK F mode, GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF417, TLC39
  • Label Width: Maximum 112 mm
  • Maximum Print Length: 11430 mm
  • Maximum Print Width: 105.7 mm
  • Resolution (dpi): 300 x 300
  • Standard Print Speed: 127 mm/s
  • Supported Commands: FBPL-EZD (EPL, ZPL, ZPL2, DPL)
  • 1D Barcode Symbologies: Linear: Code128UCC, Code128 Interpretations A, B, C, EAN128, Interleaved 2/5, Code39, EAN13, EAN8, UPCA, UPCE, Codabar, Postnet, MSI, and more
  • Bitmap Fonts: 8 alphanumeric bitmap fonts for FBPL
  • Outline/Vector Fonts: Monotype Image® TrueType Font Engine with one scalable CG TriumvirateBold Condensed font
  • Three-Year Warranty
  • Compatible Labels: BUS1J074102121, BCS1J150102121, BUS1J150102121, BCS1J07410212
  • Compatible Transfer Ribbons: BWS1D300110, BSS1D300110, BRS1D300110

The product package includes the TD-4520TN label printer, software, accessories, power supply, power cord, USB cable, quick installation guide, and Bartender Ultra Lite Edition label design software (available for free download) – Windows only.

Toote pildid on illustratiivsed ja näitlikud. Originaaltoote omadused võivad nende tegelikust väljanägemisest erineda, seega palun tutvuge tootekirjelduses toodud tootespetsifikatsioonidega.
LAOS OLEMAS

Brother TD-4520TN – label printer for professional use

665.87
sis. KM 24%
  • Fixed broadband connection
  • Professional-grade 300 dpi printing
  • Print speed 127 mm/second
  • Large color ribbon capacity
  • Included sticker design software
Eeldatav tarneaeg: 4-7 päeva
Maksa hiljem või osana
Tootekood: TD4520TNZ1
EAN kood: 4977766798563, 2220009072312

Meet the versatile and precise TD-4520TN label printer, designed to elevate your labeling experience! Utilizing thermal transfer technology, this printer employs a ribbon for vibrant prints, while also offering direct thermal printing without the need for a ribbon. Perfect for creating durable barcode labels that stand the test of time, this desktop printer is easy to integrate with your existing systems thanks to its built-in printing commands. It can print labels up to 112 mm wide at a sharp 300 dpi resolution. With its high-capacity ribbons, you won’t have to worry about frequent replacements, maximizing your printer's uptime. Equipped with USB, a wired network connection, and serial interface, data transfer is reliable and efficient. Plus, enjoy impressive print speeds of up to 127 mm per second, along with support for popular printer languages right out of the box!

Technical Specifications:

  • Flash RAM: 128 MB
  • LED Indicators: Power, Status, Error
  • RAM: 64 MB
  • Technology: Thermal Transfer / Direct Thermal
  • Serial Interface: RS-232C (DB9 female)
  • USB Interface: Type B: Version 2.0 High Speed | Type A: USB Host (mass storage)
  • Wired Network Interface: 10/100 BASE-TX (ARP, MAC, BOOTP, DHCP, DNS, WINS, FTP server, HTTP server, SNTP client, SMTP client, SNMP V1, Telnet, LPR/LPD, RAW 9100, IPV4, ICMP, IGMP, TCP, UDP)
  • Dimensions (WxDxH): 204 x 280 x 177.5 mm
  • Weight: 2.5 kg
  • Compatible Operating Systems: Linux, Mac OS X 10.10.x or later, Windows 7, 8, 8.1, 10, Server 2008, 2008R2, 2012, 2012R2, 2016 (For a full list of compatible operating systems, visit support.brother.com)
  • 2D Barcode Symbologies: CODABLOCK F mode, GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF417, TLC39
  • Label Width: Maximum 112 mm
  • Maximum Print Length: 11430 mm
  • Maximum Print Width: 105.7 mm
  • Resolution (dpi): 300 x 300
  • Standard Print Speed: 127 mm/s
  • Supported Commands: FBPL-EZD (EPL, ZPL, ZPL2, DPL)
  • 1D Barcode Symbologies: Linear: Code128UCC, Code128 Interpretations A, B, C, EAN128, Interleaved 2/5, Code39, EAN13, EAN8, UPCA, UPCE, Codabar, Postnet, MSI, and more
  • Bitmap Fonts: 8 alphanumeric bitmap fonts for FBPL
  • Outline/Vector Fonts: Monotype Image® TrueType Font Engine with one scalable CG TriumvirateBold Condensed font
  • Three-Year Warranty
  • Compatible Labels: BUS1J074102121, BCS1J150102121, BUS1J150102121, BCS1J07410212
  • Compatible Transfer Ribbons: BWS1D300110, BSS1D300110, BRS1D300110

The product package includes the TD-4520TN label printer, software, accessories, power supply, power cord, USB cable, quick installation guide, and Bartender Ultra Lite Edition label design software (available for free download) - Windows only.
