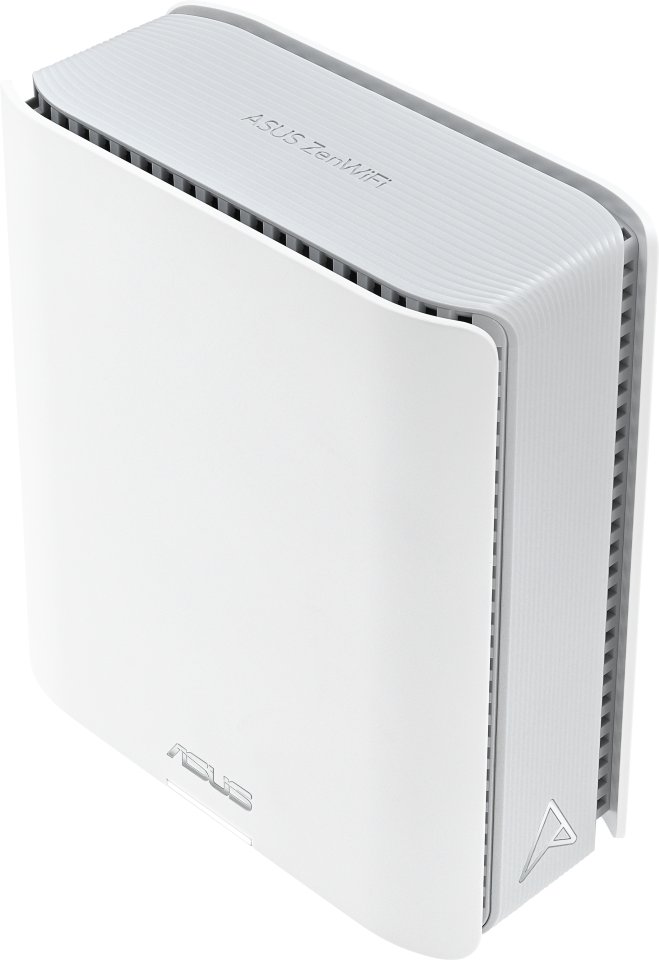

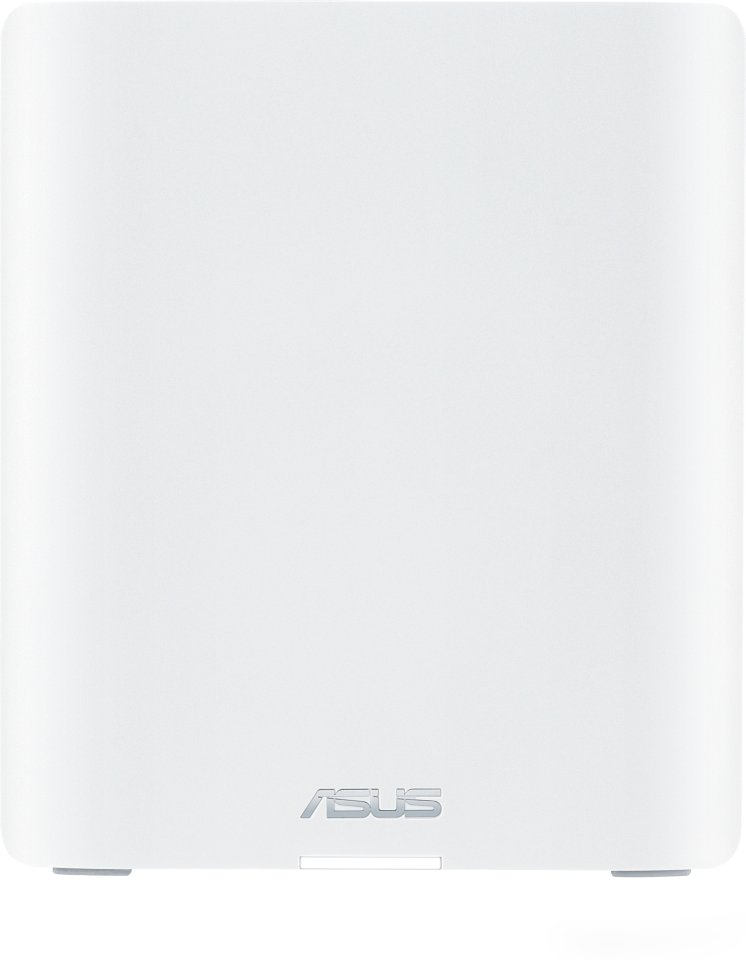

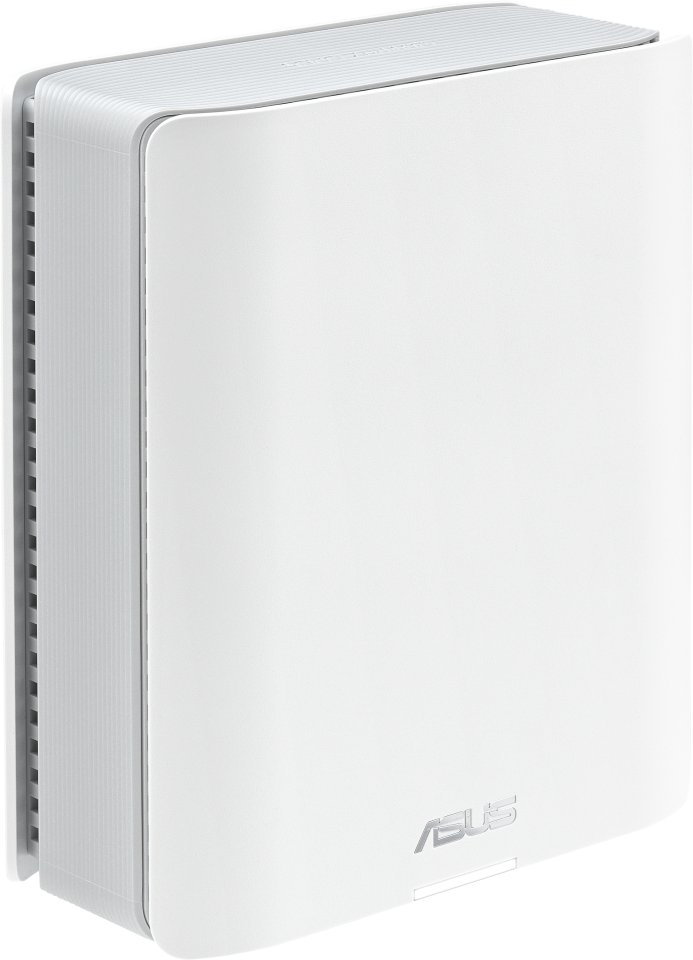

ASUS ZenWiFi – worry-free smart home Mesh system

ASUS ZenWiFi BT8 delivers top-tier performance for whole-home mesh networks utilizing WiFi 7 technology and advanced Smart AiMesh features. It offers incredibly fast tri-band transfer speeds up to 14 Gbps and unlocks the full potential of 6 GHz WiFi. Combined with ultra-fast dual 2.5 gigabit Ethernet ports and advanced networking and security technologies, this mesh WiFi system is ready for the future needs of smart homes today.

Tri-band WiFi 7 up to 14 Gbps speed, 6 GHz WiFi, MLO, and 4K-QAM

Tri-band WiFi 7 enables speeds up to 14 Gbps by utilizing the 6 GHz WiFi band, Multi-Link Operation (MLO), and 4K-QAM technology.

Powerful signal coverage

Seven internal antennas and eight efficient front-end modules eliminate WiFi dead zones.

24/7 protection with commercial-grade AiProtection Pro and advanced VPN services

Continuous 24/7 protection with AiProtection Pro and advanced VPN solutions.

IoT network, parental controls, and VPN for easy use across multiple devices

Manage parental controls, VPN connections, and smart home solutions on multiple devices using separate SSID networks.

Two flexible 2.5 G Ethernet ports for ultra-fast wired connections

Enables extremely fast wired data transfer and cable connections.

4G LTE/5G mobile hotspot for always-on internet

Supports sharing 4G LTE and 5G connections from your phone to ensure continuous internet connectivity.

Technical specifications:

• Model: ASUS ZenWiFi BT8 – 1 pack
• Network standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), WiFi 6E (802.11ax), WiFi 7 (802.11be), IPv4, IPv6
• Product segment: BE14000: high-end BE performance – 688+4323+8643 Mbps
• WiFi transfer speeds: WiFi 7 (802.11be) (2.4 GHz): up to 688 Mbps, WiFi 7 (802.11be) (5 GHz): up to 4323 Mbps, WiFi 7 (802.11be) (6 GHz): up to 8643 Mbps
• Antennas: 7 internal antennas
• Transmit/receive: 2.4 GHz: 2×2, 5 GHz: 3×3, 6 GHz: 3×3
• Memory: RAM: 1 GB, Flash: 128 MB
• Speed enhancement features: OFDMA, beamforming: standard-based and universal, 4096-QAM: high data rate modulation, 20/40/80/160/320 MHz bandwidth
• Operating frequency: 2.4 GHz, 5 GHz, 6 GHz
• Operating modes: Wireless Router Mode, AiMesh Node Mode, Access Point Mode

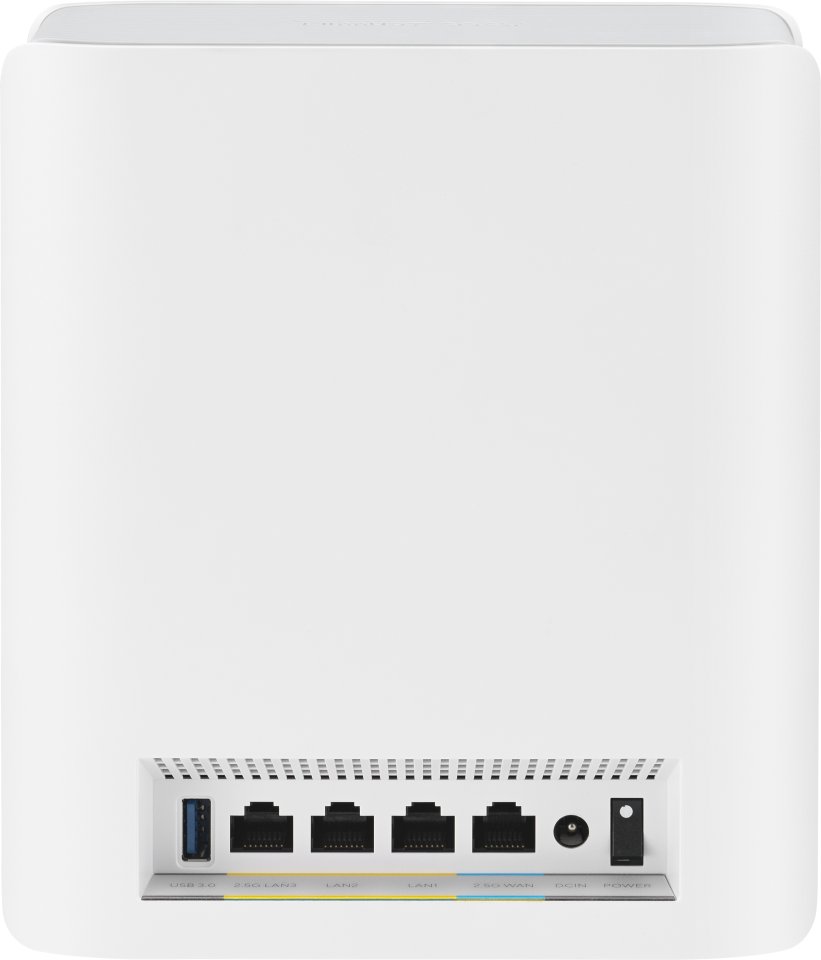

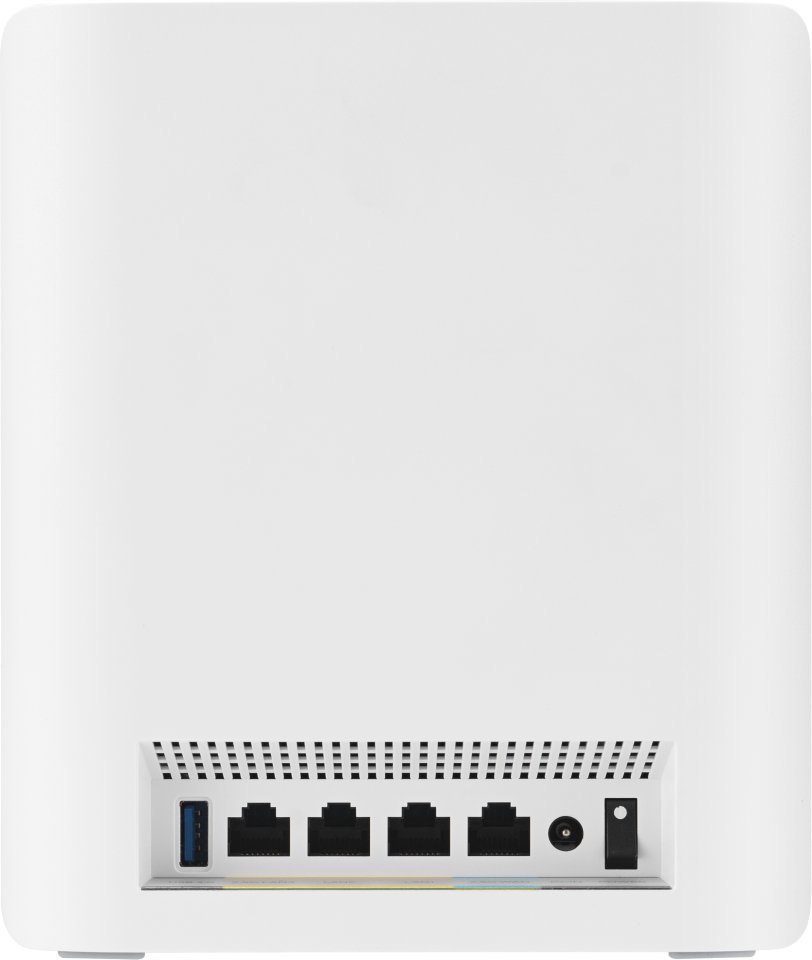

• Connections: 2.5G WAN x 1, 2.5G LAN x 1, 1G LAN x 2, USB 3.0 x 1
• Buttons: WPS button, reset button, power switch
• AiMesh: Primary AiMesh Router, AiMesh Node
• Router app: ASUS Router APP
• VPN features: VPN Client: L2TP, OpenVPN, PPTP, WireGuard, VPN Server: IPSec, OpenVPN, PPTP, WireGuard, VPN Fusion
• Parental Control: Scheduling and management of network connections
• WAN features: 3G/4G LTE dongle, 4G/5G automatic sharing from phone, port forwarding and triggering, DMZ, DDNS, dual-WAN
• LAN features: DHCP server, IGMP snooping, IPTV, LAN link aggregation, manual IP address assignment, Wake on LAN (WOL)
• Smart home functions: Supports Google Assistant
• Product dimensions: 159 x 72 x 186 mm
• Power supply: AC input: 110V–240V (50–60 Hz), DC output: 12V, max. 3A
• Package contents: ZenWiFi BT8, RJ45 cable, power supply, warranty card, and quick start guide
