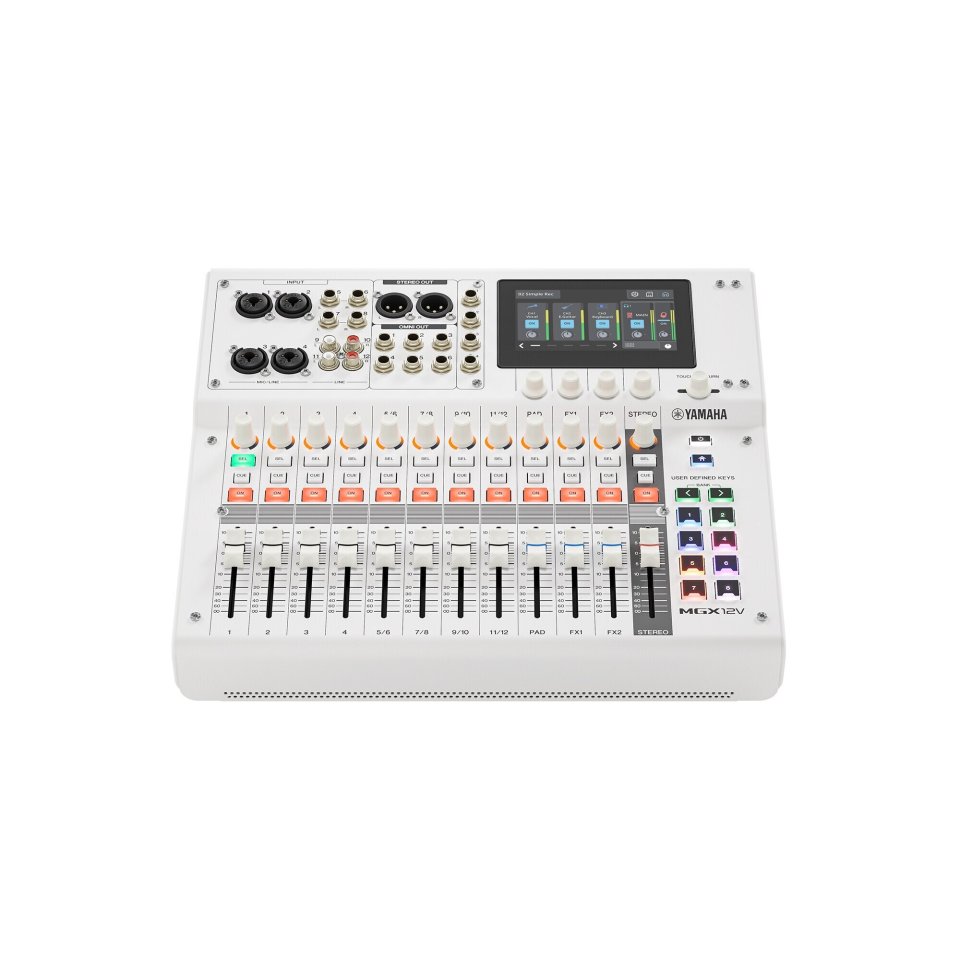

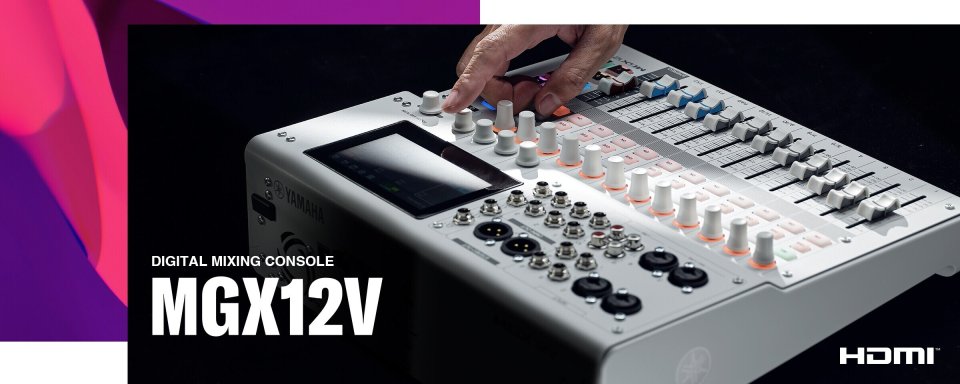

Yamaha MGX12V – Compact Digital Mixer with Video Connection

In addition to the essential features and versatility of a professional mixer, the MGX12V model also includes an HDMI-USB audio/video interface with recording and pass-through functions. This allows users not only to mix and transmit audio in various ways but also to record video simultaneously to a computer and save or stream it together with the audio.

For content creators, sound engineers, producers, as well as artists and streamers, the seamless integration of high-definition video into their workflow opens up new creative possibilities across a wider range of environments. In all applications involving both audio and video, the MGX12V elevates your production quality and captivates your audience.

Top-Quality Sound and Microphone Options

The MGX12V features 4 premium-class MGX microphone preamps, offering an impressive 86 dB gain range along with highly precise and clear sound. Additionally, it includes multiple line inputs and flexible monitoring and output options – a total of 4 mono and 4 stereo channels, two XLR outputs, four TRS OMNI outputs, and four headphone outputs.

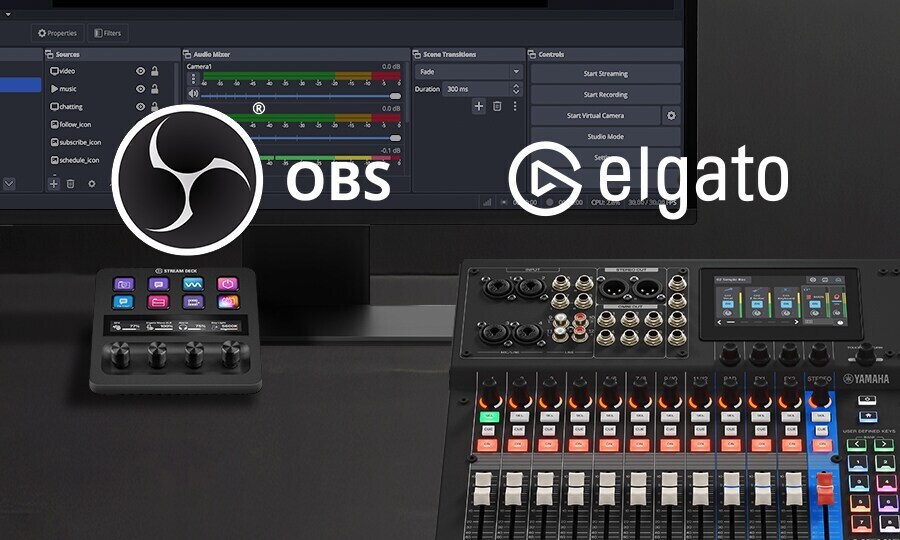

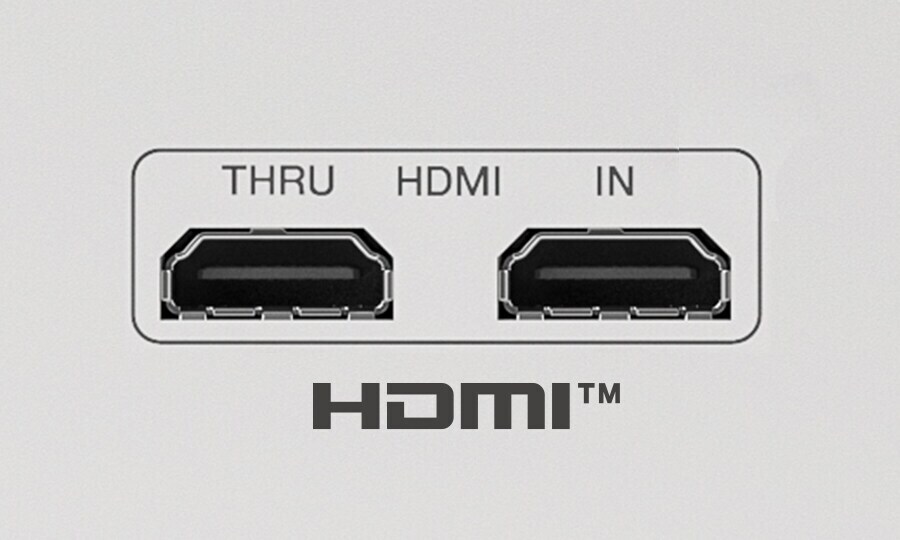

Integrated HDMI USB Video Interface Opens New Opportunities

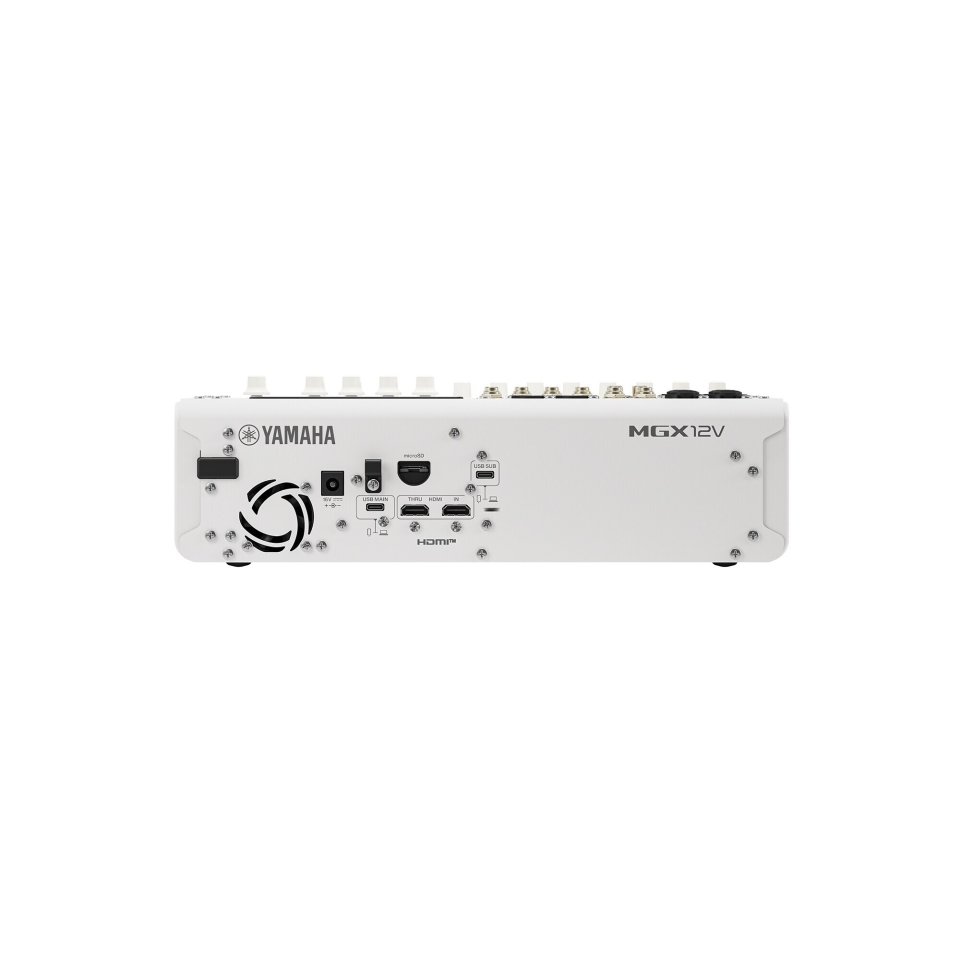

A key strength of the MGX12V is its built-in USB HDMI audio/video interface, which enables:

  • High-quality video capture (up to 4K / pass-through)
  • Simultaneous audio and video streaming or recording
  • Direct HDMI pass-through to displays and projectors

This reduces the need for external video capture devices and makes working smoother and more reliable in both live event technology and studio productions.

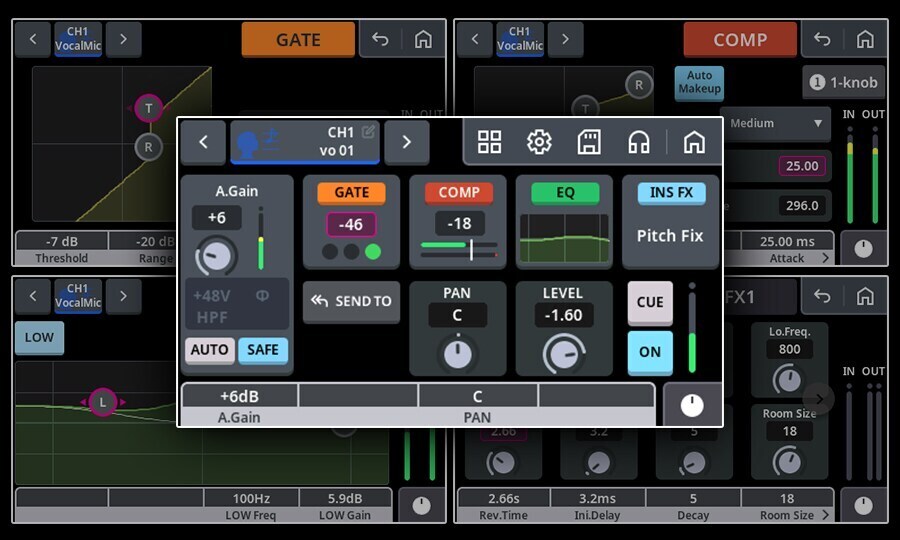

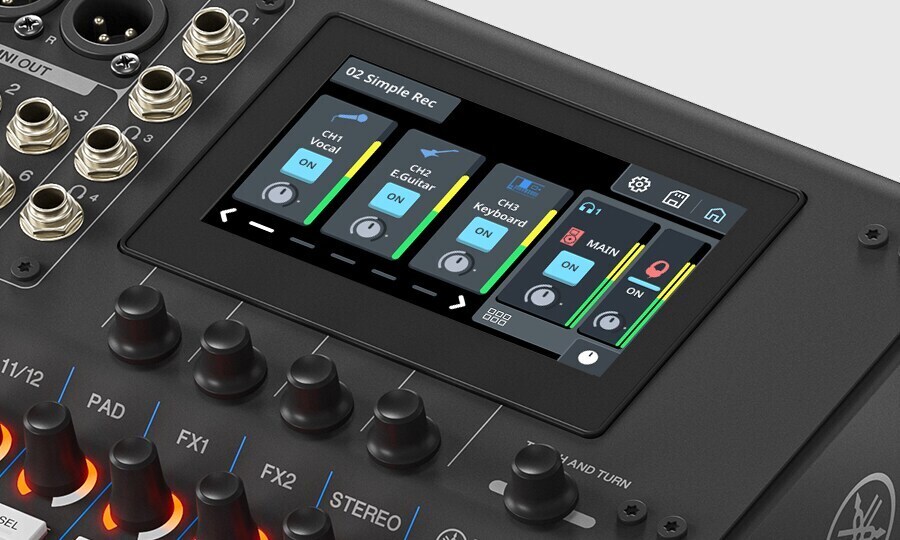

Touchscreen and Fast Operation

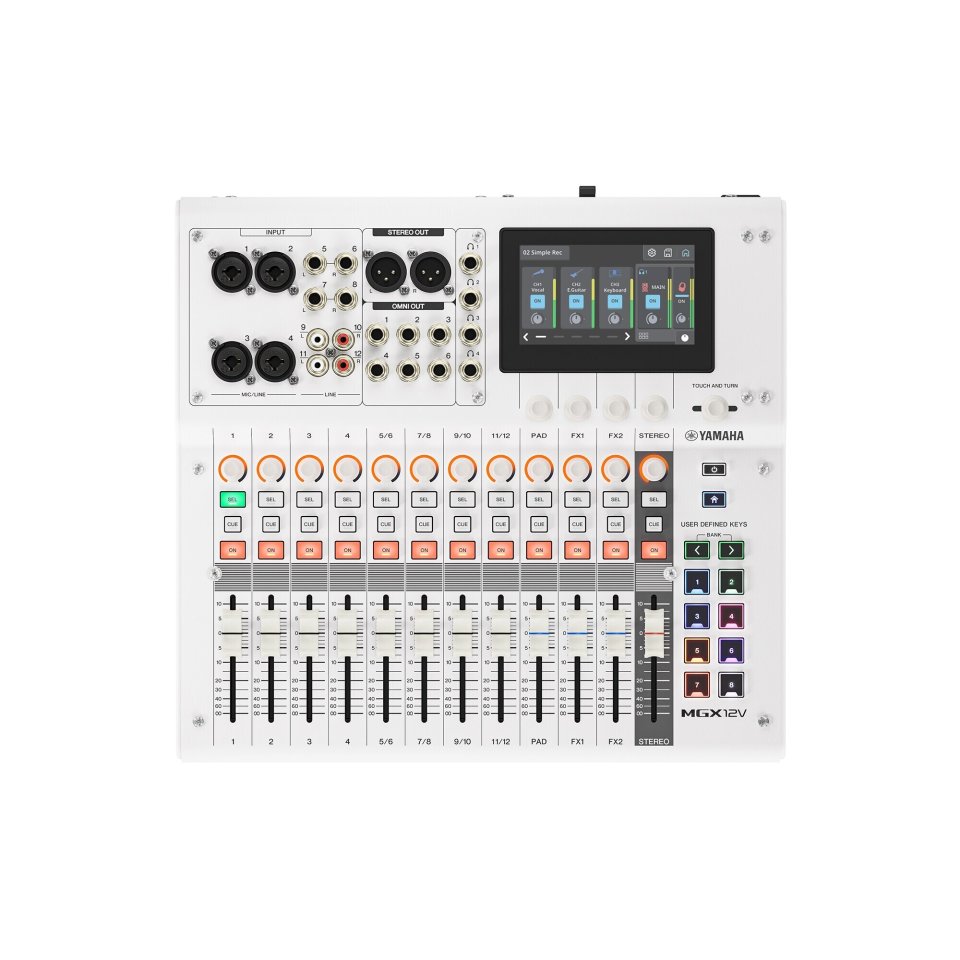

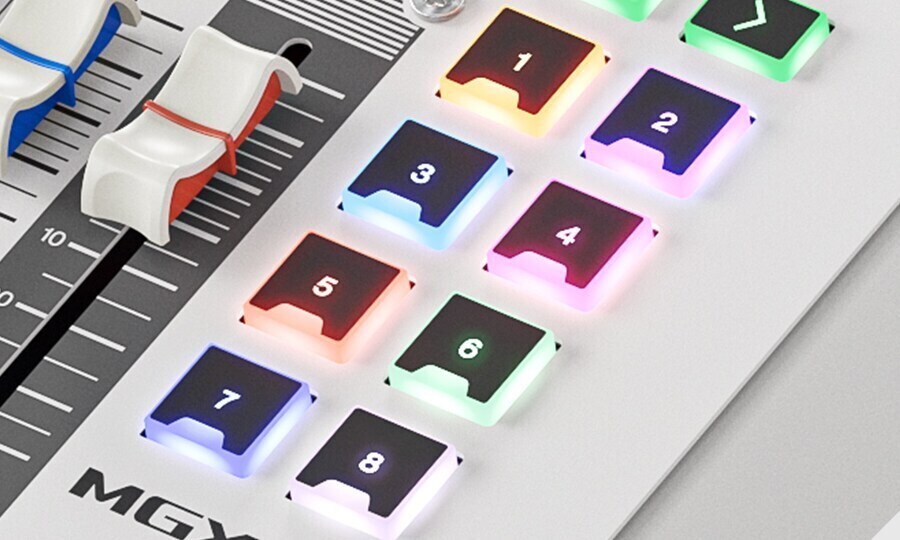

The mixer is quick and straightforward to use thanks to its 4.3” touchscreen, five control knobs, and 11+1 physical faders.

Extensive Connectivity and Modern Tools

The MGX12V is designed for versatile media production. It features:

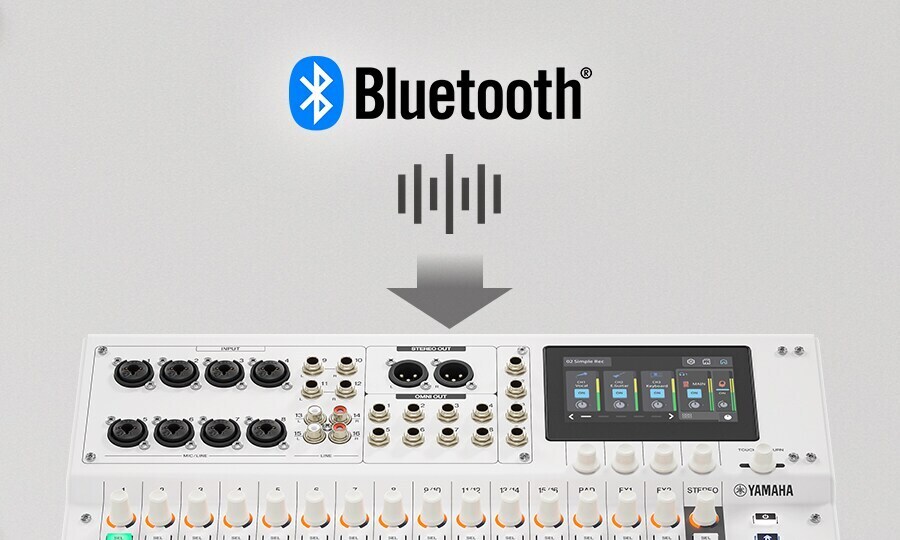

  • Bluetooth audio input
  • Dual USB-C audio interface, supporting up to 18-channel input/output audio playback
  • MicroSD card slot enabling 16-track recording directly from the mixer
  • Built-in DSP processing delivering high-quality effects and latency-free monitoring
  • Assistive functions such as Auto Gain, Clip Safe, Scene Recall, and Simple/Standard modes to facilitate work for users of all skill levels

Reliable Partner for All Purposes

The MGX12V is excellently suited for:

  • Live sound reinforcement
  • Podcast and streaming production
  • Studio recording
  • Corporate and event sound reinforcement

Its compact size, lightweight design, and Yamaha’s renowned reliability make the MGX16 a long-lasting and versatile choice that meets the demands of both hobbyists and professionals.

Technical Specifications

  • 11 + 1 fader configuration (non-motorized fader)
  • 4.3-inch touchscreen with five control knobs
  • Input mix channels: 4 mono + 4 stereo + 1 Sound Pad + 2 FX-return
  • Buses: 1 STEREO + 8 MIX
  • Local inputs: 4 Combo (microphone/line), 4 TRS (line), 4 RCA (line)
  • Local outputs: 2 XLR, 6 TRS-phone connectors, 4 headphones
  • USB MAIN INTERFACE: 18 inputs / 18 outputs (32-bit / 96 kHz)
  • USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)
  • MicroSD card: 16-track recording / 2-track playback (24-bit / up to 96 kHz)
  • HDMI-USB video/audio input with recording function and real-time HDMI pass-through
  • Bluetooth audio input: 2 inputs (Bluetooth 5.0, A2DP)
  • Built-in DSP processor for professional sound reinforcement and latency-free monitoring
  • Assistive features: Auto Gain, Clip Safe, Simple/Standard mode, Scene Recall
  • Included accessories: Quick Start Guide, Safety Guide, Steinberg software license cards x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, Power Adapter (PA-300C)
  • Color: White
  • Dimensions (W x H x D): 335 x 96 x 319 mm
  • Weight: 4.1 kg
Toote pildid on illustratiivsed ja näitlikud. Originaaltoote omadused võivad nende tegelikust väljanägemisest erineda, seega palun tutvuge tootekirjelduses toodud tootespetsifikatsioonidega.
LAOS OLEMAS

Yamaha MGX12VW digital mixer, white

866.75
sis. KM 24%
  • 12 channels
  • 4.3" display
  • HDMI-USB video/audio input
  • Bluetooth
  • Comprehensive software
Eeldatav tarneaeg: 4-7 päeva
Maksa hiljem või osana
Tootekood: MGX12VW
EAN kood: 4957812716192, 2220010481684
