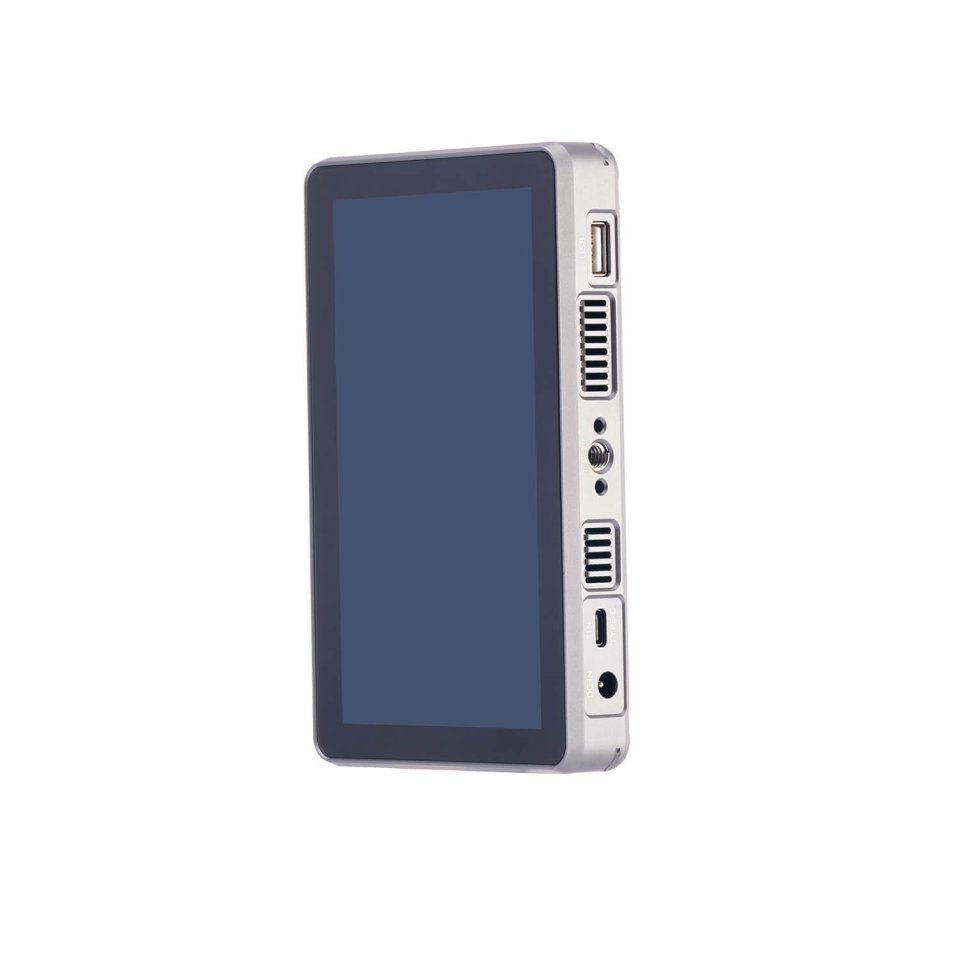

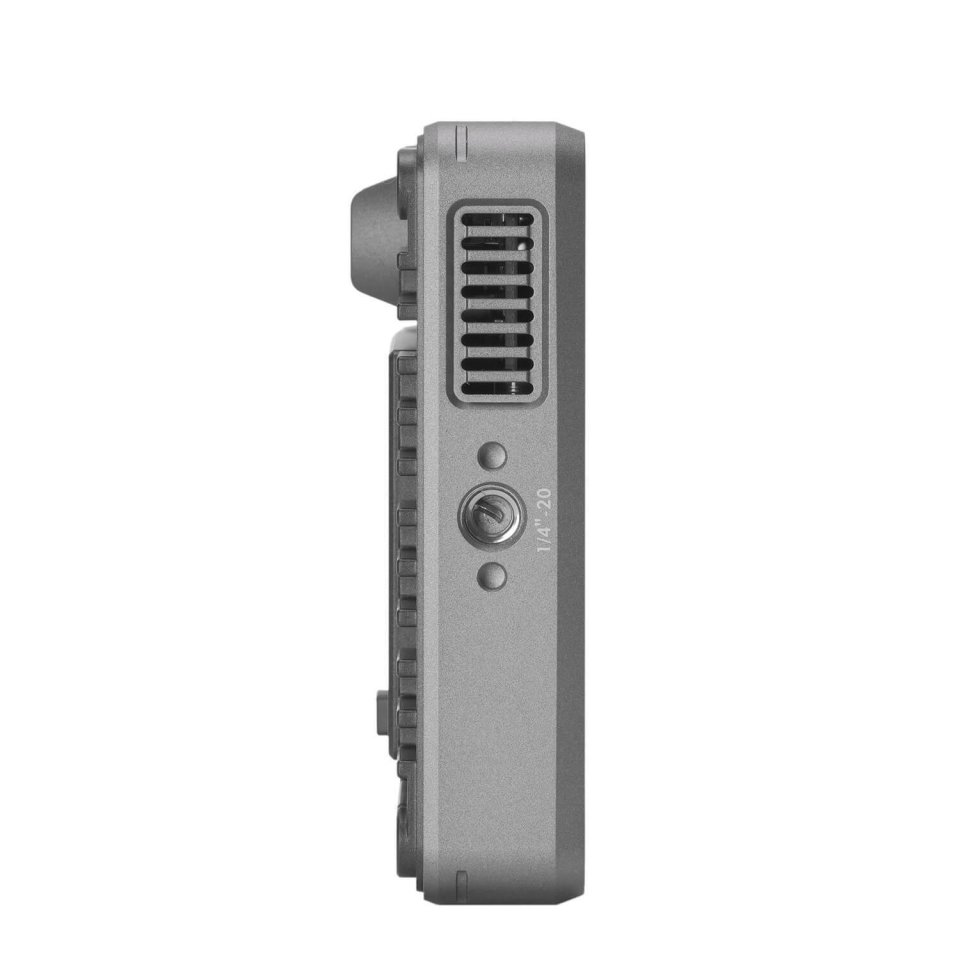

The Viltrox DC-X3 Rig is a 6-inch Full HD camera monitor that offers excellent visibility even in bright light with 2000 nits of brightness. It is suitable for professional use in photography, video production, and vlogging.

High-quality IPS display and wide viewing angle

The vibrant IPS panel provides natural color reproduction, high contrast, and a 160° viewing angle. The screen’s resolution and detail rendering support high-quality content production.

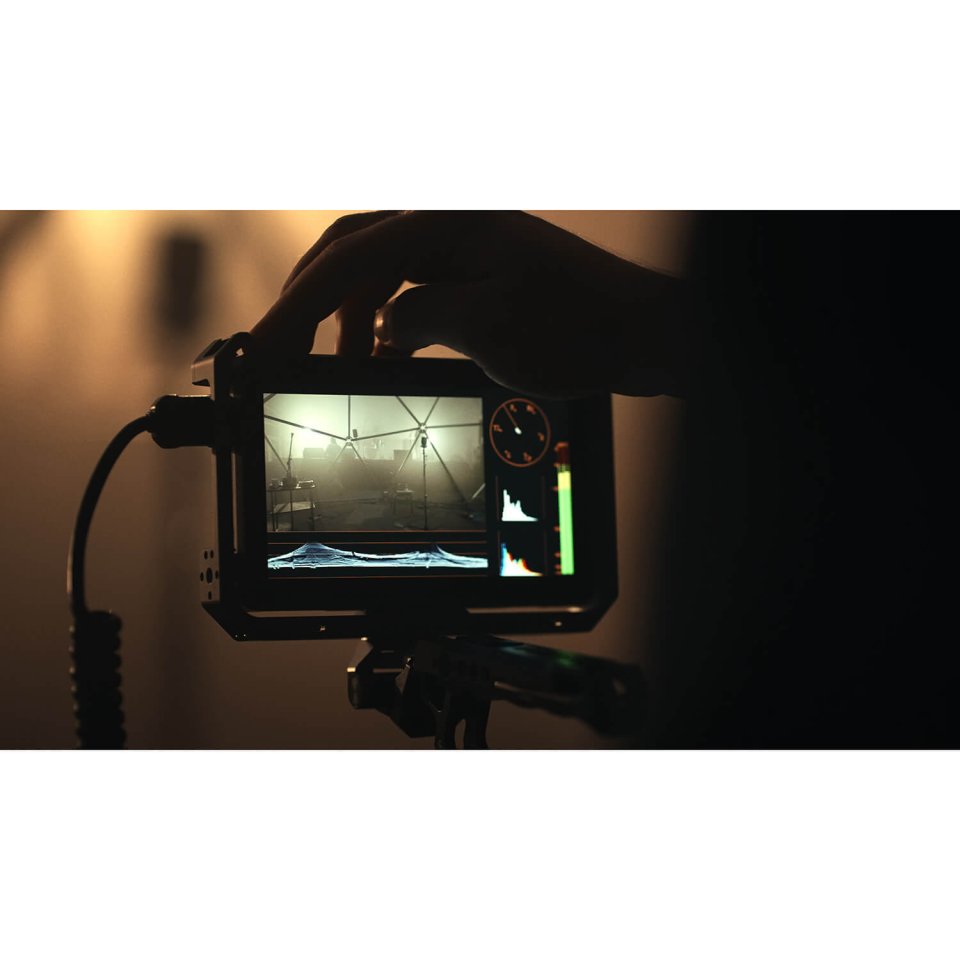

Advanced monitoring tools

The DC-X3 Rig includes advanced tools for precise image control and color adjustment:

  • Waveform monitor
  • 3D LUT support

Touch control and connectivity

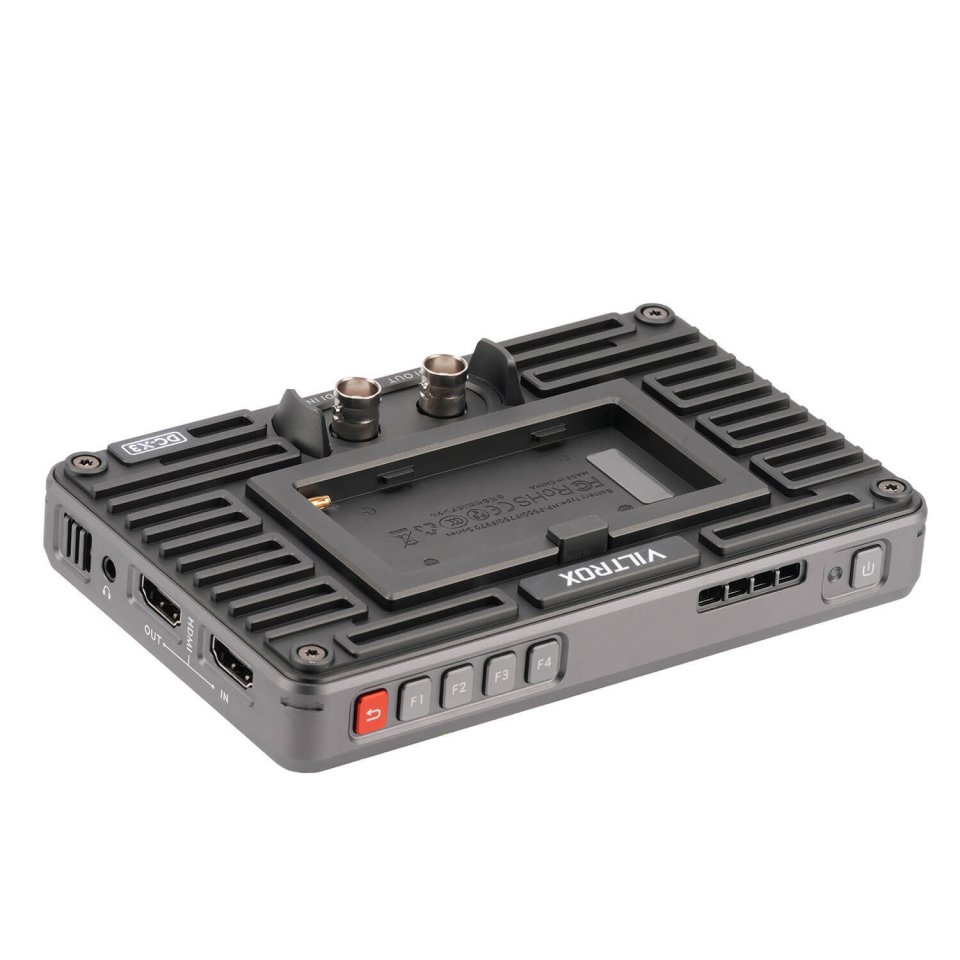

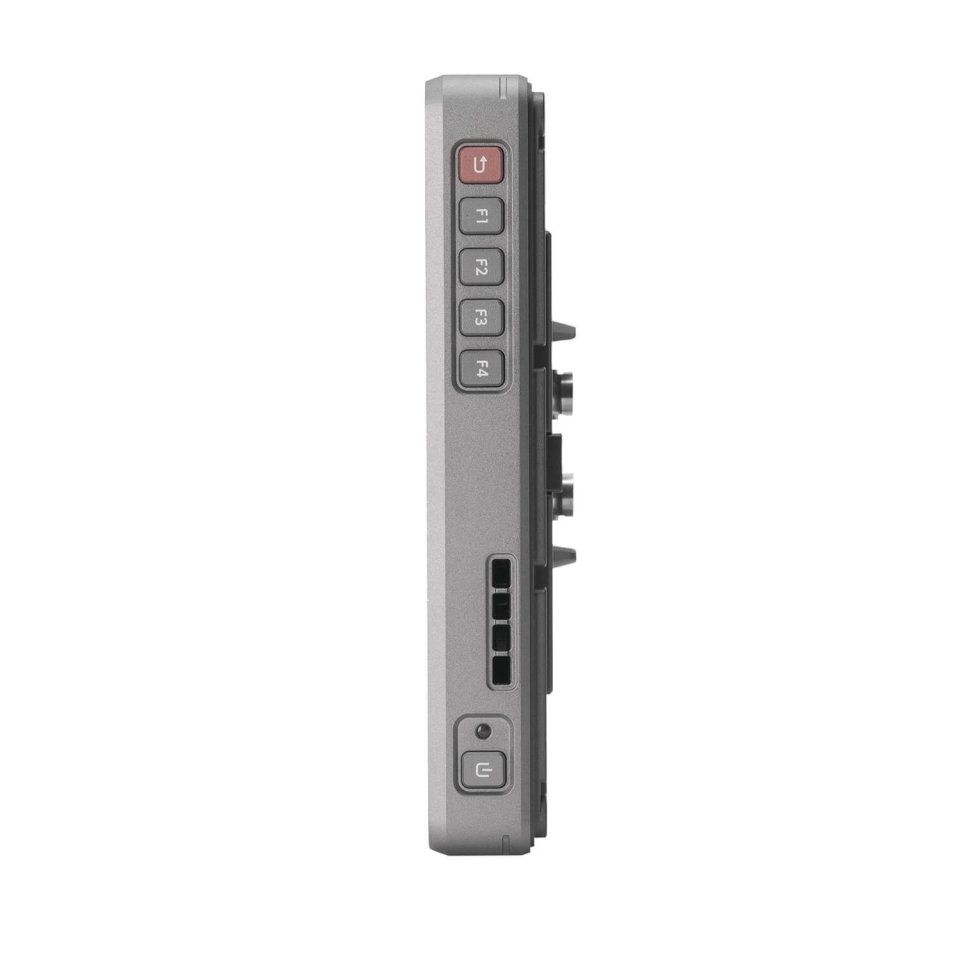

The intuitive touchscreen and programmable shortcut buttons make usage efficient. HDMI and SDI connections allow the device to connect to many different devices. The lightweight aluminum body provides durability for demanding conditions.

Features

  • 6″ IPS touchscreen
  • Resolution: 1920 × 1080
  • Brightness: 2000 nits
  • Contrast: 1000:1
  • Refresh rate: 60 Hz
  • Viewing angle: 160°
  • Pixel density: 360 PPI
  • Color space: 100% ±3% sRGB / Rec.709
  • Color depth: 8 bits

Technical specifications

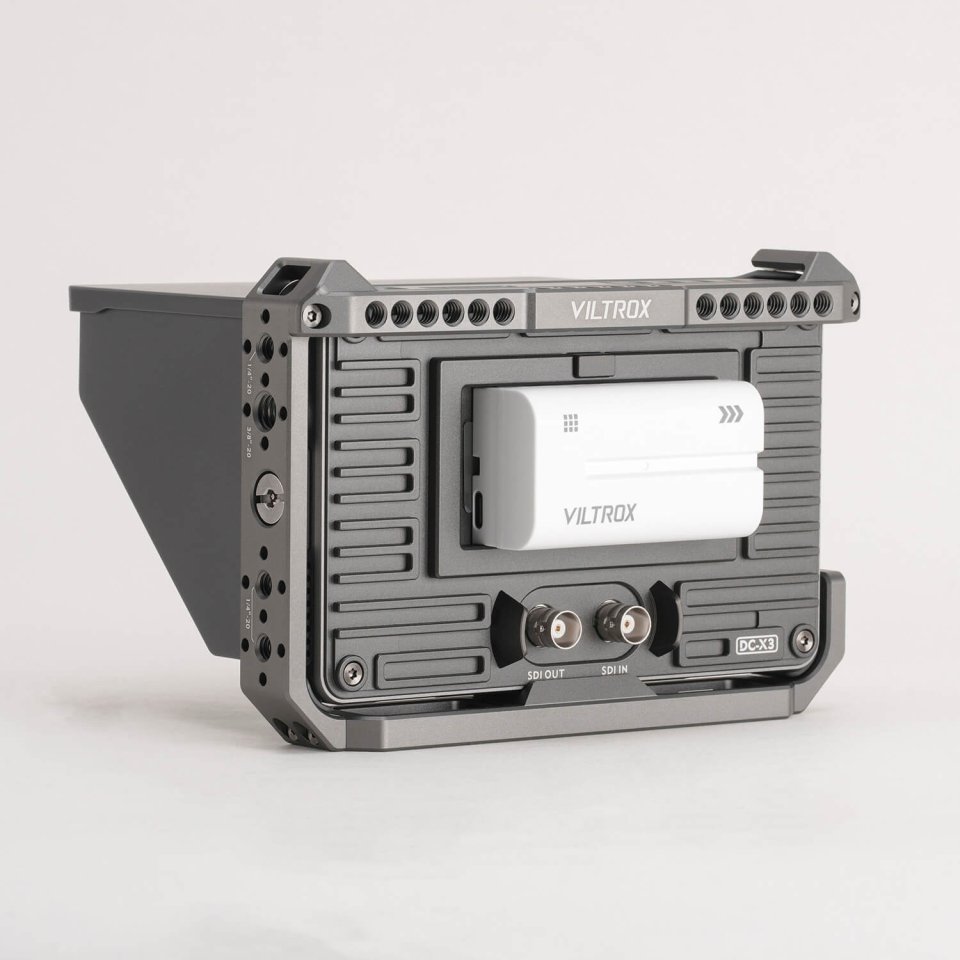

  • Input connections: HDMI, SDI
  • Output connections: HDMI, SDI

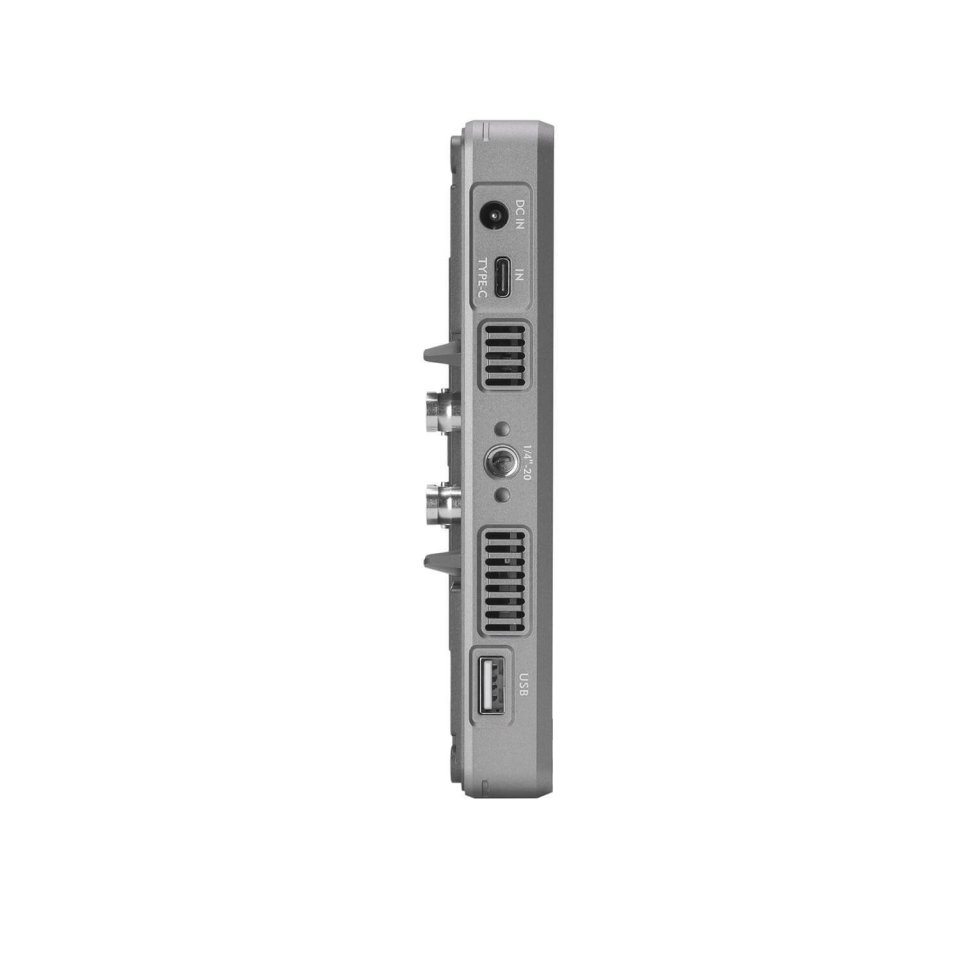

  • Power input: DC 12–18V/2A, Type-C > 9V/3A
  • USB connection: supports software updates and 3D LUT file import
  • Audio output: 3.5 mm headphone jack

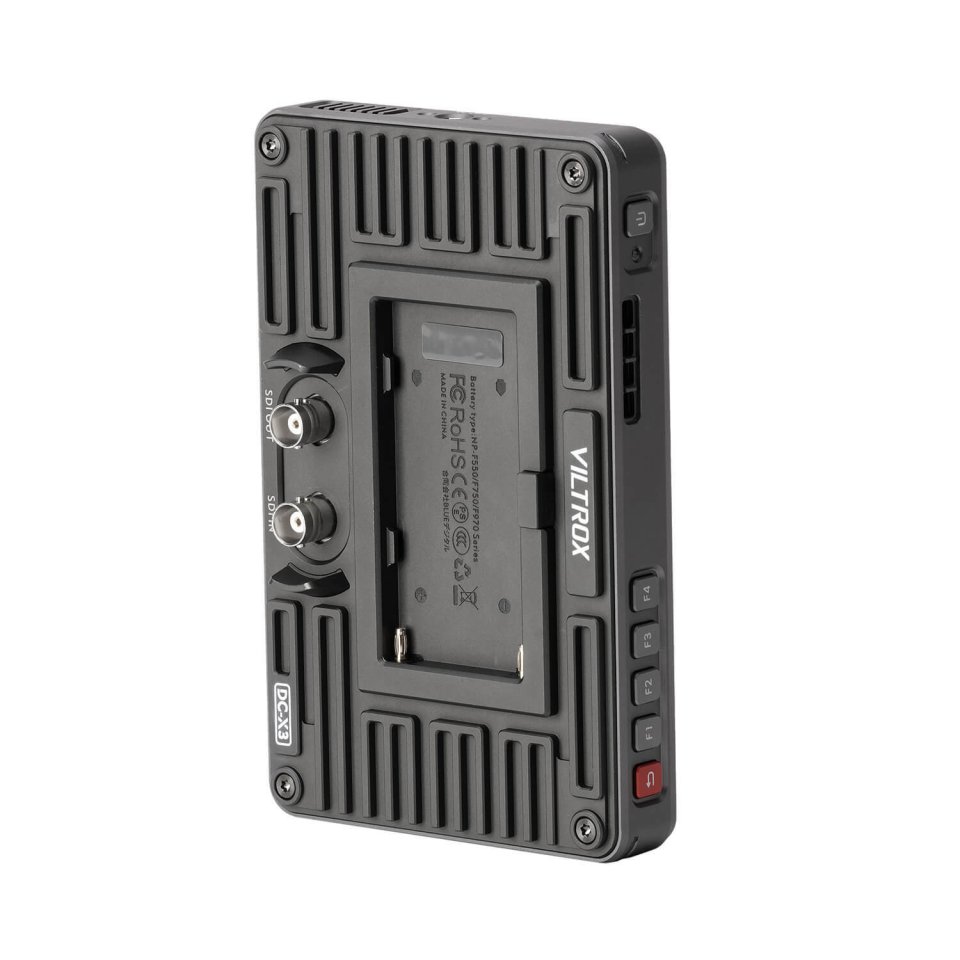

  • Compatible batteries: NP-F550 / F570 / F750 / F770 / F960 / F970
  • Dimensions: 155.4 × 98.4 × 30 mm
  • Weight: 350 g

Package contents

  • Viltrox DC-X2 or DC-X3 monitor (with cage)
  • Hard carrying case
  • Custom ball head
  • NP-F550 battery
  • Quick-release sunshade
  • Screen protector
  • HDMI cable
  • Mini HDMI cable
  • USB-C power cable
Toote pildid on illustratiivsed ja näitlikud. Originaaltoote omadused võivad nende tegelikust väljanägemisest erineda, seega palun tutvuge tootekirjelduses toodud tootespetsifikatsioonidega.
LAOS OLEMAS

Viltrox DC-X3 Rig Cage Kit Camera Monitor, SDI

421.59
sis. KM 24%
  • 6" IPS touchscreen
  • Resolution: 1920 × 1080
  • Brightness: 2000 nits
  • Connections: HDMI, SDI
  • Cage Kit
Eeldatav tarneaeg: 4-7 päeva
Maksa hiljem või osana
Tootekood: DC-X3 Rig Kit
EAN kood: 6953400305029, 2220010051726

The Viltrox DC-X3 Rig is a 6-inch Full HD camera monitor that offers excellent visibility even in bright light with 2000 nits of brightness. It is suitable for professional use in photography, video production, and vlogging.

High-quality IPS display and wide viewing angle

The vibrant IPS panel provides natural color reproduction, high contrast, and a 160° viewing angle. The screen's resolution and detail rendering support high-quality content production.

Advanced monitoring tools

The DC-X3 Rig includes advanced tools for precise image control and color adjustment:

  • Waveform monitor
  • 3D LUT support

Touch control and connectivity

The intuitive touchscreen and programmable shortcut buttons make usage efficient. HDMI and SDI connections allow the device to connect to many different devices. The lightweight aluminum body provides durability for demanding conditions.

Features

  • 6" IPS touchscreen
  • Resolution: 1920 × 1080
  • Brightness: 2000 nits
  • Contrast: 1000:1
  • Refresh rate: 60 Hz
  • Viewing angle: 160°
  • Pixel density: 360 PPI
  • Color space: 100% ±3% sRGB / Rec.709
  • Color depth: 8 bits

Technical specifications

  • Input connections: HDMI, SDI
  • Output connections: HDMI, SDI
  • Power input: DC 12–18V/2A, Type-C > 9V/3A
  • USB connection: supports software updates and 3D LUT file import
  • Audio output: 3.5 mm headphone jack
  • Compatible batteries: NP-F550 / F570 / F750 / F770 / F960 / F970
  • Dimensions: 155.4 × 98.4 × 30 mm
  • Weight: 350 g

Package contents

  • Viltrox DC-X2 or DC-X3 monitor (with cage)
  • Hard carrying case
  • Custom ball head
  • NP-F550 battery
  • Quick-release sunshade
  • Screen protector
  • HDMI cable
  • Mini HDMI cable
  • USB-C power cable
