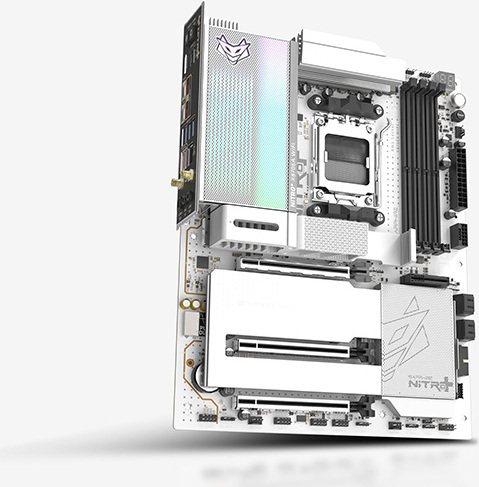

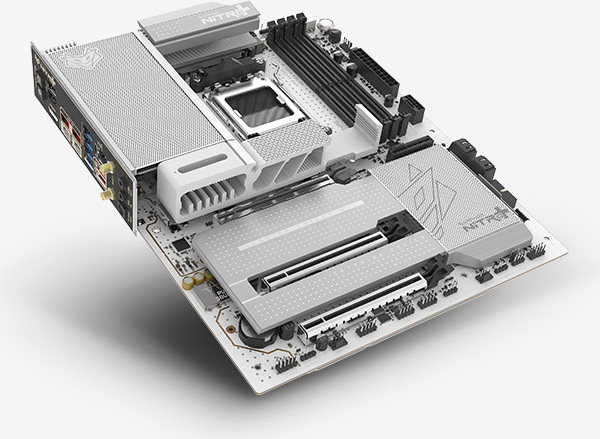

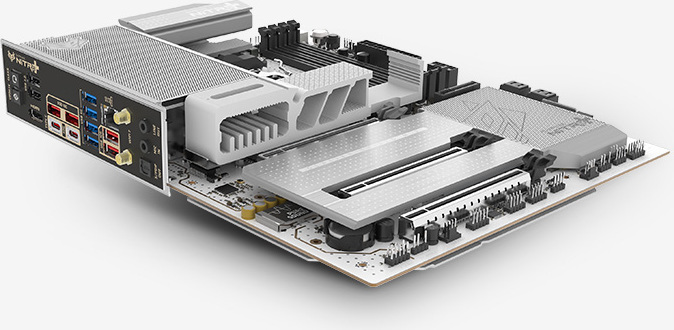

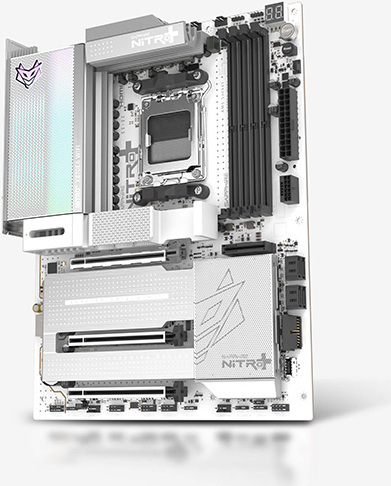

The Sapphire NITRO+ X870EA PhantomLink Polar Edition is an AMD X870E chipset-based ATX motherboard for AM5 socket processors. The motherboard is suitable for users building a powerful desktop computer who need versatile connectivity and extensive memory support.
The motherboard uses the AMD X870E chipset and AM5 socket. It is compatible with AMD Ryzen 9000, 8000, and 7000 series processors. The form factor is ATX.
The motherboard has four DIMM memory slots for DDR5 SDRAM. The maximum internal memory is 256 GB, i.e., 64 GB per slot. The supported memory clock speed is up to 8400 MHz.
Storage drives are supported via PCI Express 5.0, M.2, PCI Express 4.0, and SATA interfaces. Expansion slots include one PCI Express x16 5.0 slot and two PCI Express x16 4.0 slots, totaling three PCI card slots. USB connections include two USB4 2×2 ports, four USB 3.2 Gen 2 Type-A ports, four USB 3.2 Gen 1 Type-A ports, and two USB 2.0 ports. Additionally, there is one HDMI port and an S/PDIF output.
The motherboard supports Wi-Fi 7 (802.11be) and Bluetooth 5.4. Wired networking is handled via a 5 Gigabit Ethernet connection with a Realtek RTL8126 controller. Audio output is 5.1-channel, with the Realtek ALC897 audio codec.
The product color is white, and the power supply form factor is ATX. The motherboard features a Clear CMOS button and a BIOS Flashback button to facilitate configuration and updates.
| Color | White |
|---|---|
| Country of Origin | China |
| PID | 1054066 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| WiFi | Yes |
| Wireless network standard | Wi-Fi 7 (802.11be) |
| Motherboard Chipset | AMD X870E |
| Motherboard form factor | ATX |
| Processor Socket | AM5 |
| Maximum supported memory (Gt) | 256 |
| Number of RAM slots | 4 |
| Supported RAM | DDR5 |
| Manufacturer address | Unit 1910-1919, 19/F., Tower 2 Grand Central Plaza, 138 Shatin Rural Committee Road, Shatin, Hong Kong |
| Manufacturer's email address | |
| Manufacturer name | Sapphire |
The Sapphire NITRO+ X870EA PhantomLink Polar Edition is an AMD X870E chipset-based ATX motherboard for AM5 socket processors. The motherboard is suitable for users building a powerful desktop computer who need versatile connectivity and extensive memory support.
The motherboard uses the AMD X870E chipset and AM5 socket. It is compatible with AMD Ryzen 9000, 8000, and 7000 series processors. The form factor is ATX.
The motherboard has four DIMM memory slots for DDR5 SDRAM. The maximum internal memory is 256 GB, i.e., 64 GB per slot. The supported memory clock speed is up to 8400 MHz.
Storage drives are supported via PCI Express 5.0, M.2, PCI Express 4.0, and SATA interfaces. Expansion slots include one PCI Express x16 5.0 slot and two PCI Express x16 4.0 slots, totaling three PCI card slots. USB connections include two USB4 2x2 ports, four USB 3.2 Gen 2 Type-A ports, four USB 3.2 Gen 1 Type-A ports, and two USB 2.0 ports. Additionally, there is one HDMI port and an S/PDIF output.
The motherboard supports Wi-Fi 7 (802.11be) and Bluetooth 5.4. Wired networking is handled via a 5 Gigabit Ethernet connection with a Realtek RTL8126 controller. Audio output is 5.1-channel, with the Realtek ALC897 audio codec.
The product color is white, and the power supply form factor is ATX. The motherboard features a Clear CMOS button and a BIOS Flashback button to facilitate configuration and updates.
