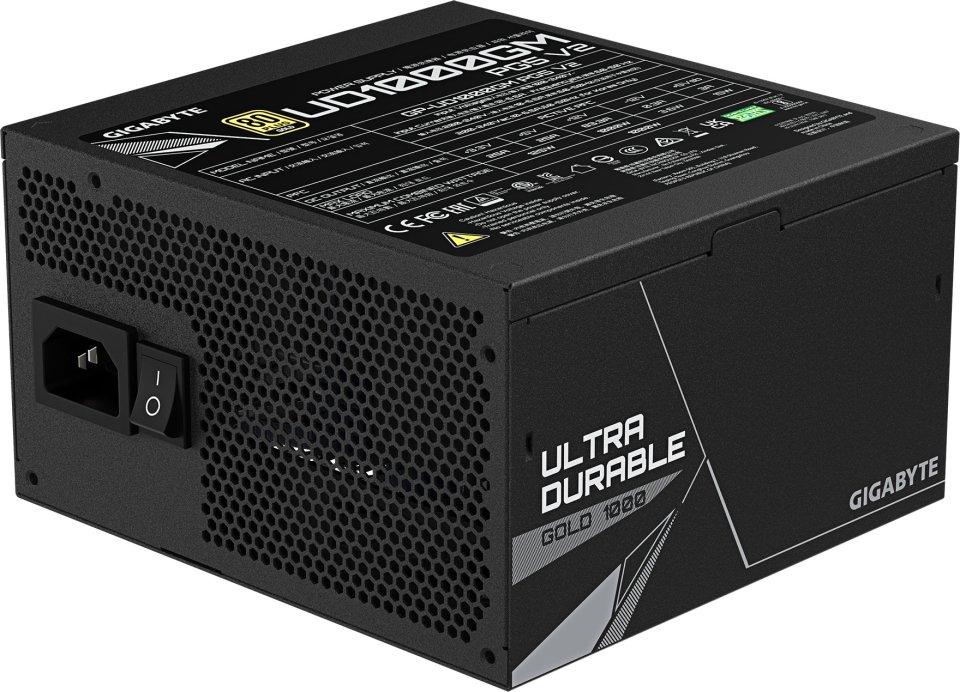

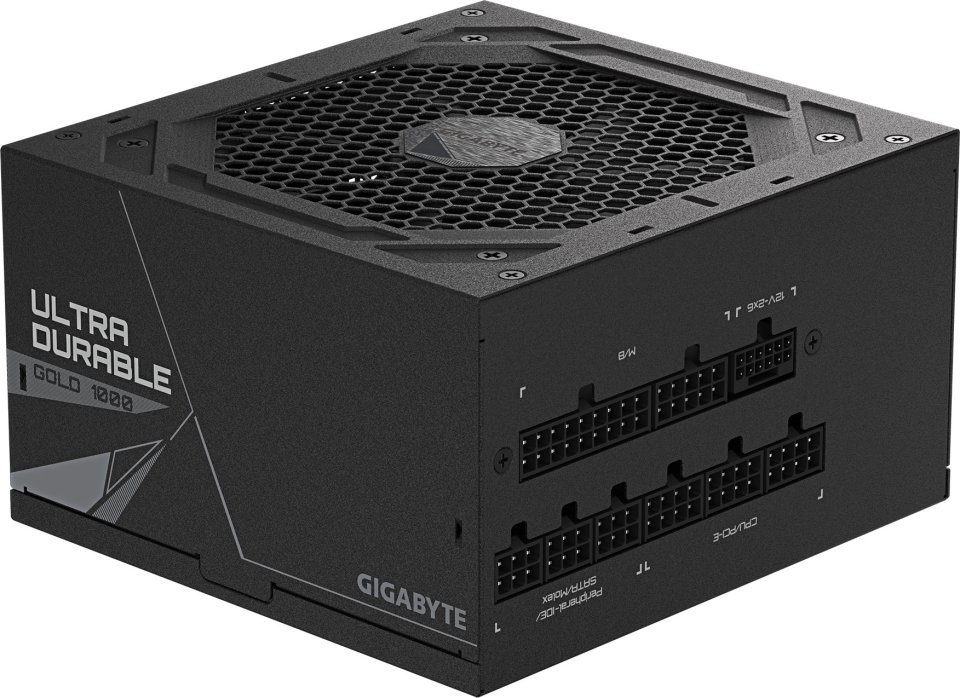

The Gigabyte UD1000GM PG5 is a reliable and powerful power supply that delivers 1000 watts of power with an 80 PLUS Gold certification. This fully modular power supply is designed to meet future needs with Intel ATX 3.1 and PCIe Gen 5.1 readiness.
Durability and Quality First
The Ultra Durable design ensures longevity, and 100% Japanese capacitors provide a solid foundation for stable power delivery. An MTBF rating of over 100,000 hours demonstrates the product’s long-term reliability.
Intelligent Cooling Solutions

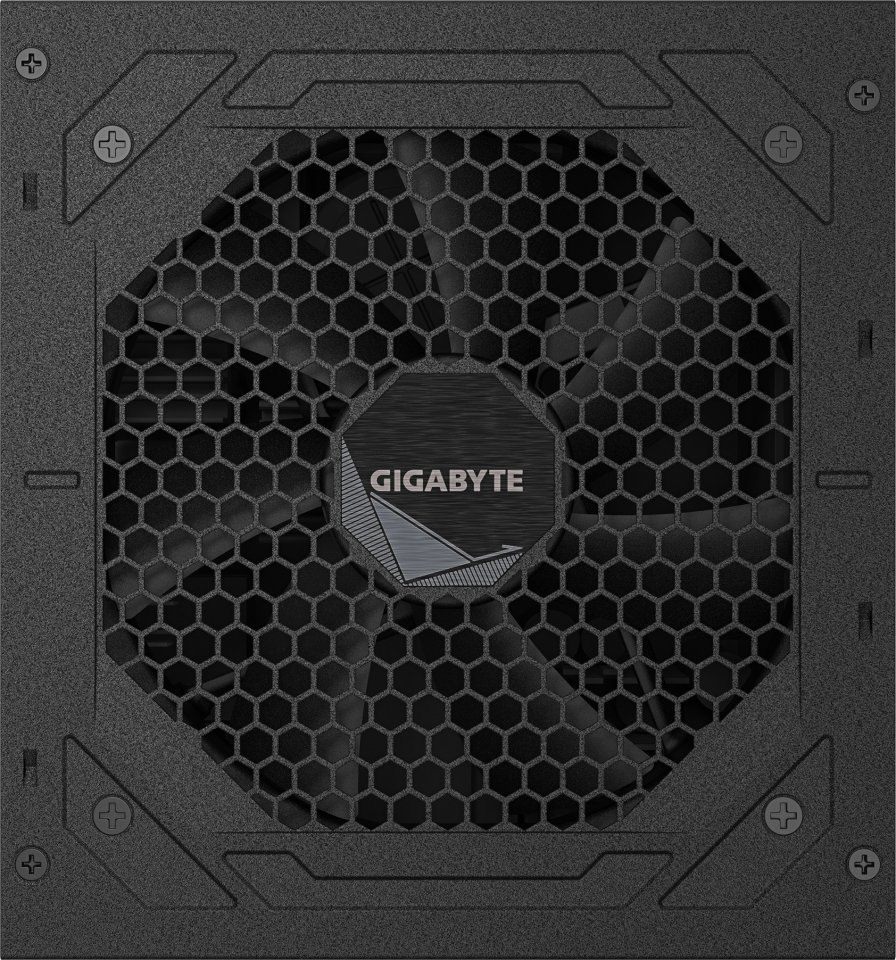

The 120 mm hydraulic bearing (HYB) fan ensures optimal heat management quietly and efficiently. The optimized thermal solution keeps the component cool even under heavy use.
Comprehensive Protection
The comprehensive protection system includes OVP/OPP/SCP/UVP/OCP/OTP safeguards, ensuring the safety of both the power supply and the entire system. A strong single +12V rail provides stable power to all components.
Compact and Practical

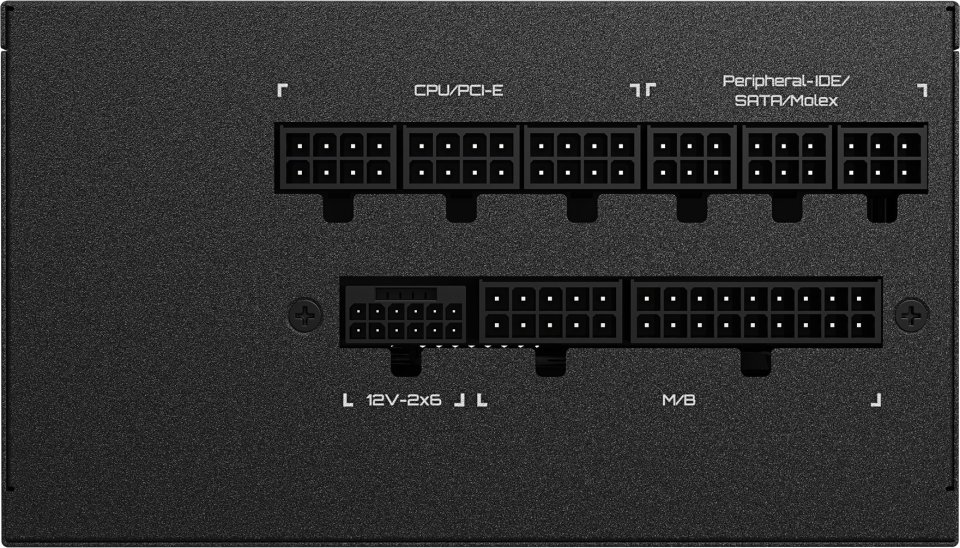

The fully modular design allows the use of only necessary cables, improving airflow and simplifying installation. The compact size (150 x 140 x 86 mm) fits well into various cases.
Features
- 1000W power with 80 PLUS Gold certification
- Intel ATX 3.1 and PCIe Gen 5.1 readiness
- Fully modular design
- Ultra Durable durability with 100% Japanese capacitors
- 120mm hydraulic bearing (HYB) fan
- Optimized thermal solution
- Comprehensive protection system (OVP/OPP/SCP/UVP/OCP/OTP)
- Strong single +12V rail
- Compact size

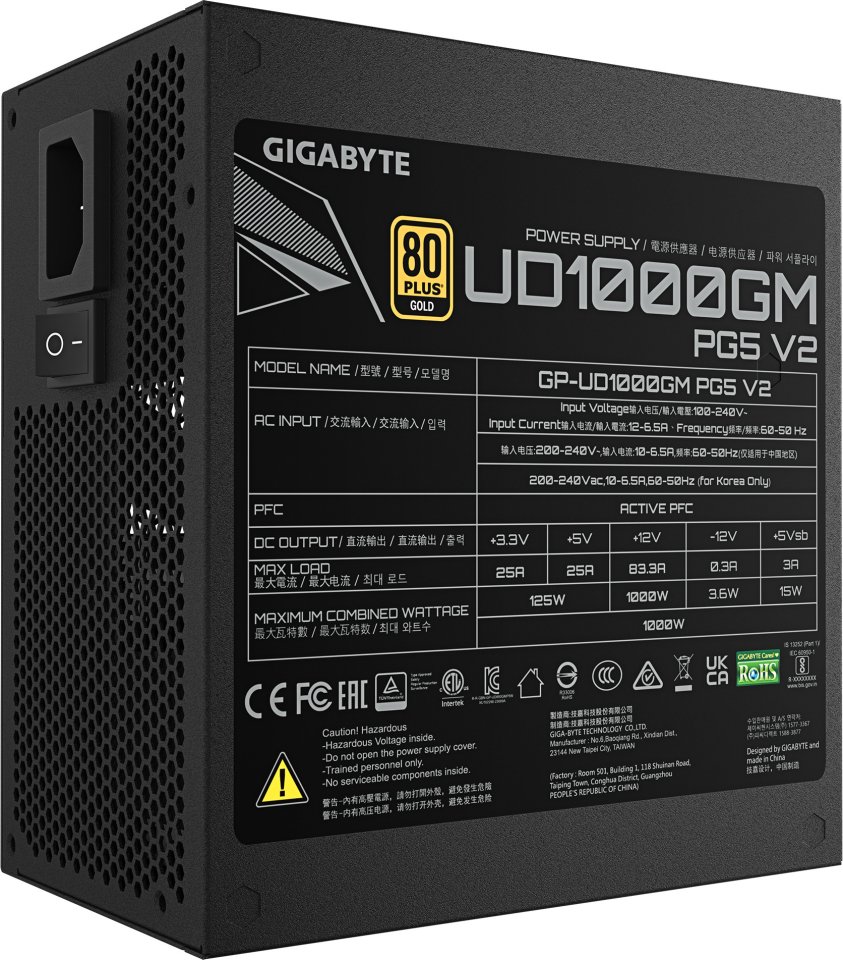

Technical Specifications
- Model: GP-UD1000GM PG5 V2
- Type: Intel Form Factor ATX 12V v3.1
- Power: 1000W
- Efficiency: 90% at typical load
- Input Voltage: 100-240 Vac (full range)
- Input Current: 15-6.5A
- Input Frequency: 60-50 Hz
- Dimensions: 150 x 140 x 86 mm
- MTBF: >100,000 hours
- Power Good Signal: 100-150ms
- Hold Up Time: >16ms
- Cable Type: Textured, black
