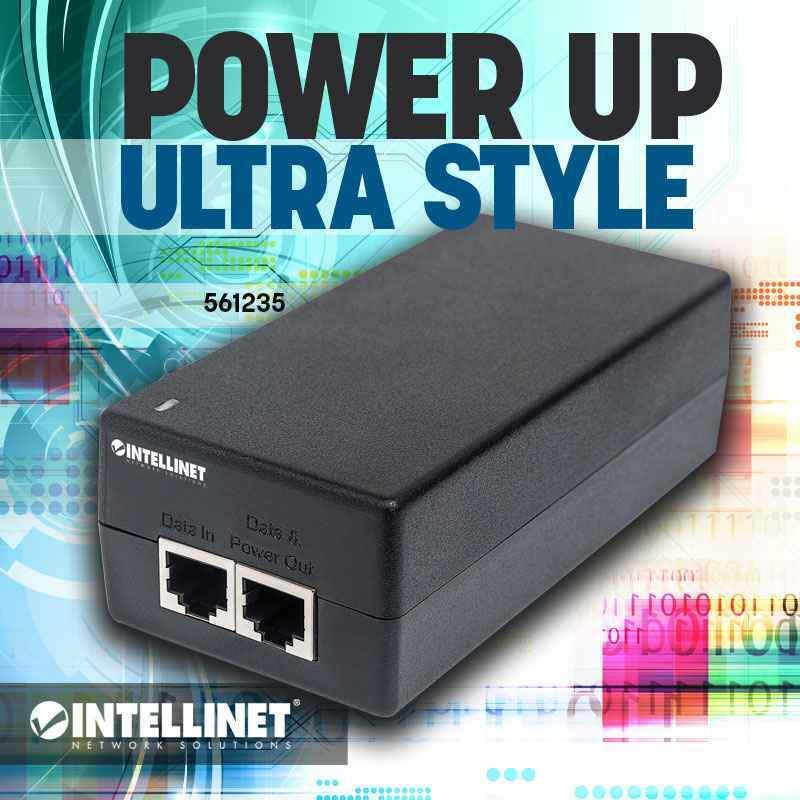

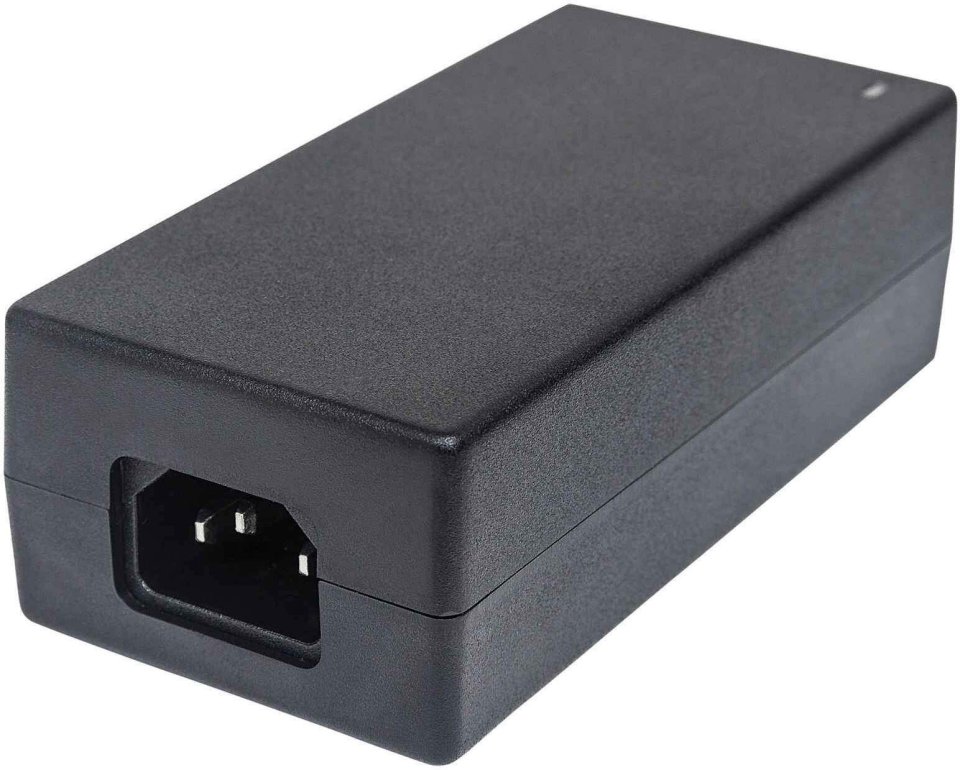

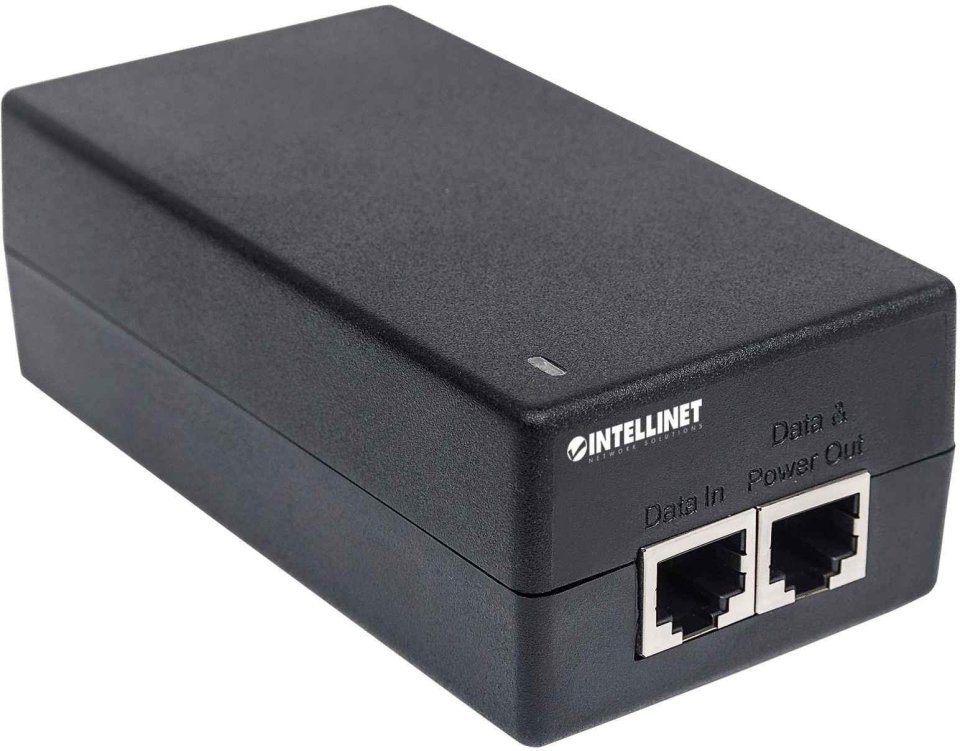

By utilizing all four pairs of wires in a Cat5e or Cat6 cable, the Intellinet Ultra-PoE injector can transfer up to 60W of power along with data over a standard network cable. This high power requirement is ideal for lighting, building automation, hospital call systems, point-of-sale card readers, and printers. The Ultra PoE simplifies network design and significantly reduces costs.

Features:

• Compatible with all IEEE 802.3at and IEEE 802.3af compliant devices.
• Maximum length for incoming and outgoing cables: 100 meters

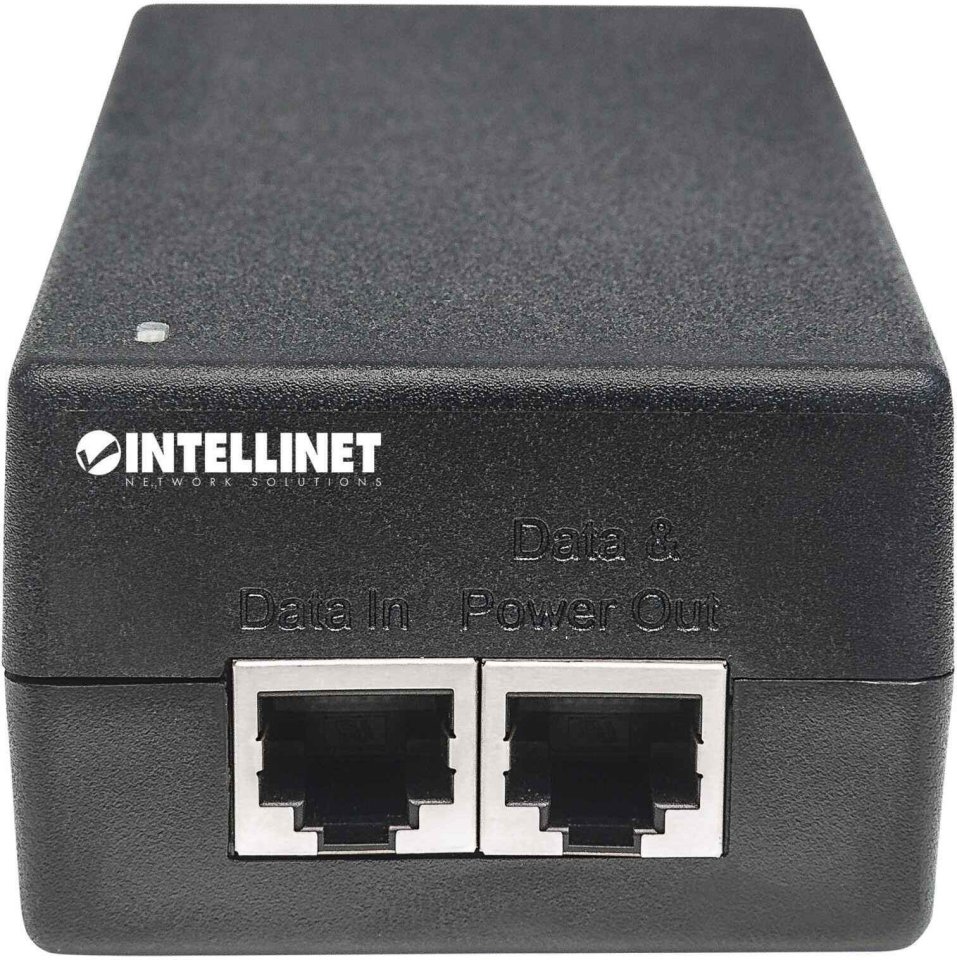

• Connections: 1 x RJ45 10/100/1000 Mbps port for input, 1 x RJ45 10/100/1000 Mbps port for data and power output
• Supported standards: IEEE 802.3af (Power over Ethernet), IEEE 802.3at (High-Power PoE+), IEEE 802.3 (10Base-T Ethernet), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3u (100Base-TX Fast Ethernet), IEEE 802.3x (flow control for full duplex mode)
• Built-in power supply
• Quiet operation with no fan.
• Plastic housing
• Dimensions: 123x61x40 mm
• Weight: 0.29 kg
• Operating temperature: 0-40 °C
• Permissible humidity during use: 10-90% RH, non-condensing
• Package contents: Intellinet Gigabit 60W Ultra PoE (PoE++) injector, power cable, quick guide
