UD850GM PG5 ICE power supply offers 850 watts of power with 80 PLUS Gold certification and fully modular cabling. This compact power supply is designed to stand the test of time and deliver reliable performance even in the most demanding situations.

Durability and quality first
The power supply is built with 100% Japanese capacitors, ensuring long-lasting and stable operation. An MTBF value of over 100,000 hours speaks to the product’s reliability, and a comprehensive protection system keeps your components safe in all situations.

Efficient cooling and quiet operation

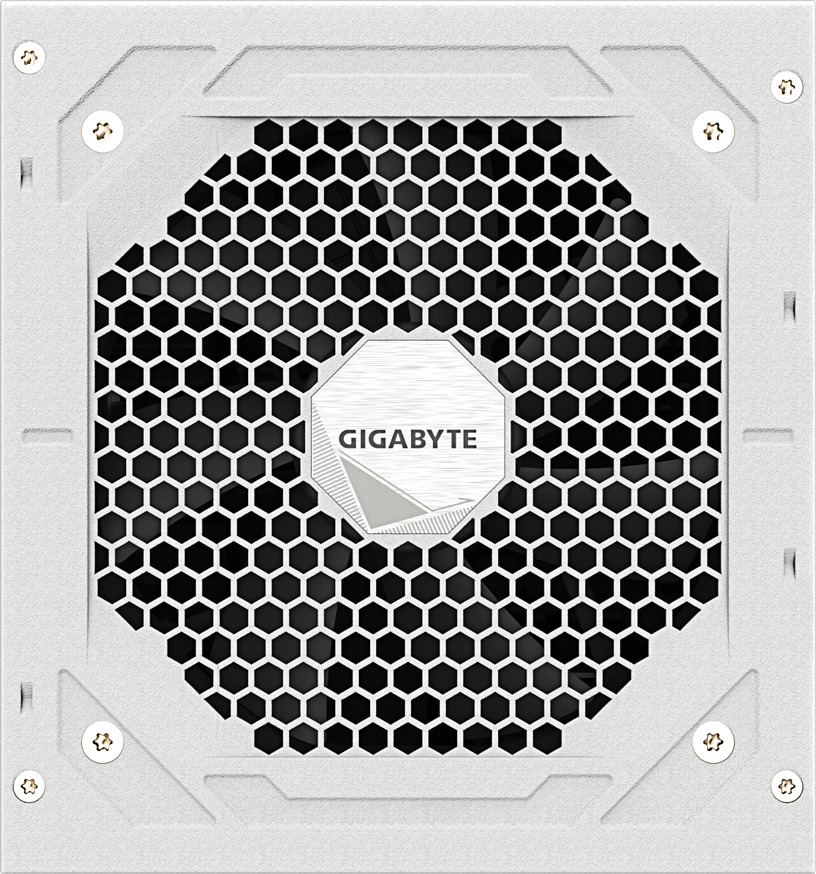

A 120 mm hydraulic bearing (HYB) fan ensures optimal heat management while keeping noise levels low. The intelligently designed fan adjusts its speed as needed, providing effective cooling without unnecessary noise.

Future-ready
The power supply supports the Intel ATX 3.1 standard and PCIe Gen 5.0 connectors, making it ready for future graphics cards. A powerful single +12V rail guarantees stable power delivery to all components.

Modular and tidy

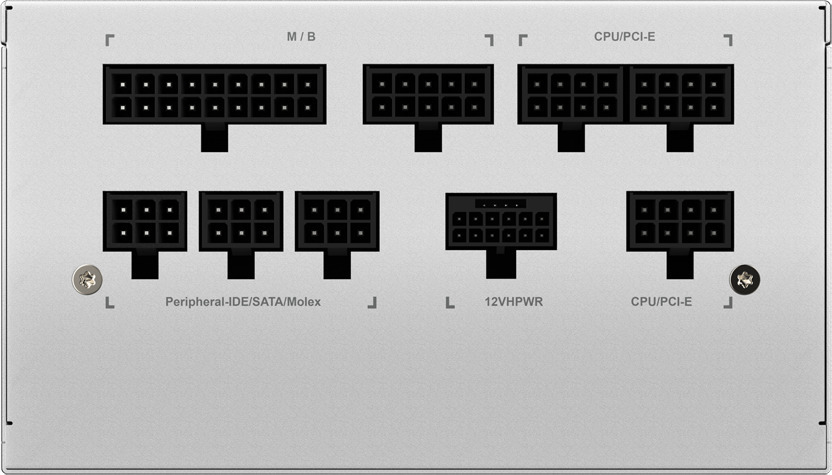

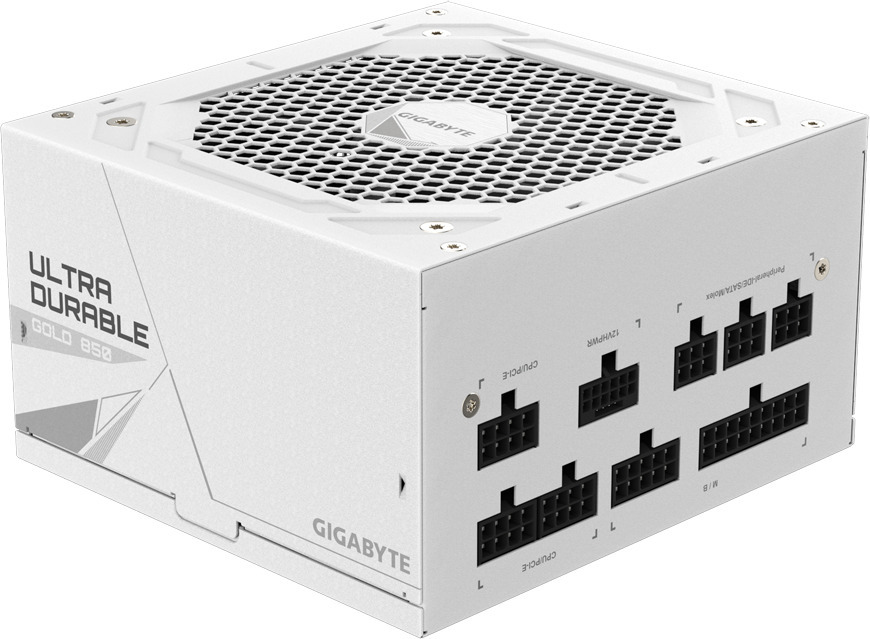

The fully modular design allows the use of only the necessary cables, keeping the inside of the case neat and improving airflow.

Features
• 850W power with 80 PLUS Gold certification
• Fully modular cabling
• 100% Japanese capacitors
• 120mm hydraulic bearing (HYB) fan
• Intel ATX 3.1 and PCIe Gen 5.0 support
• Comprehensive protection system (OVP/OPP/SCP/UVP/OCP/OTP)
• Compact size (150 x 140 x 86 mm)
• Powerful single +12V rail
• White cables

Technical specifications
• Model: GP-UD850GM PG5 ICE
• Type: Intel Form Factor ATX 12V v3.1
• Input voltage: 100-240 Vac (full range)
• Input current: 15-6.5A
• Input frequency: 60-50 Hz
• Efficiency: 90% at typical load
• MTBF: >100,000 hours
• Power Good signal: 100-150ms
• Hold Up Time: >16ms
• Active PFC (>0.9 typical)
