Gigabyte AORUS ELITE P1000W power supply is ready for future gaming PCs thanks to ATX 3.0 standard and PCIe Gen 5.0 compatibility. This 1000-watt power supply provides enough power for even the most demanding setups and is compatible with the latest ATX 3.1 standard.

Power and reliability
80 PLUS Platinum certification guarantees excellent energy efficiency, reaching 92 percent under typical load. Inside, 100% Japanese capacitors ensure long-lasting and stable operation. The heart of the power supply is a strong single +12V rail that evenly distributes power to all components.

Quiet and compact

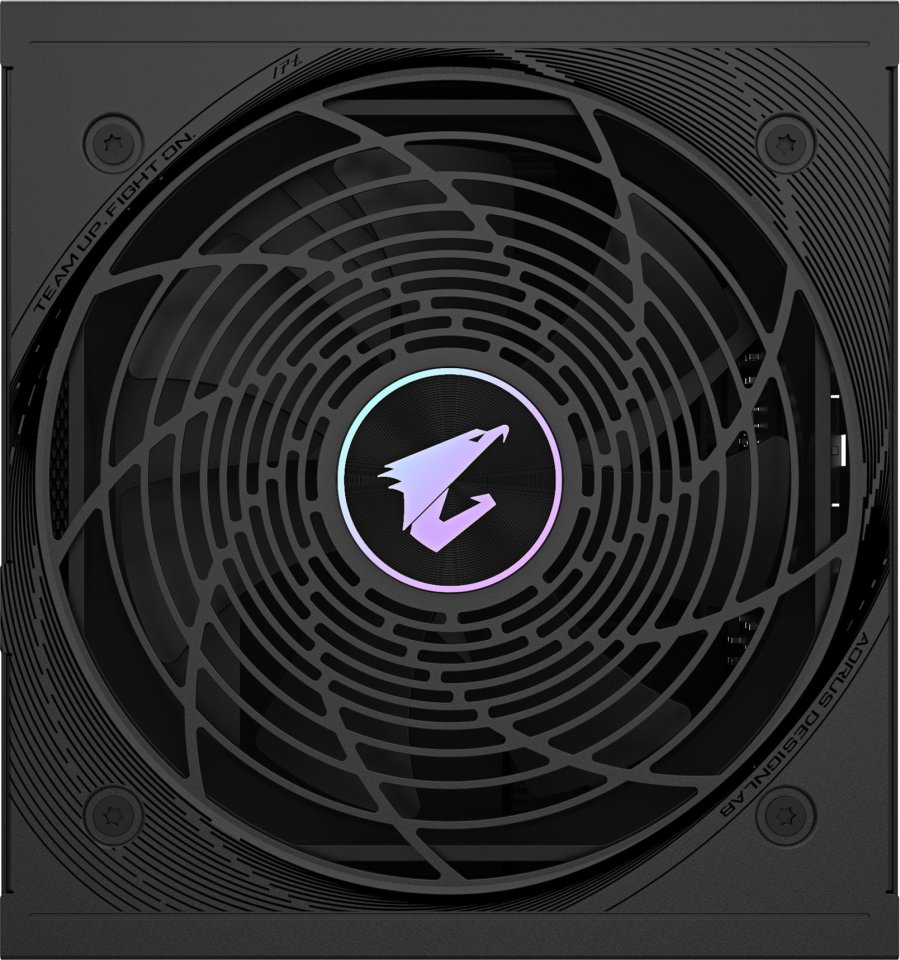

The 120 mm smart FDB fan (Fluid Dynamic Bearing) keeps temperatures under control quietly and efficiently. The compact design allows installation even in smaller cases, and the power is sufficient for large setups.

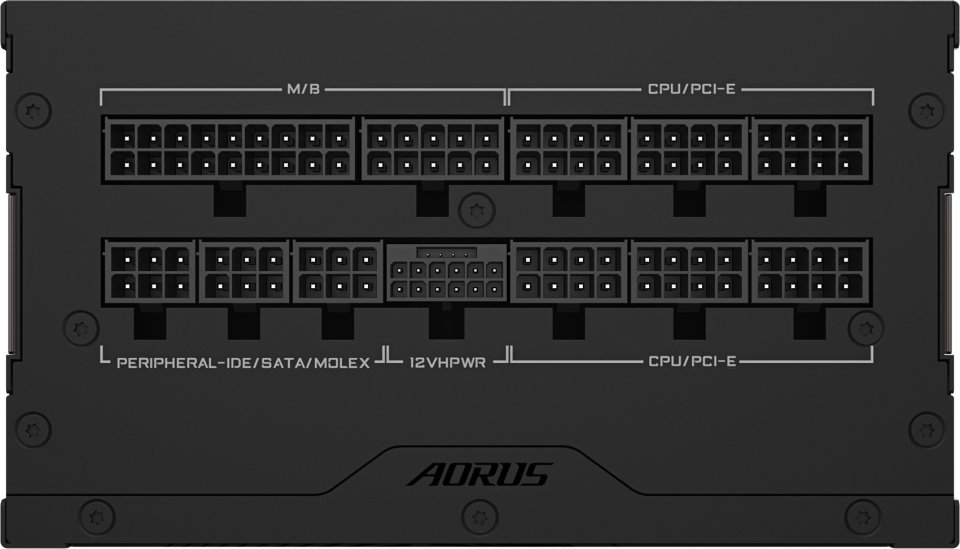

Modular flexibility
The fully modular design allows you to connect only the cables you need, improving airflow inside the case and making installation look neat. All cables are black and flat, making them perfect for modern gaming PCs.

Comprehensive protection and warranty
The versatile protection system includes OVP, OPP, SCP, UVP, OCP, and OTP protections that keep both the power supply and other components safe. Comes with a 10-year warranty.

Features
• ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)
• 80 PLUS Platinum certification
• 100% Japanese capacitors
• Fully modular design
• 120 mm smart FDB fan
• Compact design
• Strong single +12V rail
• 10-year warranty

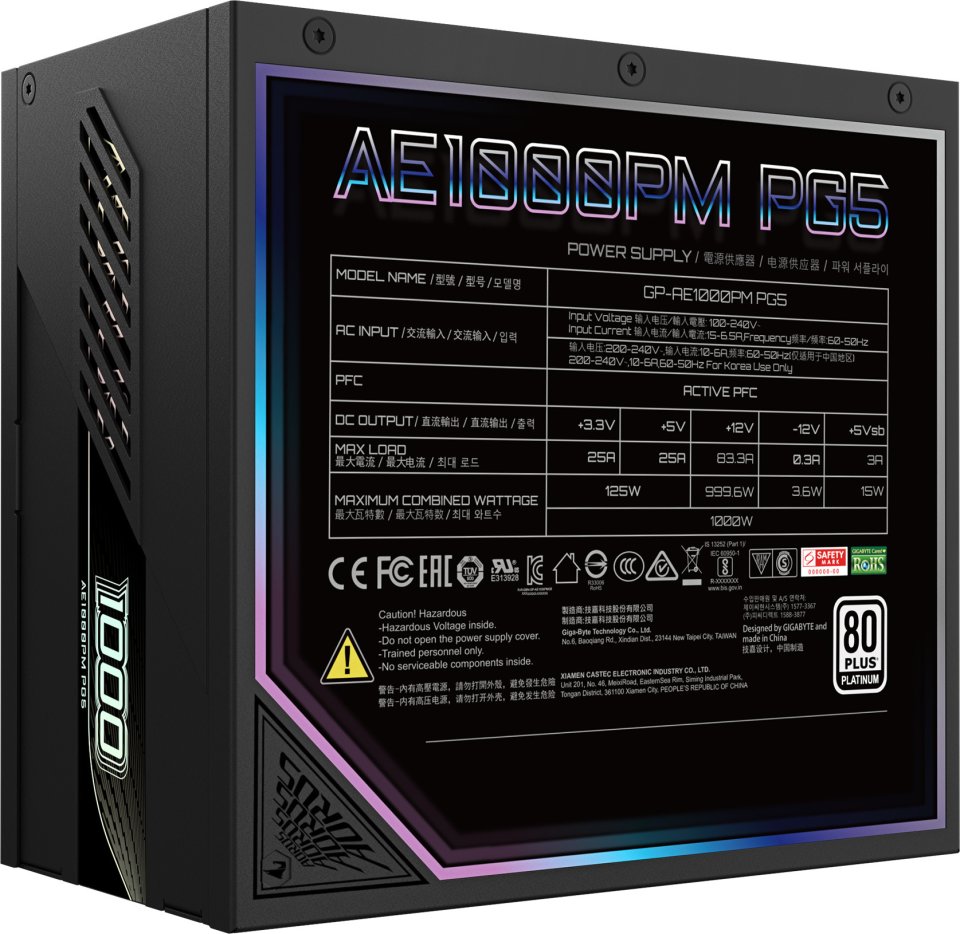

Technical specifications
• Model: GP-AE1000PM PG5
• Type: Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
• Input voltage: 100-240 Vac (full range)
• Input current: 15-6.5A
• Input frequency: 60-50 Hz
• Output power: 1000 W
• Dimensions: 150 x 140 x 86 mm
• Efficiency: 92% at typical load
• MTBF: >100,000 hours
• Protections: OVP/OPP/SCP/UVP/OCP/OTP
• Power Good signal: 100-150 ms
• Hold Up Time: >16 ms
• Cable type: Flat black
