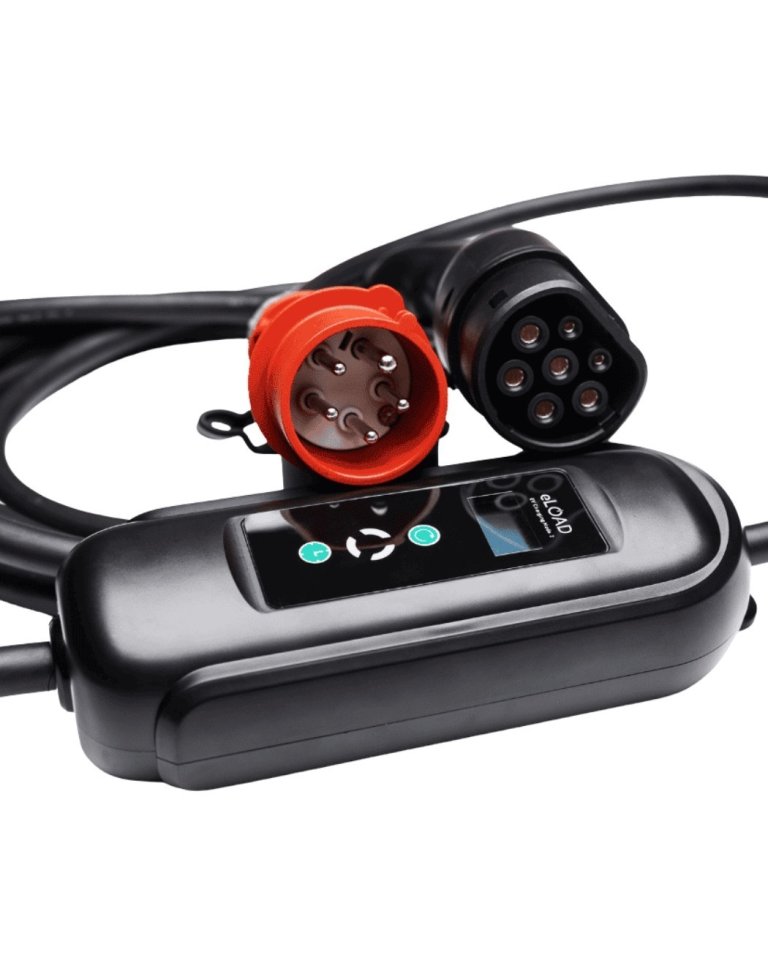

eLOAD electric car charging device, CEE, 11 kW, Type2. The small, lightweight, and portable eLOAD charger is suitable for charging both at home and on the go. The charger features a Type2 connector and a maximum charging power of 11 kW.

The charger is connected directly to a CEE industrial socket, so no fixed installation is required. The charging power can be adjusted between 5.5 and 11 kW, making it easy to match the current demand with other electrical appliances in the home. The charger also supports scheduled charging (delay function 1-10 hours). The device is convenient to take on trips, and its durable casing ensures a long service life.

One device for versatile charging needs.

Compatible accessories:

• eLOAD wall mount

Features:

• No electrical installation required – connects directly to CEE 3×16 A / 400 V industrial socket
• Small, lightweight, and portable charger enables versatile use
• Charging power adjustable between 5.5 and 11 kW (8, 10, 13, 16 A)
• Type B residual current protection (IΔn 30 mA, DC 6 mA)
• Scheduled charging with delay function 1-10 hours
• Informative display

Technical specifications:

• Model: eLOAD charger, TIE-EV16-P3
• Charging method: Mode 2
• Charger class: AC charging
• Vehicle connector: Type 2
• Power supply connector: CEE 16 A / 400 V
• Total length of CEE-Type2 cable approx. 5 m
• Voltage: 230/400 V
• Charging current: 8, 10, 13, 16 A
• Charging power: 5.5-11 kW
• Type B residual current protection (IΔn 30 mA, DC 6 mA)
• Case color: black
• IP rating: IP65 charging box and IP54 Type2 charging head
• Operating temperature: -30 ~ +50°C
• Dimensions: 22.5 x 9.5 x 6.5 cm (W,D,H)
• Weight: 2.9 kg

Package contents:

• eLOAD charger

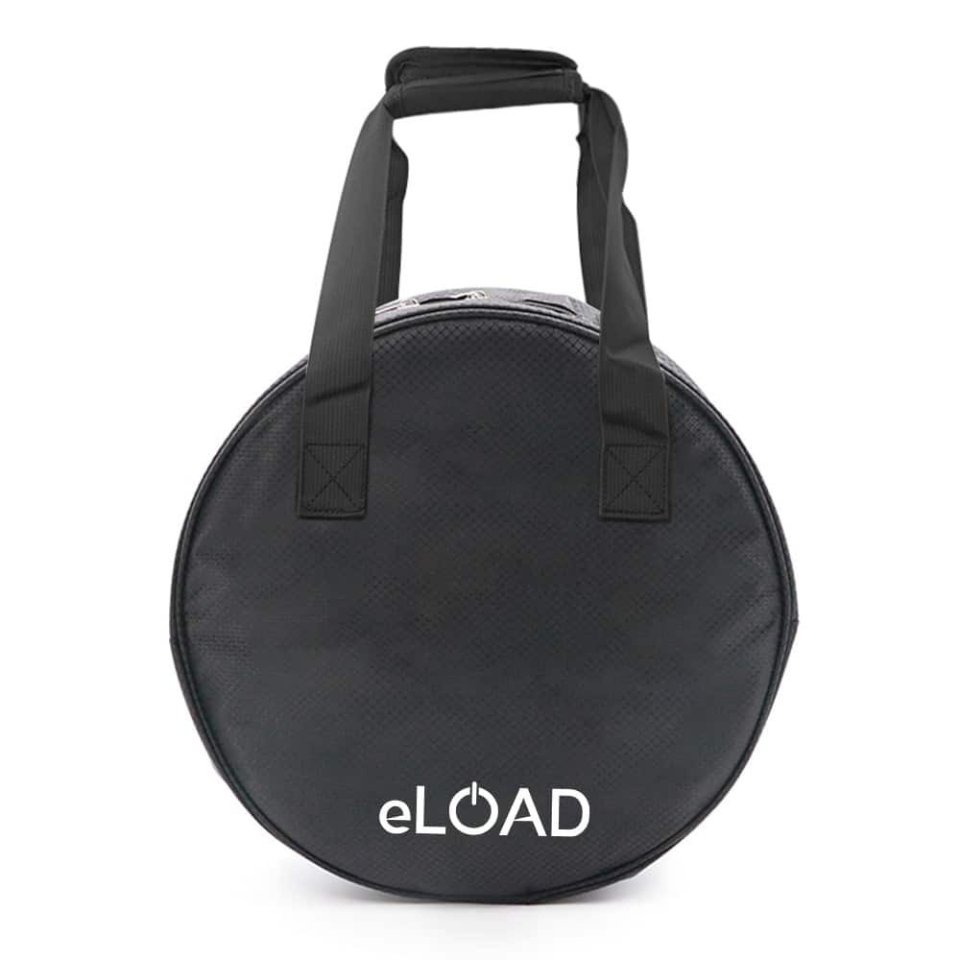

• Carrying bag
• User manual
