The MFC-J5740DW is a professional-grade A3 multifunction printer designed to meet the demands of busy small offices and workgroups.
With this A3 multifunction device, you can quickly and cost-effectively print high-quality color A3 and A4 documents. The multifunction printer offers printing, copying, scanning, and faxing capabilities. With wireless printing, you can easily print from your workstation, meeting room, or mobile device.

Prints on A3 sheets – Your documents will stand out when printed on A3 paper. Important training materials or presentations attract more attention as A3 color prints. Printing A3 documents yourself gives you better control over your schedule and creates new opportunities.

Excellent connectivity – Using the MFC-J5740DW printer does not require working at your desk or even near the printer. Thanks to versatile connectivity options, you can print from anywhere in your office or home—and wirelessly directly from your smartphone. By downloading the Brother Mobile Connect app, you gain access to many features, from sending print jobs to monitoring the remaining ink in your cartridges and ordering new ones when needed.

MAXIDRIVE printing technology – The recently developed powerful printhead significantly improves print speed, so your business documents print faster than ever. Besides speed, the new printhead is highly durable, delivers excellent print quality, and ensures your prints look professional.

Scan technology that enhances remote work efficiency – The MFC-J5740DW multifunction printer does much more than print. Scanning functions simplify working from home. Tasks flow smoothly when you can scan in color or black and white and save in various file formats to multiple destinations: image, file, OCR, email attachment.

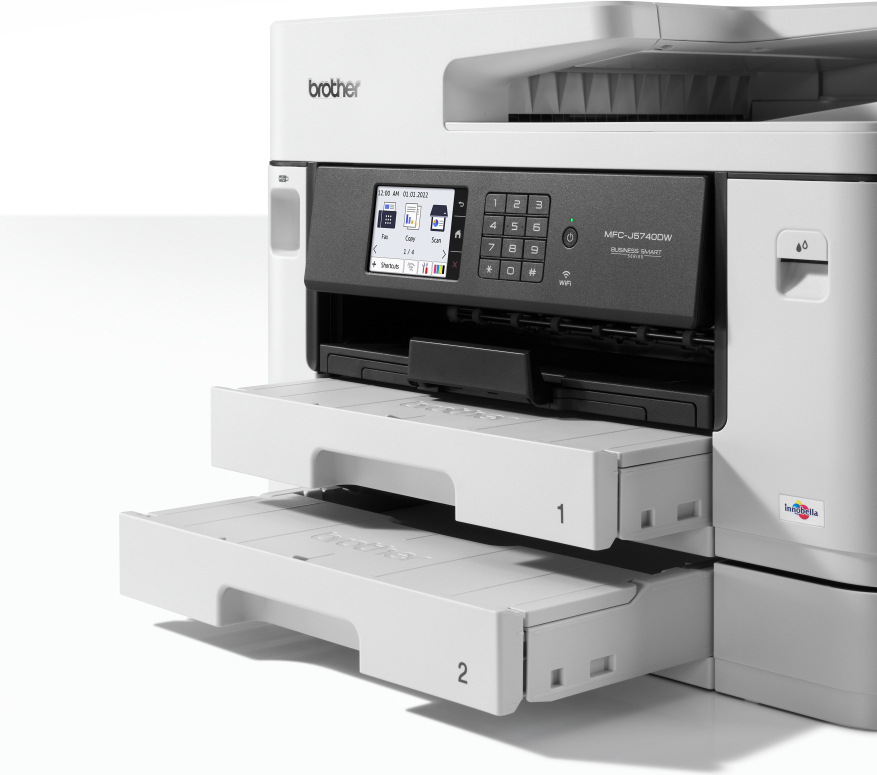

Large paper capacity – The MFC-J5740DW inkjet printer comes with an additional paper tray. This means you can print for a long time without adding paper, saving your time. This leaves you more time for other tasks.

Technical specifications:

• Printer type: Color
• Functions: Print, Copy, Scan, Fax
• Color 3.5″ (8.8 cm) touchscreen
• Maximum paper size: A3
• Memory: 256 MB
• Operation method: Inkjet
• Connections: Wired network, Wireless, USB
• Computer interface: Hi-Speed USB 2.0, USB 2.0 host (front)
• NFC: No
• Wi-Fi Direct: Prints wirelessly without a wireless access point (supports both automatic and manual printing)
• Wired network interface: Ethernet 10/100BASE-TX Auto Negotiation
• Wireless network interface: 2.4GHz IEEE 802.11 b/g/n & 5GHz IEEE 802.11a/n
• Mobile device support: Brother Mobile Connect, AirPrint, Mopria, Brother Print Service Plugin
• Two-sided copying: Yes (A4)
• Copy resolution: Exposure level: up to 600 x 600 dpi (color/black & white). ADS: up to 600 x 600 dpi (black & white) and up to 600 x 600 dpi (color)
• Copy speed: 16 color / 25 black & white images/min. Duplex: 18 black & white and 13 color images per minute
• Dimensions: 530 (W) x 398 (D) x 375 (H) mm | 20.5 kg
• Automatic duplex faxing: Yes
• Fax modem: 33.6 kbit/s
• PC fax: Yes
• Types and sizes: Standard paper tray: Plain, inkjet paper, glossy and recycled paper | A3, LGR, LGL, Folio, A5, A6, photo (10×15 cm), index card (13×20 cm), Photo-L (9×13 cm), Photo-2L (13×18 cm), Com-10, DL envelope, Monarch, C5, Mexico Legal, India Legal. Lower paper tray: Plain, recycled paper | A3, LGR, LGL, Folio, Mexico Legal, India Legal. Multi-purpose tray: Plain, inkjet paper, glossy and recycled paper | A3, LGR, LGL, Folio, A5, A6, photo (10×15 cm), index card (13×20 cm), Photo-L (9×13 cm), Photo-2L (13×18 cm), C5, Com-10, DL envelope, Monarch, Mexico Legal, India Legal, long paper (max 1200 mm). ADS: Plain, recycled paper | Width 105-215.5 mm, length 148-355.6 mm
• Wi-Fi Direct™: Yes
• Wired network interface: Ethernet 10/100BASE-TX Auto Negotiation
• Wireless network interface: 2.4GHz Infrastructure mode: IEEE 802.11 b/g/n | Wi-Fi Direct: IEEE 802.11 g/n & 5GHz Infrastructure mode: IEEE 802.11 a/n | Wi-Fi Direct: IEEE 802.11 a/n
• Wireless network support: Yes
• Included software – Mac: Brother iPrint&Scan
• Included software – Windows: Brother iPrint&Scan, BRAdmin Professional, Mass Deployment Tool, Status Monitor
• Software support: Windows®: 10, 8, 7 (32 & 64 bit editions), Windows® Server: 2019, 2016, 2012, 2012R2, 2008R2 & 2008 (32 & 64 bit editions) | macOS: 10.14.6/10.15.x/11 | Linux: CUPS, LPD/LPRng (32 & 64 bit editions) | ChromeOS: Printing
• Paper capacity: Standard paper tray 250 sheets | Lower paper tray 250 sheets | Multi-purpose tray 100 sheets | ADS: 50 sheets | *calculated with 80 g/m² paper
• Output tray: 100 A4 sheets | 50 A3 sheets | calculated with 80 g/m² paper
• A4 print speed: Up to 28 images per minute
• Resolution: Up to 1200 x 4800 dpi (horizontal x vertical)
• Automatic duplex printing: Yes
• Scan resolution: Exposure level 1200 x 2400 dpi (black & white) / 1200 x 1200 dpi (color). ADS: 600 x 600 dpi (black & white) / 300 x 600 dpi (color)
• Duplex scanning: Yes (up to A4)
• Scan functions: Image, OCR, file, network, FTP, SharePoint, email attachment and email server, searchable PDF
• Speed: 25 black & white and color images/min / Duplex 30 black & white and color images/min
• Scanner type: D CIS
• Print options: USB memory stick
• Web Connect: Prints and scans without a computer to Box, Dropbox, Evernote, OneDrive, Google Drive™, OneNote.
  Scans to mobile devices, searchable PDF, enlarges text copies, scans to PowerPoint, Excel, and Word files, email attachments
• Consumables: Printer comes with LC422 series color cartridges. When installing your cartridges for the first time, your device uses a certain amount of ink to fill the color pipes to ensure high-quality prints. This happens only once. Your ink cartridges will have enough ink left to print at least 358 black and white pages (BK) and 358 color pages (CMY) (ISO/IEC 24711)
• High yield cartridges: Black LC422XLBK approx. 3,000 pages / Cyan, magenta, and yellow LC422XL C/M/Y approx. 1,500 pages. Cartridge yield measured according to ISO/IEC 24711 standard
• Standard cartridges: Black LC422BK 550 pages / Cyan, magenta, and yellow approx. 550 pages. Cartridge yield measured according to ISO/IEC 24711 standard
• Three-year warranty
• Contents: Power cord, product safety guide, user manual, warranty card, quick setup guide, 4 ink cartridges
