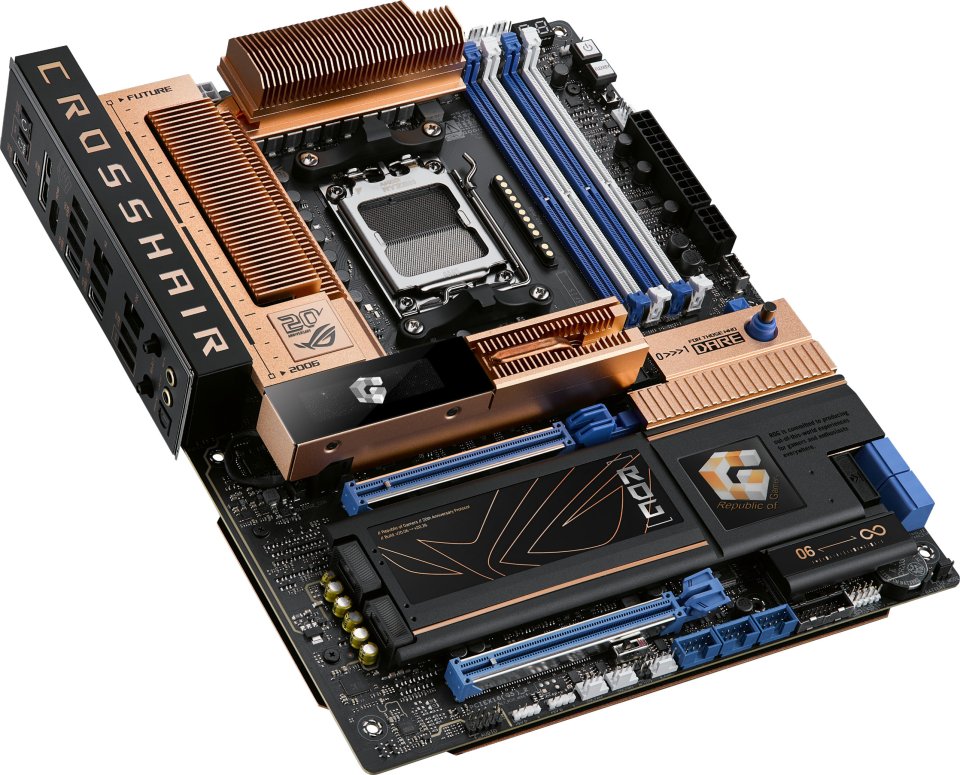

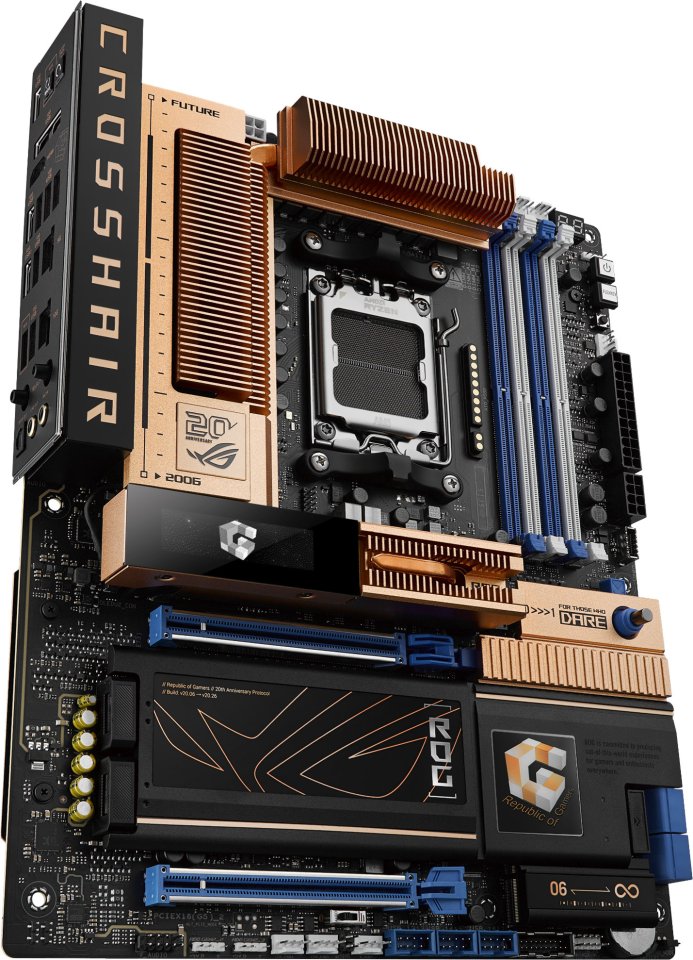

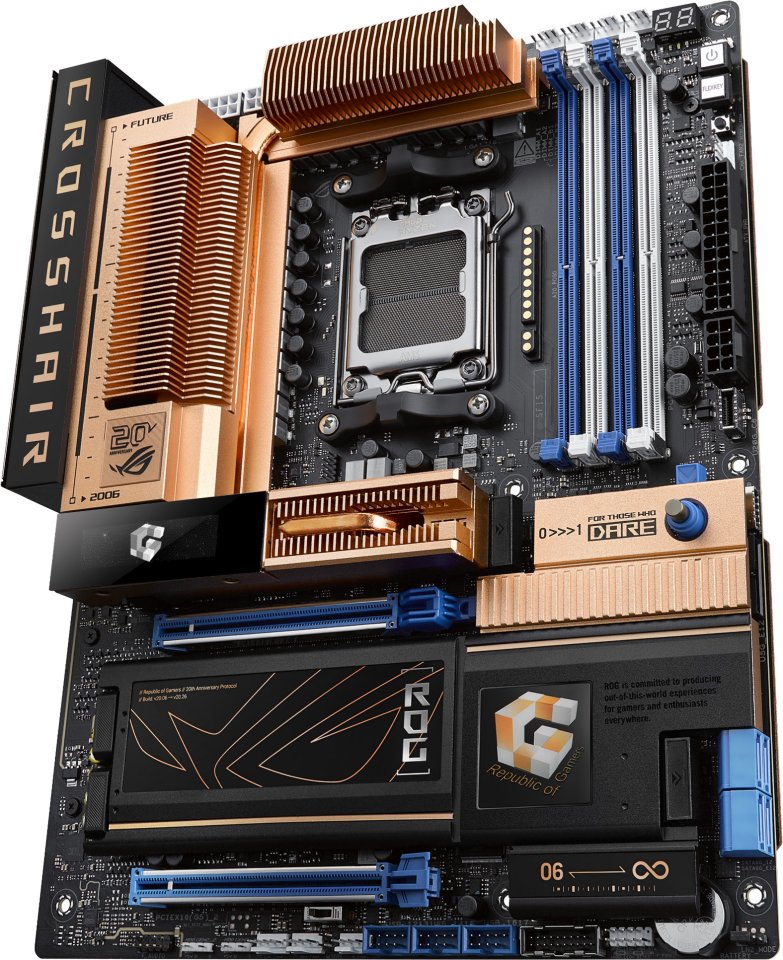

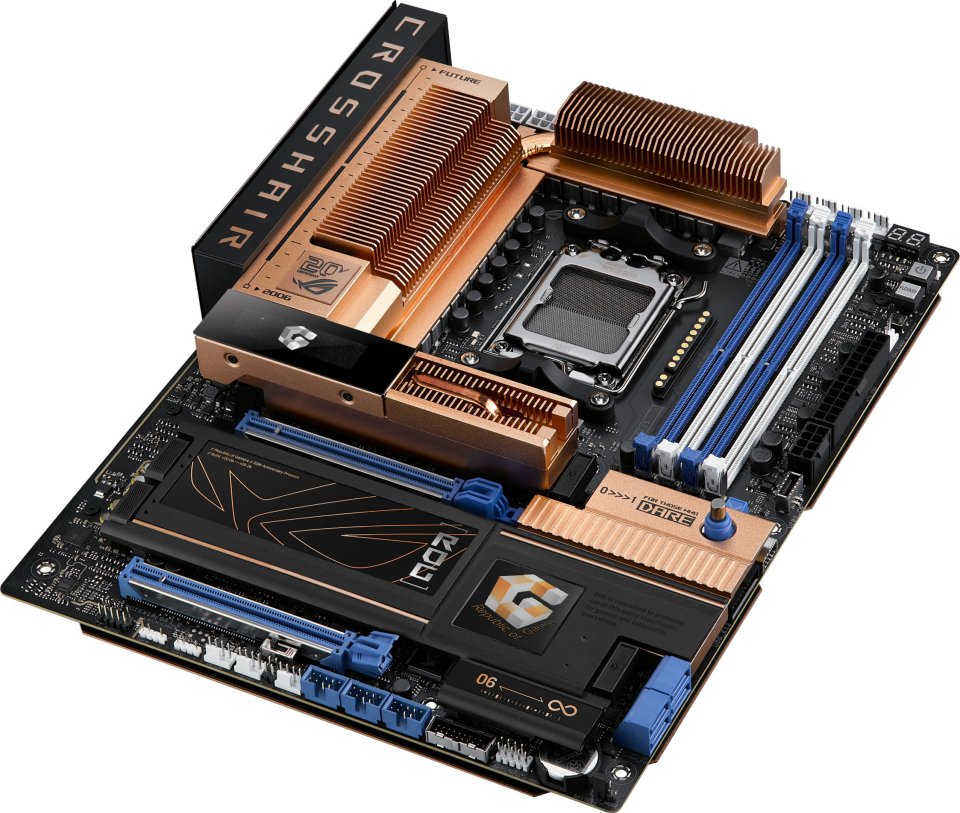

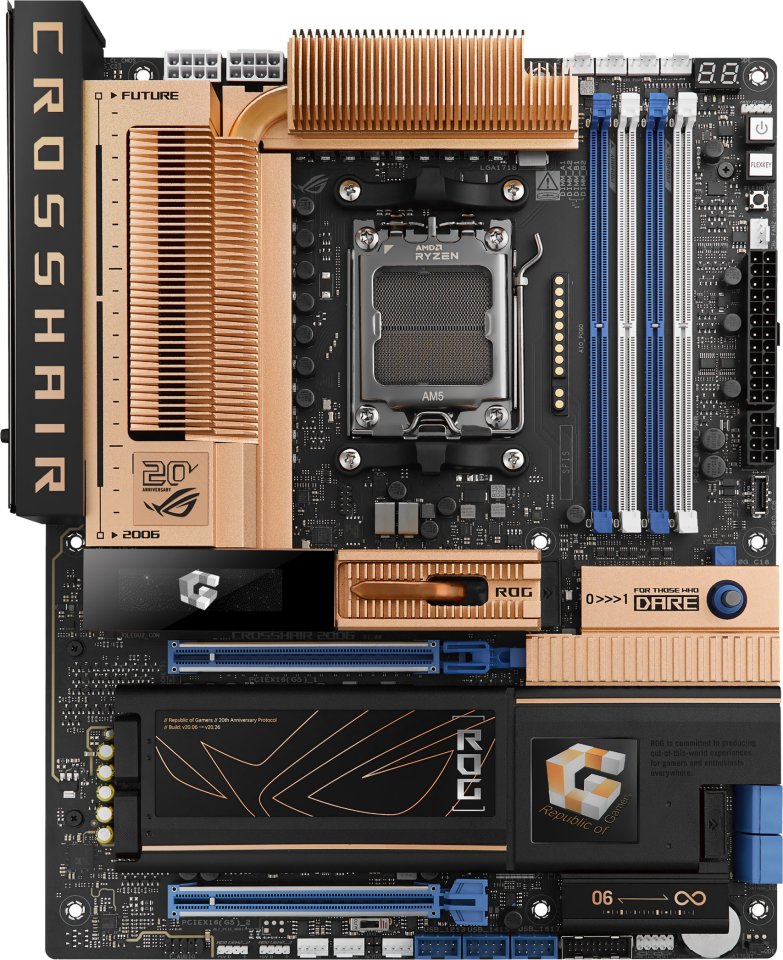

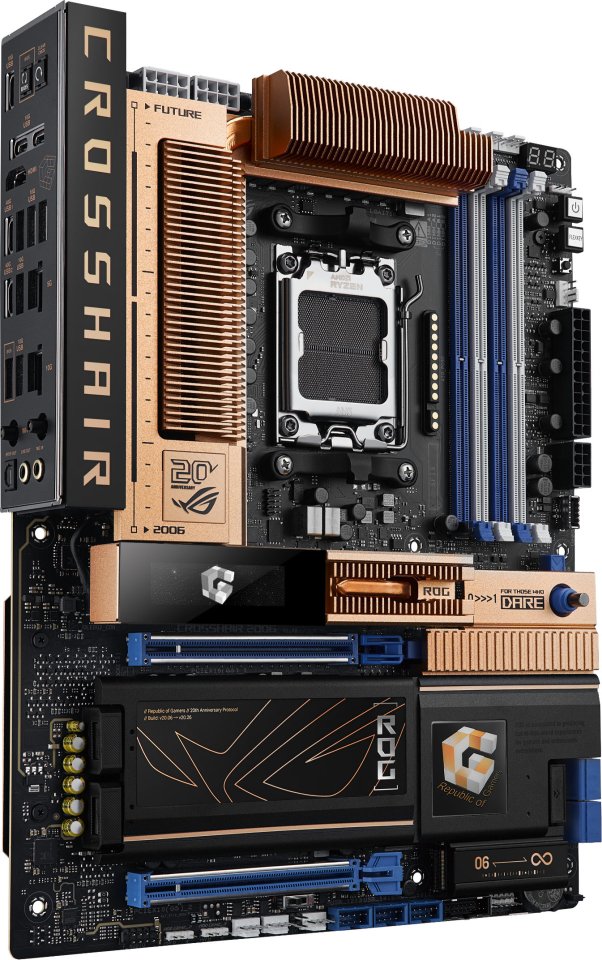

The ASUS ROG Crosshair 2006 is an ATX-sized motherboard based on the AMD X870E chipset, supporting the latest AMD Ryzen 7000, 8000, and 9000 series processors with the AM5 socket. This motherboard offers robust power delivery and advanced memory technologies, enabling the construction of a powerful and stable gaming rig or workstation. Its retro-inspired copper-colored design combines modern performance with versatile connectivity.
The motherboard features a built-in 2-inch LiveDash OLED display that conveniently shows information such as CPU clock speed, temperatures, and fan speeds. The OLED panel also functions as a POST code display during startup, aiding in troubleshooting. Users can upload their own 256×64 pixel monochrome animation to the display for a personalized touch.
The ROG Crosshair 2006 supports DDR5 SDRAM memory with four DIMM slots and up to 256 GB of internal memory in dual-channel configuration. The memory can be ECC or non-ECC type and is unbuffered. There is ample storage: five M.2 slots for different key sizes (up to 22110) and four SATA III connectors. RAID support is available for levels 0, 1, 5, and 10, offering flexibility for storage solutions.

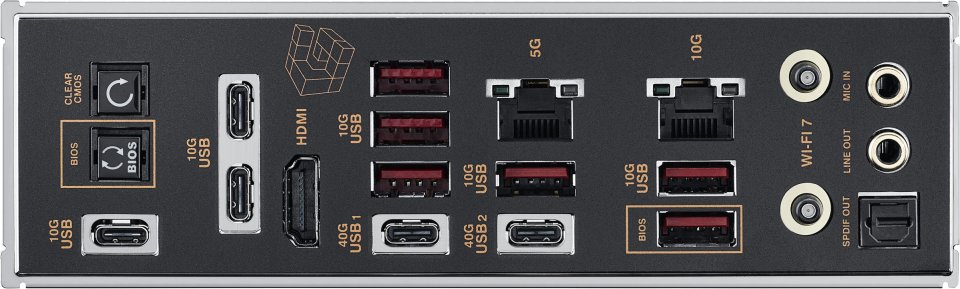

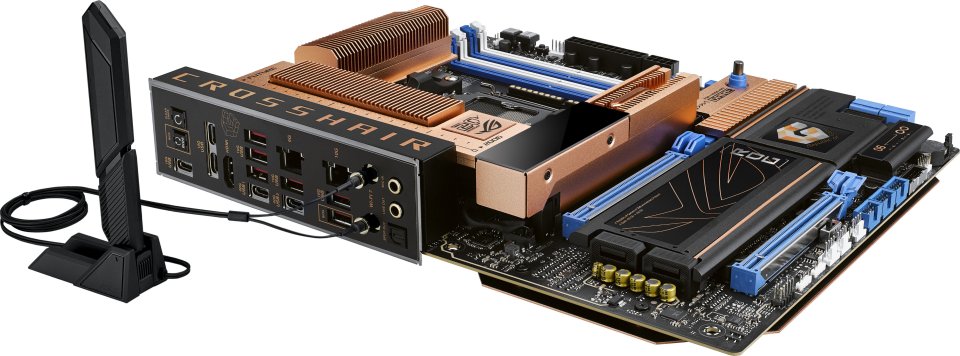

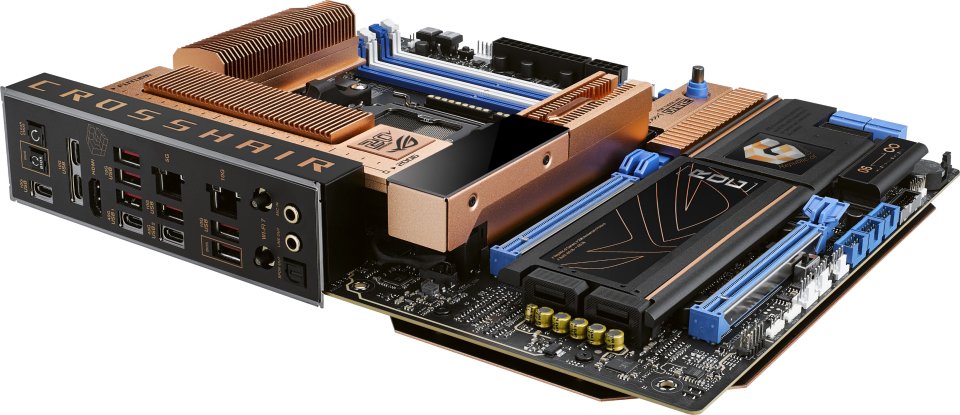

The motherboard includes two PCI Express x16 slots with Gen 5.0 support and one PCIe x1 Gen 3.0 slot. There is a wealth of USB ports: six USB 3.2 Gen 2 Type-A ports, three USB 3.2 Gen 2 Type-C ports, two USB 3.2 Gen 2×2 ports, and three USB4 Gen 3×2 ports. Additionally, there are three USB 2.0 ports. For video, there is one HDMI port and 7.1-channel audio with Realtek ALC4082 audio chips. Network connectivity is handled via two Ethernet ports supporting 5 Gb and 10 Gb speeds, as well as Wi-Fi 7 standard and Bluetooth 5.4.
The motherboard features strong power delivery, including a 24-pin ATX power connector, an 8-pin EPS connector, and a 12 V connector. Cooling management includes four chassis fan connectors and one temperature sensor. Additionally, the motherboard has three RGB LED headers for lighting control, allowing for customizable illumination.
| Color | Multicolor |
|---|---|
| Country of Origin | China |
| PID | 1057627 |
| Product depth (mm) | 244 |
| Product height (mm) | 50 |
| Product weight (g) | 2 506 |
| Product width (mm) | 305 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| WiFi | Yes |
| Wireless network standard | Wi-Fi 7 (802.11be) |
| Motherboard Chipset | AMD X870E |
| Motherboard form factor | ATX |
| Processor Socket | AM5 |
| Maximum supported memory (Gt) | 256 |
| Number of RAM slots | 4 |
| Supported RAM | DDR5 |
| Manufacturer address | "Torshamnsgatan 35, 164 40 Kista, Sweden " |
| Manufacturer's email address | https://www.asus.com/content/asus-product-security-advisory/ |
| Manufacturer name | Asus Nordic AB |
9 in stock
The ASUS ROG Crosshair 2006 is an ATX-sized motherboard based on the AMD X870E chipset, supporting the latest AMD Ryzen 7000, 8000, and 9000 series processors with the AM5 socket. This motherboard offers robust power delivery and advanced memory technologies, enabling the construction of a powerful and stable gaming rig or workstation. Its retro-inspired copper-colored design combines modern performance with versatile connectivity.
The motherboard features a built-in 2-inch LiveDash OLED display that conveniently shows information such as CPU clock speed, temperatures, and fan speeds. The OLED panel also functions as a POST code display during startup, aiding in troubleshooting. Users can upload their own 256x64 pixel monochrome animation to the display for a personalized touch.
The ROG Crosshair 2006 supports DDR5 SDRAM memory with four DIMM slots and up to 256 GB of internal memory in dual-channel configuration. The memory can be ECC or non-ECC type and is unbuffered. There is ample storage: five M.2 slots for different key sizes (up to 22110) and four SATA III connectors. RAID support is available for levels 0, 1, 5, and 10, offering flexibility for storage solutions.
The motherboard includes two PCI Express x16 slots with Gen 5.0 support and one PCIe x1 Gen 3.0 slot. There is a wealth of USB ports: six USB 3.2 Gen 2 Type-A ports, three USB 3.2 Gen 2 Type-C ports, two USB 3.2 Gen 2x2 ports, and three USB4 Gen 3x2 ports. Additionally, there are three USB 2.0 ports. For video, there is one HDMI port and 7.1-channel audio with Realtek ALC4082 audio chips. Network connectivity is handled via two Ethernet ports supporting 5 Gb and 10 Gb speeds, as well as Wi-Fi 7 standard and Bluetooth 5.4.
The motherboard features strong power delivery, including a 24-pin ATX power connector, an 8-pin EPS connector, and a 12 V connector. Cooling management includes four chassis fan connectors and one temperature sensor. Additionally, the motherboard has three RGB LED headers for lighting control, allowing for customizable illumination.
