| Color | White |
|---|---|
| Country of Origin | China |
| PID | 1013942 |
| Product depth (mm) | 244 |
| Product weight (g) | 1 260 |
| Product width (mm) | 305 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| WiFi | Yes |
| Wireless network standard | Wi-Fi 6 (802.11ax) |
| Motherboard Chipset | AMD B840 |
| Motherboard form factor | ATX |
| Processor Socket | AM5 |

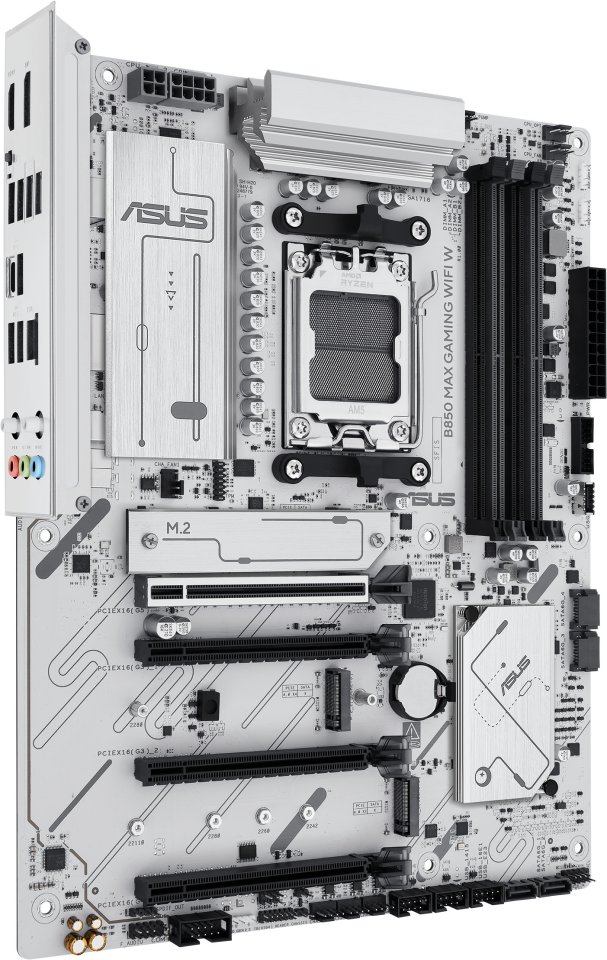

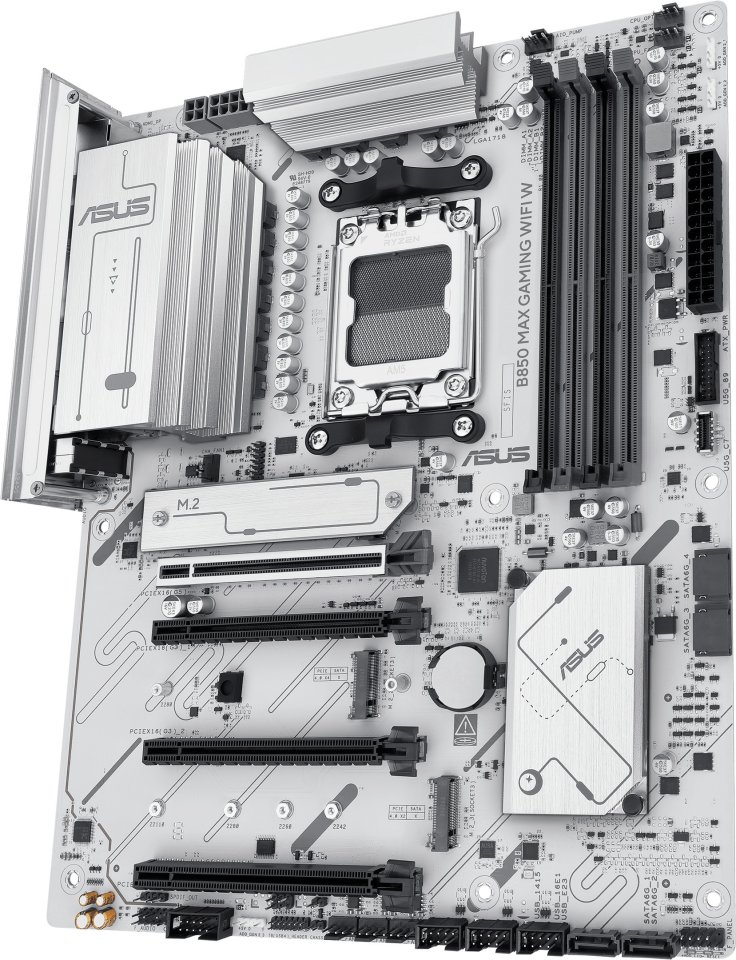

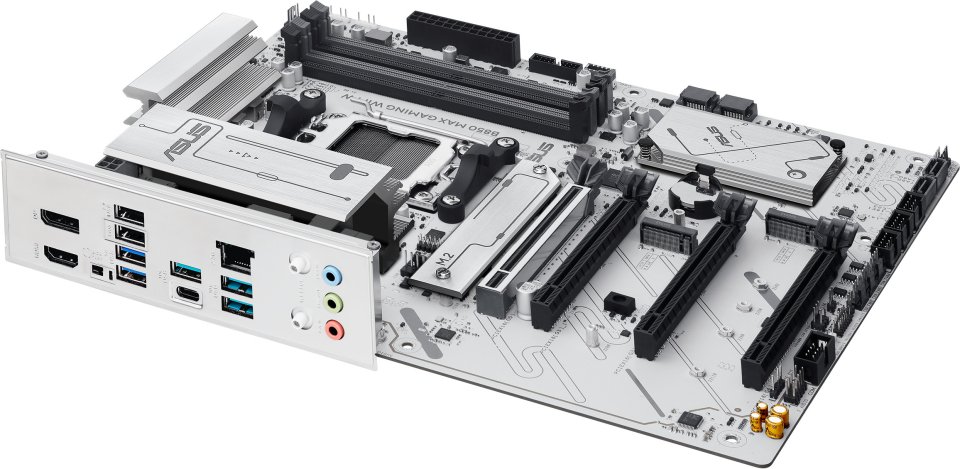

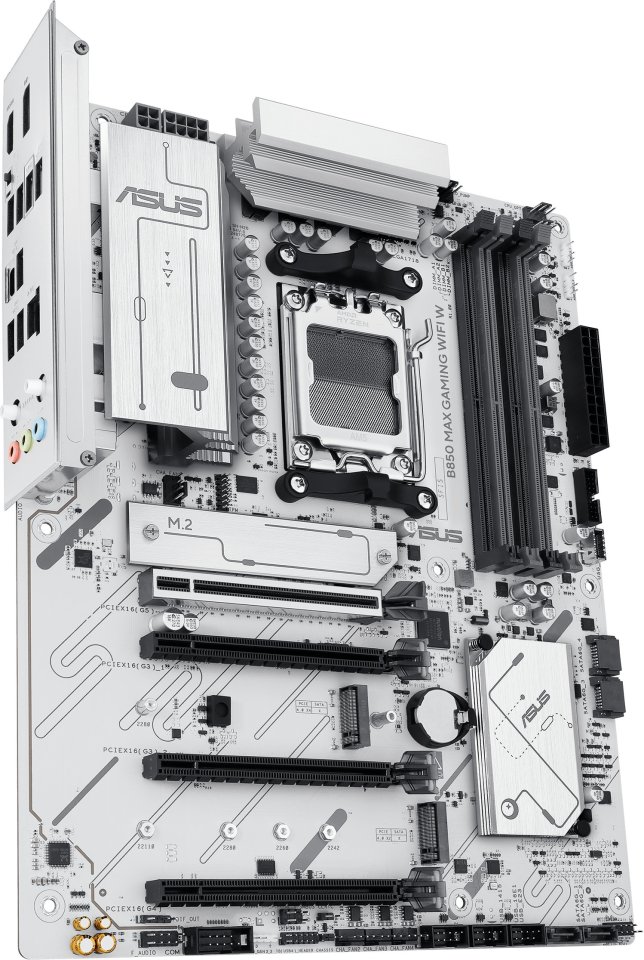

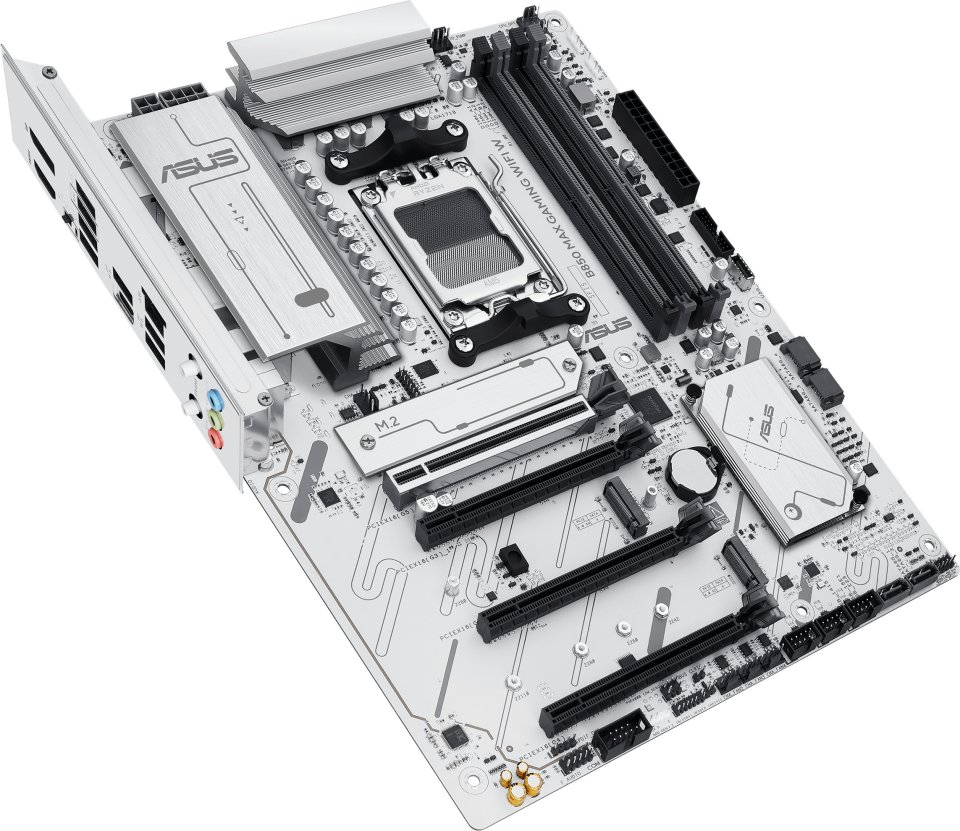

The ASUS B850M MAX GAMING WIFI W is an ATX motherboard based on the AMD B850 chipset that supports the latest AMD Ryzen processors with the AM5 socket. It offers DDR5 memory support, three M.2 slots, and PCIe 5.0 readiness, making it an excellent choice for high-performance gaming builds and workstations. Built-in Wi-Fi 6E and 2.5 Gb Ethernet ensure fast and stable network connections.
The motherboard supports AMD Ryzen 7000, 8000, and 9000 series processors with the AM5 socket. Four DIMM slots allow up to 256 GB of DDR5 memory in dual-channel mode, with support for both ECC and non-ECC memory. Storage options include three M.2 slots (one with PCIe 5.0 support) and four SATA III ports, with RAID 0/1/5/10 support. There are five expansion slots in total, including one PCIe 5.0 x16, one PCIe 4.0 x16, and two PCIe 3.0 x16 slots.

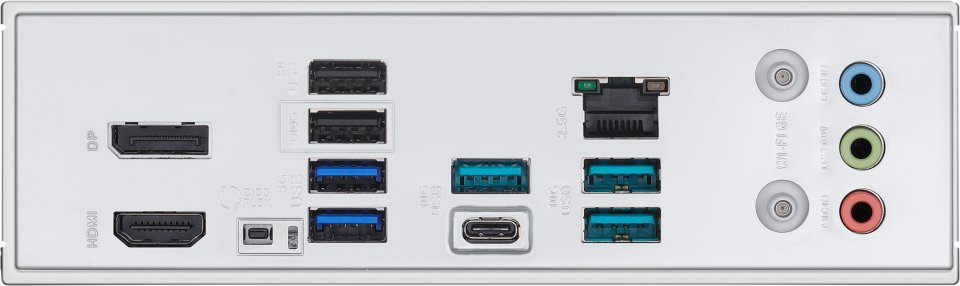

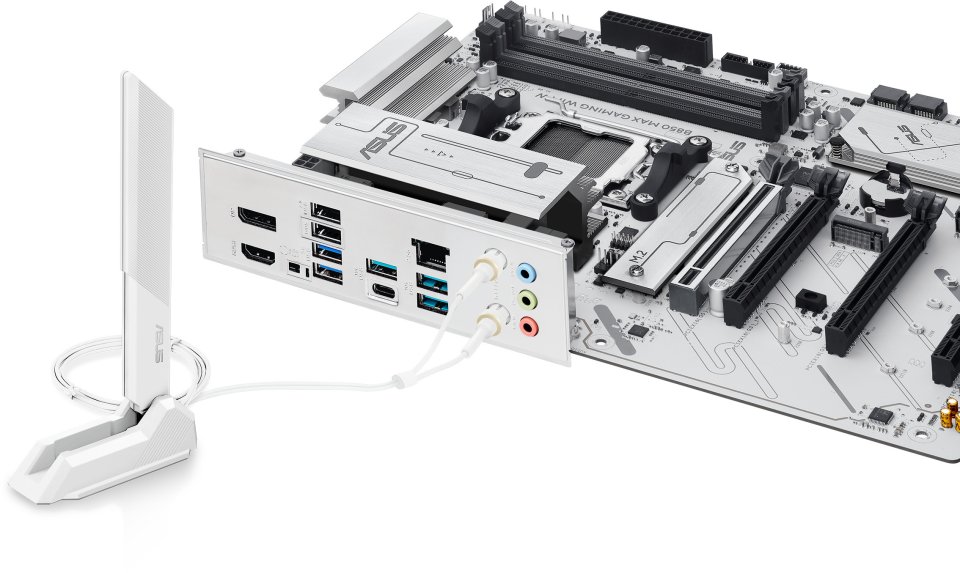

The motherboard offers a comprehensive range of USB ports: the rear panel includes USB 3.2 Gen 2 Type-A and Type-C, USB 3.2 Gen 1, and USB 2.0 ports. The front panel also features a USB Type-C port and multiple USB header connectors. Display outputs include HDMI and DisplayPort. Wireless connectivity is handled by Wi-Fi 6E and Bluetooth 5.3, while wired networking is provided via 2.5 Gb Ethernet.
The motherboard features a flexible cooling solution, including VRM cooling and M.2 heatsinks. RGB LED lighting and three Addressable RGB Gen 2 headers enable visual customization of the build with Aura Sync software. The BIOS is UEFI AMI type, and the BIOS FlashBack™ feature simplifies updates without an installed processor. The motherboard supports Windows 10 x64 and Windows 11 operating systems.
7 in stock
