The CORSAIR RM650e is a quiet, energy-efficient, and fully modular ATX power supply that provides reliable power delivery for compact and mid-range PC builds. It utilizes 80 PLUS Gold energy efficiency, which reduces wasted heat and keeps the fan operation pleasantly subdued. Support for ATX 3.1 and PCIe 5.1 standards, along with a native 12V-2×6 connector, ensures compatibility with modern graphics cards. Modular cabling makes building the system neat and effortless, and high-quality 105 °C rated capacitors extend the product’s lifespan. The compact ATX design and reliable engineering make the RM650e a dependable choice for a variety of uses.

Quiet and Energy-Efficient Power Supply

The RM650e delivers a total power output of 650 watts, sufficient for most mid-range graphics cards and processors. The 80 PLUS Gold certification provides excellent efficiency, reducing heat load and lowering fan speeds. Industrial-grade 105 °C capacitors guarantee stable and reliable operation even under prolonged load.

Modular Design for Clear Installation

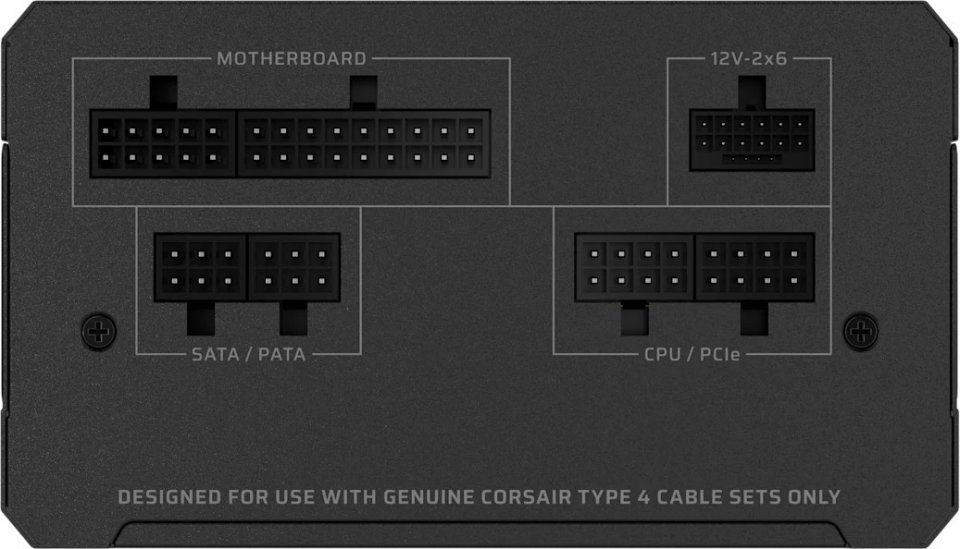

Fully modular cabling allows for a clean and easy installation, as users can connect only the cables they need. This improves internal case airflow and reduces unnecessary cable clutter. Six SATA connectors and two PATA connectors enable easy connection of various storage solutions and peripherals.

Compatible with Modern Graphics Cards

ATX 3.1 and PCIe 5.1 compatibility ensure that the RM650e supports both current and future graphics cards. The native 12V-2×6 connector provides stable power delivery to new graphics cards. Additionally, two 6+2-pin PCIe connectors offer flexibility for connecting other power-hungry components.

Stable and Quiet Cooling in a Compact Size

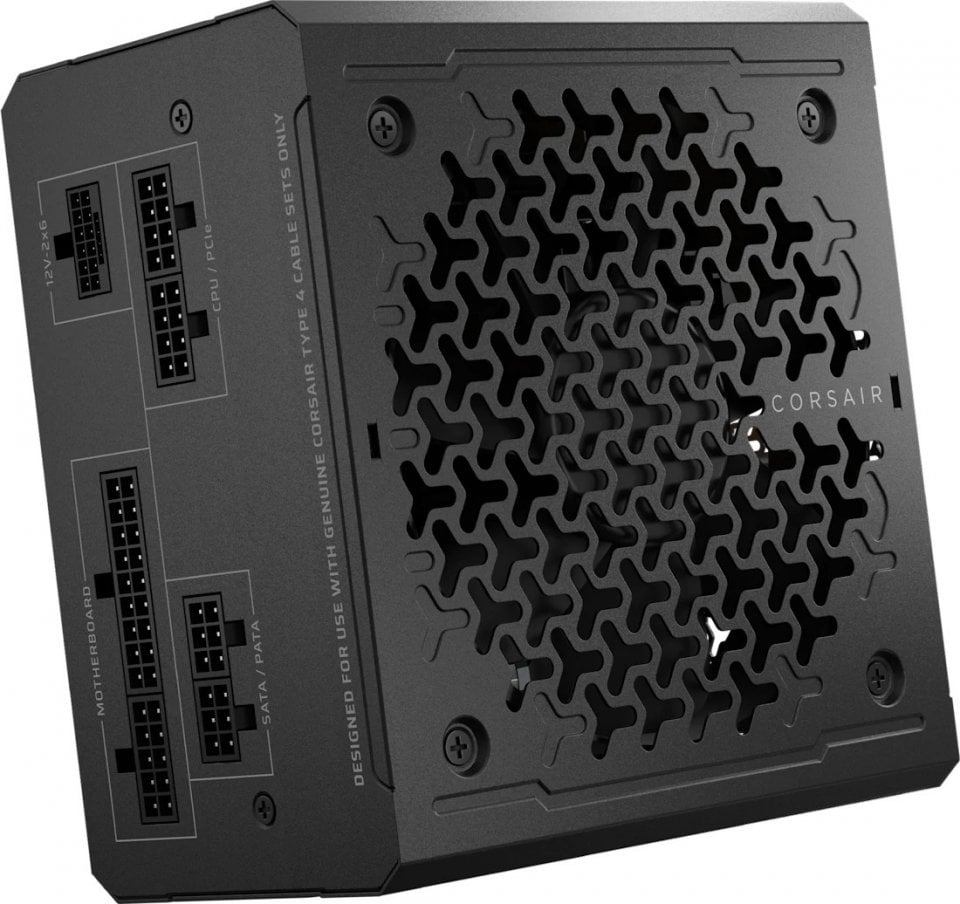

A 12-centimeter fan positioned on the front panel of the power supply delivers efficient and quiet cooling. Compact dimensions (140 × 86 × 150 mm) make the RM650e compatible with most ATX cases. An average failure rate of 100,000 hours indicates a long and reliable service life.

Features

• Provides quiet and energy-efficient 650-watt power delivery for mid-range PC builds.
• Modular cabling facilitates neat installation and improves case airflow.
• ATX 3.1 and PCIe 5.1 compatibility with native 12V-2×6 connector support modern graphics cards.
• 105 °C rated capacitors enhance reliability and lifespan.
• Quiet 12 cm fan and compact ATX size fit most case solutions.

Package Contents

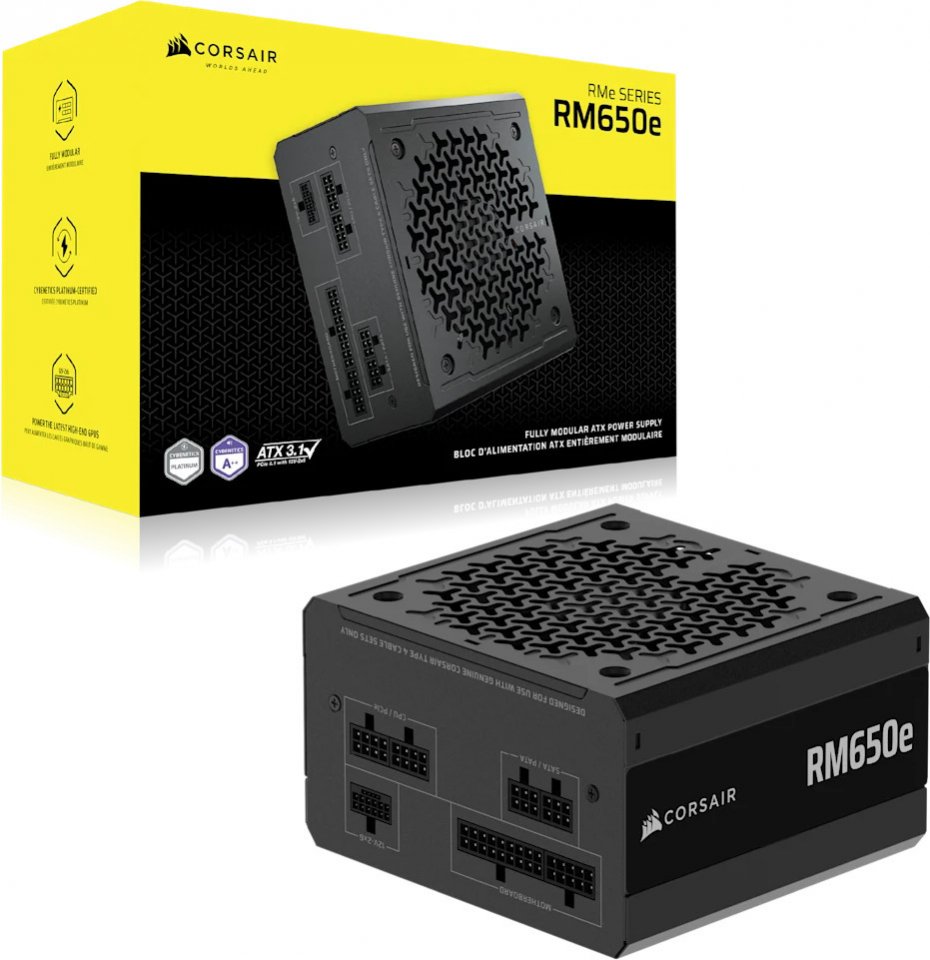

• CORSAIR RM650e modular ATX power supply

Technical Specifications

• Total Power: 650 W
• AC Input Voltage: 100–240 V
• AC Input Frequency: 47–63 Hz
• Input Current: 10–5 A
• Combined Power (+3.3V): 110 W
• Combined Power (+12V): 650 W
• Combined Power (+5V): 110 W
• Combined Power (+5Vsb): 15 W
• Maximum Current (+3.3V): 20 A
• Maximum Current (+12V): 54.2 A
• Maximum Current (+5V): 20 A
• Maximum Current (+5Vsb): 3 A
• Motherboard Connector: 24-pin ATX
• SATA Connectors: 6
• PATA Connectors: 2
• EPS/CPU 4+4-pin: Yes
• PCIe 6+2-pin: 2
• PCIe 12+4-pin (12V-2×6): Yes
• Cabling: Fully modular
• Standards: ATX, ATX 3.1
• 80 PLUS Certification: Gold
• Bearing Technology: Rifle
• Mean Time Between Failures (MTBF): 100,000 h
• Cooling: Active, 1 × 120 mm fan
• Fan Location: Front
• On/Off Switch: Yes
• Certifications: CE, RoHS, UKCA
• Color: Black
• Dimensions: 140 mm (width), 86 mm (depth), 150 mm (height)
• Weight: 2.73 kg
