The Yamaha URX22 is a 4-in/2-out USB-C audio interface that offers 32-bit / 192 kHz sound quality, a touchscreen LCD interface with physical controls, and DSP-based mixing and effects. This compact and portable device is suitable for streamers, podcast hosts, gamers, and musicians. Yamaha’s URX microphone preamps (78 dB gain range) and 125 dB dynamic range ensure precise and clean sound. Two USB ports (MAIN/SUB) enable 16-track recording and simultaneous 2-track recording to another device.
192 kHz / 32-bit resolution and high-end AD/DA converters produce pure input and output sound. The URX microphone preamps capture performance details with a 78 dB gain range and very low distortion. The main output’s 125 dB dynamic range preserves nuances from quiet to loud sounds.

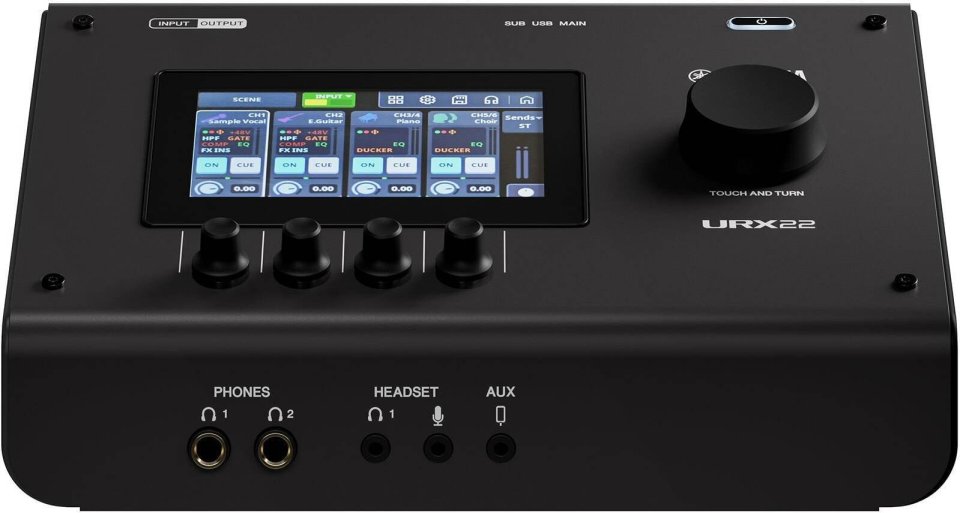

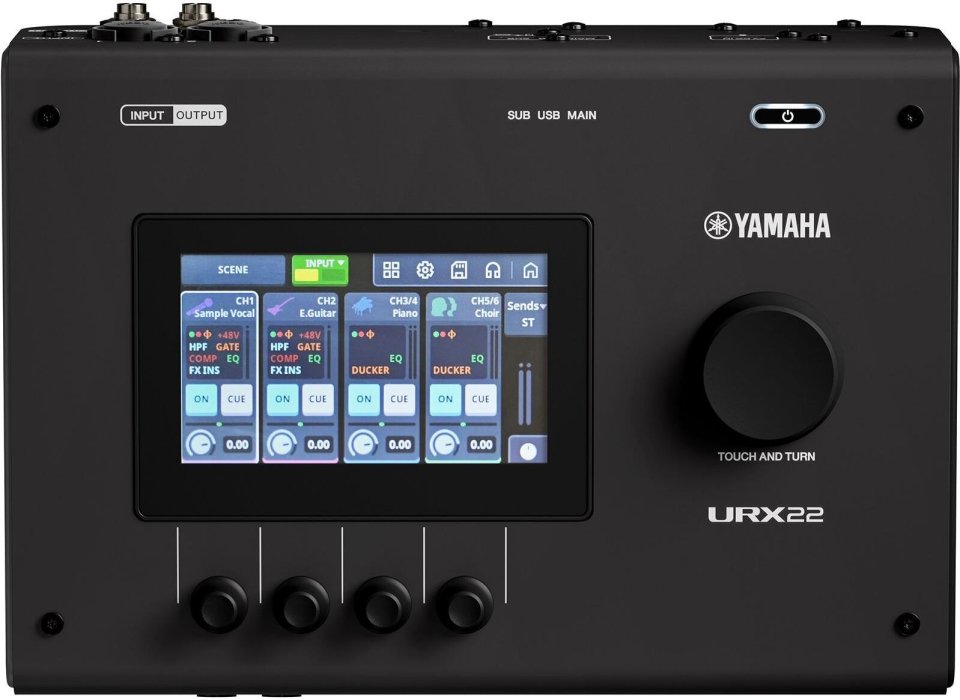

The 4.3-inch touchscreen and five control knobs provide quick access to settings. Four customizable knobs and a TOUCH AND TURN knob allow precise parameter adjustments at your fingertips. The Scene Recall function switches between settings with a single button press, and Simple Mode makes operation easier when you want to focus on creative work.
The built-in DSP processor offers Gate, compressor, EQ, reverb, amplifier simulator, and sound shaping. The Total FX suite includes a Ducker that automatically prioritizes important sounds, a multiband compressor for enhancing sound quality, and delay lip-sync adjustment. Smart Gain automatically optimizes input volume, and Clip Safe prevents sudden distortion.

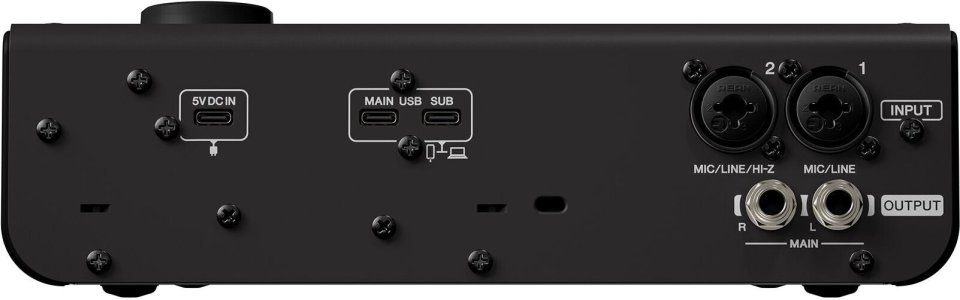

Two USB ports (MAIN/SUB) allow integration of different audio sources and devices. The MAIN port supports 16-track recording and playback, while the SUB port provides 2-track recording and playback to another device, such as a streaming PC.

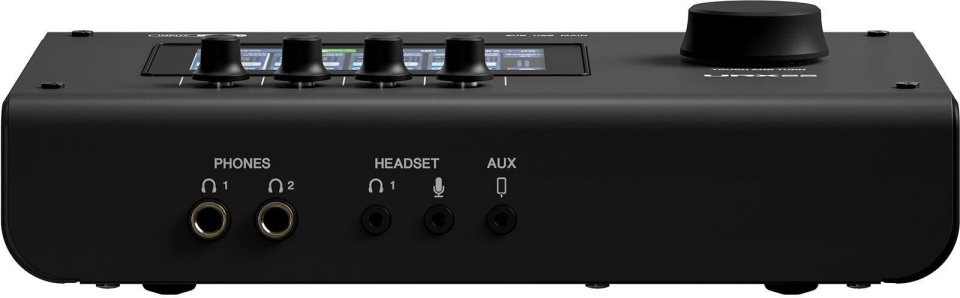

Two combo inputs (XLR/TRS) support microphones and line signals, with one input also functioning as a Hi-Z instrument input. The combo input also includes a 3.5 mm headphone microphone jack. The AUX stereo input (3.5 mm) is suitable for additional sources. Outputs include 2 TRS line outputs and two headphone outputs (3.5 mm and stereo), enabling collaboration in the studio or on stage. +48 V phantom power supports condenser microphones.
Includes Cubase AI and WaveLab Cast software, the Steinberg Plus expansion pack, and a Basic FX Suite license card. Additionally, the free MixKey mixing software is available. Seamless integration with Elgato Stream Deck and OBS Studio enhances controller fluidity. Upcoming updates will expand URX remote control via Stream Deck.
| Country of Origin | Malaysia |
|---|---|
| PID | 1048087 |
| Product depth (mm) | 182 |
| Product height (mm) | 78 |
| Product weight (g) | 1 900 |
| Product width (mm) | 245 |
| Manufacturer address | J.A. Wettergrens Gata 1, 421 30 Västra Frölunda, Sverige |
| Manufacturer's email address | |
| Manufacturer name | Yamaha Music Europe GmbH Germany filial Scandinavia |
