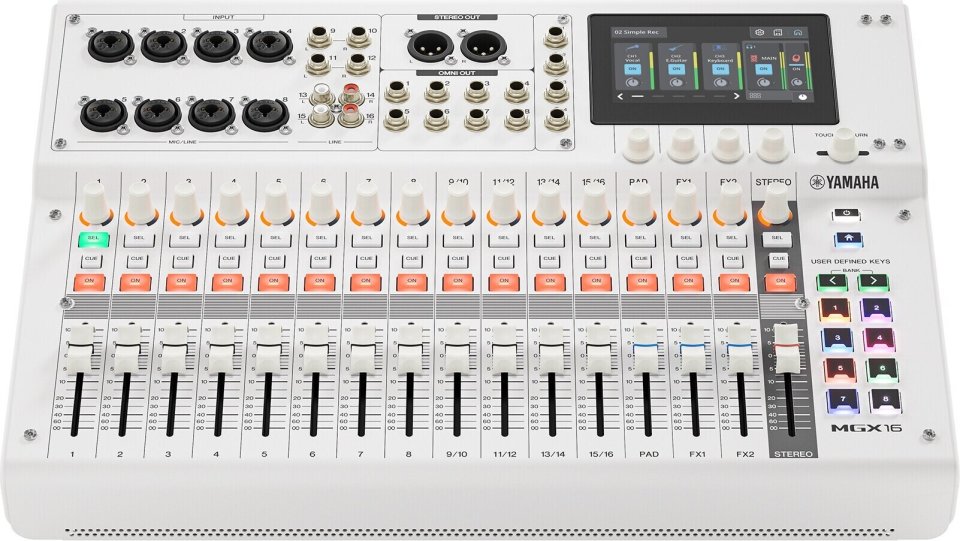

The Yamaha MGX16 is a 16-channel digital mixer that combines Yamaha’s MG series “True Sound” audio philosophy with digital technology. It is suitable for live sound, streaming production, podcasts, and studio work. The mixer offers 8 MGX microphone preamps, a 4.3-inch touchscreen, a built-in DSP processor, and versatile connectivity options, including audio interface via two USB-C ports, Bluetooth audio input, and a microSD card slot.
The MGX16’s eight MGX microphone preamps cover an 86 dB gain range and deliver precise, clear sound. There are a total of 8 mono, 4 stereo, 1 Sound Pad, and 2 FX-return mixing channels. Local inputs include 8 Combo connectors (microphone/line), 4 TRS line inputs, and 4 RCA line inputs, allowing various audio sources to be connected to the same mixer.

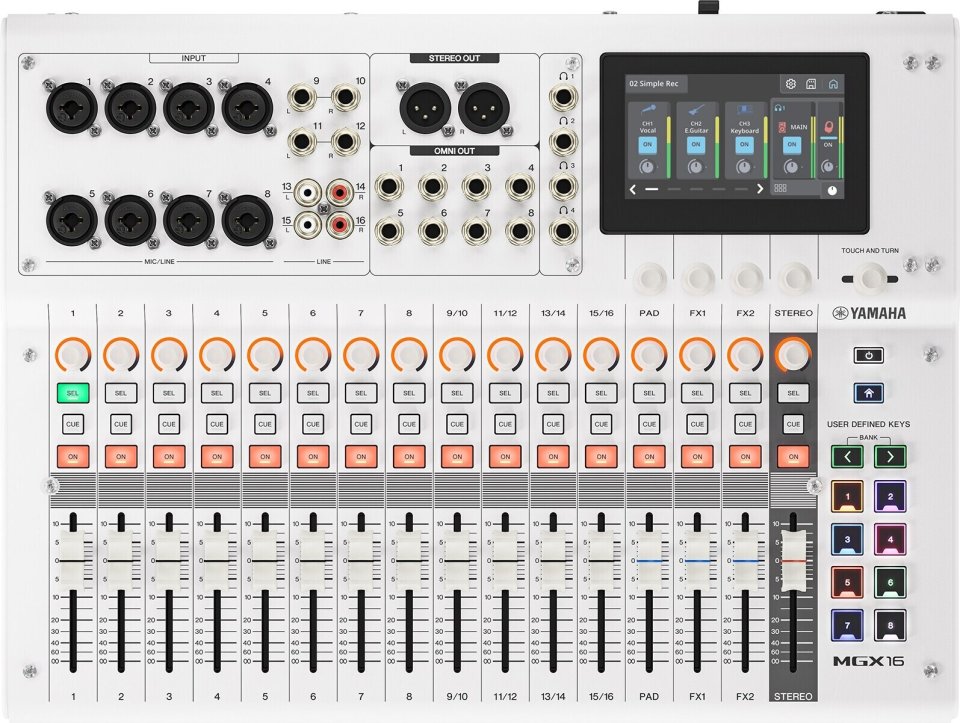

The 4.3-inch touchscreen and five control knobs make mixing management quick. The 15 + 1 fader configuration provides direct access to channel adjustments. Physical controls and a clear layout work well in live situations where speed is essential.

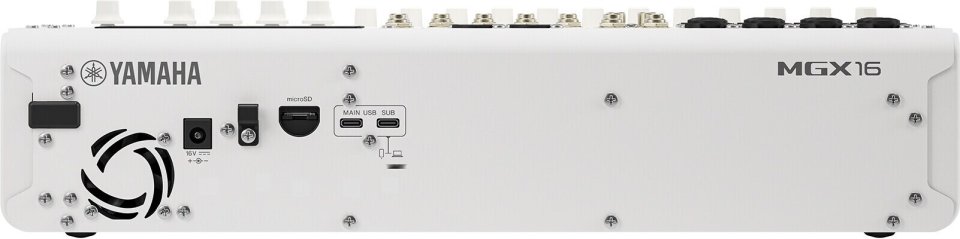

The USB main interface supports 22 inputs and 22 outputs with 32-bit resolution and a 96 kHz sampling rate. The USB SUB port offers 2 inputs and 2 outputs with 16-bit resolution and 48 kHz frequency. The microSD card slot can record 16 tracks at 24-bit quality with up to 96 kHz sampling rate directly from the mixer without a separate computer. Bluetooth 5.0 audio input (A2DP) enables wireless audio playback from devices like phones or tablets.
On the output side, there are 2 XLR outputs, 8 TRS phone connectors, and 4 headphone outputs. There are 1 STEREO and 8 MIX buses, allowing flexible monitoring and routing for different use cases.
The built-in DSP processor handles effects and zero-latency monitoring. Assist functions such as Auto Gain, Clip Safe, Scene Recall, and Simple/Standard modes facilitate workflow and speed up settings adjustments.

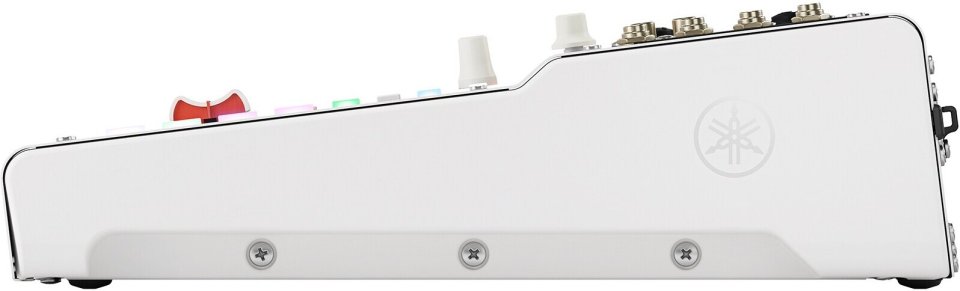

The MGX16 measures 419 x 96 x 319 mm and weighs 4.7 kg. The mixer is easy to transport to gigs or place on a studio desk, making it suitable for live sound, streaming production, studio recording, as well as corporate and event sound reinforcement.
| Color | White |
|---|---|
| Country of Origin | Malaysia |
| PID | 1048060 |
| Product depth (mm) | 319 |
| Product height (mm) | 96 |
| Product weight (g) | 4 700 |
| Product width (mm) | 419 |
| Built-in amplifier | Yes |
| Number of Channels | 22 |
| USB port | Yes |
| Manufacturer address | J.A. Wettergrens Gata 1, 421 30 Västra Frölunda, Sverige |
| Manufacturer's email address | |
| Manufacturer name | Yamaha Music Europe GmbH Germany filial Scandinavia |
