The Yamaha MGX16V is a 16-channel digital mixer that also features an HDMI-USB audio/video input with recording and pass-through functions. The mixer combines Yamaha’s MG series “True Sound” audio philosophy with digital technology and is suitable for live sound reinforcement, streaming production, podcasts, studio work, and events. For content creators, audio engineers, and streamers, seamless HDMI video integration offers new possibilities to combine audio and video in the same workflow.
The built-in USB-HDMI audio/video interface enables high-quality video capture (up to 4K / pass-through), simultaneous audio and video streaming or recording, and HDMI pass-through to displays and projectors. This reduces the need for external video capture devices and simplifies workflows in event technology and studio productions.
The MGX16V’s eight MGX microphone preamps cover an 86 dB gain range and deliver precise, clear sound. There are a total of 8 mono channels, 4 stereo channels, 1 Sound Pad, and 2 FX returns. Local inputs include 8 Combo jacks (mic/line), 4 TRS line inputs, and 4 RCA line inputs, allowing various audio sources to be connected to the same mixer.

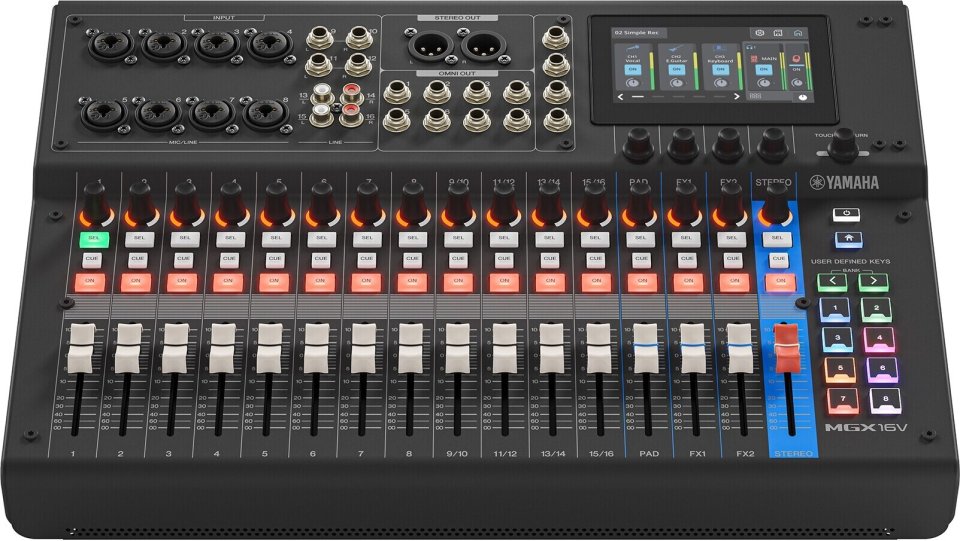

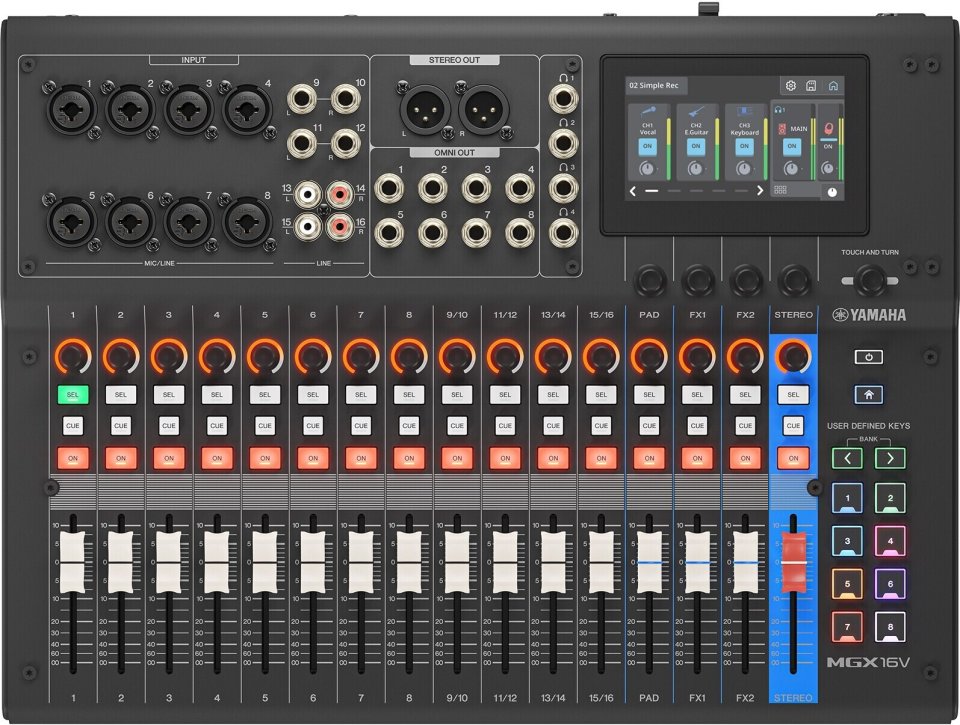

The 4.3-inch touchscreen and five control knobs make mixing management fast. The 15 + 1 fader configuration provides direct access to channel adjustments. Physical controls and a clear layout work well even in live situations where speed is essential.

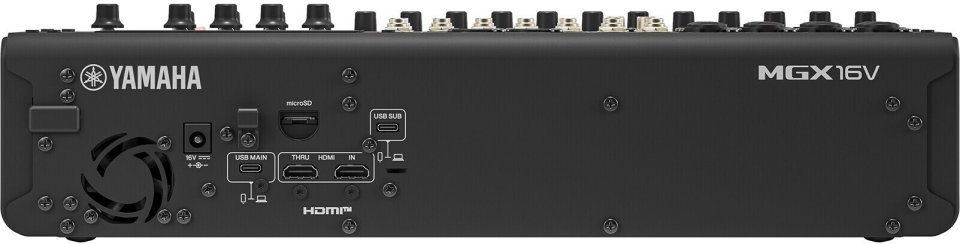

The USB main interface supports 22 inputs and 22 outputs with 32-bit resolution and a 96 kHz sampling rate. The USB SUB port offers 2 inputs and 2 outputs with 16-bit resolution and a 48 kHz rate. The MicroSD card slot can record 16 tracks at 24-bit quality up to 96 kHz directly from the mixer without a separate computer. Bluetooth 5.0 audio input (A2DP) allows wireless audio playback from devices such as phones or tablets.
On the output side, there are 2 XLR outputs, 8 TRS phone jacks, and 4 headphone outputs. The buses include 1 STEREO and 8 MIX, enabling flexible monitoring and routing for various use cases.
The built-in DSP processor handles effects and zero-latency monitoring. Assistive functions such as Auto Gain, Clip Safe, Scene Recall, and Simple/Standard modes facilitate workflow and speed up settings adjustments.
The MGX16V measures 419 x 96 x 319 mm and weighs 4.9 kg. The mixer is easy to transport to gigs or place on a studio desk and is suitable for live sound reinforcement, streaming production, studio recording, as well as corporate and event sound reinforcement.
| Color | Black |
|---|---|
| Country of Origin | Malaysia |
| PID | 1048069 |
| Product depth (mm) | 319 |
| Product height (mm) | 96 |
| Product weight (g) | 4 900 |
| Product width (mm) | 419 |
| Built-in amplifier | Yes |
| Number of Channels | 22 |
| USB port | Yes |
| Manufacturer address | J.A. Wettergrens Gata 1, 421 30 Västra Frölunda, Sverige |
| Manufacturer's email address | |
| Manufacturer name | Yamaha Music Europe GmbH Germany filial Scandinavia |
