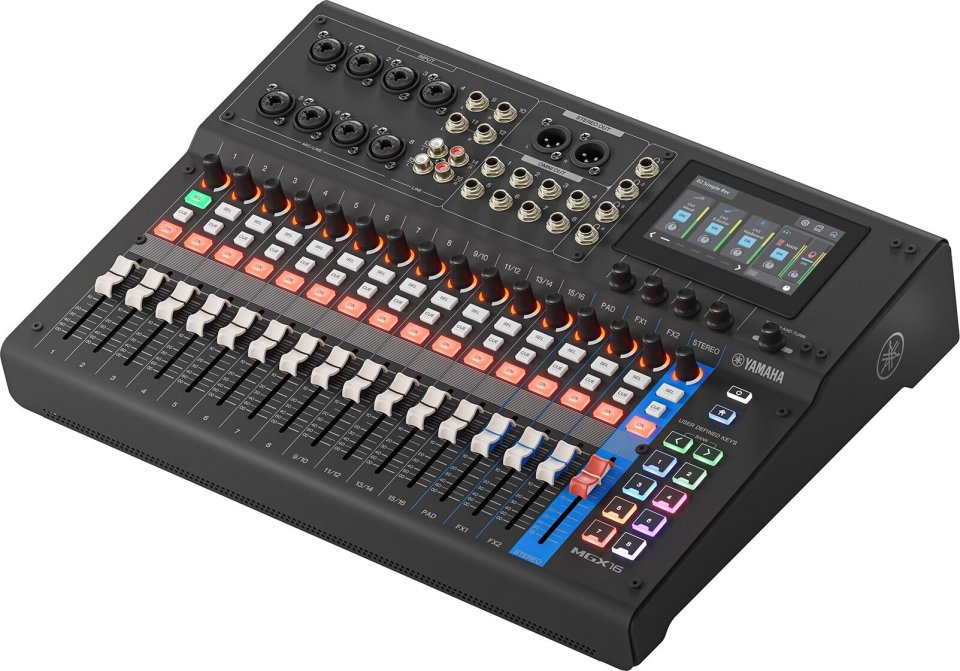

The Yamaha MGX16 is a 16-channel digital mixer that combines Yamaha MG series’ “True Sound” audio philosophy with digital technology. It is suitable for live sound reinforcement, streaming production, podcasts, and studio work. The mixer features 8 MGX microphone preamps, a 4.3-inch touchscreen, a built-in DSP processor, and versatile connections including two USB-C audio ports, Bluetooth audio input, and a microSD card slot.
The MGX16’s eight MGX microphone preamps cover an 86 dB gain range and deliver precise, clear sound. There are a total of 8 mono, 4 stereo, 1 Sound Pad, and 2 FX-return mixing channels. Local inputs include 8 Combo connectors (microphone/line), 4 TRS line inputs, and 4 RCA line inputs, allowing various sound sources to be connected to the same mixer.

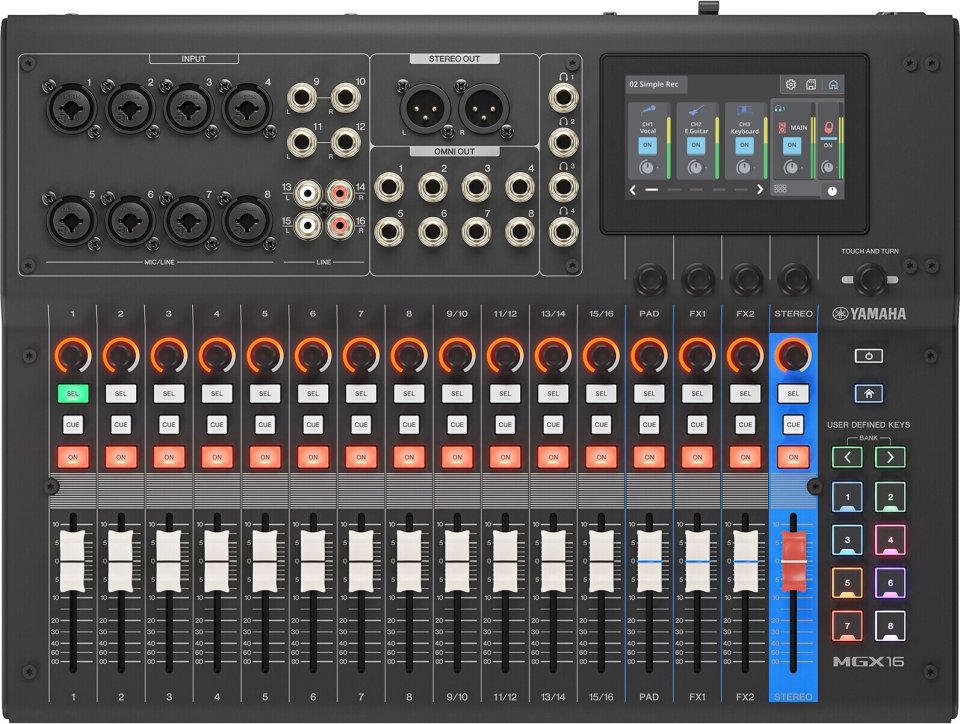

The 4.3-inch touchscreen and five control knobs make mixing management fast. The 15 + 1 fader configuration provides direct access to channel adjustments. Physical controls and a clear layout also work well in live situations where speed is essential.
The USB main interface supports 22 inputs and 22 outputs with 32-bit resolution and a 96 kHz sampling rate. The USB SUB port offers 2 inputs and 2 outputs with 16-bit resolution and 48 kHz rate. The microSD card slot can record 16 tracks at 24-bit quality and up to 96 kHz sampling rate directly from the mixer without a separate computer. Bluetooth 5.0 audio input (A2DP) enables wireless audio playback from devices such as phones or tablets.
On the output side, there are 2 XLR outputs, 8 TRS phone connectors, and 4 headphone outputs. The buses include 1 STEREO and 8 MIX, allowing flexible monitoring and routing for different use cases.
The built-in DSP processor handles effects and zero-latency monitoring. Assistive functions such as Auto Gain, Clip Safe, Scene Recall, and Simple/Standard modes facilitate working and speed up settings adjustments.
The MGX16 measures 419 x 96 x 319 mm and weighs 4.7 kg. The mixer is easy to transport to gigs or place on a studio desk, making it suitable for live sound, streaming production, studio recording, as well as corporate and event sound reinforcement.
| Color | Black |
|---|---|
| Country of Origin | Malaysia |
| PID | 1048066 |
| Product depth (mm) | 319 |
| Product height (mm) | 96 |
| Product weight (g) | 4 700 |
| Product width (mm) | 419 |
| Built-in amplifier | Yes |
| Number of Channels | 22 |
| USB port | Yes |
| Manufacturer address | J.A. Wettergrens Gata 1, 421 30 Västra Frölunda, Sverige |
| Manufacturer's email address | |
| Manufacturer name | Yamaha Music Europe GmbH Germany filial Scandinavia |
