Additional information

PID

573955

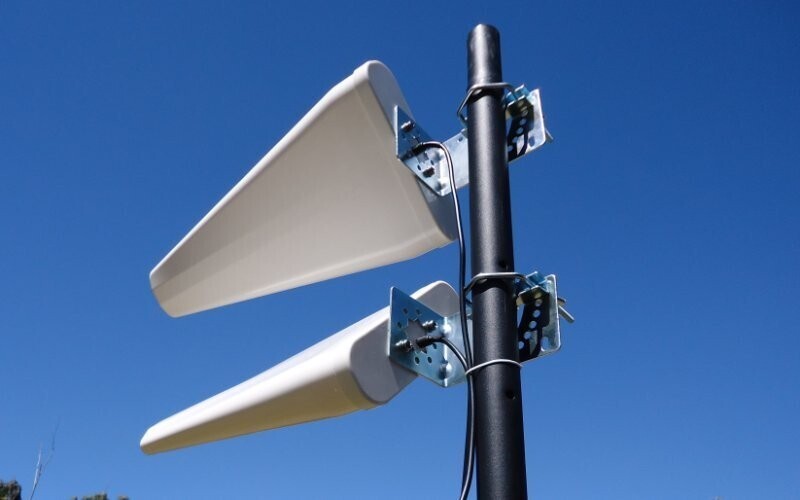

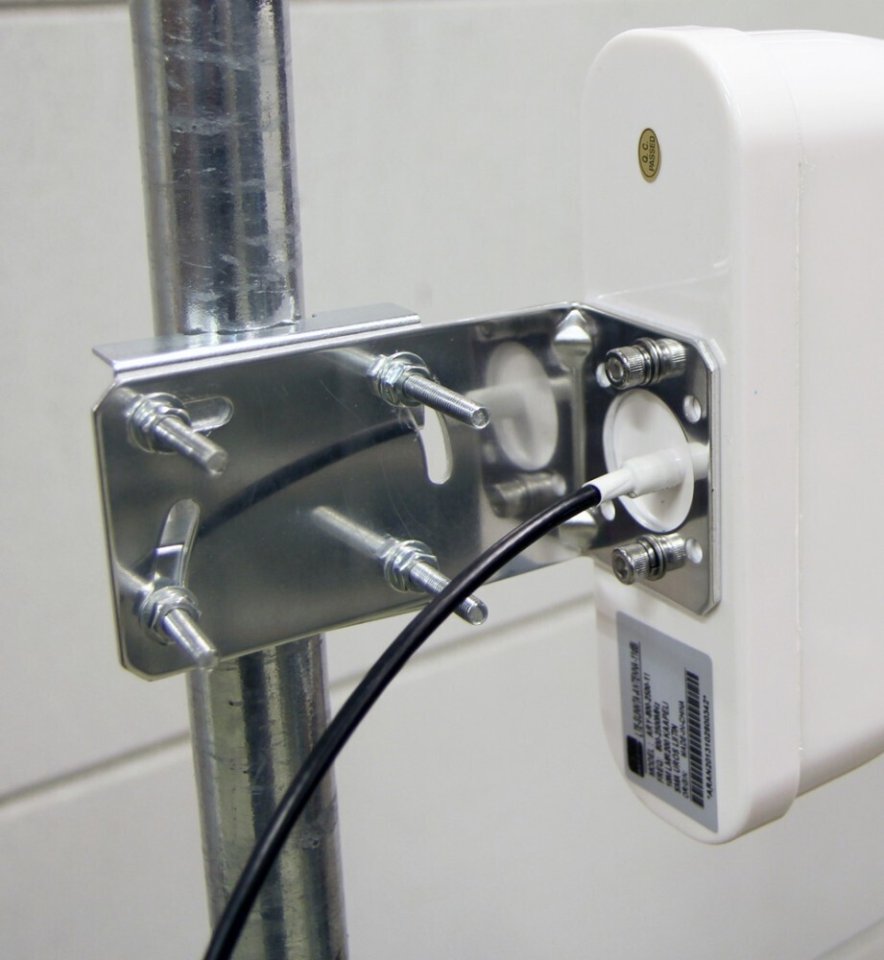

Introducing a powerful log-periodic antenna designed for dual frequency bands! This antenna is perfect for enhancing data communication and boosting your data transfer speeds. It comes with a 10m low-loss LRM200 cable featuring an SMA male connector, making it a great addition to your setup.

Key Features:

  • Ideal for outdoor use
  • Gain: 11 dBi log-periodic
  • Low-loss 10 m LRM200 cable included
  • Frequency range: 698-960 / 1,710-3,800 MHz
  • Polarization: horizontal beam 65/50 °, vertical beam 50/40 °
  • Connector: SMA male
  • Front-to-back ratio ≥18 dB, VSWR ≤1.5
  • Impedance: 50 Ω
  • Maximum power: 50 W
  • Wind load: 60 m/s
  • Temperature range: -40 to +70 ºC
  • Dimensions: 445 x 265 x 65 mm
  • Weight: 0.6 kg maximum

This antenna works seamlessly without the need for an additional adapter with models like Huawei B525, B535, B593, B315, B715, TP-LINK TL-MR6400, MR200, MR400, MR600, ZyXEL LTE3301, LTE33101 Plus, LTE3302, LTE3316, and LTE5366.

Toote pildid on illustratiivsed ja näitlikud. Originaaltoote omadused võivad nende tegelikust väljanägemisest erineda, seega palun tutvuge tootekirjelduses toodud tootespetsifikatsioonidega.
LAOS OLEMAS

TTX GSM/UMTS/3G/4G/LTE/WiFi antenna

76.87
sis. KM 24%
  • For outdoor use
  • Confirmation 11 dBi
  • Low-loss 10 m cable LRM200
  • SMA male connector
  • 5G compatible
Eeldatav tarneaeg: 4-7 päeva
Maksa hiljem või osana
Tootekood: BY0738
EAN kood: 6416280455937, 2220005739554

Introducing a powerful log-periodic antenna designed for dual frequency bands! This antenna is perfect for enhancing data communication and boosting your data transfer speeds. It comes with a 10m low-loss LRM200 cable featuring an SMA male connector, making it a great addition to your setup.

Key Features:

  • Ideal for outdoor use
  • Gain: 11 dBi log-periodic
  • Low-loss 10 m LRM200 cable included
  • Frequency range: 698-960 / 1,710-3,800 MHz
  • Polarization: horizontal beam 65/50 °, vertical beam 50/40 °
  • Connector: SMA male
  • Front-to-back ratio ≥18 dB, VSWR ≤1.5
  • Impedance: 50 Ω
  • Maximum power: 50 W
  • Wind load: 60 m/s
  • Temperature range: -40 to +70 ºC
  • Dimensions: 445 x 265 x 65 mm
  • Weight: 0.6 kg maximum

This antenna works seamlessly without the need for an additional adapter with models like Huawei B525, B535, B593, B315, B715, TP-LINK TL-MR6400, MR200, MR400, MR600, ZyXEL LTE3301, LTE33101 Plus, LTE3302, LTE3316, and LTE5366.
