Thermex Harwich II is a wall-mounted angular range hood with a sturdy overall appearance. The features of the Harwich II model make it a top-class range hood for removing impurities generated during cooking. The range hood controls an external motor (such as a roof fan or duct fan). This model features easy-to-use touch control switches, dishwasher-safe metal grease filters, and energy-saving LED lights. Additional conveniences include a filter cleaning reminder and a post-run function. Various accessories are available for the Harwich II model, allowing you to customize it to fit your kitchen and ventilation system perfectly.

The range hood is compatible with all roof fans and duct fans available on the market for single-family homes. It is primarily designed to control single-phase AC motors, but if you have a DC motor EC motor in use, you only need the Thermex AC/DC converter 536.99.1100.9 as an accessory to control the EC motor.

With the Thermex Trigger or Pro Link modules available as accessories, you can balance your home’s ventilation when the range hood is in use, for example, if you have a heat recovery unit. This is a very important feature, especially in new, airtight houses.

The Thermex Top Link® module, available as an accessory, provides demand-controlled ventilation for your kitchen. The Thermex patented Top Link® module is compatible with all electric cooktops and ovens on the market. When you start cooking and turn on the electric stove, the Thermex Top Link® automatically manages the range hood operation. See more on the Thermex Top Link® product page.

With the extension duct, you can install the Harwich II model in rooms with ceiling heights up to 3.4 meters.

Technical Specifications

• Installation: wall-mounted
• Control: touch control switches
• Speeds: 3 operating speeds + Boost
• Timer function
• Filter cleaning reminder
• Light: 2 x 1.5W LED
• Grease filter: aluminum grease filter
• Number of filters: 2
• Outlet collar: Ø – 150 mm

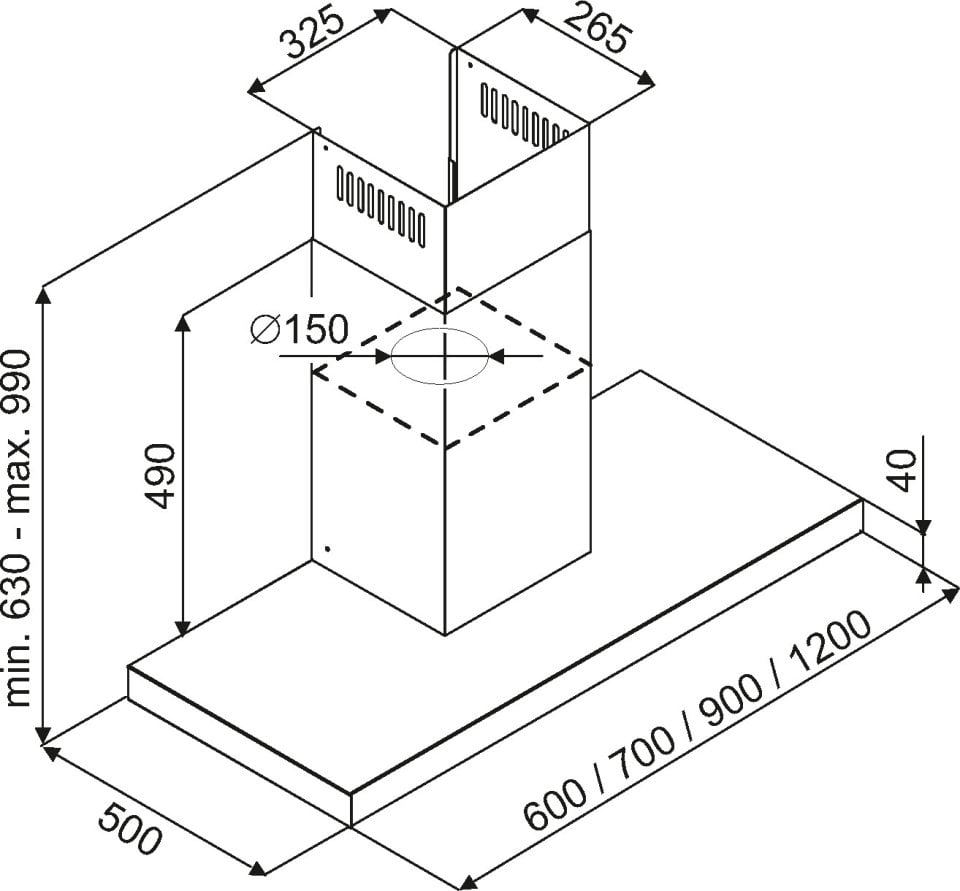

• Dimensions H x W x D (mm): 630-990 x 600 x 500
• Weight: 13.5 kg

Accessories

• Accessory: 537.23.1144.9 Extension duct Harwich II wall black 2 x 1000 mm
• Accessory: 536.99.1000.9 Thermex Trigger module
• Accessory: 536.99.1501.9 Prolink Basic II (wireless Trigger module)
• Accessory: 536.99.1300.9 Top Link II module
• Accessory: 536.99.1100.9 Thermex AC/DC converter

You can customize this Thermex range hood with accessories to perfectly fit your ventilation system. With various Thermex additional modules, we cover all different ventilation systems, and the range hood features change according to the selected module:

• 1: The range hood controls the roof fan, which also removes air from other rooms in the home (bathroom, toilet, etc.): 536.99.1040.9 Thermex Ventilation control/boost module Ø125 mm
• 2: The range hood controls an apartment-specific HRV device (with single-phase AC fans, total power max. 400 W): 536.99.1040.9 Thermex Ventilation control/boost module Ø125 mm
• 3: An apartment-specific HRV device with a separate control panel. The range hood includes an electrically operated boost valve that opens during cooking: 536.99.1401.9 Thermex boost valve module Ø125 mm or 536.99.1403.9 Thermex boost valve module Ø160 mm
• 4: Central ventilation system in an apartment building, where the range hood exhaust can be boosted during cooking. The range hood includes an electrically operated boost valve that opens during cooking: 536.99.1401.9 Thermex boost valve module Ø125 mm or 536.99.1403.9 Thermex boost valve module Ø160 mm
