Additional information

Color

Steel

Country of Origin

Poland

PID

1025078

Product depth (mm)

990

Product height (mm)

500

Product weight (g)

13 500

Product width (mm)

600

WiFi

No

Type of extraction

Ducted

Width (cm)

60

Placement

Wall

Hood Placement

External motor

Manufacturer address

Faroevej 30, 9800 Hjoerring, Denmark

Manufacturer's email address

http://www.thermex.fi

Manufacturer name

Thermex Scandinavia A/S

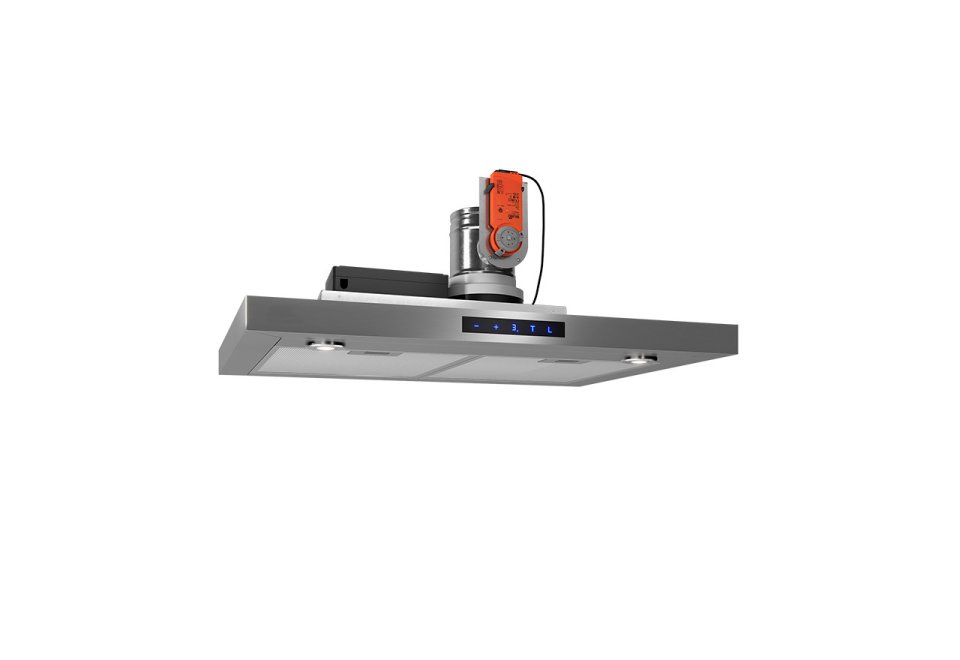

Harwich II is a classic range hood featuring a large suction surface, efficient lighting, and convenient Glass Touch control.

Decorative grease filters

The range hood is equipped with decorative grease filters that look especially good and complete the kitchen’s appearance.

Compatibility and control functions

Harwich II is designed to control a single-phase AC extractor fan that removes air not only from the range hood but also from other areas of the apartment (e.g., bathroom).

The range hood is also suitable for controlling apartment-specific ventilation units with AC fans (max. 370 W).

Motorized boost damper

The range hood features a motorized boost damper that can be adjusted to open fully or partially, and correspondingly close fully or partially.

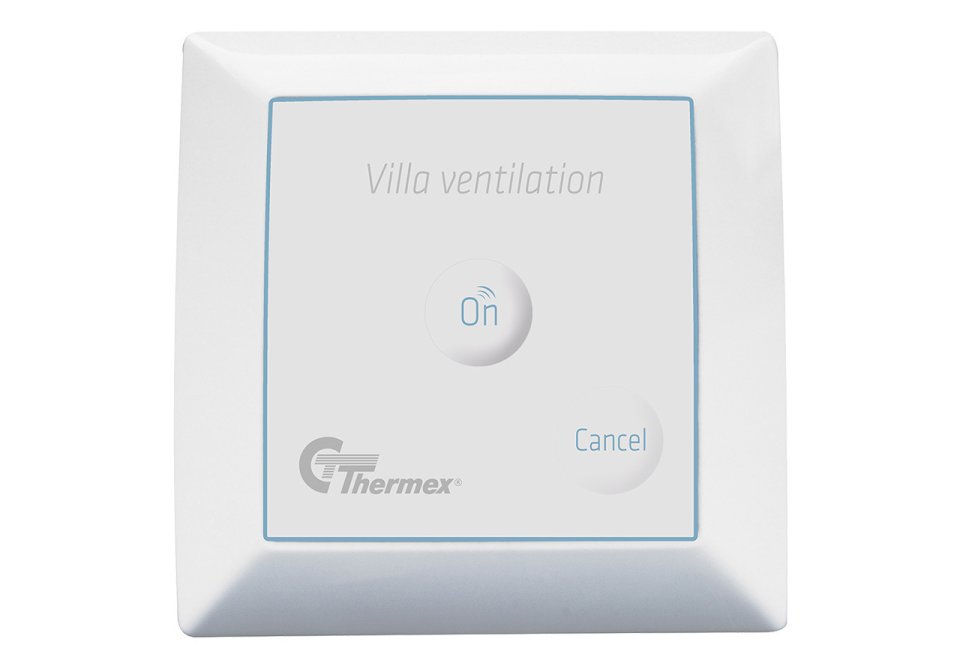

Wireless boost switch

A wireless switch is included, which can be installed, for example, on a bathroom wall.

Pressing the switch sets the ventilation to full power for 30 or 60 minutes, making it easier to boost ventilation as needed.

Basic ventilation

The Harwich II range hood also has a basic ventilation feature. This means that the extractor fan or ventilation unit cannot be completely turned off from the range hood but is always running at least at the basic ventilation speed.

Features

  • Control of single-phase AC extractor fan or single-phase AC ventilation unit (combined fan power max. 370 W).
  • Forced connection (ventilation cannot be completely turned off from the range hood) but is always on at basic ventilation speed (ventilation can be turned off from the wireless switch if necessary).
  • Electric boost damper (automatically opens when the range hood is activated, i.e., a speed is turned on during cooking, and automatically closes when the range hood is not active). The boost damper can be adjusted to open fully or partially and close fully or partially.
  • Wireless switch that can be installed, for example, on a bathroom wall. When showering/using the sauna/washing laundry, the user can press the switch to set the ventilation to full power and increase exhaust. One press = 30 minutes boost or
  • Two presses = 60 minutes boost.

Please note that the operating principle of the Thermex range hood may differ from the current/previous range hood. Note: Only fan motor controls may be connected to the Thermex range hood control circuit (e.g., not front or post-heating radiators). Thermex is not responsible for the technical compatibility of devices unless detailed information about the controlled motor has been provided to Thermex.

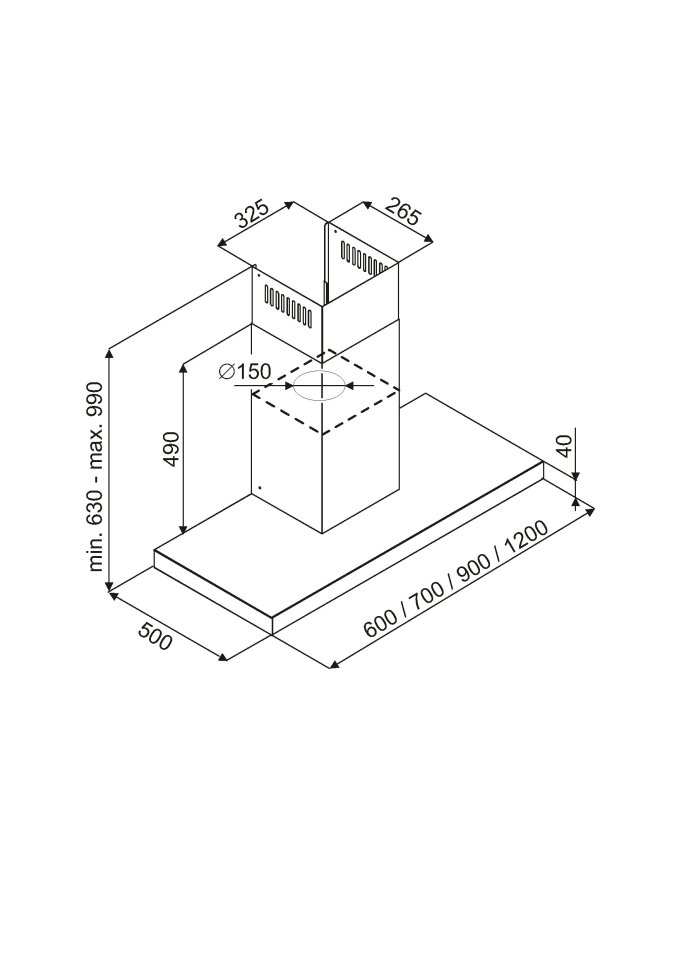

Technical specifications

  • Control: Glass Touch
  • Material: Stainless steel
  • Power supply [V]: 230
  • Boost function
  • Filter cleaning reminder
  • Built-in peak information
  • Maximum width [mm]: 600
  • Maximum depth [mm]: 500
  • Maximum height [mm]: 990
  • Protective pipe width (mm): 325
  • Maximum protective pipe height (mm): 980
  • Minimum protective pipe height (mm): 490
  • Minimum cut-out size [mm]: 650
  • Extension protective pipe length (mm): 1950
  • Outlet collar diameter (mm): Ø125
  • Product weight [kg]: 13.5
Toote pildid on illustratiivsed ja näitlikud. Originaaltoote omadused võivad nende tegelikust väljanägemisest erineda, seega palun tutvuge tootekirjelduses toodud tootespetsifikatsioonidega.
LAOS OLEMAS

Thermex Harwich II Cooker Hood, Ventilation Control/Boost, 60 cm, Stainless Steel

953.55
sis. KM 24%
  • Glass Touch control panel
  • Motorized valve with basic and boost functions
  • Wireless ventilation boost, for example, from the bathroom
  • Basic ventilation factory setting
  • Wall-mounted
Eeldatav tarneaeg: 4-7 päeva
Maksa hiljem või osana
Tootekood: 527.23.3068.8
EAN kood: 5703347531750, 2220010250785

Harwich II is a classic range hood featuring a large suction surface, efficient lighting, and convenient Glass Touch control.

Decorative grease filters

The range hood is equipped with decorative grease filters that look especially good and complete the kitchen's appearance.

Compatibility and control functions

Harwich II is designed to control a single-phase AC extractor fan that removes air not only from the range hood but also from other areas of the apartment (e.g., bathroom).

The range hood is also suitable for controlling apartment-specific ventilation units with AC fans (max. 370 W).

Motorized boost damper

The range hood features a motorized boost damper that can be adjusted to open fully or partially, and correspondingly close fully or partially.

Wireless boost switch

A wireless switch is included, which can be installed, for example, on a bathroom wall.

Pressing the switch sets the ventilation to full power for 30 or 60 minutes, making it easier to boost ventilation as needed.

Basic ventilation

The Harwich II range hood also has a basic ventilation feature. This means that the extractor fan or ventilation unit cannot be completely turned off from the range hood but is always running at least at the basic ventilation speed.

Features

  • Control of single-phase AC extractor fan or single-phase AC ventilation unit (combined fan power max. 370 W).
  • Forced connection (ventilation cannot be completely turned off from the range hood) but is always on at basic ventilation speed (ventilation can be turned off from the wireless switch if necessary).
  • Electric boost damper (automatically opens when the range hood is activated, i.e., a speed is turned on during cooking, and automatically closes when the range hood is not active). The boost damper can be adjusted to open fully or partially and close fully or partially.
  • Wireless switch that can be installed, for example, on a bathroom wall. When showering/using the sauna/washing laundry, the user can press the switch to set the ventilation to full power and increase exhaust. One press = 30 minutes boost or
  • Two presses = 60 minutes boost.

Please note that the operating principle of the Thermex range hood may differ from the current/previous range hood. Note: Only fan motor controls may be connected to the Thermex range hood control circuit (e.g., not front or post-heating radiators). Thermex is not responsible for the technical compatibility of devices unless detailed information about the controlled motor has been provided to Thermex.

Technical specifications

  • Control: Glass Touch
  • Material: Stainless steel
  • Power supply [V]: 230
  • Boost function
  • Filter cleaning reminder
  • Built-in peak information
  • Maximum width [mm]: 600
  • Maximum depth [mm]: 500
  • Maximum height [mm]: 990
  • Protective pipe width (mm): 325
  • Maximum protective pipe height (mm): 980
  • Minimum protective pipe height (mm): 490
  • Minimum cut-out size [mm]: 650
  • Extension protective pipe length (mm): 1950
  • Outlet collar diameter (mm): Ø125
  • Product weight [kg]: 13.5
