Additional information

Color

Black

Country of Origin

Italy

PID

1025090

Product depth (mm)

1 165

Product height (mm)

500

Product weight (g)

13 000

Product width (mm)

600

WiFi

No

Type of extraction

Ducted

Width (cm)

60

Placement

Wall

Hood Placement

External motor

Manufacturer address

Faroevej 30, 9800 Hjoerring, Denmark

Manufacturer's email address

http://www.thermex.fi

Manufacturer name

Thermex Scandinavia A/S

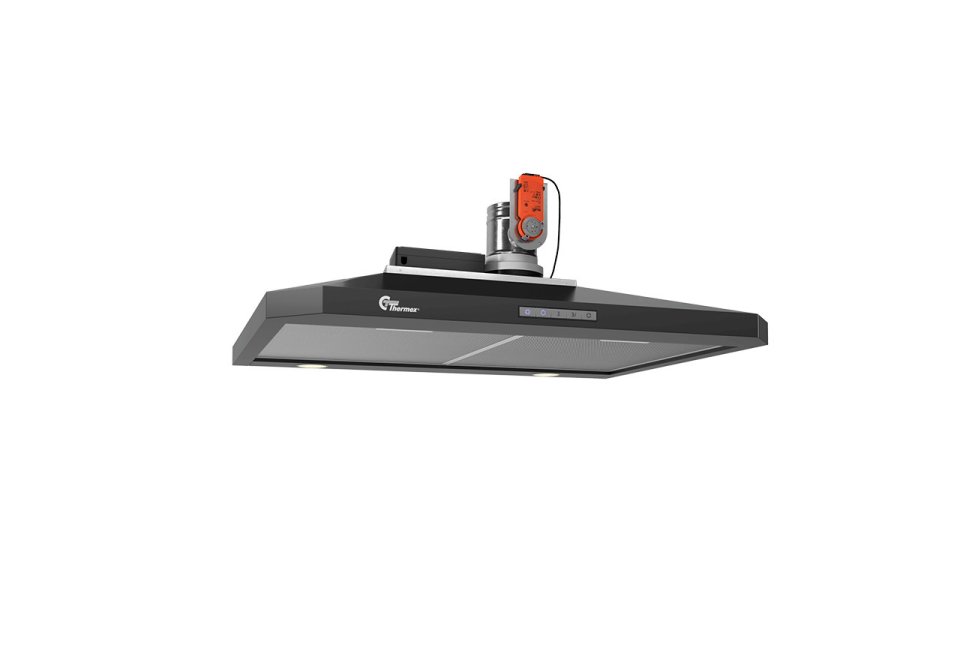

The Decor 787 is a classic pyramid-shaped range hood with a large suction surface and a simple, user-friendly Soft Touch control located at the front of the device.

Compatibility and control functions

The range hood is designed to control a single-phase AC booster fan that removes air not only from under the hood but also from other areas of the apartment (e.g., the bathroom).

The range hood is also suitable for controlling apartment-specific ventilation units with AC fans (max. 370 W).

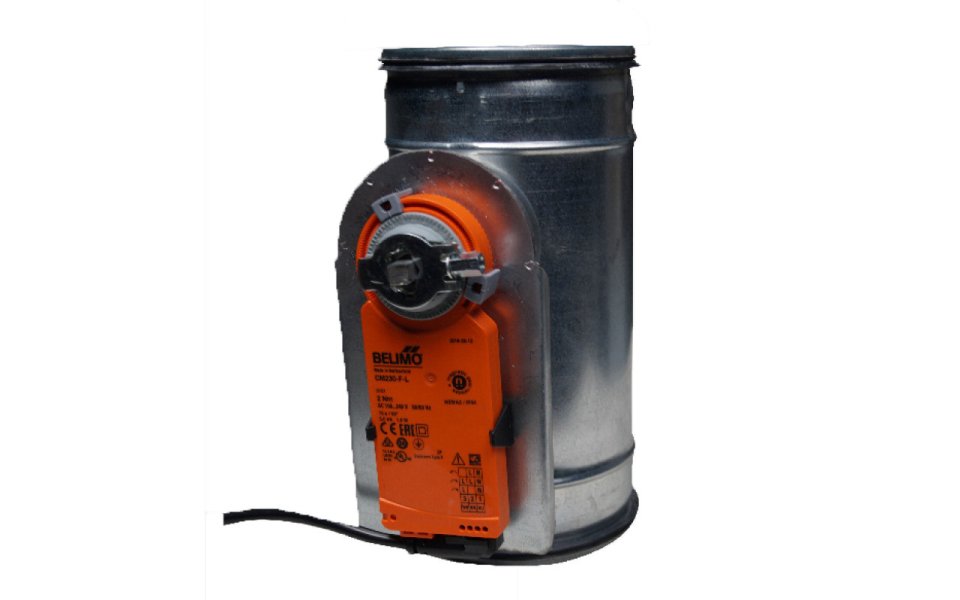

Motorized boost damper

The range hood includes a motorized boost damper, which can be adjusted to open fully or partially, and correspondingly close fully or partially.

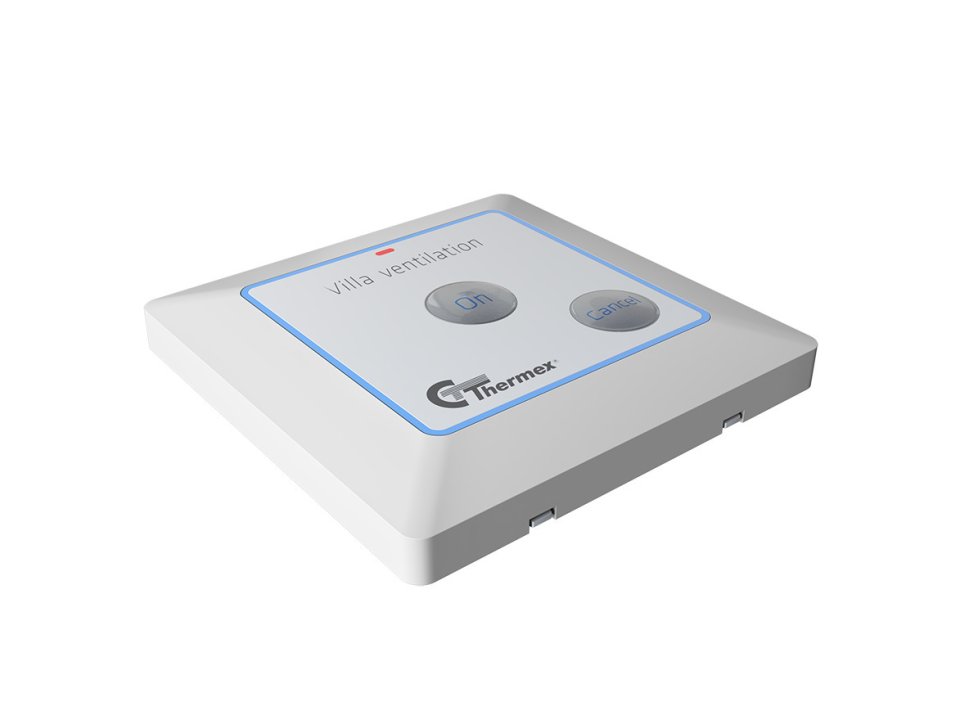

Wireless boost switch

A wireless switch is included, which can be installed, for example, on the bathroom wall.

By pressing the switch, the ventilation runs at full power for 30/60 minutes, making it easier to boost ventilation as needed.

Basic ventilation

The range hood also features basic ventilation, meaning the booster fan or ventilation unit cannot be completely turned off but always runs at least at the basic ventilation speed.

Features

  • Control of single-phase AC booster fan or single-phase AC ventilation unit (combined fan power max. 370 W).
  • Forced connection (ventilation cannot be completely turned off from the range hood) but always runs at basic ventilation speed (ventilation can be turned off if needed via the wireless switch).
  • Electric boost damper (opens automatically when the range hood is activated, i.e., when any speed is turned on during cooking, and closes automatically when the range hood is not active). The boost damper can be adjusted to open fully or partially and close fully or partially.
  • Wireless switch that can be installed, for example, on the bathroom wall; when showering/sauna/laundry washing, the user can press the switch to run ventilation at full power and enhance air extraction. 1 press = 30 minutes boost or 2 presses = 60 minutes boost.

Please note that the operating principle of the Thermex range hood may differ from the current/previous range hood. Note: Only fan motor controls may be connected to the Thermex range hood control circuit (e.g., not front or post-heating radiators). Thermex is not responsible for the technical compatibility of devices unless detailed information about the controlled motor has been provided to Thermex.

Technical specifications

  • Control: Soft Touch operating switches
  • Material: Black painted steel
  • Power supply [V]: 230
  • Boost function
  • Filter cleaning reminder
  • Built-in tip sensor
  • Intermittent extraction
  • Maximum width [mm]: 600
  • Maximum depth [mm]: 500
  • Maximum height [mm]: 1165
  • Protective pipe width (mm): 285
  • Maximum protective pipe height (mm): 1065
  • Minimum protective pipe height (mm): 600
  • Extension protective pipe length (mm): 1950
  • Outlet collar diameter (mm): Ø125
  • Product weight [kg]: 13
Toote pildid on illustratiivsed ja näitlikud. Originaaltoote omadused võivad nende tegelikust väljanägemisest erineda, seega palun tutvuge tootekirjelduses toodud tootespetsifikatsioonidega.
LAOS OLEMAS

Thermex Decor 787 Range Hood, Ventilation Control/Boost, 60 cm, Black

920.07
sis. KM 24%
  • Classic range hood
  • Soft Touch control
  • Motorized supply and exhaust ventilation
  • Wireless ventilation boost, for example from the bathroom
  • Basic ventilation as factory setting
Eeldatav tarneaeg: 4-7 päeva
Maksa hiljem või osana
Tootekood: 527.41.7862.8
EAN kood: 5703347529610, 2220010250907

The Decor 787 is a classic pyramid-shaped range hood with a large suction surface and a simple, user-friendly Soft Touch control located at the front of the device.

Compatibility and control functions

The range hood is designed to control a single-phase AC booster fan that removes air not only from under the hood but also from other areas of the apartment (e.g., the bathroom).

The range hood is also suitable for controlling apartment-specific ventilation units with AC fans (max. 370 W).

Motorized boost damper

The range hood includes a motorized boost damper, which can be adjusted to open fully or partially, and correspondingly close fully or partially.

Wireless boost switch

A wireless switch is included, which can be installed, for example, on the bathroom wall.

By pressing the switch, the ventilation runs at full power for 30/60 minutes, making it easier to boost ventilation as needed.

Basic ventilation

The range hood also features basic ventilation, meaning the booster fan or ventilation unit cannot be completely turned off but always runs at least at the basic ventilation speed.

Features

  • Control of single-phase AC booster fan or single-phase AC ventilation unit (combined fan power max. 370 W).
  • Forced connection (ventilation cannot be completely turned off from the range hood) but always runs at basic ventilation speed (ventilation can be turned off if needed via the wireless switch).
  • Electric boost damper (opens automatically when the range hood is activated, i.e., when any speed is turned on during cooking, and closes automatically when the range hood is not active). The boost damper can be adjusted to open fully or partially and close fully or partially.
  • Wireless switch that can be installed, for example, on the bathroom wall; when showering/sauna/laundry washing, the user can press the switch to run ventilation at full power and enhance air extraction. 1 press = 30 minutes boost or 2 presses = 60 minutes boost.

Please note that the operating principle of the Thermex range hood may differ from the current/previous range hood. Note: Only fan motor controls may be connected to the Thermex range hood control circuit (e.g., not front or post-heating radiators). Thermex is not responsible for the technical compatibility of devices unless detailed information about the controlled motor has been provided to Thermex.

Technical specifications

  • Control: Soft Touch operating switches
  • Material: Black painted steel
  • Power supply [V]: 230
  • Boost function
  • Filter cleaning reminder
  • Built-in tip sensor
  • Intermittent extraction
  • Maximum width [mm]: 600
  • Maximum depth [mm]: 500
  • Maximum height [mm]: 1165
  • Protective pipe width (mm): 285
  • Maximum protective pipe height (mm): 1065
  • Minimum protective pipe height (mm): 600
  • Extension protective pipe length (mm): 1950
  • Outlet collar diameter (mm): Ø125
  • Product weight [kg]: 13
