Themo T700DIN is a smart electric heating control unit that checks the spot electricity price and adapts to your heating profile.

Themo T700DIN is a DIN rail-mounted digital heating controller. The device has Wi-Fi support, allowing connection to the home wireless network. When connected to the internet, Themo reads the real-time spot electricity price from the Nordpool server. If the device is without internet connection for more than 24 hours, it bypasses smart control and heats normally. The Themo T700DIN control device can be used as a floor heating thermostat or price switch, for example, for water heaters and SG-ready heat pumps via peak signal or contactor control.

Themo is developed for smartphone and tablet use. Settings are easiest to manage through the Themo mobile app, available for Android and iOS. The app is free.
The Themo web app (app.themo.io), designed for computer use, shows a detailed heating history report and an estimate of achieved savings. Themo can also be used if necessary via the front panel buttons.

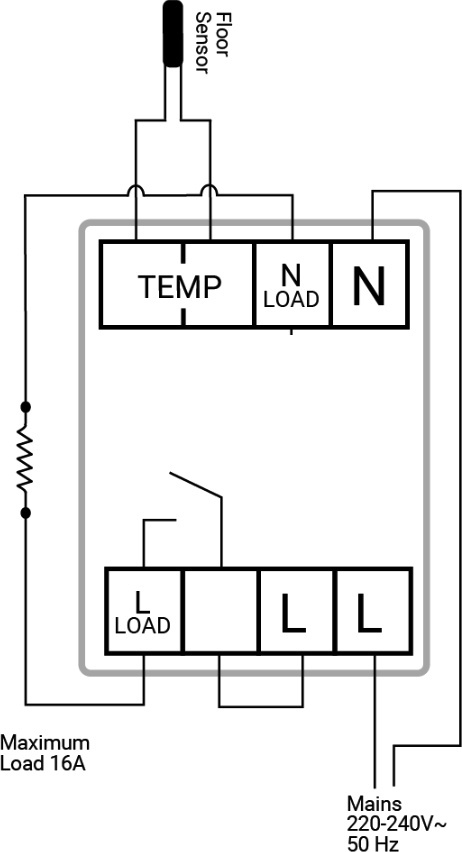

Note, installation must only be performed by an authorized electrician. The T700DIN thermostat can be connected to both 230V and 24V systems (peak signal). When controlling floor heating, connecting a floor sensor is mandatory for the thermostat to function correctly.

Themo T700DIN technical specifications.

Features:

• Smart program – Creates a detailed weekly schedule based on your heating needs. Themo automatically optimizes your heating cycles for the cheapest hours.
• Outdoor temperatures (weather forecast) – Themo takes into account changes in outdoor temperatures when controlling heating. Artificial intelligence learns heating needs in different weather conditions.
• Remote controllable – Temperatures and heating programs can be modified via mobile device or computer.
• Multiple weekly programs – If your weekly rhythm varies, you can create different heating programs for home and away times, for example. You can also easily switch between heating programs.
• Easy setup – Convenient configuration with an online guide.
• Energy consumption history – View active heating times and their impact on your electricity bill.
• Works also without Internet – Themo is designed to operate temporarily without network connection. The offline optimization memory is 24 hours. If Wi-Fi is not available at all, Themo functions as a normal thermostat without optimization.
• Price switch (PriceSwitch) – Mode where heating is controlled solely based on the electricity spot price. In this mode, the heating device’s own thermostat acts as a heating limiter. If an external sensor can be connected to the heating device, you can monitor the temperature development via the app. The mode allows defining the number of heating hours, maximum allowed OFF hours, and electricity price limit.

Technical specifications:

• Sensors: temperature sensor is mandatory for floor heating; optional for PriceSwitch
• Operating voltage: 220-240V or 24V, 50 Hz
• Standby power consumption: max 1.8 W
• Relay: max 16 A / 3200 W @ 230 V
• Temperature limits: maximum temperature for floor heating 45°C
• Connection terminals: use 1.5 mm² or 2.5 mm² cables depending on power requirements
• Wireless connection: WiFi 802.11 b/g/n 2.4GHz–2.5GHz
• Android and iOS support, Themo app
• Physical on/off switch
• Button/child lock
• Software updates via Wi-Fi
• Material: ABS + PC plastic
• IP rating: IP21

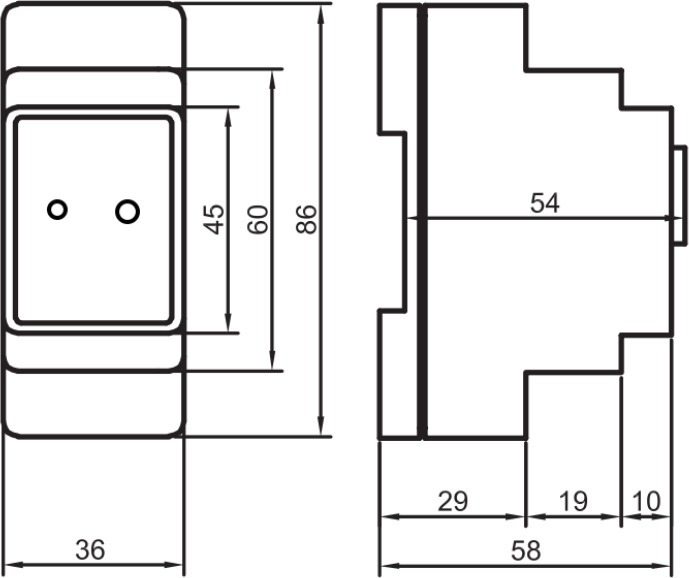

• Dimensions: 36 x 86 x 58 mm
• Weight: 150 g

Supported floor sensors are:

• NTC 6.8 kΩ (25°C)
• NTC 10 kΩ (25°C)
• NTC 12 kΩ (25°C)
• NTC 15 kΩ (25°C)
• NTC 33 kΩ (25°C)
• NTC 47 kΩ (25°C)

Sales package contents:

• Themo T700DIN smart control device
• Installation and user instructions
