The Televes T561801 is a brand new generation of mast amplifier. We proudly introduce our groundbreaking amplifier technology known as USOS (User Selectable Output Signal). You can set your desired output level, and the amplifier’s AGC (Automatic Gain Control) feature ensures it stays just right.

Most TV picture disturbances are caused by a weak signal. If the signal from your TV antenna is below 45 dB, a mast or antenna amplifier is essential. In antenna reception, the signal often needs to be boosted to ensure a strong connection for all antenna outlets (45–74 dB). An amplifier is particularly necessary when receiving signals from a distant TV transmission station.

Features:

• DC power pass-through can be activated with an ON/OFF switch
• Extremely low noise figure
• User-friendly design – compact size and easy handling
• EasyF connectors
• Weather-resistant ABS plastic housing

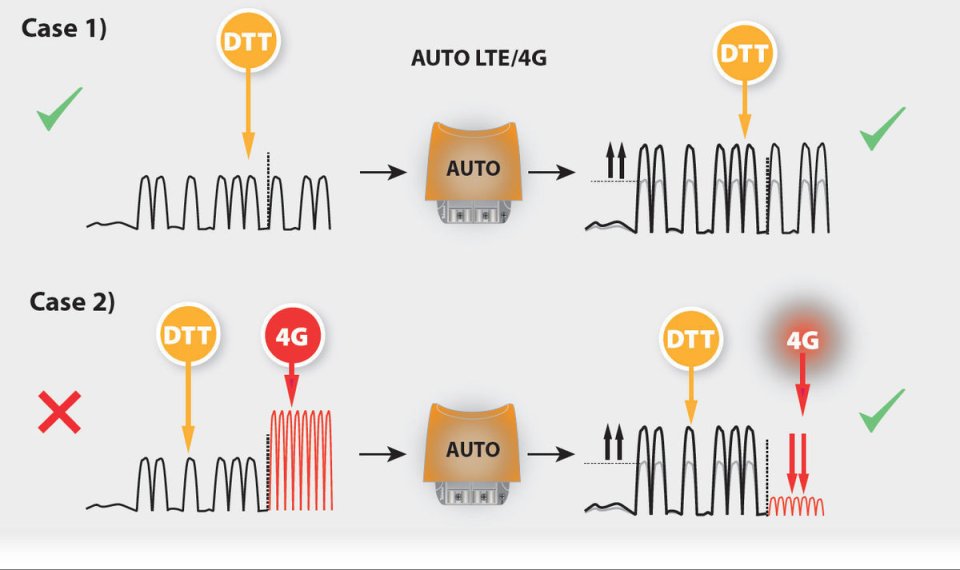

• LTE700 filter

Power supply not included. Available separately, for example, T5795 or T550401.

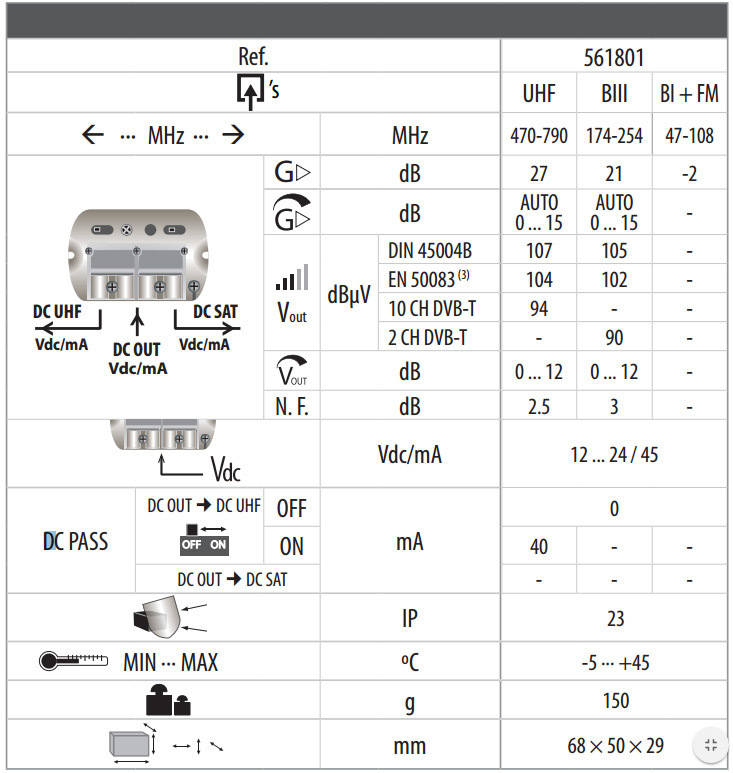

Technical Specifications:

• VHF gain 21 dB, 174230MHz, NF 3.0 dB, AGC
• UHF gain 29 dB, 470790MHz, NF 1.0 dB, AGC
• Passive ULA
• 1224V, 40mA.
