Additional information

Country of Origin

Spain

PID

990097

Manufacturer address

Vannhögsgatan 7, 23166 TRELLEBORG

Manufacturer's email address

http://www.televes.com

Manufacturer name

Televes, S.A.

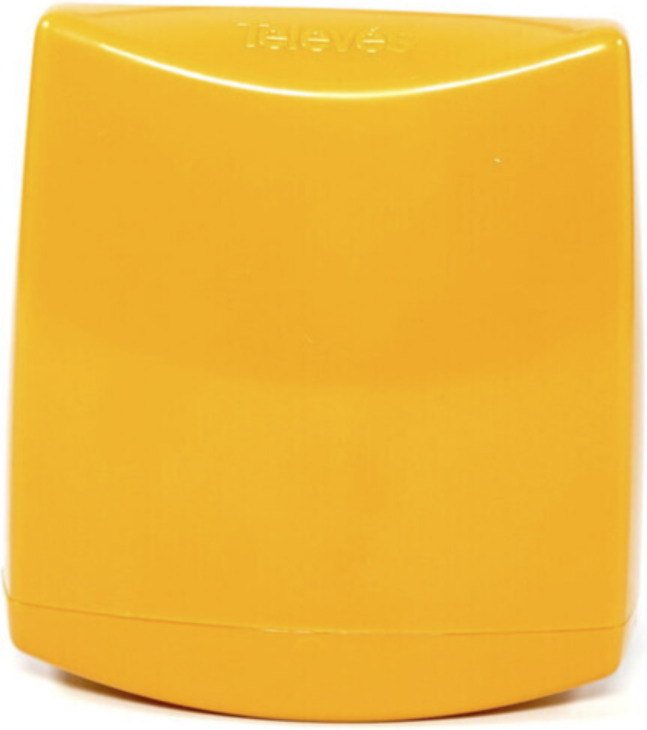

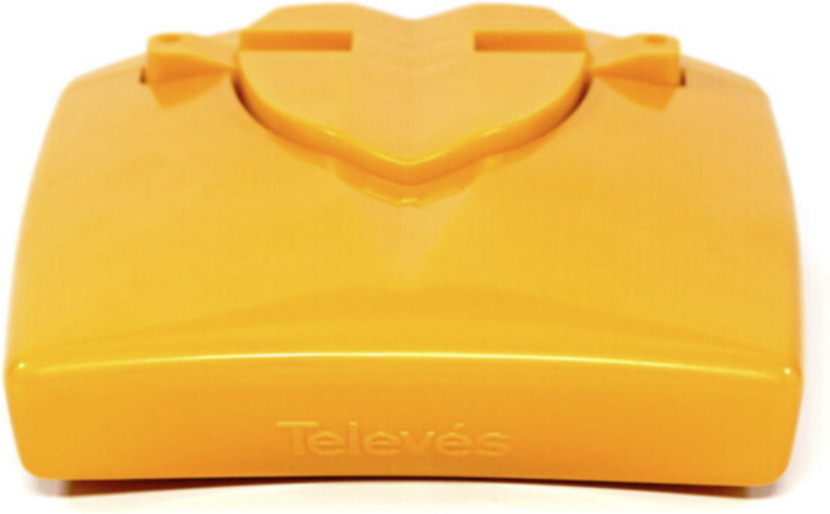

Introducing the high-quality Televes mast amplifier designed for VHF, UHF, and FM frequencies. This mast amplifier is perfect for boosting, combining, and fine-tuning signals from multiple antennas. It’s especially useful in situations where a strong boost is needed for UHF frequencies. With its built-in LTE700 filter, it allows frequencies between 470-694 MHz (channels E21-E48) to pass through while filtering out frequencies above 694 MHz.

Features

  • Mast amplifier
  • Built-in LTE700 filtering
  • 4 inputs (2xUHF, VHF, and ULA)
  • Combines signals from different antennas into one cable
  • DC pass-through power with ON/OFF switch
  • EasyF connectors
  • Weather-resistant ABS plastic housing

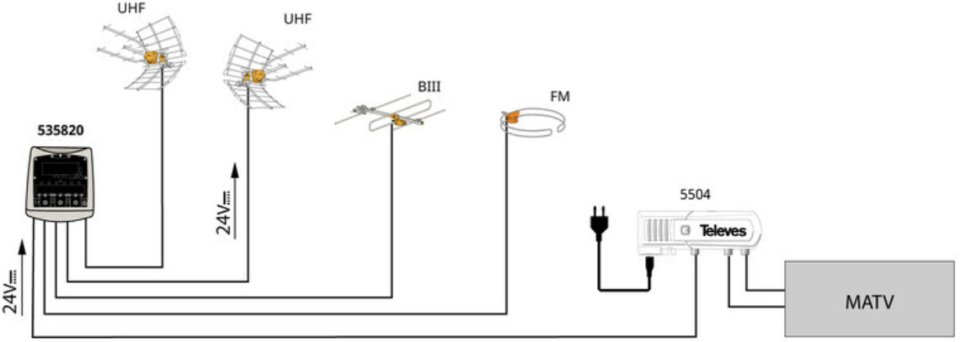

  • Operating voltage of 24 VDC supplied through coaxial cable. Power supply not included; order separately, e.g., T5795 or T5504.

Technical Specifications

  • ULA gain: 15dB
  • VHF gain: 32dB
  • UHF gain: 36dB, DC 45mA
  • Voltage: 24V, 80mA
  • Dimensions: 120 x 130 x 40mm
Toote pildid on illustratiivsed ja näitlikud. Originaaltoote omadused võivad nende tegelikust väljanägemisest erineda, seega palun tutvuge tootekirjelduses toodud tootespetsifikatsioonidega.
LAOS OLEMAS

Televes Mast Amplifier, 4-in, LTE700, 4-inputs

52.07
sis. KM 24%

4 in stock

  • 4 inputs (2xUHF, VHF, and ULA)
  • LTE700 filtering built-in.
  • Combines signals coming from different antennas
  • EasyF connectors
  • Weather-resistant housing made of ABS plastic
Eeldatav tarneaeg: 4-7 päeva
Maksa hiljem või osana
Tootekood: T535820
EAN kood: 8424450215012, 2220009900974

Introducing the high-quality Televes mast amplifier designed for VHF, UHF, and FM frequencies. This mast amplifier is perfect for boosting, combining, and fine-tuning signals from multiple antennas. It's especially useful in situations where a strong boost is needed for UHF frequencies. With its built-in LTE700 filter, it allows frequencies between 470-694 MHz (channels E21-E48) to pass through while filtering out frequencies above 694 MHz.

Features

  • Mast amplifier
  • Built-in LTE700 filtering
  • 4 inputs (2xUHF, VHF, and ULA)
  • Combines signals from different antennas into one cable
  • DC pass-through power with ON/OFF switch
  • EasyF connectors
  • Weather-resistant ABS plastic housing
  • Operating voltage of 24 VDC supplied through coaxial cable. Power supply not included; order separately, e.g., T5795 or T5504.

Technical Specifications

  • ULA gain: 15dB
  • VHF gain: 32dB
  • UHF gain: 36dB, DC 45mA
  • Voltage: 24V, 80mA
  • Dimensions: 120 x 130 x 40mm
