Additional information

Country of Origin

Spain

PID

673858

Frequency range (MHz)

470 – 694

Front/Back Ratio (dB)

20

Manufacturer address

Vannhögsgatan 7, 23166 TRELLEBORG

Manufacturer's email address

http://www.televes.com

Manufacturer name

Televes, S.A.

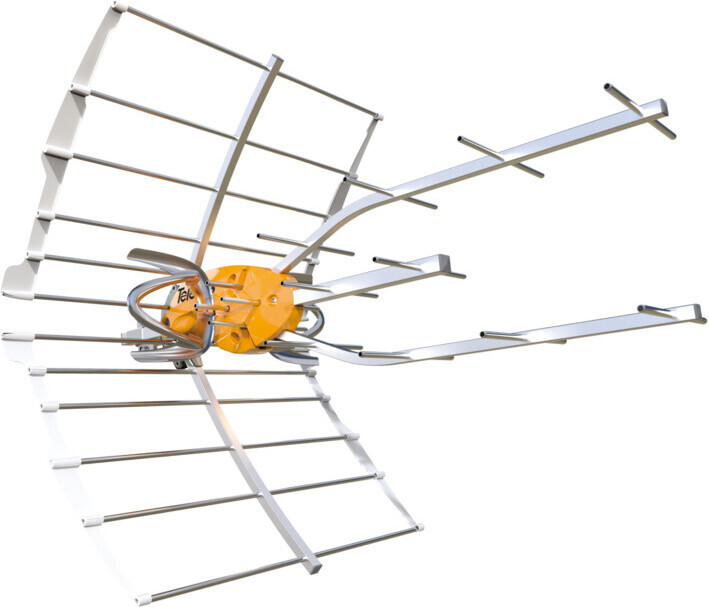

Televesin Ellipse UHF smart antenna with TForce preamplifier.

The antenna operates passively or actively.

  • Frequency range 470-698 MHz (E21-E48)
  • Maximum gain with power supply 38±2 dBi
  • Beamwidth 30º
  • Front/Back ratio >20 dB
  • Wind load 96 N (@ 130 km/h), 132 N (@ 150 km/h)
  • Impedance 75 ohms

Technical specifications of the preamplifier:

  • Noise figure 2.5 dB (typ)
  • Voltage 12-24 V
  • Current consumption 40 mA (max)

SAW filters effectively eliminate LTE interference. The antenna’s unprecedented design and 100% rustproof mechanical structure are a mark of quality and durability.

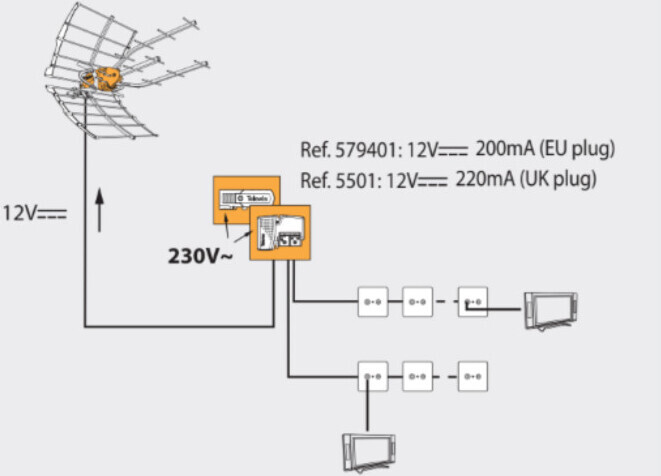

It is also very easy and quick to assemble, significantly easing the installer’s work. Ellipse is made especially for Finland’s challenging weather conditions. Power supply not included.

Toote pildid on illustratiivsed ja näitlikud. Originaaltoote omadused võivad nende tegelikust väljanägemisest erineda, seega palun tutvuge tootekirjelduses toodud tootespetsifikatsioonidega.
LAOS OLEMAS

Televes LTE700 TForce Ellipse Boss UHF Antenna 470-698 MHz

92.99
sis. KM 24%

3 in stock

  • Frequency range 470 – 698 MHz
  • BOSS-Tech casing that protects against disturbances
  • Patented dipole for good reception
  • All electrical parts are grounded.
Eeldatav tarneaeg: 4-7 päeva
Maksa hiljem või osana
Tootekood: T148920
EAN kood: 8424450210482, 2220006738587

Televesin Ellipse UHF smart antenna with TForce preamplifier.

The antenna operates passively or actively.

  • Frequency range 470-698 MHz (E21-E48)
  • Maximum gain with power supply 38±2 dBi
  • Beamwidth 30º
  • Front/Back ratio >20 dB
  • Wind load 96 N (@ 130 km/h), 132 N (@ 150 km/h)
  • Impedance 75 ohms

Technical specifications of the preamplifier:

  • Noise figure 2.5 dB (typ)
  • Voltage 12-24 V
  • Current consumption 40 mA (max)

SAW filters effectively eliminate LTE interference. The antenna's unprecedented design and 100% rustproof mechanical structure are a mark of quality and durability.

It is also very easy and quick to assemble, significantly easing the installer's work. Ellipse is made especially for Finland's challenging weather conditions. Power supply not included.
