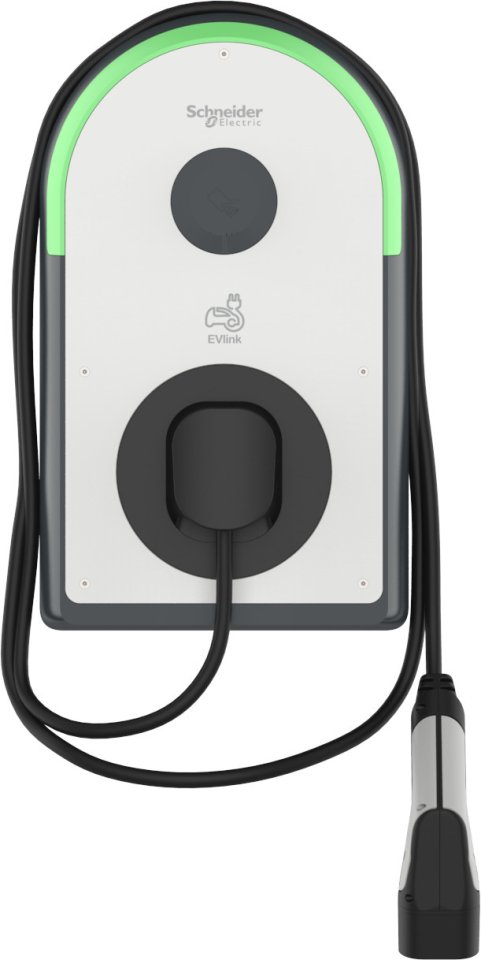

Schneider Electric EVlink Pro AC electric vehicle charging station, 22 kW, 3×32 A, 3-phase, Type2, RCD-B, 5 m fixed cable

The EVlink Pro AC is the third generation of EVlink chargers, designed to deliver reliable, stable, and smart charging with enhanced protection and connectivity. It offers a seamless experience for both users and installers, making it perfect for semi-public parking facilities, commercial and industrial buildings, workplace charging, and residential complexes. Thanks to its digital features and improved safety, installation, usage, maintenance, and servicing are a breeze. It is certified according to the IEC 61851-1 ed. 3 standard and includes a built-in type B residual current protection and undervoltage release (MNx).

Please note that the installation personnel responsible for securing, commissioning, and maintaining the charging station must have the relevant qualifications and authorization to work with electrical systems. This professional electrician is fully accountable for adhering to applicable installation rules and regulations. Self-installation of the charging station is not permitted.

Features:

• Easy to install and use
• Diverse connectivity options

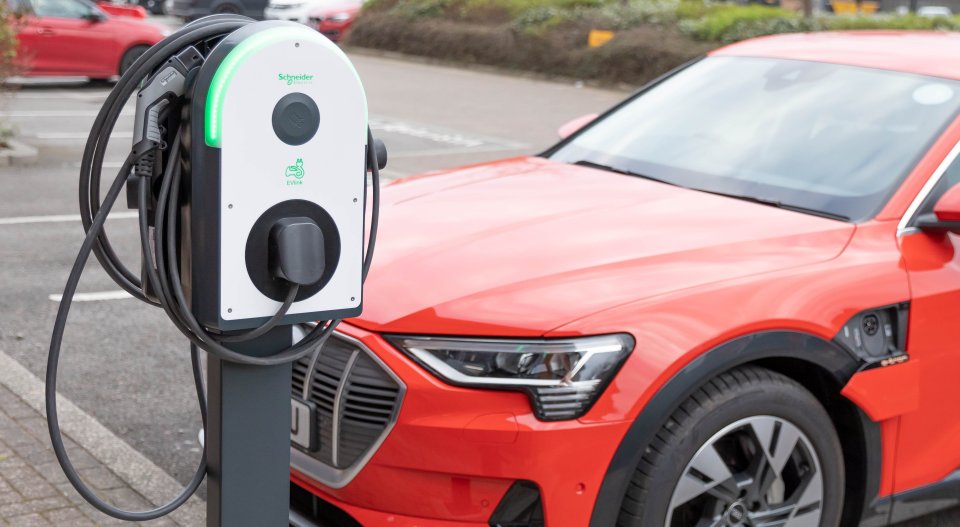

• Installation on the wall or on a separately sold pedestal

Technical Specifications:

• Model: EVB3S22NCB
• Poles description: 3P + N Circuit
• Installation type: wall-mounted or on a separately sold pedestal
• Power supply type: fixed 5 m Type 2 cable
• Maximum power: 22 kW / 32 A / 380 - 415 V
• Input current: 380 - 415 V AC / 32 A / 50/60 Hz / three-phase
• Protective grounding system: TT / TN-S / TN-C-S / compatibility with IT networks with protective isolation transformer
• Access control system: 13.56 MHz NFC reader compatible with type 1, 2, 4, and 5 cards
• RFID reader: compliant with ISO/IEC 14443 A and B and ISO/IEC 15693 protocols
• RFID compatibility: Mifare Ultralight / Mifare Classic / Mifare Plus
• User identification: RFID tag ISO/IEC 14443 A and B / RFID tag ISO/IEC 15693 / NFC tag / free access
• Charging station consumption when unloaded: < 10 W
• Number of connectors: 1
• Number of inputs: 3
• Digital inputs: one for temporary power limitation / one for charging delay/interruption / one for electric vehicle presence detection
• Control type: remotely managed
• Local indication: 1 green LED light strip for available / 1 blue LED light strip for charging / 1 red LED light strip for fault indication
• Communication port protocol: OCPP 1.6 Json Smart Charging
• Network connectivity: Bluetooth / Ethernet / Modbus TCP / 3G/4G
• Connector type: 2 RJ45 connectors for Ethernet LAN connection
• Communication protocol: OCPP 1.6
• Communication service: JSON smart charging OCPP 1.6
• Available functions: charging data logs / load management / diagnostic features
• Operating mode: standalone / block architecture
• Built-in protection: RCD type B-EV / MNx
• Included equipment: 1 residual current device (RCD) integrated / 1 MNx auxiliary contact integrated / 1 energy meter
• Measurement accuracy: class 1
• IP protection class: IP55
• IK protection class: IK10
• Operating temperature: -3050 °C
• Storage temperature: -4080 °C
• Relative humidity of the operating environment: 5 - 95 %
• Operating altitude: 0...2000 m
• Standards: IEC/EN 61851-1, version 3.0 / IEC/EN 62196-1, version 2.0 / IEC/EN 62196-2, version 1.0 / EN 61000-6-2: 2019 / EN 61000-6-3:2007 + A1:2011 / IEC 60884-1 / NF-C 61314 / ISO 15118
• Certification: CE / EV Ready
• EU RoHS directive: compliant
• Lead-free: yes
• Height: 529 mm
• Width: 317 mm
• Depth: 183 mm
• Weight: 10 kg
• Color: white/black/dark gray

Sales Package Includes:

• Charging station

Compatible Products:

• Schneider Electric EVlink Pro AC pedestal, 1 device
• Schneider Electric EVlink Pro AC pedestal, 2 devices
• Schneider Electric EVlink Pro AC metal enclosure set, 1 device
• Schneider Electric EVlink Pro AC metal enclosure set, 2 devices
• Schneider Electric EVlink Pro AC wall-mounted metal enclosure set, 1 device
• Schneider Electric EVlink Pro AC cable holder
