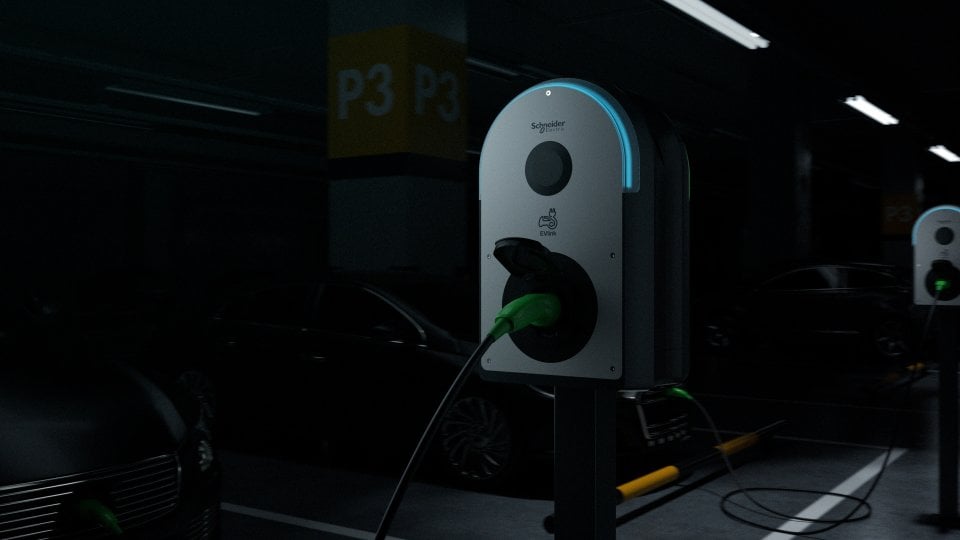

Schneider Electric EVlink Pro AC electric vehicle charging station, 22 kW, 3×32 A, 3-phase, Type2, socket model

Introducing the EVlink Pro AC, the third generation of EVlink chargers! This smart and reliable charging solution ensures stable performance with enhanced protection and connectivity. It offers a seamless experience for both users and installers, making it ideal for semi-public parking areas, commercial and industrial buildings, workplace charging, and residential complexes. Thanks to its digital features and improved safety measures, installation, usage, maintenance, and servicing are a breeze. Certified according to IEC 61851-1 Ed. 3, this model includes built-in 6 mA DC fault monitoring and an undervoltage release (MNx).

Please note that installation personnel must have the relevant qualifications and authorization to work with electrical systems. This professional electrician is fully responsible for adhering to applicable installation rules and regulations. Self-installation of the charging station is not permitted.

Features:

• Easy to install and use
• Versatile network connectivity options
• Can be mounted on a wall or on a separately sold pedestal

Technical Specifications:

• Model: EVB3S22N4
• Phase Description: 3P + N circuit
• Installation Type: Wall-mounted or on a separately sold pedestal
• Power Supply Type: Type 2 socket
• Maximum Power: 22 kW / 32 A / 380 - 415 V
• Input Voltage: 380 - 415 V AC / 32 A / 50/60 Hz / three-phase
• Grounding System: TT / TN-S / TN-C-S / compatible with IT network with a protective isolation transformer
• Access Control System: 13.56 MHz NFC reader compatible with type 1, 2, 4, and 5 cards
• RFID Reader: Compliant with ISO/IEC 14443 A and B and ISO/IEC 15693 protocols
• RFID Compatibility: Mifare Ultralight / Mifare Classic / Mifare Plus
• User Identification: RFID tag ISO/IEC 14443 A and B / RFID tag ISO/IEC 15693 / NFC tag / free access
• Charging Station Standby Consumption: < 10 W
• Number of Sockets: 1
• Number of Inputs: 3
• Digital Inputs: one for temporary power limitation / one for charging delay/interruption / one for electric vehicle presence detection
• Control Type: Remote controllable
• Local Indication: 1 green LED light strip for available / 1 blue LED light strip for charging / 1 red LED light strip for fault indication
• Communication Port Protocol: OCPP 1.6 Json Smart Charging
• Network Connectivity: Bluetooth / Ethernet / Modbus TCP / 3G/4G
• Connector Type: 2 RJ45 connectors for Ethernet LAN interface
• Communication Protocol: OCPP 1.6
• Communication Service: JSON smart charging OCPP 1.6
• Available Functions: Charging data logging / load management / diagnostic features
• Operating Mode: Standalone / block architecture
• Built-in Protection: RDC-DD 6mA / MNx
• Equipment: 1 residual direct current detection device (RDC-DD) integrated / 1 MNx auxiliary contact integrated / 1 energy meter
• Measurement Accuracy: Class 1
• IP Protection Class: IP55
• IK Protection Class: IK10
• Operating Temperature: -3050 °C
• Storage Temperature: -4080 °C
• Relative Humidity of Operating Environment: 5 - 95 %
• Operating Altitude: 0...2000 m
• Standards: IEC/EN 61851-1, version 3.0 / IEC/EN 62196-1, version 2.0 / IEC/EN 62196-2, version 1.0 / EN 61000-6-2: 2019 / EN 61000-6-3:2007 + A1:2011 / IEC 60884-1 / NF-C 61314 / ISO 15118
• Certification: CE / EV Ready
• EU RoHS Directive: compliant
• Mercury-free: yes
• Height: 529 mm
• Width: 317 mm
• Depth: 153 mm
• Weight: 7.2 kg
• Color: white/black/dark gray

Sales Package Includes:

• Charging Station

Compatible Products:

• Schneider Electric EVlink Pro AC pedestal, 1 device
• Schneider Electric EVlink Pro AC pedestal, 2 devices

• Schneider Electric EVlink Pro AC metal enclosure kit, 1 device

• Schneider Electric EVlink Pro AC metal enclosure kit, 2 devices

• Schneider Electric EVlink Pro AC wall-mounted metal enclosure kit, 1 device

• Schneider Electric EVlink Pro AC cable holder
