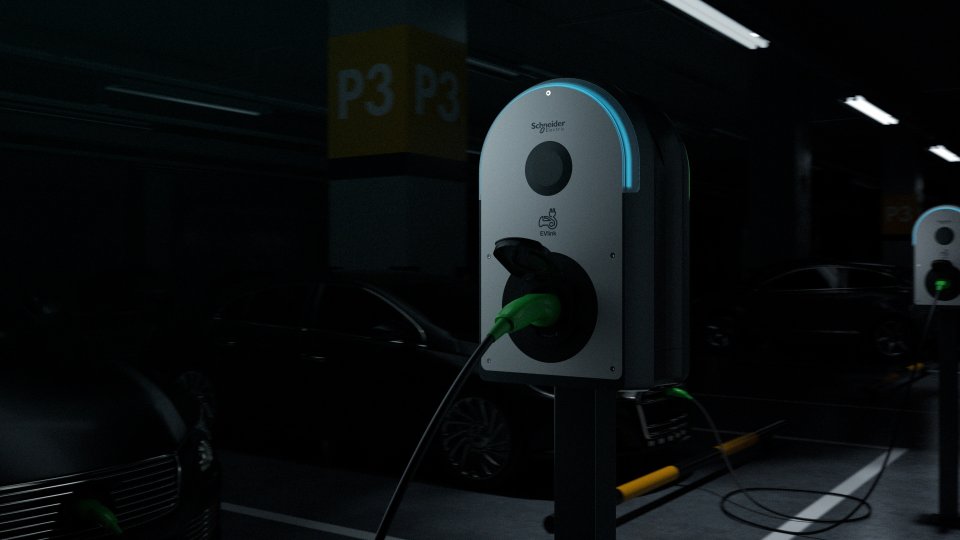

Schneider Electric EVlink Pro AC electric vehicle charging station, 22 kW, 3×32 A, 3-phase, Type2, socket model, MID

Introducing the EVlink Pro AC, the third generation of EVlink chargers! This charger guarantees reliable, stable, and smart charging along with enhanced protection and connectivity. It offers a seamless experience for both users and installers, making it an ideal choice for semi-public parking spaces, commercial and industrial buildings, workplace charging, and residential complexes. Thanks to its digital features and improved safety, it is easy to install, use, maintain, and service. It is certified according to IEC 61851-1 ed. 3 standard and comes equipped with a built-in MID-certified energy meter, 6 mA DC fault monitoring, and a undervoltage release (MNx).

Please note, the installation personnel responsible for securing, commissioning, and maintaining the charging station must have the relevant qualifications and authorization to work with electrical systems. This professional electrician is fully accountable for adhering to applicable installation rules and regulations. The charging station should not be installed by unqualified individuals.

Features:

• Easy to install and use
• Diverse connectivity options
• Can be mounted on a wall or a separately sold pedestal

Technical Specifications:

• Model: EVB3S22N40M
• Poles description: 3P + N circuit
• Installation type: wall-mounted or on a separately sold pedestal
• Power supply type: Type 2 socket
• Maximum power: 22 kW / 32 A / 380 - 415 V
• Input voltage: 380 - 415 V AC / 32 A / 50/60 Hz / three-phase
• Grounding system: TT / TN-S / TN-C-S / compatible with IT network with a protective isolation transformer
• Access control system: 13.56 MHz NFC reader compatible with type 1, 2, 4, and 5 cards
• RFID reader: compliant with ISO/IEC 14443 A and B and ISO/IEC 15693 protocols
• RFID compatibility: Mifare Ultralight / Mifare Classic / Mifare Plus
• User identification: RFID tag ISO/IEC 14443 A and B / RFID tag ISO/IEC 15693 / NFC tag / free access
• Charger consumption when idle: < 10 W
• Number of sockets: 1
• Number of inputs: 3
• Digital inputs: one for temporary current limitation / one for charging delay/interruption / one for detecting the presence of an electric vehicle
• Control type: remotely manageable
• Local indicators: 1 green LED light strip for availability / 1 blue LED light strip for charging / 1 red LED light strip for fault indication
• Communication port protocol: OCPP 1.6 Json Smart Charging
• Network connectivity: Bluetooth / Ethernet / Modbus TCP / 3G/4G
• Connector type: 2 RJ45 Ethernet LAN connectors
• Communication protocol: OCPP 1.6
• Communication service: JSON smart charging OCPP 1.6
• Available functions: charging data records / load management / diagnostic features
• Operating mode: standalone / block architecture
• Built-in protection: RDC-DD 6mA / MNx
• Equipped with: 1 residual direct current detection device (RDC-DD) integrated / 1 energy meter
• Measurement accuracy: class 1
• IP protection class: IP55
• IK protection class: IK10
• Operating temperature: -3050 °C
• Storage temperature: -4080 °C
• Relative humidity of the environment: 5 - 95 %
• Operating altitude: 0...2000 m
• Standards: IEC/EN 61851-1, version 3.0 / IEC/EN 62196-1, version 2.0 / IEC/EN 62196-2, version 1.0 / EN 61000-6-2: 2019 / EN 61000-6-3:2007 + A1:2011 / IEC 60884-1 / NF-C 61314 / ISO 15118
• Certification: CE / EV Ready
• Directives: 2014/32/EU - measuring instruments directive (MID)
• EU RoHS directive: compliant
• Mercury-free: yes
• Height: 529 mm
• Width: 317 mm
• Depth: 153 mm
• Weight: 7.2 kg
• Color: white/black/dark gray

Contents of the sales package:

• Charging station

Compatible products:

• Schneider Electric EVlink Pro AC pedestal, 1 device
• Schneider Electric EVlink Pro AC pedestal, 2 devices
• Schneider Electric EVlink Pro AC metal enclosure kit, 1 device
• Schneider Electric EVlink Pro AC metal enclosure kit, 2 devices
• Schneider Electric EVlink Pro AC wall-mounted metal enclosure kit, 1 device
• Schneider Electric EVlink Pro AC cable holder
