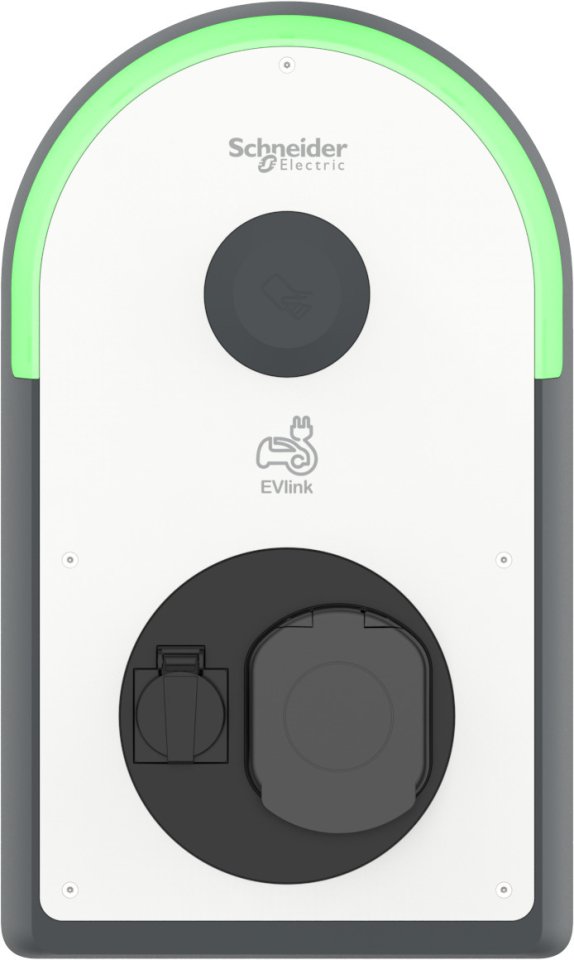

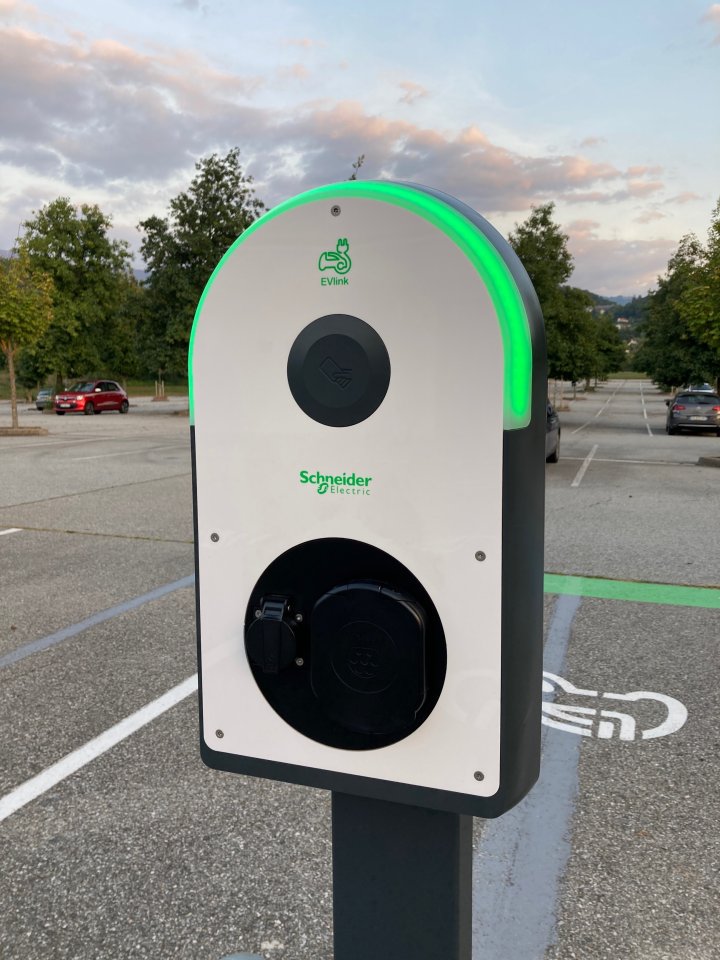

Schneider Electric EVlink Pro AC Electric Vehicle Charging Station, 22 kW, 3×32 A, 3-phase, Type2, socket model, MID, T/F

The EVlink Pro AC is the third generation of EVlink chargers, designed to provide reliable, stable, and smart charging with enhanced protection and connectivity. It ensures a seamless experience for both users and installers, making it ideal for semi-public parking spaces, commercial and industrial buildings, workplace charging, and residential associations. Thanks to its digital features and improved safety measures, installation, usage, maintenance, and servicing are a breeze. This model is certified according to IEC 61851-1 ed. 3 standards and comes with a built-in MID certified energy meter, household socket T/F, 6 mA DC fault detection, and undervoltage release (MNx).

Please note that installation personnel responsible for securing, commissioning, and maintaining the charging station must have the relevant qualifications and authorization to work with electrical systems. This professional electrician is fully responsible for adhering to applicable installation rules and regulations. Self-installation of the charging station is not permitted.

Features:

• Easy to install and use
• Diverse network connectivity options
• Installation on wall or separately sold pedestal

Technical Specifications:

• Model: EVB3S22N40FM
• Pole description: 3P + N circuit / 1P + N circuit
• Installation type: wall-mounted or on a separately sold pedestal
• Power supply type: Type 2 socket / TF socket
• Maximum power: 22 kW / 32 A / 380 - 415 V
• Input voltage: 380 - 415 V AC / 32 A / 50/60 Hz / three-phase and 220 - 240 V AC / 50/60 Hz / single-phase
• Grounding system: TT / TN-S / TN-C-S / compatible with IT network with protective isolation transformer
• Access control system: 13.56 MHz NFC reader compatible with type 1, 2, 4, and 5 cards
• RFID reader: compliant with ISO/IEC 14443 A and B and ISO/IEC 15693 protocols
• RFID compatibility: Mifare Ultralight / Mifare Classic / Mifare Plus
• User identification: RFID tag ISO/IEC 14443 A and B / RFID tag ISO/IEC 15693 / NFC tag / free access
• Charging station consumption when idle: < 10 W
• Number of sockets: 1
• Number of inputs: 3
• Digital inputs: one for temporary power limitation / one for charging delay/interruption / one for electric vehicle presence detection
• Control type: remotely managed
• Local indication: 1 green LED light strip (available) / 1 blue LED light strip (charging) / 1 red LED light strip (fault notification)
• Communication port protocol: OCPP 1.6 JSON Smart Charging
• Network connectivity: Bluetooth / Ethernet / Modbus TCP / 3G/4G
• Connector type: 2 RJ45 connectors for Ethernet LAN connection
• Communication protocol: OCPP 1.6
• Communication service: JSON smart charging OCPP 1.6
• Available functions: charging data records / load management / diagnostic features
• Operating mode: stand-alone / block architecture
• Built-in protection: RDC-DD 6mA / MNx
• Included equipment: 1 residual direct current detection device (RDC-DD) integrated / 1 energy meter
• Measurement accuracy: class 1
• IP protection class: IP54
• IK protection class: IK10
• Operating temperature: -3050 °C
• Storage temperature: -4080 °C
• Relative humidity of the operating environment: 5 - 95 %
• Operating altitude: 0...2000 m
• Standards: IEC/EN 61851-1, version 3.0 / IEC/EN 62196-1, version 2.0 / IEC/EN 62196-2, version 1.0 / EN 61000-6-2: 2019 / EN 61000-6-3:2007 + A1:2011 / IEC 60884-1 / NF-C 61314 / ISO 15118
• Certification: CE / EV Ready
• Directives: 2014/32/EU - measuring instruments directive (MID)
• EU RoHS directive: compliant
• Mercury-free: yes
• Height: 529 mm
• Width: 317 mm
• Depth: 158 mm
• Weight: 7.2 kg
• Color: white/black/dark gray

Contents of the sales package:

• Charging station

Compatible products:

• Schneider Electric EVlink Pro AC pedestal, 1 device
• Schneider Electric EVlink Pro AC pedestal, 2 devices
• Schneider Electric EVlink Pro AC metal enclosure kit, 1 device
• Schneider Electric EVlink Pro AC metal enclosure kit, 2 devices
• Schneider Electric EVlink Pro AC wall-mounted metal enclosure kit, 1 device
• Schneider Electric EVlink Pro AC cable holder
