Additional information

Color

White

Country of Origin

France

PID

812092

Cable length (m)

0

Charging current (A)

32

Phase

Three-phase

Manufacturer address

Sokerilinnantie 11 C 02600 Espoo

Manufacturer's email address

http://www.se.com/fi

Manufacturer name

Schneider Electric Finland Oy

Introducing the EVlink Pro AC, the third generation of EVlink chargers! This reliable and smart charging solution offers enhanced protection and connectivity, ensuring a seamless experience for both users and installers. Perfect for semi-public parking areas, commercial and industrial buildings, workplace charging, and residential complexes, it’s designed for easy installation, operation, maintenance, and servicing, thanks to its digital features and improved safety. It meets IEC 61851-1 ed. 3 standards and includes built-in 6 mA DC fault monitoring, type A residual current protection, and undervoltage release (MNx).

Please note that installation personnel must have the relevant qualifications and authorization to work with electrical systems. This professional electrician is fully responsible for adhering to applicable installation rules and regulations. Self-installation of the charging station is not permitted.

Features:

  • Simple to install and use
  • Diverse connectivity options
  • Wall-mounted or can be paired with a separately sold pedestal

Technical Specifications:

  • Model: EVB3S22N4A
  • Phase description: 3P + N power circuit
  • Installation type: wall-mounted or separately sold pedestal
  • Power supply type: Type 2 socket
  • Maximum power: 22 kW / 32 A / 380 – 415 V
  • Input voltage: 380 – 415 V AC / 32 A / 50/60 Hz / three-phase
  • Protection grounding system: TT / TN-S / TN-C-S / compatible with IT network with protective isolation transformer
  • Access control system: 13.56 MHz NFC reader compatible with type 1, 2, 4, and 5 cards
  • RFID reader: compliant with ISO/IEC 14443 A and B and ISO/IEC 15693 protocols
  • RFID compatibility: Mifare Ultralight / Mifare Classic / Mifare Plus
  • User identification: RFID tag ISO/IEC 14443 A and B / RFID tag ISO/IEC 15693 / NFC tag / free access
  • Charging station consumption when idle: < 10 W
  • Number of sockets: 1
  • Number of inputs: 3
  • Digital inputs: one for temporary current limitation / one for charging delay/interruption / one for electric vehicle presence detection
  • Control type: remotely managed
  • Local indication: 1 green LED light strip for available / 1 blue LED light strip for charging / 1 red LED light strip for fault indication
  • Communication port protocol: OCPP 1.6 Json Smart Charging
  • Network connectivity: Bluetooth / Ethernet / Modbus TCP / 3G/4G
  • Connector type: 2 RJ45 Ethernet LAN connectors
  • Communication protocol: OCPP 1.6
  • Communication service: JSON smart charging OCPP 1.6
  • Available functions: charging data records / load management / troubleshooting features
  • Operating mode: standalone / block architecture
  • Built-in protection: RDC-DD 6mA / RCD – 30 mA Type A-SI / MNx
  • Included equipment: 1 integrated residual direct current detection device (RDC-DD) / 1 integrated residual current device (RCD) / 1 integrated MNx auxiliary contact / 1 energy meter
  • Measurement accuracy: class 1
  • IP protection class: IP55
  • IK protection class: IK10
  • Operating temperature: -3040 °C
  • Storage temperature: -4080 °C
  • Relative humidity of the operating environment: 5 – 95 %
  • Operating altitude: 0…2000 m
  • Standards: IEC/EN 61851-1, version 3.0 / IEC/EN 62196-1, version 2.0 / IEC/EN 62196-2, version 1.0 / EN 61000-6-2: 2019 / EN 61000-6-3:2007 + A1:2011 / IEC 60884-1 / NF-C 61314 / ISO 15118
  • Certification: CE / EV Ready
  • EU RoHS directive: compliant
  • Mercury-free: yes
  • Height: 529 mm
  • Width: 317 mm
  • Depth: 153 mm
  • Weight: 7.2 kg
  • Color: white/black/dark gray

Sales Package Includes:

  • Charging station

Compatible Products:

Toote pildid on illustratiivsed ja näitlikud. Originaaltoote omadused võivad nende tegelikust väljanägemisest erineda, seega palun tutvuge tootekirjelduses toodud tootespetsifikatsioonidega.
LAOS OLEMAS

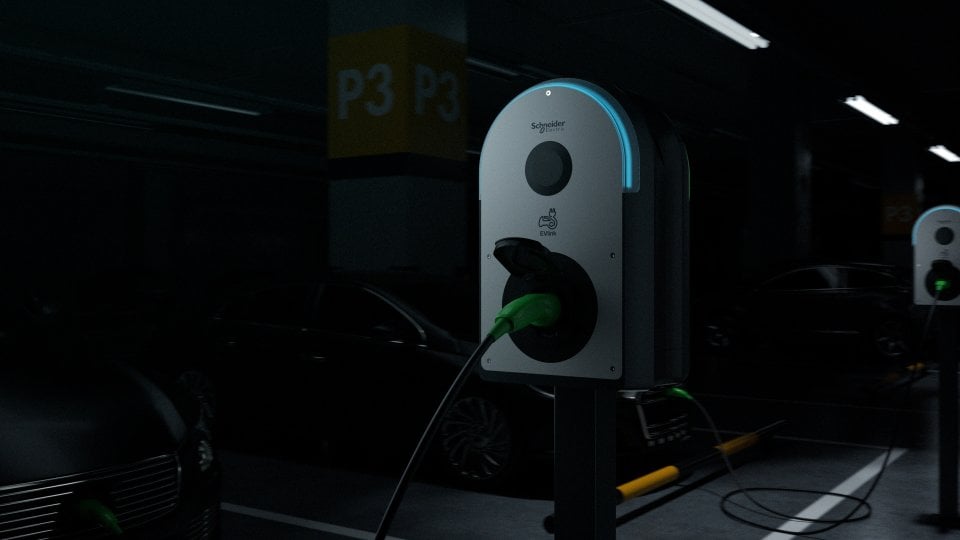

Schneider Electric EVlink Pro AC electric car charging station, 22 kW, 3×32 A, 3-phase, Type2, socket model, Asi

2,026.15
sis. KM 24%
  • Reliable 22 kW charging station
  • Type2 enclosure model
  • Protection rating: IP55
  • 3-phase, 32 A
  • RCD Type A 30 mA
Eeldatav tarneaeg: 4-7 päeva
Maksa hiljem või osana
Tootekood: EVB3S22N4A
EAN kood: 3606482213180, 2220008120922

Introducing the EVlink Pro AC, the third generation of EVlink chargers! This reliable and smart charging solution offers enhanced protection and connectivity, ensuring a seamless experience for both users and installers. Perfect for semi-public parking areas, commercial and industrial buildings, workplace charging, and residential complexes, it's designed for easy installation, operation, maintenance, and servicing, thanks to its digital features and improved safety. It meets IEC 61851-1 ed. 3 standards and includes built-in 6 mA DC fault monitoring, type A residual current protection, and undervoltage release (MNx).

Please note that installation personnel must have the relevant qualifications and authorization to work with electrical systems. This professional electrician is fully responsible for adhering to applicable installation rules and regulations. Self-installation of the charging station is not permitted.

Features:

  • Simple to install and use
  • Diverse connectivity options
  • Wall-mounted or can be paired with a separately sold pedestal

Technical Specifications:

  • Model: EVB3S22N4A
  • Phase description: 3P + N power circuit
  • Installation type: wall-mounted or separately sold pedestal
  • Power supply type: Type 2 socket
  • Maximum power: 22 kW / 32 A / 380 - 415 V
  • Input voltage: 380 - 415 V AC / 32 A / 50/60 Hz / three-phase
  • Protection grounding system: TT / TN-S / TN-C-S / compatible with IT network with protective isolation transformer
  • Access control system: 13.56 MHz NFC reader compatible with type 1, 2, 4, and 5 cards
  • RFID reader: compliant with ISO/IEC 14443 A and B and ISO/IEC 15693 protocols
  • RFID compatibility: Mifare Ultralight / Mifare Classic / Mifare Plus
  • User identification: RFID tag ISO/IEC 14443 A and B / RFID tag ISO/IEC 15693 / NFC tag / free access
  • Charging station consumption when idle: < 10 W
  • Number of sockets: 1
  • Number of inputs: 3
  • Digital inputs: one for temporary current limitation / one for charging delay/interruption / one for electric vehicle presence detection
  • Control type: remotely managed
  • Local indication: 1 green LED light strip for available / 1 blue LED light strip for charging / 1 red LED light strip for fault indication
  • Communication port protocol: OCPP 1.6 Json Smart Charging
  • Network connectivity: Bluetooth / Ethernet / Modbus TCP / 3G/4G
  • Connector type: 2 RJ45 Ethernet LAN connectors
  • Communication protocol: OCPP 1.6
  • Communication service: JSON smart charging OCPP 1.6
  • Available functions: charging data records / load management / troubleshooting features
  • Operating mode: standalone / block architecture
  • Built-in protection: RDC-DD 6mA / RCD - 30 mA Type A-SI / MNx
  • Included equipment: 1 integrated residual direct current detection device (RDC-DD) / 1 integrated residual current device (RCD) / 1 integrated MNx auxiliary contact / 1 energy meter
  • Measurement accuracy: class 1
  • IP protection class: IP55
  • IK protection class: IK10
  • Operating temperature: -3040 °C
  • Storage temperature: -4080 °C
  • Relative humidity of the operating environment: 5 - 95 %
  • Operating altitude: 0...2000 m
  • Standards: IEC/EN 61851-1, version 3.0 / IEC/EN 62196-1, version 2.0 / IEC/EN 62196-2, version 1.0 / EN 61000-6-2: 2019 / EN 61000-6-3:2007 + A1:2011 / IEC 60884-1 / NF-C 61314 / ISO 15118
  • Certification: CE / EV Ready
  • EU RoHS directive: compliant
  • Mercury-free: yes
  • Height: 529 mm
  • Width: 317 mm
  • Depth: 153 mm
  • Weight: 7.2 kg
  • Color: white/black/dark gray

Sales Package Includes:

  • Charging station

Compatible Products:
