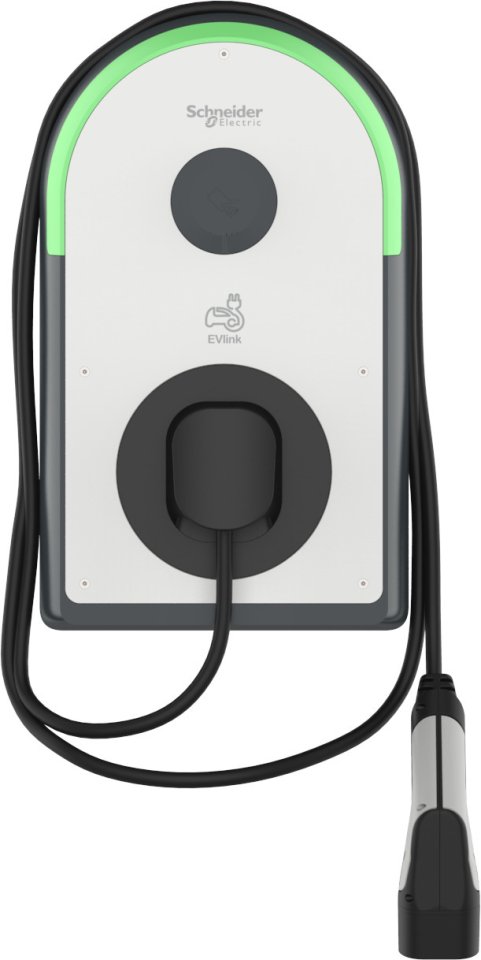

Schneider Electric EVlink Pro AC electric vehicle charging station, 22 kW, 3×32 A, 3-phase, Type2, MID, 5 m fixed cable

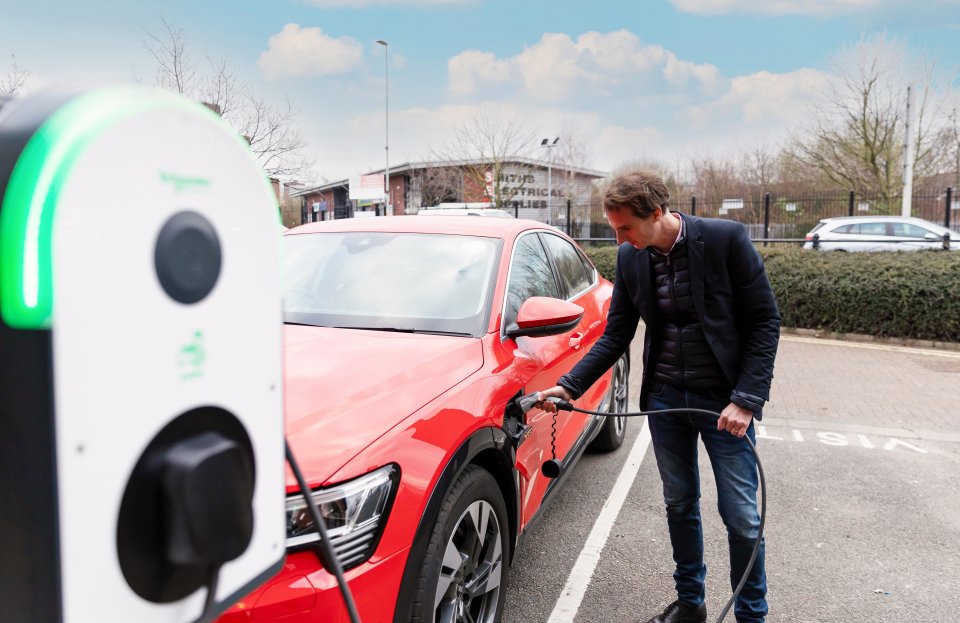

The EVlink Pro AC is the third generation of EVlink chargers. It ensures reliable, stable, and smart charging along with enhanced protection and connectivity. This product provides a seamless experience for both users and installers. It's perfect for semi-public parking spaces, commercial and industrial buildings, workplace charging, and residential complexes. Thanks to its digital features and improved safety, it's easy to install, use, maintain, and service. It is certified according to IEC 61851-1 ed. 3 standard. This model includes a built-in MID certified energy meter, 6 mA DC fault monitoring, and an undervoltage release (MNx).

Note: Installation personnel who secure, commission, and maintain the charging station must possess the relevant qualifications and authorization to work with electrical systems. This professional electrician is fully responsible for complying with applicable installation rules and regulations. The charging station should not be installed by the user.

Features:

• Easy to install and use
• Versatile network connections

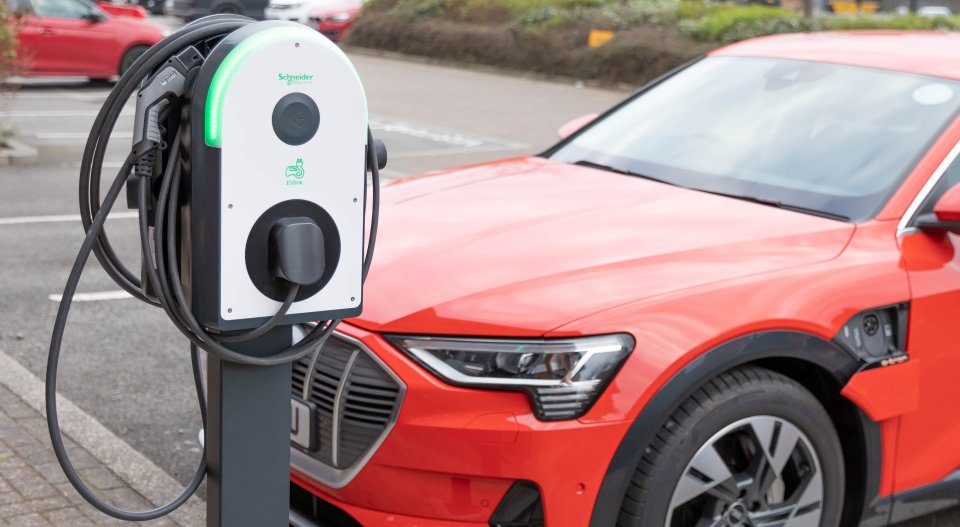

• Can be mounted on a wall or a separately sold pedestal

Technical Specifications:

• Model: EVB3S22NC0M
• Pole Description: 3P + N Circuit
• Installation Type: wall-mounted or separately sold pedestal
• Power Supply Type: fixed 5 m Type2 cable
• Maximum Power: 22 kW / 32 A / 380 - 415 V
• Input Voltage: 380 - 415 V AC / 32 A / 50/60 Hz / three-phase
• Grounding System: TT / TN-S / TN-C-S / compatibility with IT network with protective isolation transformer
• Access Control System: 13.56 MHz NFC reader compatible with type 1, 2, 4, and 5 cards
• RFID Reader: compliant with ISO/IEC 14443 A and B, and ISO/IEC 15693 protocols
• RFID Compatibility: Mifare Ultralight / Mifare Classic / Mifare Plus
• User Identification: RFID tag ISO/IEC 14443 A and B / RFID tag ISO/IEC 15693 / NFC tag / free access
• Charging Station Consumption when Unloaded: < 10 W
• Number of Connectors: 1
• Number of Inputs: 3
• Digital Inputs: one for temporary power limitation / one for charging delay/interruption / one for electric vehicle presence detection
• Control Type: remotely manageable

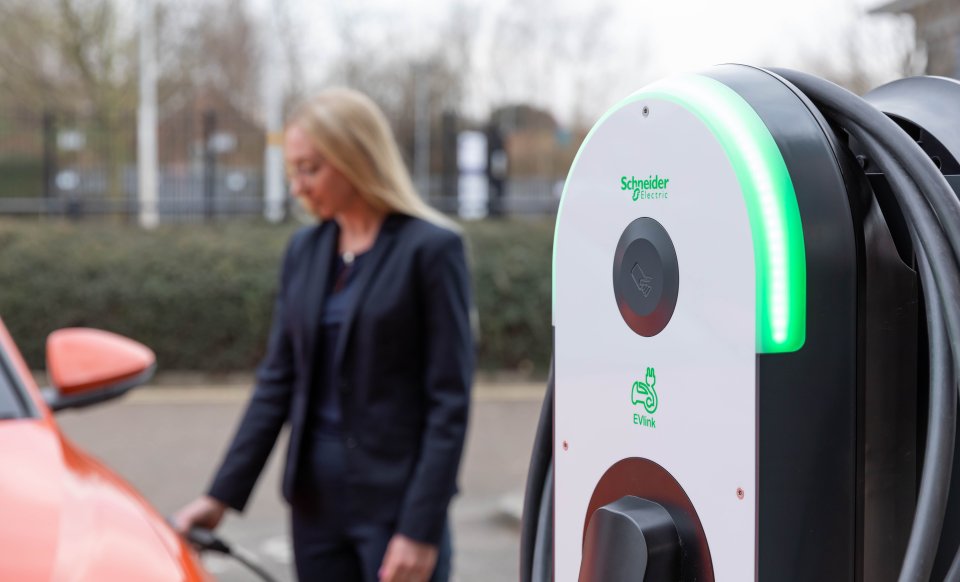

• Local Indication: 1 green LED light strip for available / 1 blue LED light strip for charging / 1 red LED light strip for fault indication
• Communication Port Protocol: OCPP 1.6 Json Smart Charging
• Network Connection: Bluetooth / Ethernet / Modbus TCP / 3G/4G
• Connector Type: 2 RJ45 connectors for Ethernet LAN connection
• Communication Protocol: OCPP 1.6
• Communication Service: JSON smart charging OCPP 1.6
• Available Functions: charging data records / load management / diagnostics features
• Operating Mode: standalone / block architecture
• Built-in Protection: RDC-DD - 6 mA / MNx
• Included Equipment: 1 residual direct current detection device (RDC-DD) Integrated / 1 energy meter Integrated
• Measurement Accuracy: Class 1
• IP Protection Class: IP55
• IK Protection Class: IK10
• Operating Temperature: -3050 °C
• Storage Temperature: -4080 °C
• Relative Humidity of Operating Environment: 5 - 95 %
• Operating Altitude: 0...2000 m
• Standards: IEC/EN 61851-1, version 3.0 / IEC/EN 62196-1, version 2.0 / IEC/EN 62196-2, version 1.0 / EN 61000-6-2: 2019 / EN 61000-6-3:2007 + A1:2011 / IEC 60884-1 / NF-C 61314 / ISO 15118
• Certification: CE / EV Ready
• Directives: 2014/32/EU - measuring instruments directive (MID)
• EU RoHS Directive: compliant
• Mercury-free: yes
• Height: 529 mm
• Width: 317 mm
• Depth: 183 mm
• Weight: 10 kg
• Color: white/black/dark gray

Sales Package Includes:

• Charging Station

Compatible Products:

• Schneider Electric EVlink Pro AC Pedestal, 1 device
• Schneider Electric EVlink Pro AC Pedestal, 2 devices
• Schneider Electric EVlink Pro AC Metal Enclosure Set, 1 device
• Schneider Electric EVlink Pro AC Metal Enclosure Set, 2 devices
• Schneider Electric EVlink Pro AC Wall Enclosure Metal Set, 1 device
• Schneider Electric EVlink Pro AC Cable Holder
