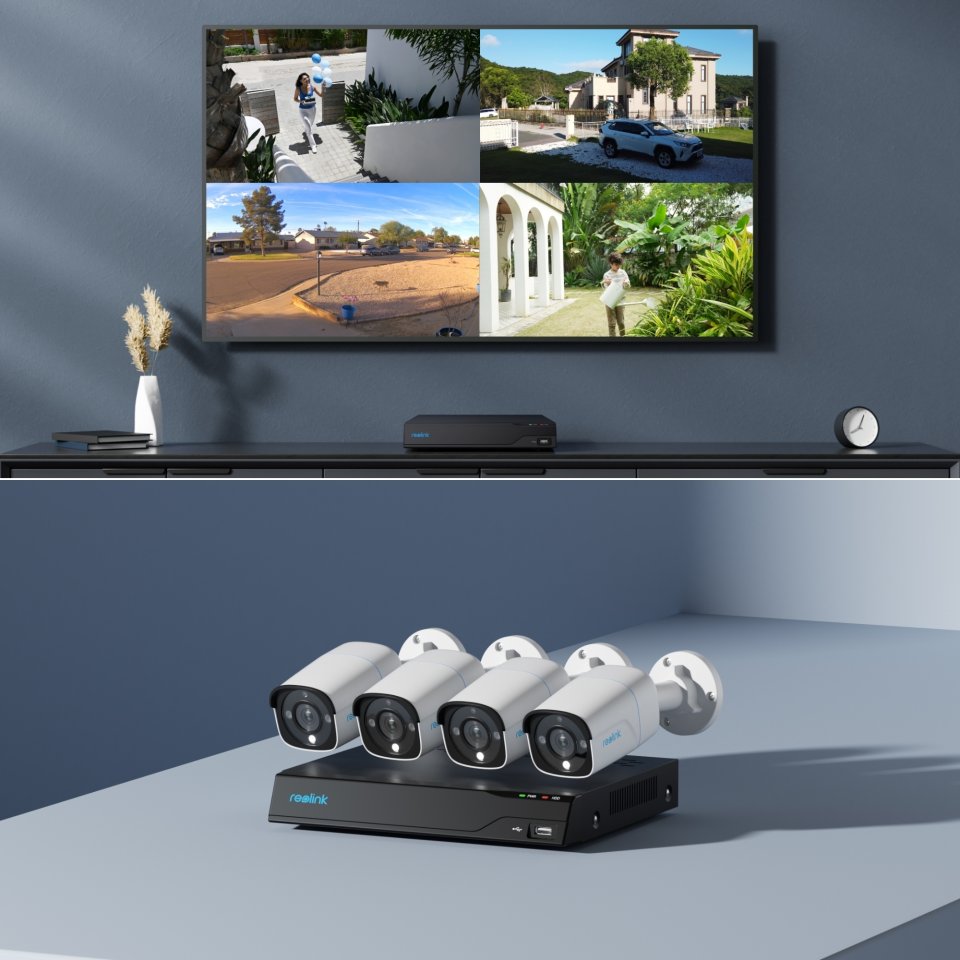

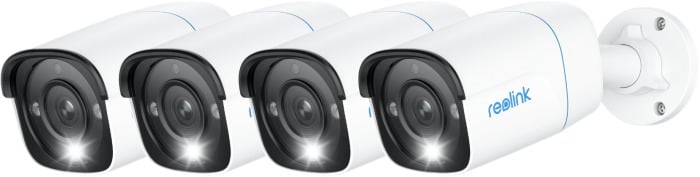

The Reolink NVS8-8MB4 is a high-quality 8-channel 4K Ultra HD surveillance camera system. The system includes four Reolink P330 outdoor cameras and an 8-channel NVR recorder, which are easy to install even for those who have not previously installed surveillance camera equipment. The P330 cameras have a resolution of 3840 x 2160 with a horizontal field of view of 105° and vertical 56°. Night features have been emphasized, and invisible infrared LEDs illuminate up to 30 meters. In addition to traditional IR night vision, the cameras have an LED light that enables vivid color images even in the dark. 3D DNR technology reduces image noise, keeping the picture clean and clear in all conditions. Intelligent motion detection immediately detects movement and starts recording. The system also supports continuous 24/7 recording from all cameras.

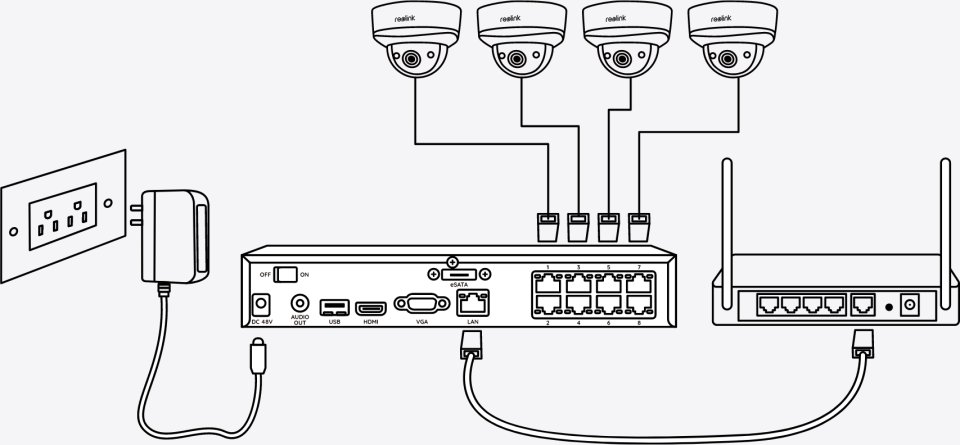

The NVR recorder has a 1 x 2 TB SATA hard drive. In addition to the internal hard drive, the recorder has one free eSATA port for connecting a second hard drive (total max. 2 x 6 TB). The cameras receive power from the recorder via Ethernet cable (PoE), so no separate power cables are needed. This greatly simplifies installation, and longer cable runs are not a problem. The recorder has eight (8) Ethernet ports, all with PoE power supply. The recorder’s maximum power supply is 75 W. Installation and operation are easy through the recorder’s own management system. The recorder can also be used via the Reolink mobile app (iOS and Android) or Client software (PC and Mac).

In addition to the included cameras, the system can be expanded with Reolink Ethernet, PoE, and WiFi cameras (battery-powered cameras are not compatible).

The P330 cameras included with the surveillance system do not operate independently without the NVR recorder. The recorder must be installed indoors in a dry location.

Features:

• 8-channel surveillance camera system (max 8 cameras)
• 4K resolution (3840 x 2160)
• 4 IP66-rated outdoor cameras
• Camera viewing angle: horizontal 105°, vertical 56°
• Night vision with IR LEDs, LED light
• Noise-reducing 3D DNR technology
• Intelligent motion detection – detects people and vehicles
• Built-in microphone records audio
• PoE power supply
• iOS and Android mobile app
• PC and Mac software

Technical specifications:

• 1 x 2 TB SATA hard drive
• eSATA port for a second hard drive

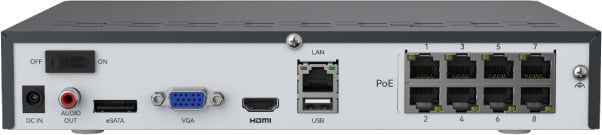

• HDMI and VGA connections for connecting to a monitor or TV
• USB 2.0 ports (2 pcs)
• 10/100M LAN ports, 8 pcs, PoE support (IEEE 802.3af/at)
• 10/100M LAN/WAN port
• Supported network protocols: HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
• Supported video compression standards: H.265, H.264
• Total PoE power budget 75 W

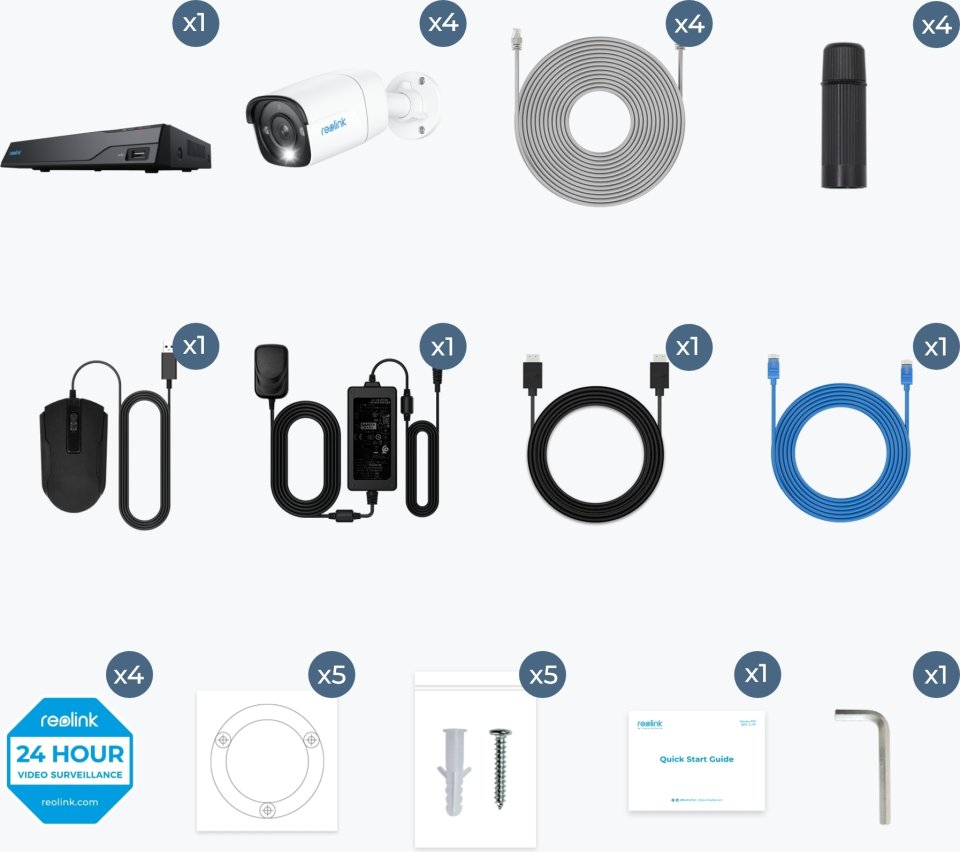

Package contents:

• Reolink NVS8 NVR recorder with 2 TB hard drive
• 4 pcs P330 cameras
• Power adapter for the recorder
• HDMI cable
• USB mouse
• 1 pc 1 m Ethernet cable
• 4 pcs 18 m Ethernet cables
• Screws, hex key, waterproof connectors, warning sticker
• Quick installation guide
