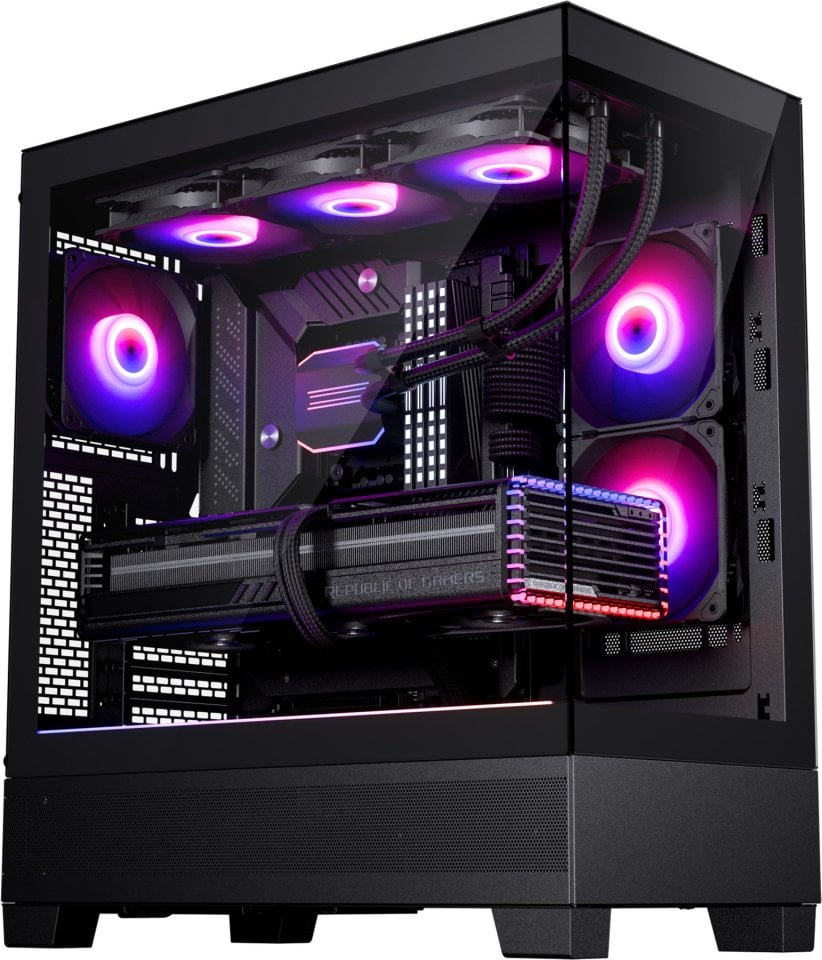

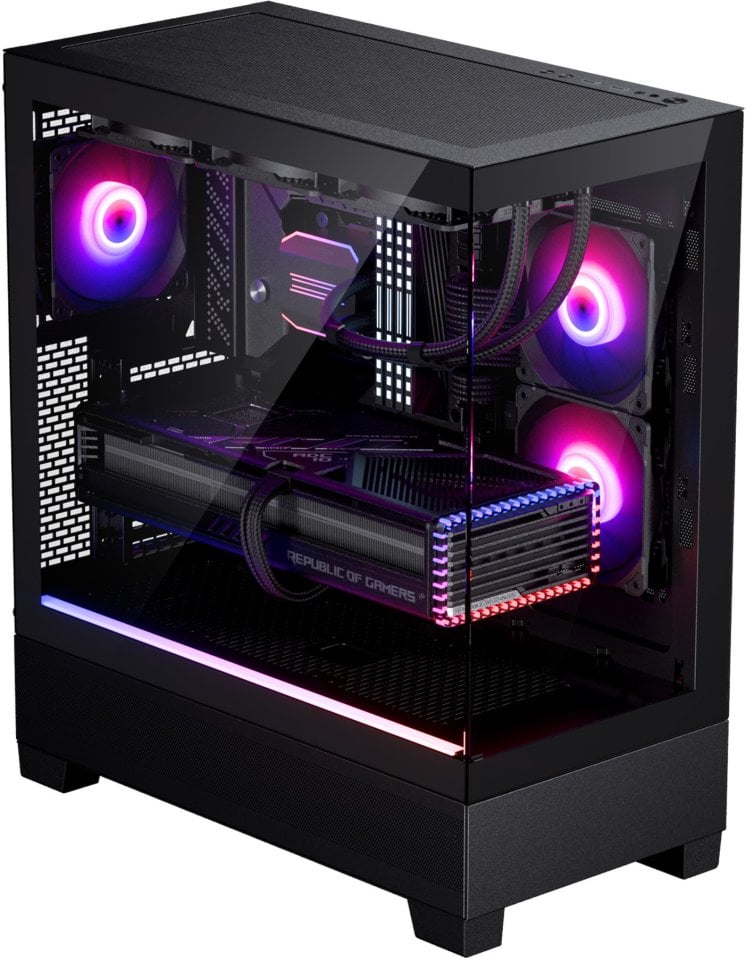

The XT series is designed to provide more cooling capacity and interior space for the latest motherboard versions. Thanks to the case’s length and width, it easily accommodates even the largest graphics cards, and there is also enough room for cable management. Cooling is optimized with up to nine fan slots and a separate radiator at the top of the case.

• Support for the largest graphics cards
• Separate 360 mm radiator space on the top
• Support for motherboards with the latest rear connectors such as MSI Project Zero and ASUS BTF motherboards
• USB-C 3.2 2nd generation
• Triple SSD Bracket
• Includes 3 x 120 mm black D-RGB fans
• USB-C 3.2 Gen2
• D-RGB LED strip
• D-RGB controller
• Triple SSD bracket

Features:

• Motherboard support: ATX, Micro-ATX, Mini-ITX, E-ATX (up to 280 mm without GPU support bracket)
• Rear motherboard support: Supports MSI Project Zero motherboards and ASUS BTF motherboards
• Size: Mid Tower
• Material: Steel, tempered glass, ABS plastic
• Color: satin black
• 5.25″ bays: 0 pcs
• 2.5″ bays: 5 pcs
• 3.5″ bays: 2 pcs
• Connections: Power Switch, Reset Switch, HD audio, USB 3.0, USB 3.2 GEN 2 Type-E, D-RGB extension, D-RGB motherboard

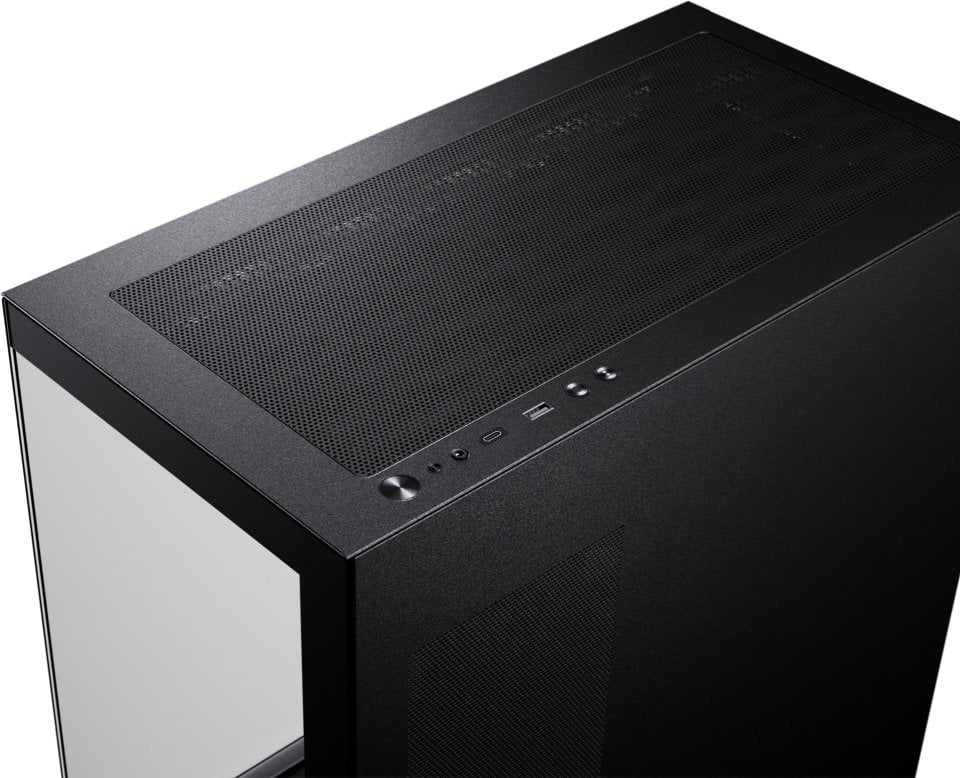

• Front panel: 1 x USB-C 3.2 GEN 2, 2 x USB 3.0, microphone/headphone combo, Reset button, Power button, D-RGB color button, D-RGB mode button
• Vertical GPU support: Yes, with optional bracket (PH-VGPUKT4.0_03R)
• Expansion slots: 7
• Maximum power supply depth: 270 mm
• Maximum CPU cooler height: 184 mm
• Maximum graphics card length: 415 mm
• Maximum graphics card width: 184 mm
• Top 360 radiator space: 415 x 138 x 60 mm
• Side 240 mm radiator: 305 x 120 x 62 mm (only with Vertical GPU)
• Rear 120 mm radiator: 140 x 170 mm
• Dimensions: 440 x 230 x 500 mm
• Weight: 7.65 kg
• Delivery includes 1x XT View case, 3x M25-120 D-RGB fans, 1 x Side D-RGB LED strip, 1 x D-RGB controller, 1 x USB Type-C 3.2 gen 2 / 1 x USB 3.0, Brackets: 2 x HDD / 1 x HDD + 2 x SSD, 1 x Triple SSD bracket, 1 x accessory pack with necessary screws

Fan slots:

• Top: 3 x 120 mm / 2 x 140 mm
• Rear: 1 x 120 mm / 1 x 140 mm

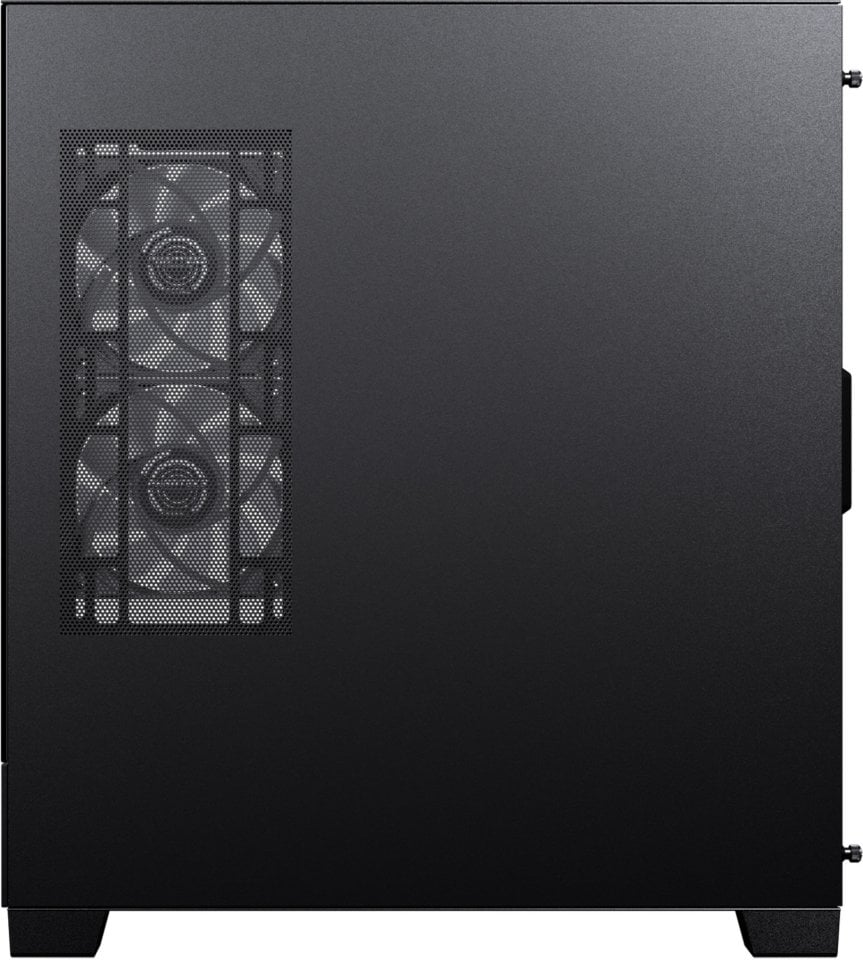

• Right side: 2 x 120 mm
• Middle plate: 3 x 120 mm

Radiator support:

• Top: up to 360 mm
• Rear: 120 mm
• Right side: up to 240 mm
