The Phanteks XT series is designed to offer more cooling capacity and space for the latest motherboard versions as well as the largest graphics cards.

• Support for the largest graphics cards
• Separate 360 mm radiator space at the top
• Support for motherboards with the latest rear connectors such as MSI Project Zero and ASUS BTF motherboards
• 1 x 120 mm black fan
• 1 x USB 3.0 Type-C

Features:

• Motherboard support: ATX, Micro-ATX, Mini-ITX, E-ATX (up to 280 mm without GPU support bracket)
• Rear connector motherboard support: Supports MSI Project Zero and ASUS BTF motherboards
• Size: Mid Tower
• Color: Satin black
• Material: Steel, tempered glass, ABS plastic
• 5.25″ bays: 0 pcs
• 2.5″ bays: 2 pcs
• 3.5″ bays: 2 pcs
• Connections: Power switch, Reset switch, Power LED, HDD LED, HD audio, USB 3.0

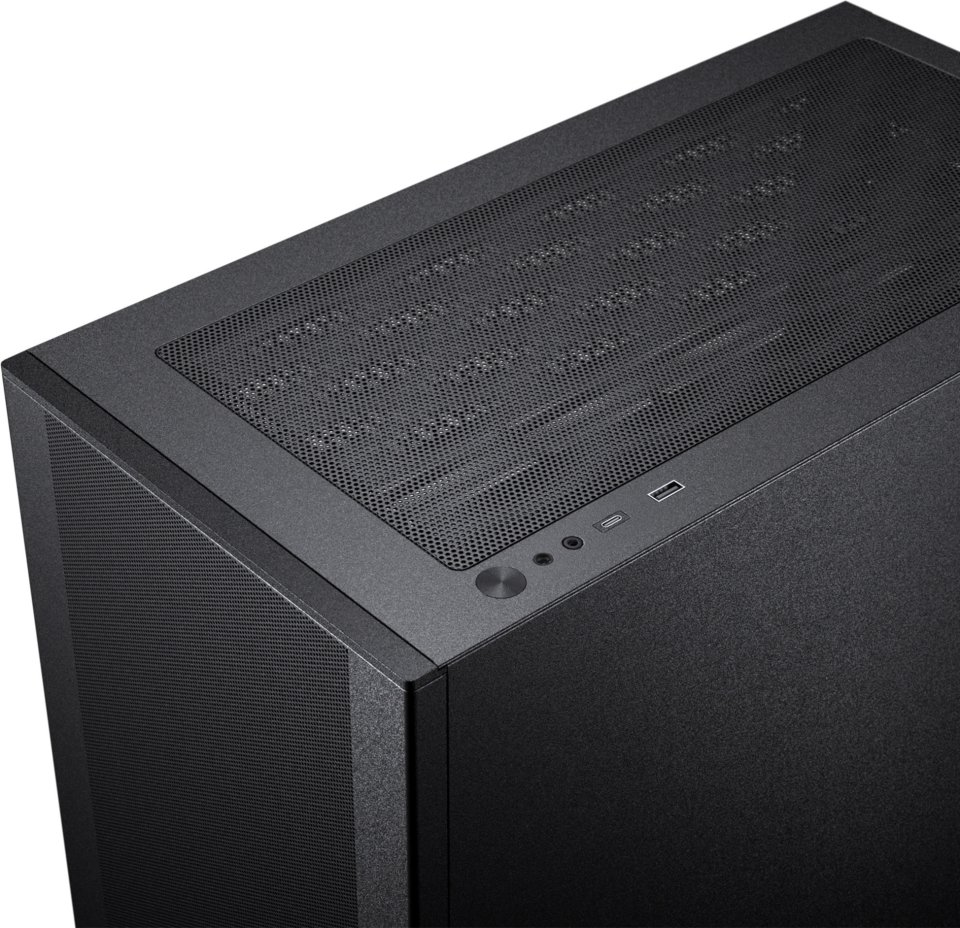

• Front panel: 1x USB-C 3.0 + 1x USB 3.0, Microphone/Headphone combo, Reset button, Power button
• Vertical GPU support: Yes, with optional bracket (PH-VGPUKT4.0_03R)
• Expansion slots: 7
• Maximum power supply depth: 270 mm
• Maximum CPU cooler height: 184 mm
• Maximum graphics card length: 415 mm
• Maximum graphics card width: 184 mm
• Top 360 radiator space: 415 x 138 x 60 mm
• Rear 120 radiator space: 120 x 170 mm
• Dimensions: 450 x 230 x 500 mm
• Weight: 7.55 kg
• Delivery includes 1x XT Pro case, 1x M25-120 black fan, 1x USB 3.0 Type-C + 1x USB 3.0, mounting brackets: 2x HDD / 1x HDD + 2x SSD, 1x accessory box with necessary screws

Fan mounts:

• Top: 3 x 120 mm / 2 x 140 mm
• Rear: 1 x 120 mm / 1 x 140 mm
• Front: 3 x 120 mm / 3 x 140 mm
• Middle plate: 3 x 120 mm

Radiator support:

• Top: up to 360 mm
• Rear: 120 mm
• Front: up to 240 mm
