Additional information

Country of Origin

Denmark

PID

1011668

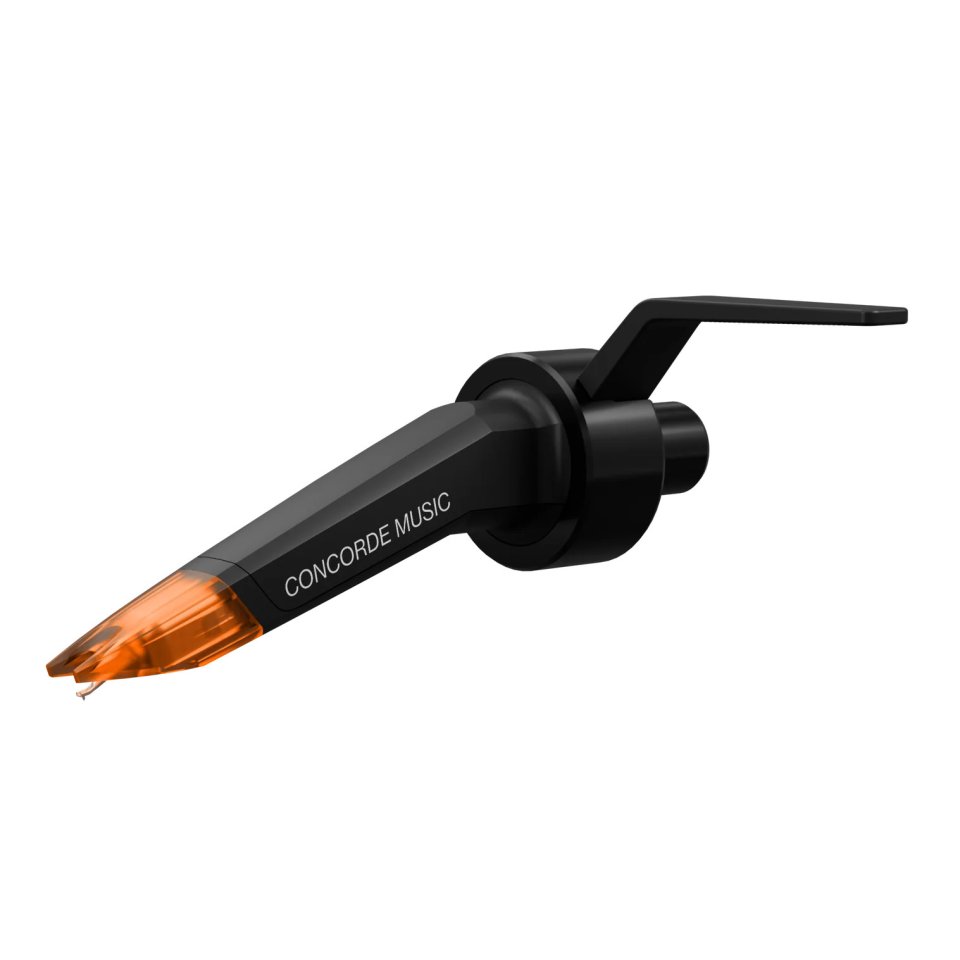

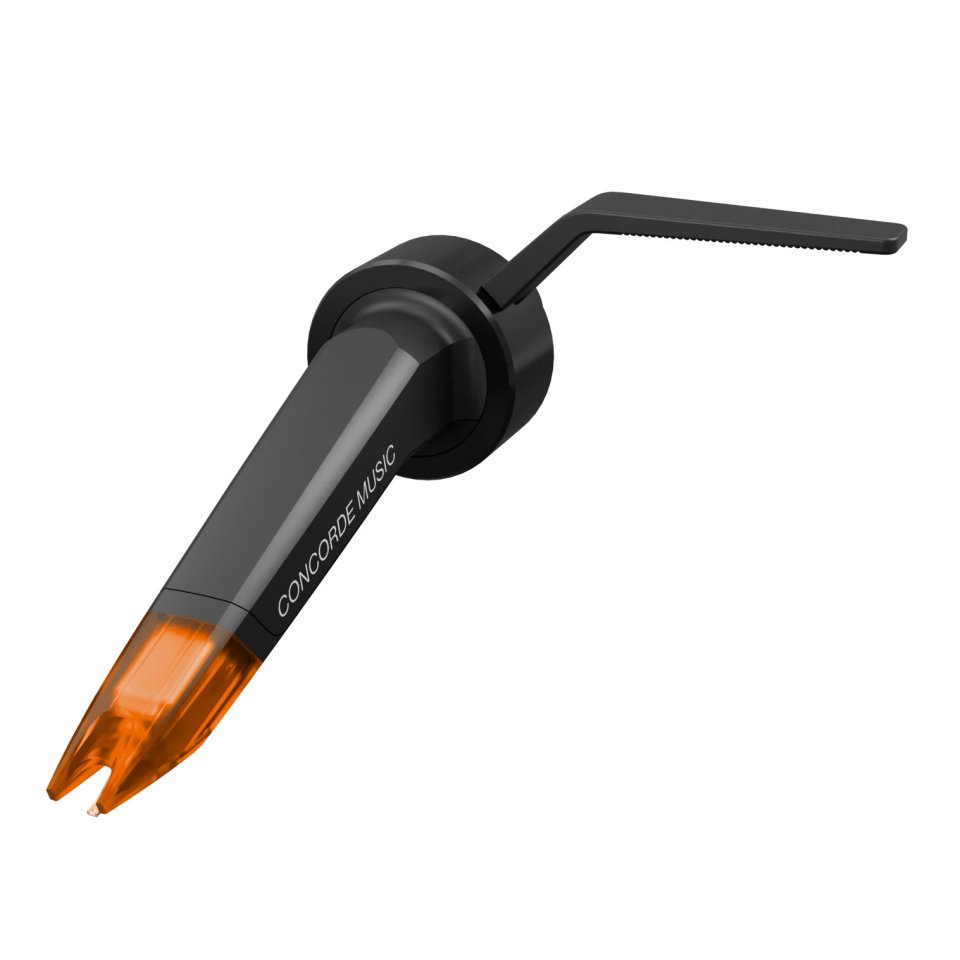

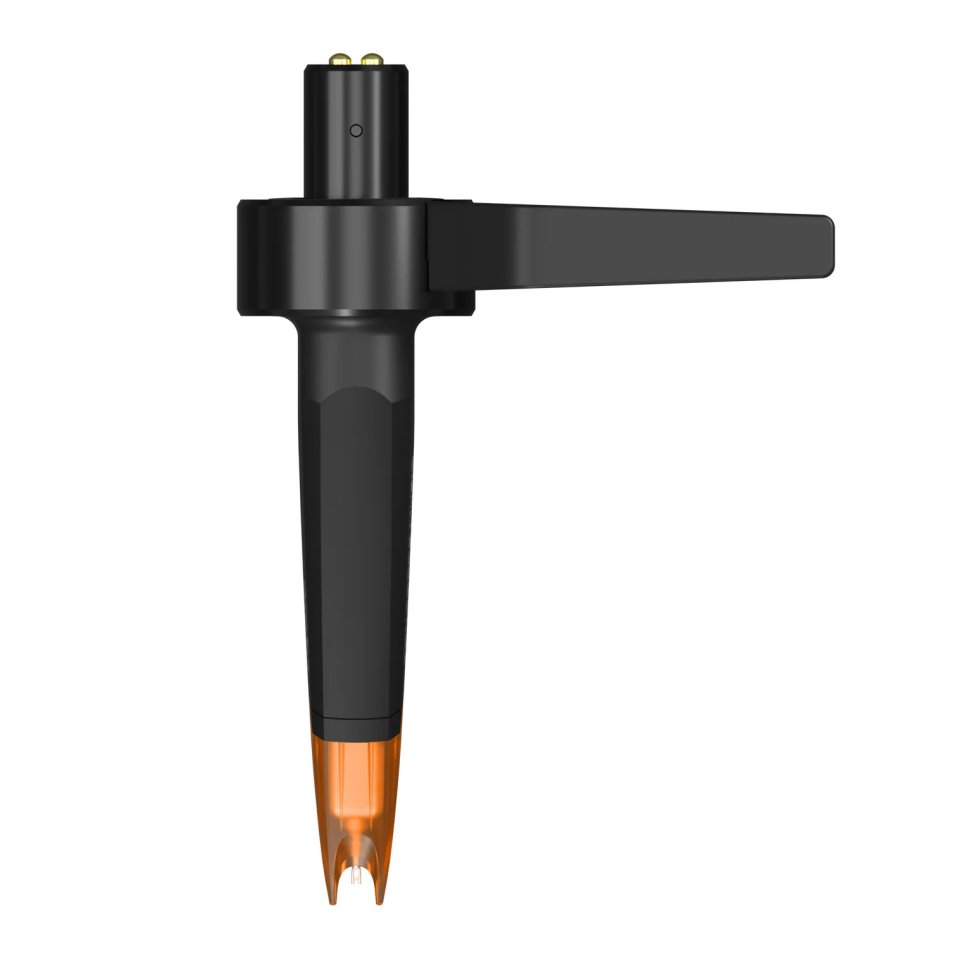

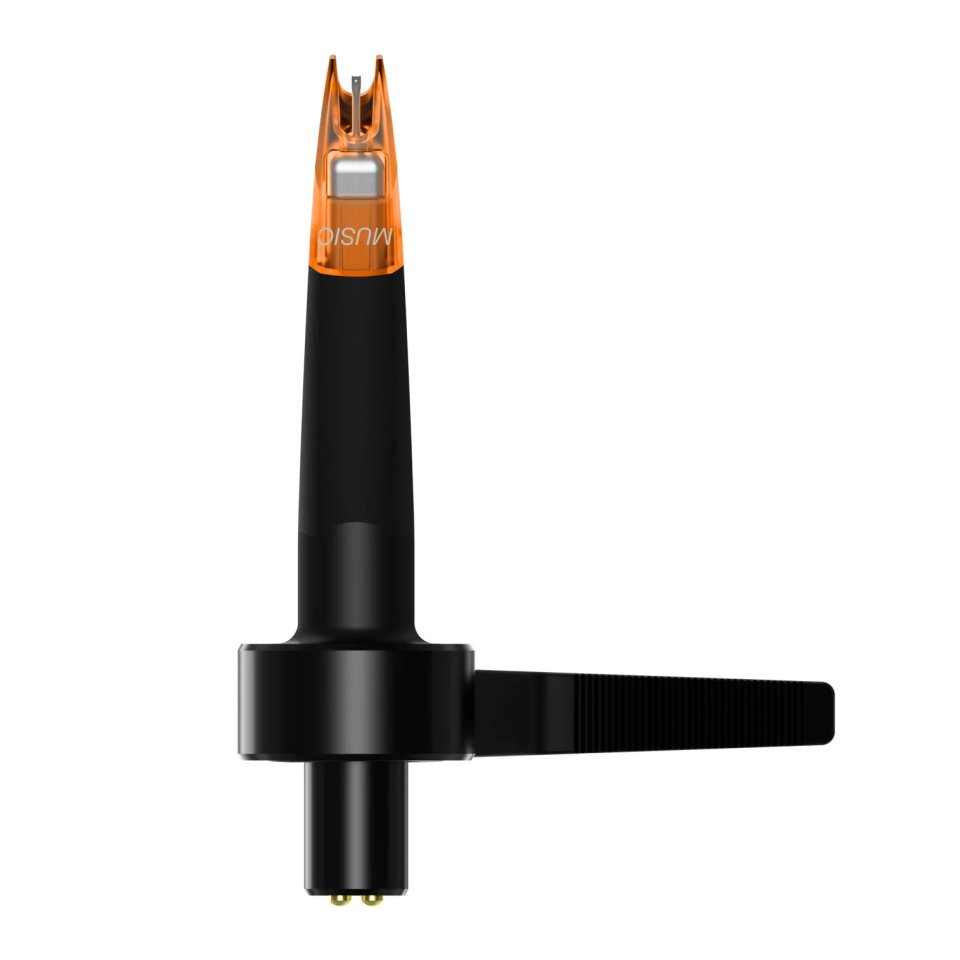

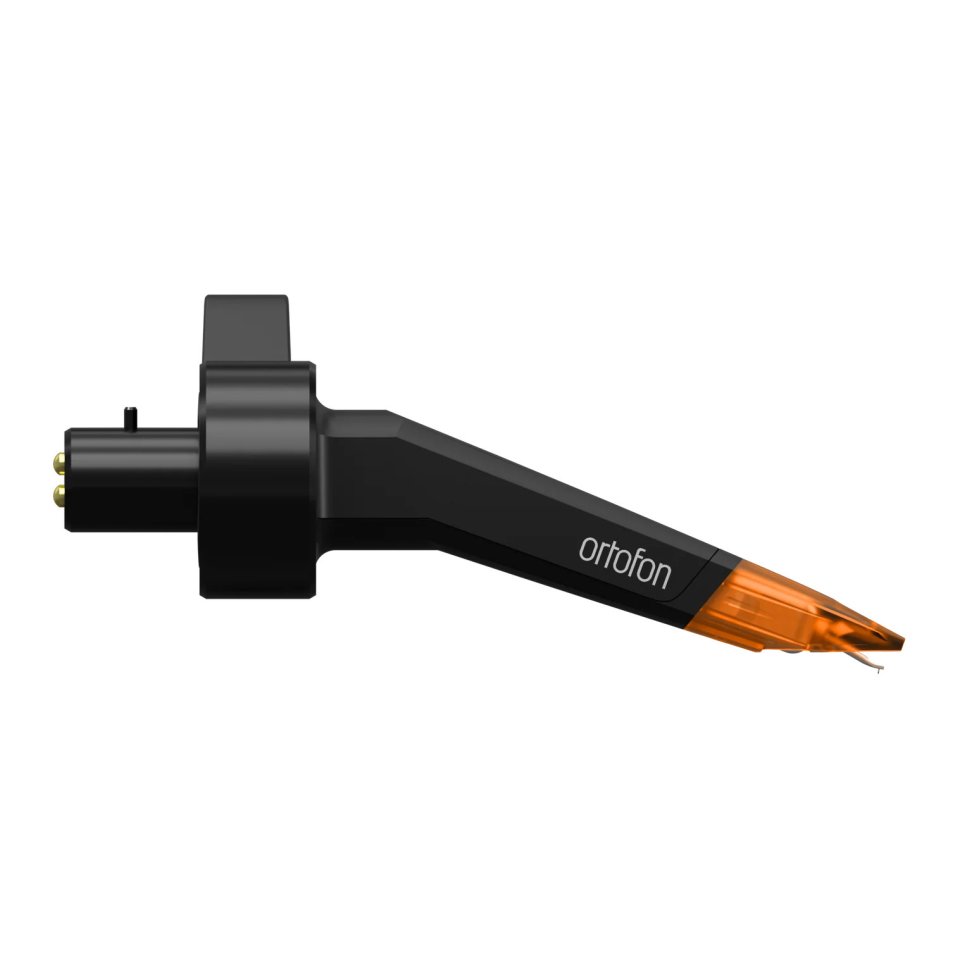

The Concorde Music Bronze cartridge combines classic design with precise sound reproduction. Featuring a Nude Fine Line diamond stylus on an aluminum cantilever, it offers a clear upgrade path within the Concorde Music series. Its tool-free bayonet mounting makes installation simple and compatible with all S-shaped tonearms.

Iconic Design

Inspired by the original Concorde cartridge, this model carries a legacy of innovation. Designed to attach easily to tonearms without screws or wires, its shape has received recognition for industrial design and remains a symbol in the audio world.

High-Resolution Sound

The Nude Fine Line stylus provides faithful tracking of record grooves, delivering detailed and accurate audio. Its narrow profile and extended contact area ensure precise playback, enhancing your listening experience with clarity and depth.

Exclusive Suspension System

The cartridge uses Ortofon’s specially developed rubber suspension, crafted in-house to optimize performance. This internal component plays a key role in delivering consistent tracking and sound quality.

Advanced Generator Technology

Equipped with a four-coil generator and silver-plated oxygen-free copper wiring, the cartridge achieves excellent channel balance and separation. It outputs 6 mV, offering natural sound with clear detail across the frequency range.

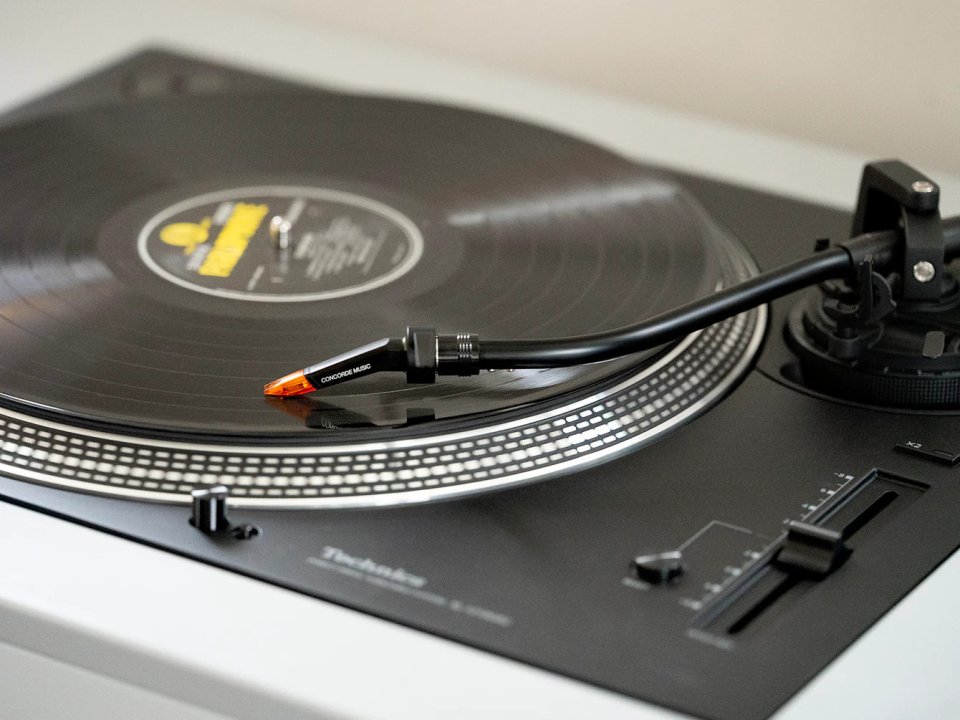

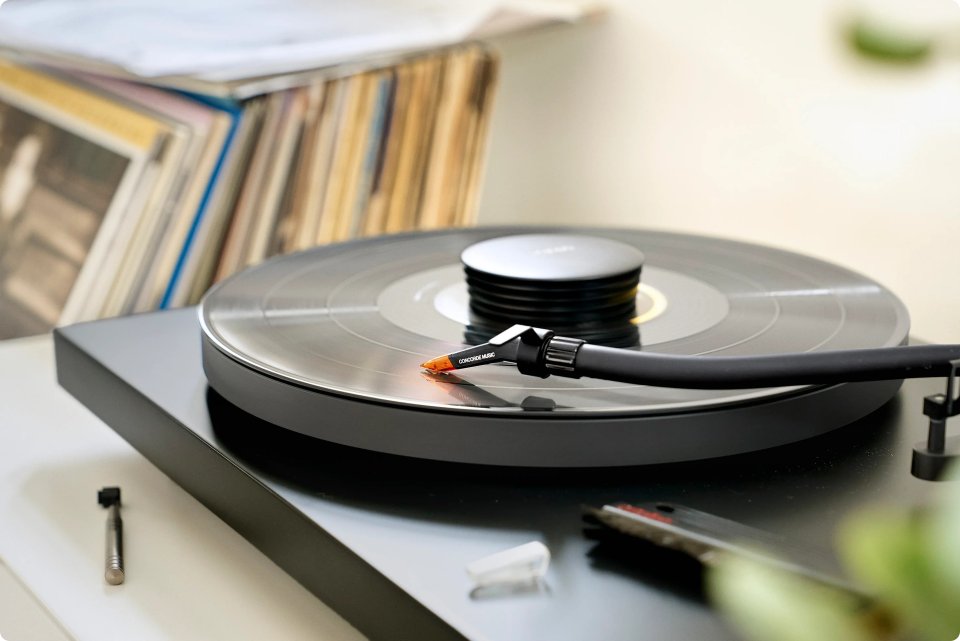

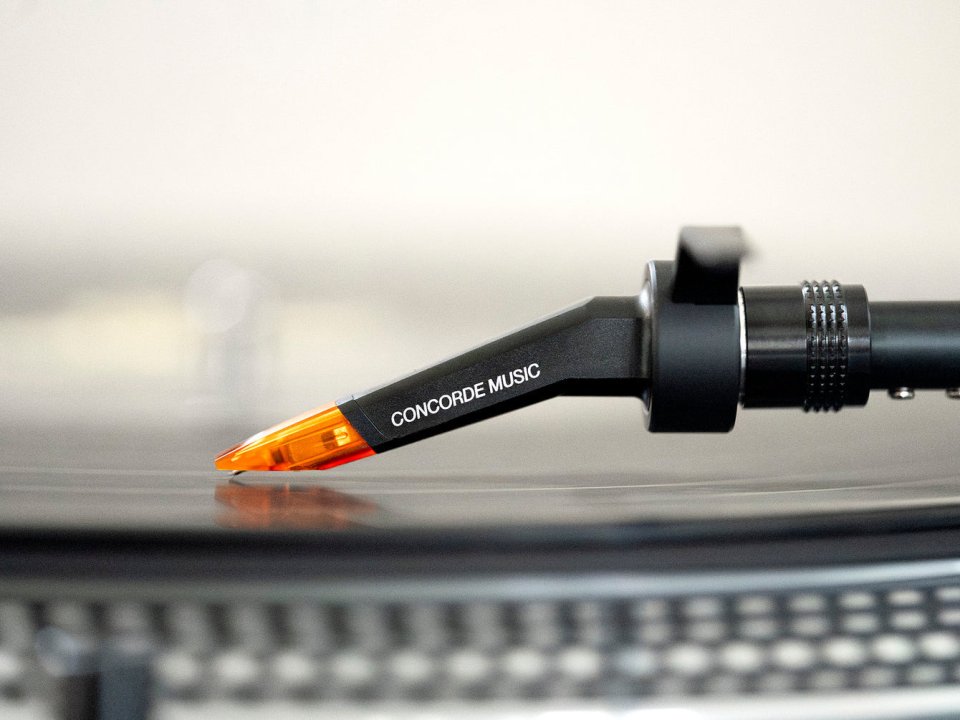

Effortless Installation

The bayonet mount allows quick and secure attachment to any S-shaped tonearm without tools. This user-friendly design makes setup straightforward and hassle-free.

Upgradeable Stylus

The Concorde Music Bronze supports easy stylus replacement, enabling upgrades within the series up to the Concorde Music Black LVB 250. Simply remove the old stylus and insert the new one, keeping the stylus guard in place during the process.

Features

  • Stylus: Nude Fine Line diamond with aluminum cantilever
  • Output voltage: 6 mV at 1 kHz, 5 cm/s
  • Channel balance at 1 kHz: 1 dB
  • Channel separation: 26 dB at 1 kHz, 17 dB at 15 kHz
  • Frequency response: 20 Hz – 20 kHz, +2 / 0 dB
  • Tracking ability at 315 Hz with recommended tracking force: 80 µm
  • Dynamic compliance, lateral: 15 µm/mN
  • Recommended tracking force: 1,8 g
  • Tracking angle: 20°
  • Internal DC resistance: 1,27 kΩ
  • Internal inductance: 815 mH
  • Recommended load resistance: 47 kΩ
  • Recommended load capacitance: 150–300 pF
  • Weight: 18 g
  • Color: black/bronze
  • Mount type: bayonet, compatible with S-shaped tonearms
Toote pildid on illustratiivsed ja näitlikud. Originaaltoote omadused võivad nende tegelikust väljanägemisest erineda, seega palun tutvuge tootekirjelduses toodud tootespetsifikatsioonidega.
LAOS OLEMAS

Ortofon Concorde Music Bronze cartridge

338.51
sis. KM 24%
  • MM cartridge with bayonet/SME mount
  • Nude Fine Line Diamond Needle
  • Output voltage 6 mV
  • Needle bar aluminum
  • Weight 18 grams
Eeldatav tarneaeg: 4-7 päeva
Maksa hiljem või osana
Tootekood: 01430200
EAN kood: 5705796080643, 2220010116685

The Concorde Music Bronze cartridge combines classic design with precise sound reproduction. Featuring a Nude Fine Line diamond stylus on an aluminum cantilever, it offers a clear upgrade path within the Concorde Music series. Its tool-free bayonet mounting makes installation simple and compatible with all S-shaped tonearms.

Iconic Design

Inspired by the original Concorde cartridge, this model carries a legacy of innovation. Designed to attach easily to tonearms without screws or wires, its shape has received recognition for industrial design and remains a symbol in the audio world.

High-Resolution Sound

The Nude Fine Line stylus provides faithful tracking of record grooves, delivering detailed and accurate audio. Its narrow profile and extended contact area ensure precise playback, enhancing your listening experience with clarity and depth.

Exclusive Suspension System

The cartridge uses Ortofon’s specially developed rubber suspension, crafted in-house to optimize performance. This internal component plays a key role in delivering consistent tracking and sound quality.

Advanced Generator Technology

Equipped with a four-coil generator and silver-plated oxygen-free copper wiring, the cartridge achieves excellent channel balance and separation. It outputs 6 mV, offering natural sound with clear detail across the frequency range.

Effortless Installation

The bayonet mount allows quick and secure attachment to any S-shaped tonearm without tools. This user-friendly design makes setup straightforward and hassle-free.

Upgradeable Stylus

The Concorde Music Bronze supports easy stylus replacement, enabling upgrades within the series up to the Concorde Music Black LVB 250. Simply remove the old stylus and insert the new one, keeping the stylus guard in place during the process.

Features

  • Stylus: Nude Fine Line diamond with aluminum cantilever
  • Output voltage: 6 mV at 1 kHz, 5 cm/s
  • Channel balance at 1 kHz: 1 dB
  • Channel separation: 26 dB at 1 kHz, 17 dB at 15 kHz
  • Frequency response: 20 Hz – 20 kHz, +2 / 0 dB
  • Tracking ability at 315 Hz with recommended tracking force: 80 µm
  • Dynamic compliance, lateral: 15 µm/mN
  • Recommended tracking force: 1,8 g
  • Tracking angle: 20°
  • Internal DC resistance: 1,27 kΩ
  • Internal inductance: 815 mH
  • Recommended load resistance: 47 kΩ
  • Recommended load capacitance: 150–300 pF
  • Weight: 18 g
  • Color: black/bronze
  • Mount type: bayonet, compatible with S-shaped tonearms
